Hitachi / Hikoki DH26PB Rotary Hammer Drill Spare Parts

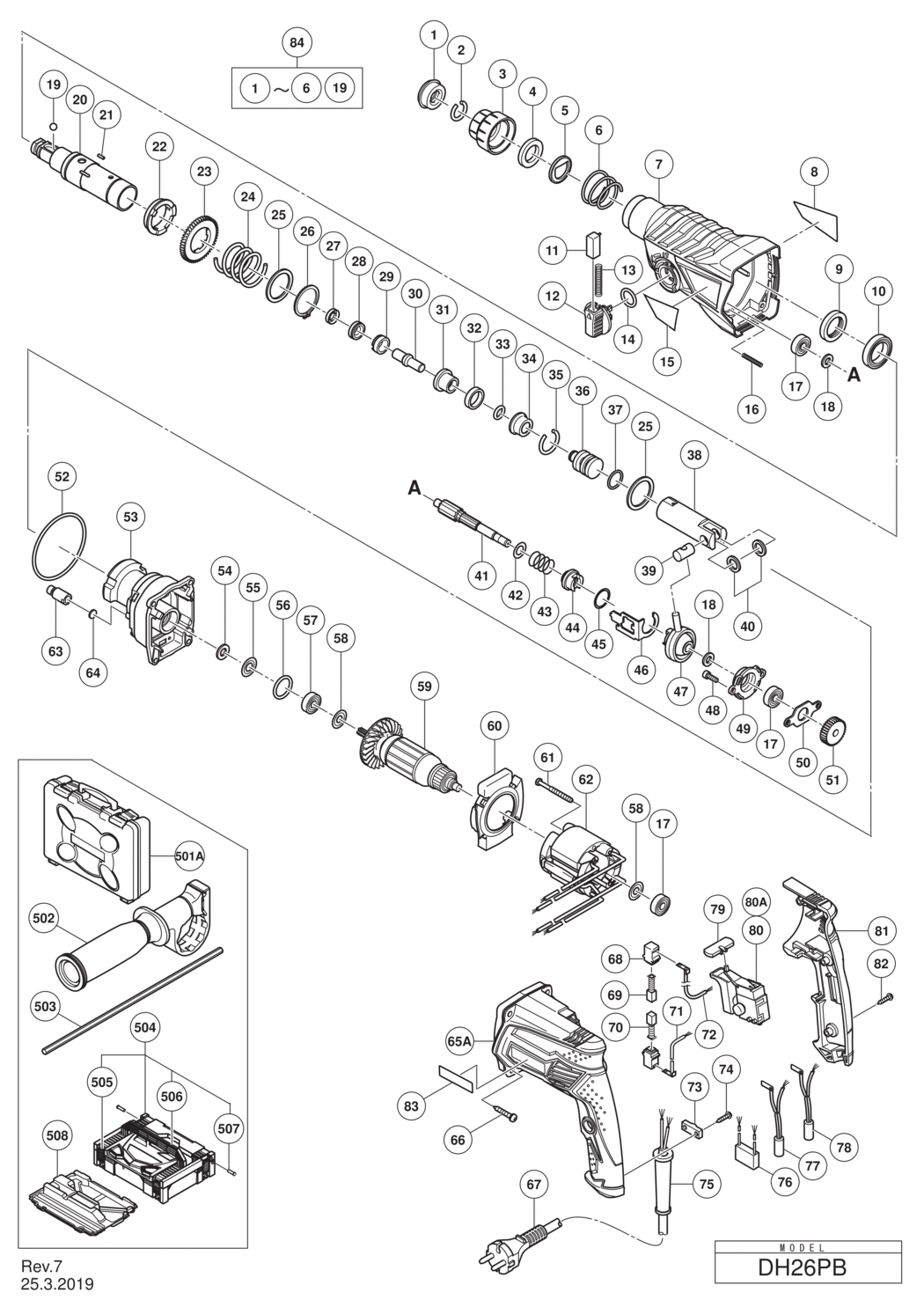

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH26PB Rotary Hammer Drill

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-306345.A0 306345	£3.59	£4.31
2 - STOPPER RING HIT-306340.A34 306340	£1.67	£2.00
3 - GRIP HIT-324527.A4 324527	£4.33	£5.20
4 - BALL HOLDER HIT-324528.A10 324528	£8.66	£10.39
5 - HOLDER PLATE HIT-324526.A19 324526	£4.33	£5.20
6 - HOLDER SPRING HIT-322812.A18 322812	£1.67	£2.00
7 - GEAR COVER HIT-335258.A1 335258	-
8 - NAME PLATE HIT-000000.A321 000000	-
9 - OIL SEAL HIT-335259.A10 335259	£5.07	£6.08
10 - BALL BEARING 6805DD HIT-335260.A4 335260	£6.06	£7.27
11 - PUSHING BUTTON HIT-322789.A17 322789	£6.50	£7.80
12 - CHANGE LEVER HIT-334011.A5 334011	£3.92	£4.70
13 - PUSHING SPRING HIT-317223.A2 317223	£1.67	£2.00
14 - O-RING (S-18) HIT-878885.A53 878885	£1.67	£2.00
15 - BRAND LABEL HIT-000000.A322 000000	-
16 - SPRING (E) HIT-335800.A6 335800	£1.67	£2.00
17 - BALL BEARING 608VVC2PS2L HIT-608VVM.A144 608VVM	£5.70	£6.84
18 - BEARING WASHER HIT-335250.A4 335250	£1.67	£2.00
19 - STEEL BALL D7.0 (10 PCS.) HIT-335300.A11 335300	£1.67	£2.00
20 - CYLINDER HIT-335261.A6 335261	£34.50	£41.40
21 - PIN D2.5 HIT-335264.A4 335264	£1.67	£2.00
22 - CYLINDER CLUTCH HIT-335263.A7 335263	£18.38	£22.05
23 - SECOND GEAR HIT-335265.A9 335265	£10.52	£12.62
24 - SPRING (A) HIT-335266.A4 335266	£1.67	£2.00
25 - WASHER (A) HIT-301679.A3 301679	£1.67	£2.00
26 - RETAINING RING FOR D30 SHAFT HIT-948310.A20 948310	£1.67	£2.00
27 - OIL SEAL (A) HIT-335262.A7 335262	£3.12	£3.74
28 - HAMMER HOLDER (C) HIT-335268.A4 335268	£16.28	£19.54
29 - SLEEVE (FW) HIT-335795.A11 335795	£7.66	£9.19
30 - SECOND HAMMER HIT-335269.A6 335269	£7.12	£8.54
31 - HAMMER HOLDER (A) HIT-335267.A7 335267	£5.43	£6.52
32 - DAMPER (A) HIT-322805.A17 322805	£1.67	£2.00
33 - O-RING (C) HIT-322808.A17 322808	£1.67	£2.00
34 - DAMPER HOLDER HIT-324524.A21 324524	£8.66	£10.39
35 - STOPPER RING HIT-322807.A11 322807	£1.67	£2.00
36 - STRIKER HIT-335246.A3 335246	£7.48	£8.97
37 - O-RING D17 HIT-335247.A6 335247	£4.72	£5.66
38 - PISTON HIT-335255.A6 335255	£19.02	£22.83
39 - PISTON PIN HIT-335793.A22 335793	£5.78	£6.94
40 - PISTON WASHER HIT-335794.A0 335794	£1.67	£2.00
41 - SECOND SHAFT HIT-335248.A1 335248	-
42 - WASHER (C) HIT-335251.A2 335251	-
43 - CLUTCH SPRING HIT-323182.A3 323182	£1.67	£2.00
44 - CLUTCH HIT-335254.A3 335254	£7.12	£8.54
45 - WASHER HIT-331315.A18 331315	£1.67	£2.00
46 - CHANGE PLATE HIT-335252.A3 335252	-
47 - RECIPROCATING BEARING HIT-335249.A9 335249	£19.98	£23.97
48 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A39 990079	£1.67	£2.00
49 - BEARING HOLDER HIT-335270.A2 335270	£15.84	£19.01
50 - BEARING COVER HIT-335271.A4 335271	£1.67	£2.00
51 - FIRST GEAR HIT-335253.A4 335253	£11.52	£13.82
52 - O-RING D72.2 HIT-335245.A6 335245	£1.67	£2.00
53 - INNER COVER HIT-335272.A1 335272	£15.94	£19.13
54 - FELT PACKING HIT-322816.A14 322816	£1.67	£2.00
55 - PACKING WASHER HIT-322818.A5 322818	£4.33	£5.20
56 - O-RING (P-22) HIT-876796.A17 876796	£1.67	£2.00
57 - BALL BEARING 608DD HIT-608DDM.A26 608DDM	£6.35	£7.62
58 - WASHER (A) HIT-982631.A18 982631	£1.67	£2.00
*59 - ARMATURE ASS'Y 110V-127V INCLUD.17 HIT-360961U.A0 360961U	£34.78	£41.74
*59 - ARMATURE 220V-230V HIT-360961E.A4 360961E	£29.49	£35.39
60 - FAN GUIDE HIT-335244.A2 335244	£1.67	£2.00
61 - HEX. HD. TAPPING SCREW D4X50 HIT-961672.A4 961672	-
*62 - STATOR 110V-127V HIT-340850C.A0 340850C	£21.78	£26.13
*62 - STATOR 220V-230V HIT-340850E.A4 340850E	£21.70	£26.04
63 - AIR CAP HIT-334008.A16 334008	-
64 - FELT PACKING (A) HIT-324543.A24 324543	£1.67	£2.00
65A - HOUSING HIT-335241.A2 335241	£15.44	£18.53
66 - TAPPING SCREW (W/FLANGE) D5X35 HIT-301654.A11 301654	£1.67	£2.00
*67 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A38 500446Z	£33.79	£40.55
*67 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500465Z.A19 500465Z	£26.20	£31.44
*67 - CORD (CORD ARMOR D8.8) FOR CHN HIT-500496Z.A5 500496Z	-
68 - BRUSH HOLDER HIT-955203.A40 955203	£4.16	£4.99
69 - CARBON BRUSH (1 PAIR) HIT-999041.A57 999041	£5.54	£6.65
70 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999072.A13 999072	£14.16	£16.99
73 - CORD CLIP HIT-937631.A82 937631	£1.67	£2.00
74 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A178 984750	£1.67	£2.00
*75 - CORD ARMOR D8.8 HIT-953327.A152 953327	£1.67	£2.00
*76 - NOISE SUPPRESSOR EXCEPT FOR BRA HIT-930039.A14 930039	£3.85	£4.62
*77 - CHOKE COIL (A) BROWN EXCEPT FOR BRA HIT-335857.A4 335857	£3.48	£4.17
*78 - CHOKE COIL (A) BLUE EXCEPT FOR BRA HIT-324551.A6 324551	£14.51	£17.41
79 - PUSHING BUTTON HIT-322853.A7 322853	£1.67	£2.00
*80 - SWITCH HIT-335796.A0 335796	£20.10	£24.12
*80A - SWITCH FOR TPE HIT-337388.A2 337388	£23.15	£27.78
81 - HANDLE COVER HIT-335242.A2 335242	£7.83	£9.40
82 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A181 301653	£1.67	£2.00
83 - BRAND LABEL HIT-000000.A323 000000	-
84 - GRIP ASS'Y INCLUD.1-6 HIT-375172.A0 375172	£7.75	£9.30
*501A - CASE HIT-337257.A3 337257	£30.05	£36.06
502 - SIDE HANDLE HIT-335273.A5 335273	£14.28	£17.13
*503 - DEPTH GAUGE HIT-303709.A16 303709	£1.67	£2.00
601 - DUST COLLECTOR (B) ASS'Y INCLUD.602 HIT-306885.A5 306885	£25.14	£30.17
602 - DUST COLLECTOR ASS'Y INCLUD.603-609 HIT-986802.A13 986802	-
603 - DUST COVER HIT-986803.A12 986803	-
604 - SEAL COVER HIT-986804.A13 986804	-
605 - RETAINING RING FOR D30 SHAFT HIT-948310.A19 948310	£1.67	£2.00
606 - WASHER HIT-958063.A7 958063	-
607 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A2 959150	£1.67	£2.00
608 - OUTER RACE HIT-986805.A12 986805	-
609 - SOCKET HIT-986806.A13 986806	-
610 - SOCKET ADAPTER (B) HIT-306910.A38 306910	-
611 - DUST CUP HIT-971787.A1 971787	£4.40	£5.28
612 - STOPPER HIT-931844.A23 931844	-
613 - DRILL CHUCK 13VLRB-D INCLUD.614 HIT-321814.A0 321814	-
614 - FLAT HD. SCREW (LEFT HAND) M6X20 HIT-331966.A2 331966	£11.39	£13.67
615 - DRILL CHUCK 13VLD-D HIT-321813.A51 321813	-
616 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A2 971511Z	-
617 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A41 971512Z	-
618 - COTTER HIT-944477.A0 944477	£5.17	£6.20
619 - CENTER PIN (A) 109L FOR CORE BIT D32-38 HIT-982684.A1 982684	-
620 - NO LONGER AVAILABLE HIT-982685.A28 982685	-
621 - NO LONGER AVAILABLE HIT-982672.A8 982672	-
622 - NO LONGER AVAILABLE HIT-982673.A6 982673	-
623 - NO LONGER AVAILABLE HIT-982674.A6 982674	-
624 - NO LONGER AVAILABLE HIT-982686.A1 982686	-
625 - NO LONGER AVAILABLE HIT-982675.A6 982675	-
626 - NO LONGER AVAILABLE HIT-982687.A17 982687	-
627 - CORE BIT (A) 38MM INCLUD.628 HIT-982676.A6 982676	-
628 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-982688.A1 982688	-
629 - CORE BIT (B) 45MM INCLUD.630 HIT-982677.A6 982677	£73.70	£88.44
630 - NO LONGER AVAILABLE HIT-982689.A17 982689	-
631 - CORE BIT (B) 50MM INCLUD.632 HIT-982678.A2 982678	-
632 - NO LONGER AVAILABLE HIT-982690.A1 982690	-
633 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A17 971794	-
634 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A16 971795	-
635 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A18 971796	-
636 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A15 971797	-
637 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A18 971798	-
638 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A16 971799	-
639 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A18 971800	-
640 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A16 971801	-
641 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A18 971802	-
642 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A15 971803	-
643 - TAPER SHANK DRILL BIT D11X100 HIT-944460.A9 944460	-
644 - TAPER SHANK DRILL BIT D12.3X110 HIT-944461.A2 944461	-
645 - TAPER SHANK DRILL BIT D12.7X110 HIT-993038.A1 993038	-
647 - TAPER SHANK DRILL BIT D14.5X110 HIT-944500.A8 944500	-
649 - TAPER SHANK DRILL BIT D21.5X140 HIT-944464.A8 944464	-
650 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A41 320859	£10.35	£12.42
651 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A6 303046	-
652 - CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L HIT-303044.A6 303044	-
653 - CHEMICAL ANCHOR ADAPTER(SDS+)19.0MMX100L HIT-303045.A12 303045	-
654 - SPECIAL SCREW M6X22 HIT-981122.A16 981122	£1.67	£2.00
655 - CHUCK WRENCH 10G HIT-930515.A28 930515	£6.38	£7.66
656 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L HIT-302976.A15 302976	-
657 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L HIT-302975.A9 302975	-
658 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L HIT-303621.A2 303621	-
659 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L HIT-302974.A14 302974	-
660 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L HIT-302979.A8 302979	-
661 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L HIT-302978.A15 302978	-
662 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L HIT-303622.A20 303622	-
663 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L HIT-302977.A8 302977	-
664 - HAMMER DRILL CHUCK SET 13MM INCLUD.665 HIT-303332.A5 303332	-
665 - CHUCK HANDLE HIT-303334.A36 303334	-
666 - RUBBER CAP HIT-303335.A5 303335	£7.78	£9.34
667 - TAPER SHANK ADAPTER (SDS PLUS) NO.1 HIT-303617.A3 303617	£39.42	£47.31
668 - TAPER SHANK ADAPTER (SDS PLUS) NO.2 HIT-303618.A13 303618	£40.02	£48.02
669 - A-TAPER SHANK ADAPTER (SDS PLUS) HIT-303619.A3 303619	£31.41	£37.69
670 - B-TAPER SHANK ADAPTER (SDS PLUS) HIT-303620.A20 303620	-
671 - CORE BIT SHANK (SDS PLUS) 25-38MM 105L HIT-303625.A3 303625	-
672 - CORE BIT SHANK (SDS PLUS) 25-38MM 300L HIT-303626.A15 303626	-
673 - CORE BIT SHANK (SDS PLUS) 45-90MM 300L HIT-303627.A3 303627	-
674 - CHUCK ADAPTER (D) (SDS PLUS) HIT-303624.A22 303624	£37.06	£44.47
675 - DRILL CHUCK AND ADAPTER SET INCLUD.613 HIT-321825.A21 321825	-
676 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A2 303623	-
677 - ADAPTER FOR SLENDER SHAFT (SDS PLUS) HIT-306370.A0 306370	-
678 - GREASE FOR ROTARY HAMMER (500G) HIT-335781.A14 335781	£91.40	£109.68
679 - GREASE FOR ROTARY HAMMER (60G) HIT-335782.A8 335782	£19.89	£23.87
