Hitachi / Hikoki DH25DL Cordless Rotary Hammer Spare Parts

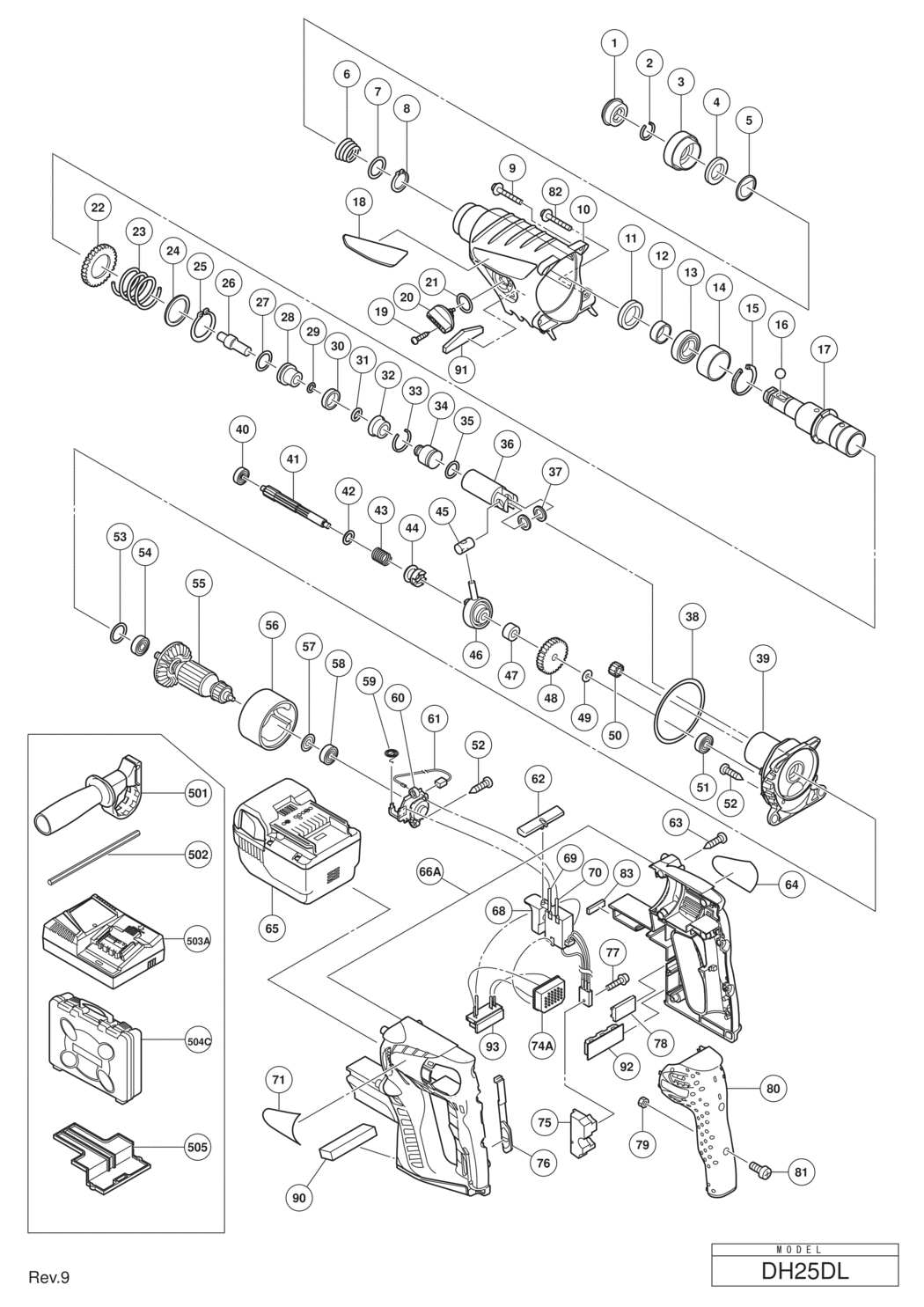

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH25DL Cordless Rotary Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-306345.A9 306345	£3.59	£4.31
2 - STOPPER RING HIT-306340.A30 306340	£1.67	£2.00
3 - GRIP HIT-323154.A0 323154	£6.50	£7.80
4 - BALL HOLDER HIT-324528.A7 324528	£8.66	£10.39
5 - HOLDER PLATE HIT-324526.A17 324526	£4.33	£5.20
6 - HOLDER SPRING HIT-322812.A26 322812	£1.67	£2.00
7 - WASHER (B) HIT-984118.A3 984118	£1.67	£2.00
8 - RETAINING RING FOR D20 SHAFT (10 PCS.) HIT-939547.A4 939547	£4.61	£5.53
9 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) HIT-305558.A13 305558	£1.67	£2.00
10 - GEAR COVER HIT-323167.A1 323167	£30.67	£36.80
11 - OIL SEAL HIT-307688.A5 307688	£5.34	£6.41
12 - SLEEVE HIT-322815.A1 322815	£1.67	£2.00
13 - BALL BEARING 6904DDPS2L HIT-6904DD.A6 6904DD	£14.68	£17.62
14 - SLEEVE (A) HIT-324522.A4 324522	£4.33	£5.20
15 - RETAINING RING 37MM HIT-322813.A8 322813	£1.67	£2.00
16 - STEEL BALL D7.0 (10 PCS.) HIT-959156.A6 959156	£1.67	£2.00
17 - CYLINDER HIT-322814.A0 322814	£73.68	£88.41
18 - BRAND PLATE (GREEN) HIT-323172.A2 323172	£6.50	£7.80
19 - TAPPING SCREW D2.6X10 HIT-323239.A3 323239	£1.67	£2.00
20 - CHANGE LEVER HIT-323161.A0 323161	£1.67	£2.00
21 - O-RING (S-18) HIT-878885.A46 878885	£1.67	£2.00
22 - SECOND GEAR HIT-301677.A1 301677	£25.74	£30.89
23 - SPRING (A) HIT-316135.A1 316135	£7.59	£9.11
24 - WASHER (A) HIT-301679.A0 301679	£1.67	£2.00
25 - RETAINING RING FOR D30 SHAFT HIT-948310.A15 948310	£1.67	£2.00
26 - SECOND HAMMER HIT-324525.A1 324525	£8.66	£10.39
27 - O-RING (1AP-20) HIT-944486.A10 944486	£1.67	£2.00
28 - HAMMER HOLDER HIT-324523.A1 324523	£14.51	£17.41
29 - O-RING (B) HIT-322802.A2 322802	£4.33	£5.20
30 - DAMPER (A) HIT-322805.A9 322805	£1.67	£2.00
31 - O-RING (C) HIT-322808.A9 322808	£1.67	£2.00
32 - DAMPER HOLDER HIT-324524.A13 324524	£8.66	£10.39
33 - STOPPER RING HIT-322807.A19 322807	£1.67	£2.00
34 - STRIKER HIT-324535.A0 324535	£12.98	£15.58
35 - O-RING (I.D. 16) HIT-322834.A4 322834	£4.33	£5.20
36 - PISTON HIT-324534.A5 324534	£19.63	£23.56
37 - WASHER (C) HIT-322799.A3 322799	£1.67	£2.00
38 - O-RING (I.D. 72) HIT-325254.A2 325254	£4.33	£5.20
39 - INNER COVER ASS'Y INCLUD.51 HIT-323157.A2 323157	£29.27	£35.12
40 - BALL BEARING 626VVC2PS2L HIT-626VVM.A3 626VVM	£5.77	£6.92
41 - SECOND SHAFT HIT-323151.A1 323151	£28.25	£33.90
42 - WASHER (B) HIT-301659.A3 301659	£1.67	£2.00
43 - CLUTCH SPRING HIT-301660.A1 301660	£1.67	£2.00
44 - CLUTCH HIT-324532.A1 324532	£14.51	£17.41
45 - PISTON PIN HIT-322798.A4 322798	£1.67	£2.00
46 - RECIPROCATING BEARING HIT-324533.A0 324533	£34.15	£40.98
47 - COLLAR HIT-323152.A0 323152	£6.50	£7.80
48 - FIRST GEAR HIT-323153.A3 323153	£24.82	£29.78
49 - SPACER HIT-301663.A0 301663	£1.67	£2.00
50 - PINION HIT-323170.A0 323170	£8.66	£10.39
51 - BALL BEARING 626VVC2PS2L HIT-626VVM.A2 626VVM	£5.77	£6.92
52 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A42 305812	£1.67	£2.00
53 - O-RING (P-22) HIT-876796.A9 876796	£1.67	£2.00
54 - BALL BEARING 608DD HIT-608DDM.A39 608DDM	£6.35	£7.62
55 - ARMATURE AND PINION ASS'Y DC 25.2V INCLUD.50 HIT-360814.A0 360814	£125.53	£150.64
56 - MAGNET HIT-323156.A1 323156	£28.92	£34.70
57 - WASHER (A) HIT-982631.A29 982631	£1.67	£2.00
58 - BALL BEARING 608DD HIT-608DDM.A40 608DDM	£6.35	£7.62
59 - SPRING HIT-308536.A8 308536	£1.67	£2.00
60 - BRUSH HOLDER HIT-323164.A1 323164	£6.50	£7.80
61 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999090.A1 999090	£26.82	£32.18
62 - PUSHING BUTTON HIT-328064.A1 328064	£1.67	£2.00
63 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A33 302086	£1.67	£2.00
64 - NAME PLATE HIT-000000.A1519 000000	-
65 - BATTERY BSL 2530 (EUROPE AUS NZL) HIT-328033.A0 328033	£191.53	£229.84
66A - HOUSING (A).(B) SET HIT-328514.A0 328514	£47.68	£57.21
68 - DC-SPEED CONTROL SWITCH HIT-328058.A2 328058	£25.32	£30.39
71 - BRAND LABEL HIT-000000.A1520 000000	-
75 - HEAT SINK HIT-319812.A3 319812	£4.07	£4.88
76 - SHIFT KNOB HIT-323159.A0 323159	£1.67	£2.00
77 - MACHINE SCREW (W/WASHERS) M3X12 HIT-993963.A8 993963	£1.67	£2.00
78 - RUBBER HOLDER (TILL 04.2010) HIT-313591.A2 313591	£3.85	£4.62
79 - NUT M4 (10 PCS.) HIT-949554.A48 949554	£1.67	£2.00
80 - GRIP COVER HIT-323160.A2 323160	£23.74	£28.49
81 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A29 949215	£1.67	£2.00
82 - TAPPING SCREW (W/FLANGE) D5X30 (BLACK) HIT-328707.A1 328707	£1.67	£2.00
83 - CUSHION (A) HIT-328708.A2 328708	£6.28	£7.53
90 - PACKING (B) (TILL 04.2010) HIT-331415.A1 331415	£1.67	£2.00
91 - PACKING (C) (SINCE 05.2010) HIT-333144.A1 333144	£1.67	£2.00
92 - RUBBER CUSHION (SINCE 05.2010) HIT-332668.A12 332668	£3.83	£4.60
93 - BATTERY TERMINAL HIT-333991.A2 333991	£7.68	£9.21
501 - SIDE HANDLE HIT-323155.A1 323155	£15.08	£18.09
502 - DEPTH GAUGE HIT-303709.A1 303709	£1.67	£2.00
503A - CHARGER (MODEL UC 36YRSL) HIT-000000.A1522 000000	-
504C - CASE HIT-337814.A0 337814	-
505 - BATTERY COVER HIT-329897.A109 329897	£1.67	£2.00
601 - HAMMER DRILL CHUCK SET 13MM INCLUD.602 HIT-303332.A3 303332	-
602 - CHUCK HANDLE HIT-303334.A41 303334	-
603 - RUBBER CAP HIT-303335.A3 303335	£7.78	£9.34
604 - DRILL CHUCK AND ADAPTER SET INCLUD.605 HIT-321825.A18 321825	-
605 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A6 303623	-
606 - DRILL CHUCK 13VLRB-D INCLUD.607 HIT-321814.A9 321814	-
607 - FLAT HD. SCREW (A) (LEFT HAND) M6X25 HIT-995344.A3 995344	-
608 - CHUCK WRENCH FOR 13VLB-D 1 HIT-987576.A20 987576	-
609 - DRILL CHUCK 13VLD-D INCLUD.610 HIT-321813.A39 321813	-
610 - CHUCK HANDLE HIT-303334.A42 303334	-
611 - DUST CUP HIT-971787.A13 971787	£4.40	£5.28
612 - STOPPER HIT-931844.A26 931844	-
613 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A13 971511Z	-
614 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A30 971512Z	-
615 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A7 971794	-
616 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A26 971795	-
617 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A8 971796	-
618 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A25 971797	-
619 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A8 971798	-
620 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A26 971799	-
621 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A8 971800	-
622 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A26 971801	-
623 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A8 971802	-
624 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A25 971803	-
625 - COTTER HIT-944477.A14 944477	£5.17	£6.20
626 - TAPER SHANK ADAPTER (SDS PLUS) NO.1 HIT-303617.A4 303617	£39.42	£47.31
627 - A-TAPER SHANK ADAPTER (SDS PLUS) HIT-303619.A6 303619	£31.41	£37.69
628 - B-TAPER SHANK ADAPTER (SDS PLUS) HIT-303620.A17 303620	-
629 - CHUCK ADAPTER (D) (SDS PLUS) HIT-303624.A17 303624	£37.06	£44.47
630 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L HIT-302976.A17 302976	-
631 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L HIT-302975.A6 302975	-
632 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L HIT-303621.A6 303621	-
633 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L HIT-302974.A17 302974	-
634 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L HIT-302979.A6 302979	-
635 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L HIT-302978.A17 302978	-
636 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L HIT-303622.A17 303622	-
637 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L HIT-302977.A6 302977	-
638 - CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L HIT-303044.A8 303044	-
639 - CHEMICAL ANCHOR ADAPTER(SDS+)19.0MMX100L HIT-303045.A10 303045	-
640 - CORE BIT SHANK (SDS PLUS) 25-38MM 105L HIT-303625.A6 303625	-
641 - CORE BIT SHANK (SDS PLUS) 25-38MM 300L HIT-303626.A12 303626	-
642 - CORE BIT SHANK (SDS PLUS) 45-90MM 300L HIT-303627.A6 303627	-
643 - DUST COLLECTOR (B) ASS'Y INCLUD.644 HIT-306885.A3 306885	£25.14	£30.17
644 - SOCKET ADAPTER (B) HIT-306910.A25 306910	-
646 - TAPER SHANK DRILL BIT D12.3X110 HIT-944461.A7 944461	-
647 - TAPER SHANK DRILL BIT D12.7X110 HIT-993038.A7 993038	-
649 - TAPER SHANK DRILL BIT D14.5X110 HIT-944500.A2 944500	-
652 - NO LONGER AVAILABLE HIT-982672.A5 982672	-
653 - NO LONGER AVAILABLE HIT-982673.A8 982673	-
654 - NO LONGER AVAILABLE HIT-982674.A4 982674	-
655 - NO LONGER AVAILABLE HIT-982686.A5 982686	-
656 - NO LONGER AVAILABLE HIT-982675.A8 982675	-
657 - NO LONGER AVAILABLE HIT-982687.A13 982687	-
658 - CORE BIT (A) 38MM INCLUD.659 HIT-982676.A4 982676	-
659 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-982688.A5 982688	-
660 - CORE BIT (B) 45MM INCLUD.661 HIT-982677.A8 982677	£73.70	£88.44
661 - NO LONGER AVAILABLE HIT-982689.A13 982689	-
663 - NO LONGER AVAILABLE HIT-982690.A5 982690	-
664 - CENTER PIN (A) 109L FOR CORE BIT D32-38 HIT-982684.A11 982684	-
665 - NO LONGER AVAILABLE HIT-982685.A18 982685	-
666 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A50 981840	£8.22	£9.87
667 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A40 308471	£16.21	£19.45
668 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A9 980927	£55.68	£66.81
669 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A8 303046	-
