Hitachi / Hikoki DH25DAL Cordless Rotary Hammer Spare Parts

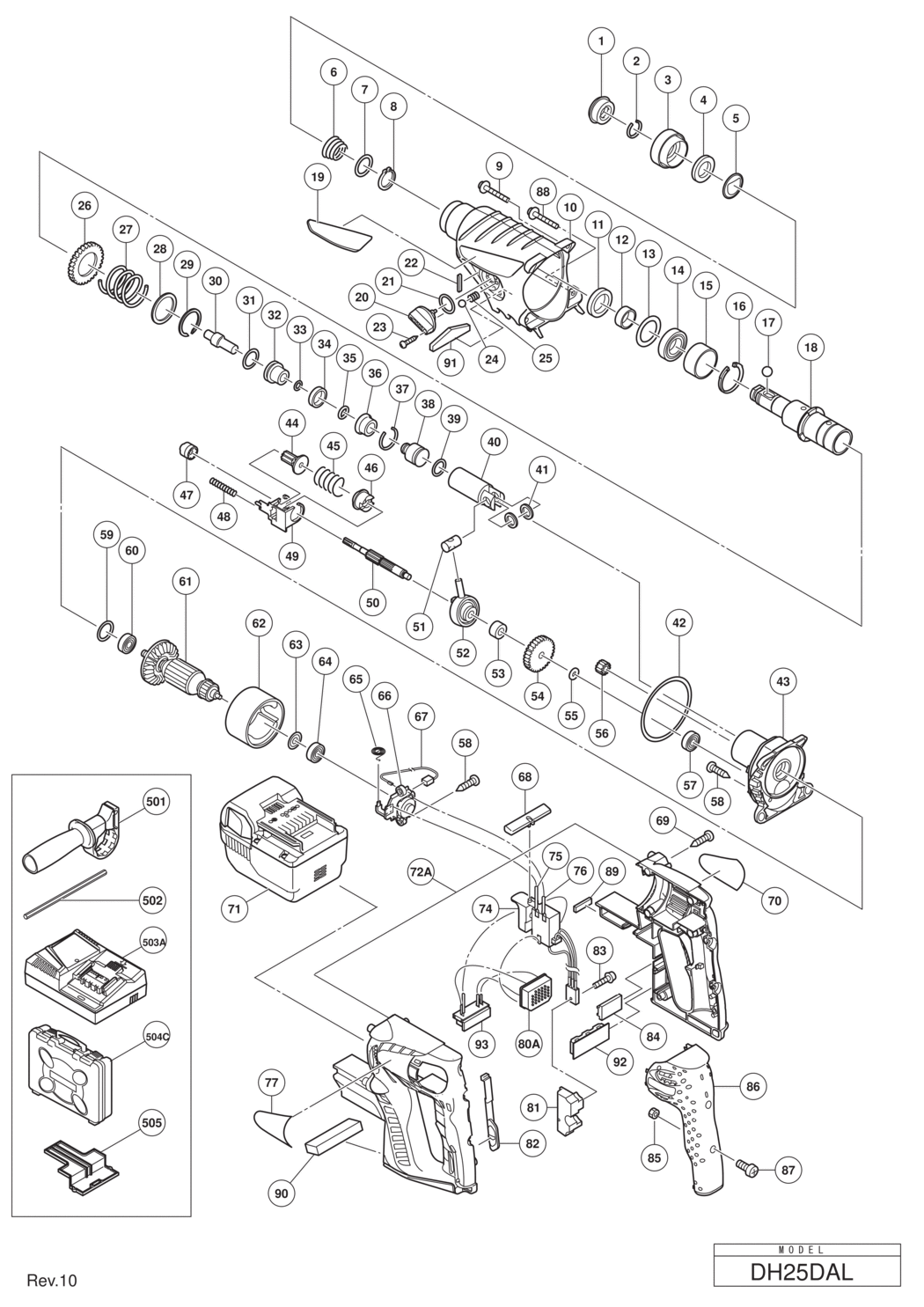

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH25DAL Cordless Rotary Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-306345.A7 306345	£3.59	£4.31
2 - STOPPER RING HIT-306340.A32 306340	£1.67	£2.00
3 - GRIP HIT-323154.A2 323154	£6.50	£7.80
4 - BALL HOLDER HIT-324528.A9 324528	£8.66	£10.39
5 - HOLDER PLATE HIT-324526.A15 324526	£4.33	£5.20
6 - HOLDER SPRING HIT-322812.A28 322812	£1.67	£2.00
7 - WASHER (B) HIT-984118.A4 984118	£1.67	£2.00
8 - RETAINING RING FOR D20 SHAFT (10 PCS.) HIT-939547.A6 939547	£4.61	£5.53
9 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) HIT-305558.A15 305558	£1.67	£2.00
10 - GEAR COVER (A) HIT-325555.A1 325555	£67.85	£81.42
11 - OIL SEAL HIT-307688.A4 307688	£5.34	£6.41
12 - SLEEVE HIT-322815.A3 322815	£1.67	£2.00
13 - FELT PACKING (B) HIT-323232.A1 323232	£1.67	£2.00
14 - BALL BEARING 6904DDPS2L HIT-6904DD.A5 6904DD	£14.68	£17.62
15 - SLEEVE (A) HIT-324522.A2 324522	£4.33	£5.20
16 - RETAINING RING 37MM HIT-322813.A6 322813	£1.67	£2.00
17 - STEEL BALL D7.0 (10 PCS.) HIT-959156.A8 959156	£1.67	£2.00
18 - CYLINDER HIT-323184.A2 323184	£82.80	£99.36
19 - BRAND PLATE (GREEN) HIT-323172.A1 323172	£6.50	£7.80
20 - CHANGE LEVER (A) HIT-325551.A1 325551	£6.50	£7.80
21 - O-RING (S-18) HIT-878885.A44 878885	£1.67	£2.00
22 - FELT PACKING HIT-325554.A0 325554	£1.67	£2.00
23 - TAPPING SCREW D2.6X10 HIT-323239.A1 323239	£1.67	£2.00
24 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A22 959155	£1.67	£2.00
25 - SPRING (H) HIT-981328.A6 981328	£1.67	£2.00
26 - SECOND GEAR HIT-323185.A0 323185	£24.16	£28.99
27 - SPRING (A) HIT-317233.A3 317233	£8.78	£10.54
28 - WASHER (A) HIT-317234.A0 317234	£4.10	£4.92
29 - RETAINING RING D30 HIT-317235.A3 317235	£1.67	£2.00
30 - SECOND HAMMER HIT-324525.A3 324525	£8.66	£10.39
31 - O-RING (1AP-20) HIT-944486.A14 944486	£1.67	£2.00
32 - HAMMER HOLDER HIT-324523.A3 324523	£14.51	£17.41
33 - O-RING (B) HIT-322802.A4 322802	£4.33	£5.20
34 - DAMPER (A) HIT-322805.A7 322805	£1.67	£2.00
35 - O-RING (C) HIT-322808.A7 322808	£1.67	£2.00
36 - DAMPER HOLDER HIT-324524.A11 324524	£8.66	£10.39
37 - STOPPER RING HIT-322807.A21 322807	£1.67	£2.00
38 - STRIKER HIT-324535.A2 324535	£12.98	£15.58
39 - O-RING (I.D. 16) HIT-322834.A2 322834	£4.33	£5.20
40 - PISTON HIT-324534.A3 324534	£19.63	£23.56
41 - WASHER (C) HIT-322799.A1 322799	£1.67	£2.00
42 - O-RING (I.D. 72) HIT-325254.A1 325254	£4.33	£5.20
43 - INNER COVER ASS'Y HIT-323157.A1 323157	£29.27	£35.12
44 - SECOND PINION HIT-323181.A5 323181	£21.65	£25.98
45 - CLUTCH SPRING HIT-323182.A0 323182	£1.67	£2.00
46 - CLUTCH HIT-324606.A3 324606	£16.80	£20.16
47 - PINION SLEEVE HIT-323249.A1 323249	£49.48	£59.37
48 - SPRING (C) HIT-325556.A0 325556	£1.67	£2.00
49 - LOCK PLATE HIT-325553.A1 325553	£49.41	£59.29
50 - SECOND SHAFT (A) HIT-325552.A0 325552	£32.81	£39.37
51 - PISTON PIN HIT-322798.A6 322798	£1.67	£2.00
52 - RECIPROCATING BEARING HIT-324533.A2 324533	£34.15	£40.98
53 - COLLAR HIT-323152.A2 323152	£6.50	£7.80
54 - FIRST GEAR HIT-323153.A1 323153	£24.82	£29.78
55 - SPACER HIT-301663.A2 301663	£1.67	£2.00
56 - PINION HIT-323170.A2 323170	£8.66	£10.39
57 - BALL BEARING 626VVC2PS2L HIT-626VVM.A5 626VVM	£5.77	£6.92
58 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A34 305812	£1.67	£2.00
59 - O-RING (P-22) HIT-876796.A10 876796	£1.67	£2.00
60 - BALL BEARING 608DD HIT-608DDM.A42 608DDM	£6.35	£7.62
61 - ARMATURE AND PINION ASS'Y DC 25.2V HIT-360814.A1 360814	£125.53	£150.64
62 - MAGNET HIT-323156.A2 323156	£28.92	£34.70
63 - WASHER (A) HIT-982631.A27 982631	£1.67	£2.00
64 - BALL BEARING 608DD HIT-608DDM.A41 608DDM	£6.35	£7.62
65 - SPRING HIT-308536.A12 308536	£1.67	£2.00
66 - BRUSH HOLDER HIT-323164.A3 323164	£6.50	£7.80
67 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999090.A3 999090	£26.82	£32.18
68 - PUSHING BUTTON HIT-328064.A3 328064	£1.67	£2.00
69 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A35 302086	£1.67	£2.00
70 - NAME PLATE HIT-000000.A1515 000000	-
*71 - BATTERY BSL 2530 (EUROPE AUS NZL) HIT-328033.A1 328033	£191.53	£229.84
72A - HOUSING (A).(B) SET HIT-328514.A1 328514	£47.68	£57.21
74 - DC-SPEED CONTROL SWITCH HIT-328058.A1 328058	£25.32	£30.39
77 - BRAND LABEL HIT-000000.A1514 000000	-
81 - HEAT SINK HIT-319812.A2 319812	£4.07	£4.88
82 - SHIFT KNOB HIT-323159.A2 323159	£1.67	£2.00
83 - MACHINE SCREW (W/WASHERS) M3X12 HIT-993963.A7 993963	£1.67	£2.00
84 - RUBBER HOLDER (TILL 04.2010) HIT-313591.A1 313591	£3.85	£4.62
85 - NUT M4 (10 PCS.) HIT-949554.A49 949554	£1.67	£2.00
86 - GRIP COVER HIT-323160.A3 323160	£23.74	£28.49
87 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A28 949215	£1.67	£2.00
88 - TAPPING SCREW (W/FLANGE) D5X30 (BLACK) HIT-328707.A0 328707	£1.67	£2.00
89 - CUSHION (A) HIT-328708.A3 328708	£6.28	£7.53
90 - PACKING (B) (TILL 04.2010) HIT-331415.A2 331415	£1.67	£2.00
91 - PACKING (C) HIT-333144.A2 333144	£1.67	£2.00
92 - RUBBER CUSHION HIT-332668.A11 332668	£3.83	£4.60
93 - BATTERY TERMINAL HIT-333991.A1 333991	£7.68	£9.21
501 - SIDE HANDLE HIT-323155.A2 323155	£15.08	£18.09
502 - DEPTH GAUGE HIT-303709.A2 303709	£1.67	£2.00
*503A - CHARGER (MODEL UC 36YRSL) HIT-000000.A1518 000000	-
504C - CASE HIT-337814.A1 337814	-
505 - BATTERY COVER HIT-329897.A108 329897	£1.67	£2.00
601 - HAMMER DRILL CHUCK SET 13MM INCLUD.602 HIT-303332.A2 303332	-
602 - CHUCK HANDLE HIT-303334.A43 303334	-
603 - RUBBER CAP HIT-303335.A2 303335	£7.78	£9.34
604 - DRILL CHUCK AND ADAPTER SET HIT-321825.A19 321825	-
605 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A5 303623	-
606 - DRILL CHUCK 13VLRB-D HIT-321814.A8 321814	-
607 - FLAT HD. SCREW (A) (LEFT HAND) M6X25 HIT-995344.A4 995344	-
608 - CHUCK WRENCH FOR 13VLB-D 1 HIT-987576.A19 987576	-
609 - DRILL CHUCK 13VLD-D INCLUD.610 HIT-321813.A40 321813	-
610 - CHUCK HANDLE HIT-303334.A44 303334	-
611 - DUST CUP HIT-971787.A12 971787	£4.40	£5.28
612 - STOPPER HIT-931844.A27 931844	-
613 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A12 971511Z	-
614 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A31 971512Z	-
615 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A27 971795	-
616 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A7 971796	-
617 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A26 971797	-
618 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A7 971798	-
619 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A27 971799	-
620 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A7 971800	-
621 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A27 971801	-
622 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A7 971802	-
623 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A26 971803	-
624 - COTTER HIT-944477.A13 944477	£5.17	£6.20
625 - TAPER SHANK ADAPTER (SDS PLUS) NO.1 HIT-303617.A5 303617	£39.42	£47.31
627 - A-TAPER SHANK ADAPTER (SDS PLUS) HIT-303619.A5 303619	£31.41	£37.69
628 - B-TAPER SHANK ADAPTER (SDS PLUS) HIT-303620.A18 303620	-
629 - CHUCK ADAPTER (D) (SDS PLUS) HIT-303624.A18 303624	£37.06	£44.47
630 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L HIT-302976.A18 302976	-
631 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L HIT-302975.A5 302975	-
632 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L HIT-303621.A5 303621	-
633 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L HIT-302974.A18 302974	-
634 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L HIT-302979.A5 302979	-
635 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L HIT-302978.A18 302978	-
636 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L HIT-303622.A18 303622	-
637 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L HIT-302977.A5 302977	-
638 - CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L HIT-303044.A9 303044	-
639 - CHEMICAL ANCHOR ADAPTER(SDS+)19.0MMX100L HIT-303045.A9 303045	-
640 - CORE BIT SHANK (SDS PLUS) 25-38MM 105L HIT-303625.A5 303625	-
641 - CORE BIT SHANK (SDS PLUS) 25-38MM 300L HIT-303626.A13 303626	-
642 - CORE BIT SHANK (SDS PLUS) 45-90MM 300L HIT-303627.A5 303627	-
643 - DUST COLLECTOR (B) ASS'Y INCLUD.644 HIT-306885.A2 306885	£25.14	£30.17
644 - SOCKET ADAPTER (B) HIT-306910.A26 306910	-
646 - TAPER SHANK DRILL BIT D12.3X110 HIT-944461.A8 944461	-
647 - TAPER SHANK DRILL BIT D12.7X110 HIT-993038.A8 993038	-
649 - TAPER SHANK DRILL BIT D14.5X110 HIT-944500.A1 944500	-
652 - NO LONGER AVAILABLE HIT-982672.A4 982672	-
653 - NO LONGER AVAILABLE HIT-982673.A9 982673	-
654 - NO LONGER AVAILABLE HIT-982674.A3 982674	-
655 - NO LONGER AVAILABLE HIT-982686.A4 982686	-
656 - NO LONGER AVAILABLE HIT-982675.A9 982675	-
657 - NO LONGER AVAILABLE HIT-982687.A14 982687	-
658 - CORE BIT (A) 38MM INCLUD.659 HIT-982676.A3 982676	-
659 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-982688.A4 982688	-
660 - CORE BIT (B) 45MM INCLUD.661 HIT-982677.A9 982677	£73.70	£88.44
661 - NO LONGER AVAILABLE HIT-982689.A14 982689	-
663 - NO LONGER AVAILABLE HIT-982690.A4 982690	-
664 - CENTER PIN (A) 109L FOR CORE BIT D32-38 HIT-982684.A10 982684	-
665 - NO LONGER AVAILABLE HIT-982685.A19 982685	-
666 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A51 981840	£8.22	£9.87
667 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A41 308471	£16.21	£19.45
668 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A8 980927	£55.68	£66.81
669 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A9 303046	-
670 - GREASE (MOLUB-ALLOY NO.777-1) 75G HIT-325149.A21 325149	£18.35	£22.02
