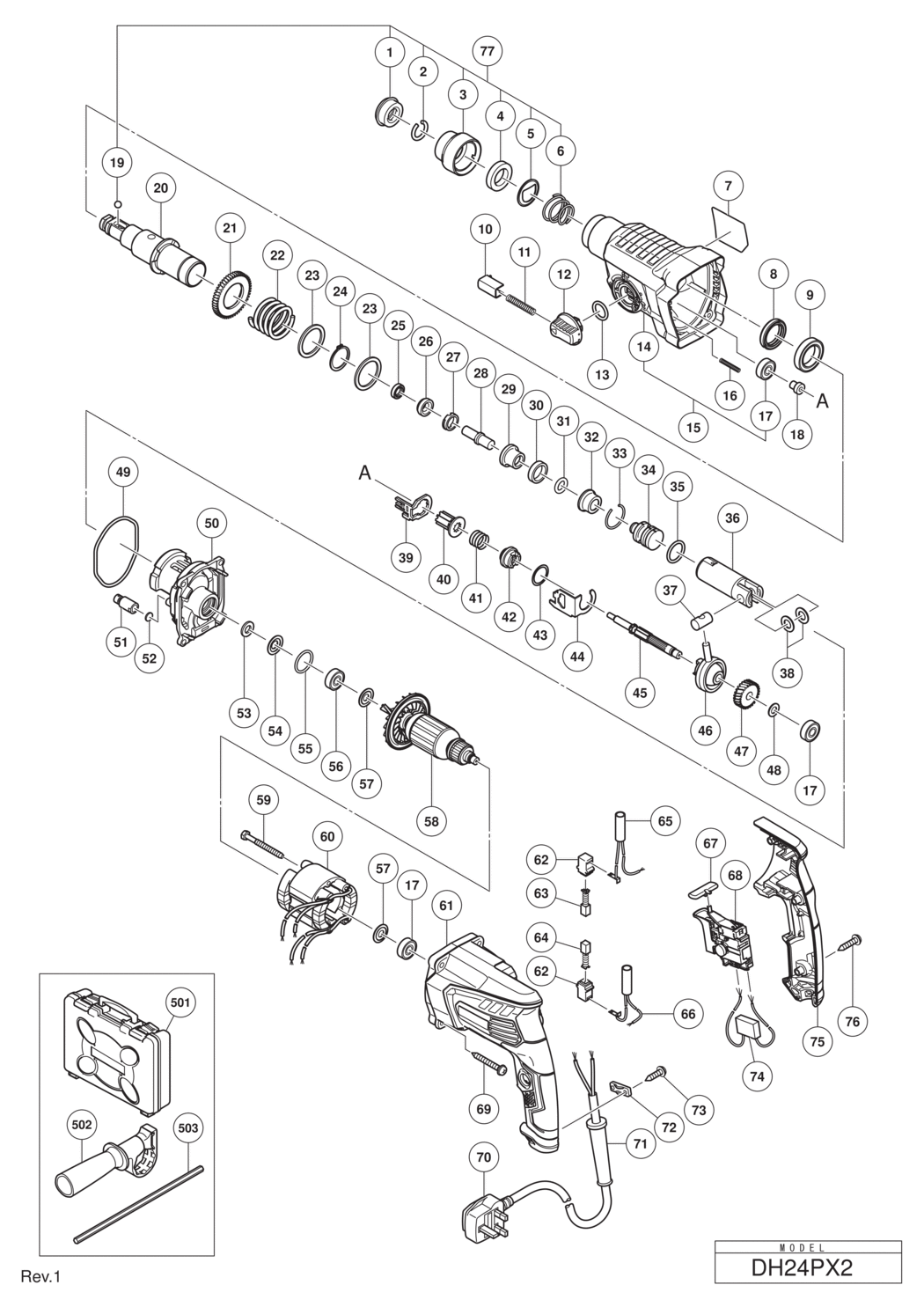

1 - FRONT CAP
HIT-306345.A32
306345
|
£3.59
|
£4.31
|
|
|
2 - STOPPER RING
HIT-306340.A4
306340
|
£1.67
|
£2.00
|
|
|
3 - GRIP
HIT-374436.A0
374436
|
-
|
|
|
|
4 - BALL HOLDER
HIT-374437.A10
374437
|
-
|
|
|
|
5 - HOLDER PLATE
HIT-374435.A10
374435
|
-
|
|
|
|
6 - HOLDER SPRING
HIT-322812.A17
322812
|
£1.67
|
£2.00
|
|
|
7 - NAME PLATE
HIT-000000.A4191
000000
|
-
|
|
|
|
8 - OIL SEAL
HIT-335259.A8
335259
|
£5.07
|
£6.08
|
|
|
9 - BALL BEARING 6805
HIT-6805BB.A8
6805BB
|
-
|
|
|
|
10 - PUSHING BUTTON
HIT-322789.A2
322789
|
£6.50
|
£7.80
|
|
|
11 - PUSHING SPRING
HIT-317223.A13
317223
|
£1.67
|
£2.00
|
|
|
12 - CHANGE LEVER
HIT-334011.A21
334011
|
£3.92
|
£4.70
|
|
|
13 - O-RING (S-18)
HIT-878885.A20
878885
|
£1.67
|
£2.00
|
|
|
14 - GEAR COVER
HIT-374618.A3
374618
|
-
|
|
|
|
15 - GEAR COVER ASS'Y INCLUD.14
HIT-375016.A3
375016
|
-
|
|
|
|
16 - SPRING (E)
HIT-335800.A15
335800
|
£1.67
|
£2.00
|
|
|
17 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A23
608VVM
|
£5.70
|
£6.84
|
|
|
18 - SHAFT HOLDER (B)
HIT-374422.A7
374422
|
-
|
|
|
|
19 - STEEL BALL D7.0 (10 PCS.)
HIT-335300.A8
335300
|
£1.67
|
£2.00
|
|
|
20 - CYLINDER
HIT-374426.A4
374426
|
£28.38
|
£34.06
|
|
|
21 - SECOND GEAR
HIT-335265.A10
335265
|
£10.52
|
£12.62
|
|
|
22 - SPRING (B)
HIT-374430.A6
374430
|
-
|
|
|
|
23 - WASHER (A)
HIT-301679.A9
301679
|
£1.67
|
£2.00
|
|
|
24 - RETAINING RING FOR D30 SHAFT
HIT-948310.A32
948310
|
£1.67
|
£2.00
|
|
|
25 - OIL SEAL (A)
HIT-335262.A13
335262
|
£3.12
|
£3.74
|
|
|
26 - HAMMER HOLDER (B)
HIT-374431.A4
374431
|
-
|
|
|
|
27 - HOLDER SLEEVE
HIT-374427.A5
374427
|
-
|
|
|
|
28 - SECOND HAMMER
HIT-374432.A5
374432
|
-
|
|
|
|
29 - HAMMER HOLDER (A)
HIT-374429.A4
374429
|
-
|
|
|
|
30 - DAMPER (A)
HIT-322805.A16
322805
|
£1.67
|
£2.00
|
|
|
31 - O-RING (C)
HIT-322808.A16
322808
|
£1.67
|
£2.00
|
|
|
32 - DAMPER HOLDER
HIT-324524.A16
324524
|
£8.66
|
£10.39
|
|
|
33 - STOPPER RING
HIT-322807.A12
322807
|
£1.67
|
£2.00
|
|
|
34 - STRIKER
HIT-374443.A7
374443
|
-
|
|
|
|
35 - O-RING
HIT-372816.A7
372816
|
£5.07
|
£6.08
|
|
|
36 - PISTON
HIT-372817.A5
372817
|
-
|
|
|
|
37 - PISTON PIN
HIT-335793.A17
335793
|
£5.78
|
£6.94
|
|
|
38 - PISTON WASHER
HIT-335794.A5
335794
|
£1.67
|
£2.00
|
|
|
39 - LOCK PLATE
HIT-374434.A1
374434
|
-
|
|
|
|
40 - SECOND PINION
HIT-374440.A1
374440
|
-
|
|
|
|
41 - CLUTCH SPRING
HIT-323182.A5
323182
|
£1.67
|
£2.00
|
|
|
42 - CLUTCH
HIT-375022.A5
375022
|
-
|
|
|
|
43 - WASHER
HIT-331315.A20
331315
|
£1.67
|
£2.00
|
|
|
44 - CHANGE PLATE (C)
HIT-374439.A6
374439
|
-
|
|
|
|
45 - SECOND SHAFT
HIT-374438.A1
374438
|
-
|
|
|
|
46 - RECIPROCATING BEARING
HIT-335249.A10
335249
|
£19.98
|
£23.97
|
|
|
47 - FIRST GEAR
HIT-374441.A7
374441
|
-
|
|
|
|
48 - BEARING WASHER
HIT-374442.A3
374442
|
-
|
|
|
|
49 - O-RING D72.2
HIT-335245.A12
335245
|
£1.67
|
£2.00
|
|
|
50 - INNER COVER
HIT-374433.A2
374433
|
-
|
|
|
|
51 - AIR CAP
HIT-334008.A18
334008
|
-
|
|
|
|
52 - FELT PACKING (A)
HIT-324543.A29
324543
|
£1.67
|
£2.00
|
|
|
53 - FELT PACKING
HIT-322816.A13
322816
|
£1.67
|
£2.00
|
|
|
54 - PACKING WASHER
HIT-322818.A6
322818
|
£4.33
|
£5.20
|
|
|
55 - O-RING (P-22)
HIT-876796.A11
876796
|
£1.67
|
£2.00
|
|
|
56 - BALL BEARING 608DD
HIT-608DDM.A32
608DDM
|
£6.35
|
£7.62
|
|
|
57 - WASHER (A)
HIT-982631.A23
982631
|
£1.67
|
£2.00
|
|
|
*58 - ARMATURE (C) 110V
HIT-361110C.A0
361110C
|
-
|
|
|
|
*58 - ARMATURE (C) 220V-230V
HIT-361110E.A2
361110E
|
-
|
|
|
|
59 - HEX. HD. TAPPING SCREW D4X45
HIT-981824.A2
981824
|
-
|
|
|
|
*60 - STATOR (C) 110V (W/CR)
HIT-341031C.A0
341031C
|
-
|
|
|
|
*60 - STATOR (C) 220V-230V
HIT-341031K.A2
341031K
|
-
|
|
|
|
61 - HOUSING (C)
HIT-374632.A0
374632
|
-
|
|
|
|
62 - BRUSH HOLDER
HIT-955203.A45
955203
|
£4.16
|
£4.99
|
|
|
63 - CARBON BRUSH (1 PAIR)
HIT-999041.A58
999041
|
£5.54
|
£6.65
|
|
|
64 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
HIT-999072.A18
999072
|
£14.16
|
£16.99
|
|
|
65 - CHOKE COIL (BLOWN)
HIT-374615.A3
374615
|
-
|
|
|
|
66 - CHOKE COIL (BLUE)
HIT-374614.A7
374614
|
-
|
|
|
|
67 - PUSHING BUTTON
HIT-322853.A6
322853
|
£1.67
|
£2.00
|
|
|
*68 - SWITCH 100V-127V
HIT-374611.A2
374611
|
-
|
|
|
|
*68 - SWITCH 220V-240V
HIT-374610.A7
374610
|
-
|
|
|
|
69 - TAPPING SCREW (W/FLANGE) D5X35
HIT-301654.A5
301654
|
£1.67
|
£2.00
|
|
|
*70 - CORD (CORD ARMOR D8.8)
HIT-500490Z.A0
500490Z
|
-
|
|
|
|
*70 - CORD (CORD ARMOR D8.8) FOR GBR (230V)
HIT-500450Z.A31
500450Z
|
£35.67
|
£42.80
|
|
|
71 - CORD ARMOR D8.8
HIT-953327.A154
953327
|
£1.67
|
£2.00
|
|
|
72 - CORD CLIP
HIT-937631.A70
937631
|
£1.67
|
£2.00
|
|
|
73 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A187
984750
|
£1.67
|
£2.00
|
|
|
74 - NOISE SUPPRESSOR
HIT-930039.A9
930039
|
£3.85
|
£4.62
|
|
|
75 - HANDLE COVER (C)
HIT-374633.A2
374633
|
-
|
|
|
|
76 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A189
301653
|
£1.67
|
£2.00
|
|
|
77 - GRIP SET INCLUD.1-6
HIT-375363.A2
375363
|
-
|
|
|
|
501 - CASE
HIT-374619.A5
374619
|
-
|
|
|
|
502 - SIDE HANDLE
HIT-324548.A13
324548
|
£18.42
|
£22.11
|
|
|
503 - DEPTH GAUGE
HIT-303709.A10
303709
|
£1.67
|
£2.00
|
|
|
601 - DUST COLLECTOR (B) ASS'Y INCLUD.602
HIT-306885.A13
306885
|
£25.14
|
£30.17
|
|
|
602 - DUST COLLECTOR ASS'Y INCLUD.603-609
HIT-986802.A7
986802
|
-
|
|
|
|
603 - DUST COVER
HIT-986803.A18
986803
|
-
|
|
|
|
604 - SEAL COVER
HIT-986804.A7
986804
|
-
|
|
|
|
605 - RETAINING RING FOR D30 SHAFT
HIT-948310.A31
948310
|
£1.67
|
£2.00
|
|
|
606 - WASHER
HIT-958063.A8
958063
|
-
|
|
|
|
607 - STEEL BALL D6.35 (10 PCS.)
HIT-959150.A8
959150
|
£1.67
|
£2.00
|
|
|
608 - OUTER RACE
HIT-986805.A18
986805
|
-
|
|
|
|
609 - SOCKET
HIT-986806.A7
986806
|
-
|
|
|
|
610 - SOCKET ADAPTER (B)
HIT-306910.A30
306910
|
-
|
|
|
|
611 - DUST CUP
HIT-971787.A3
971787
|
£4.40
|
£5.28
|
|
|
612 - STOPPER
HIT-931844.A16
931844
|
-
|
|
|
|
613 - DRILL CHUCK 13VLRB-D INCLUD.614
HIT-321814.A7
321814
|
-
|
|
|
|
614 - FLAT HD. SCREW (LEFT HAND) M6X20
HIT-331966.A9
331966
|
£11.39
|
£13.67
|
|
|
615 - DRILL CHUCK 13VLD-D
HIT-321813.A44
321813
|
-
|
|
|
|
616 - + DRIVER BIT (A) NO.2 25L
HIT-971511Z.A3
971511Z
|
-
|
|
|
|
617 - + DRIVER BIT (A) NO.3 25L
HIT-971512Z.A40
971512Z
|
-
|
|
|
|
618 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL)
HIT-971794.A15
971794
|
-
|
|
|
|
619 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL)
HIT-971795.A18
971795
|
-
|
|
|
|
620 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL)
HIT-971796.A16
971796
|
-
|
|
|
|
621 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL)
HIT-971797.A17
971797
|
-
|
|
|
|
622 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL)
HIT-971798.A16
971798
|
-
|
|
|
|
623 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL)
HIT-971799.A18
971799
|
-
|
|
|
|
624 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL)
HIT-971800.A16
971800
|
-
|
|
|
|
625 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL)
HIT-971801.A18
971801
|
-
|
|
|
|
626 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL)
HIT-971802.A16
971802
|
-
|
|
|
|
627 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL)
HIT-971803.A17
971803
|
-
|
|
|
|
628 - SYRINGE (BLOW-OUT BULB TYPE)
HIT-320859.A34
320859
|
£10.35
|
£12.42
|
|
|
629 - COTTER
HIT-944477.A3
944477
|
£5.17
|
£6.20
|
|
|
630 - CENTER PIN (A) 109L FOR CORE BIT D32-38
HIT-982684.A9
982684
|
-
|
|
|
|
631 - NO LONGER AVAILABLE
HIT-982685.A20
982685
|
-
|
|
|
|
632 - GREASE FOR ROTARY HAMMER (500G)
HIT-335781.A8
335781
|
£91.40
|
£109.68
|
|
|
633 - GREASE FOR ROTARY HAMMER (60G)
HIT-335782.A14
335782
|
£19.89
|
£23.87
|
|
