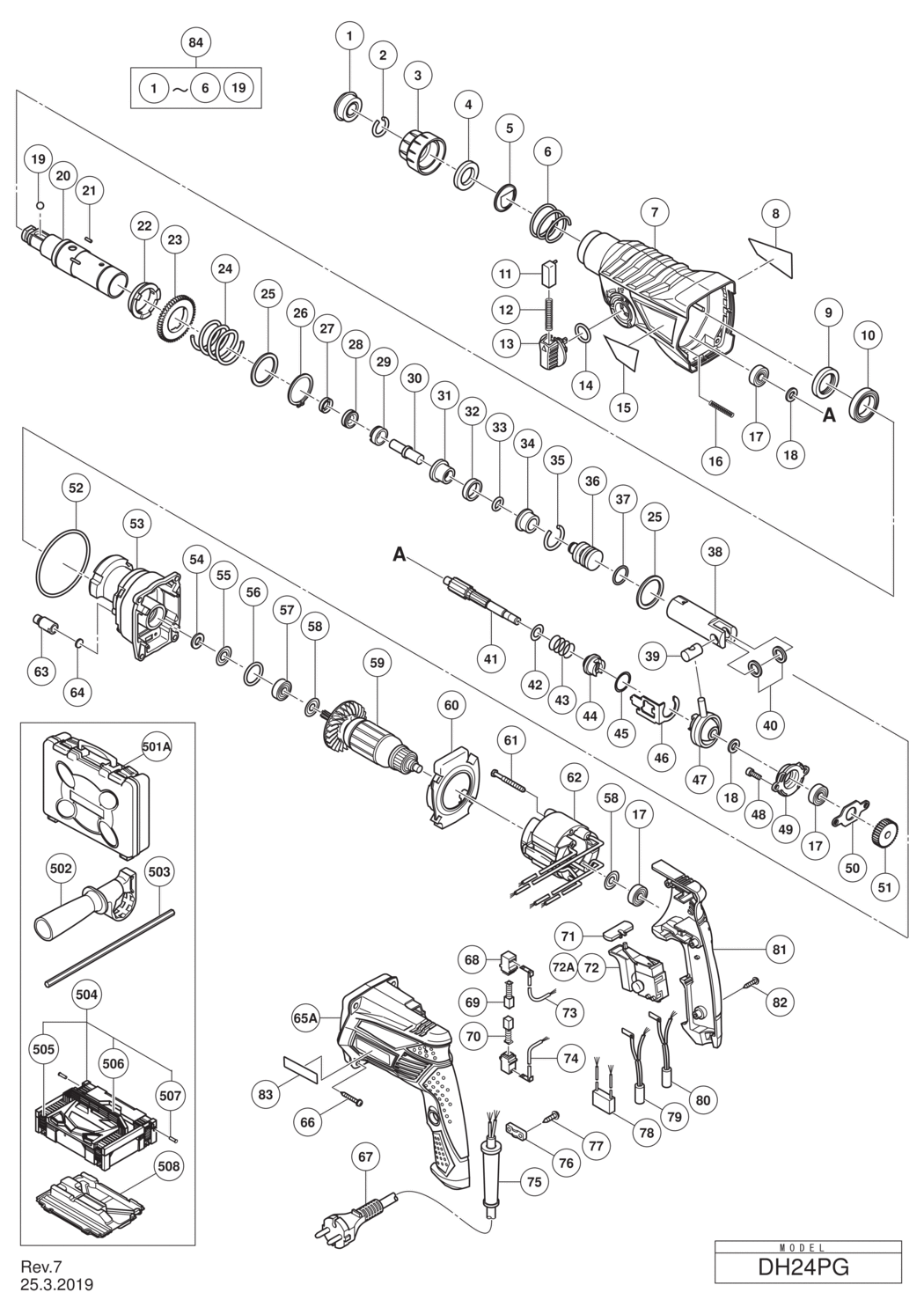

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH24PG Rotary Hammer Drill
Ex VAT Inc VAT
1 - FRONT CAP HIT-306345.A21 306345 £3.59 £4.31
2 - STOPPER RING HIT-306340.A17 306340 £1.67 £2.00
3 - GRIP HIT-324527.A9 324527 £4.33 £5.20
4 - BALL HOLDER HIT-324528.A6 324528 £8.66 £10.39
5 - HOLDER PLATE HIT-324526.A10 324526 £4.33 £5.20
6 - HOLDER SPRING HIT-322812.A4 322812 £1.67 £2.00
7 - GEAR COVER HIT-335258.A2 335258 -
8 - NAME PLATE HIT-000000.A4693 000000 -
9 - OIL SEAL HIT-335259.A0 335259 £5.07 £6.08
10 - BALL BEARING 6805DD HIT-335260.A11 335260 £6.06 £7.27
11 - PUSHING BUTTON HIT-322789.A8 322789 £6.50 £7.80
12 - PUSHING SPRING HIT-317223.A22 317223 £1.67 £2.00
13 - CHANGE LEVER HIT-334011.A14 334011 £3.92 £4.70
14 - O-RING (S-18) HIT-878885.A8 878885 £1.67 £2.00
15 - BRAND LABEL HIT-000000.A4694 000000 -
16 - SPRING (E) HIT-335800.A19 335800 £1.67 £2.00
17 - BALL BEARING 608VVC2PS2L HIT-608VVM.A66 608VVM £5.70 £6.84
18 - BEARING WASHER HIT-335250.A11 335250 £1.67 £2.00
19 - STEEL BALL D7.0 (10 PCS.) HIT-335300.A0 335300 £1.67 £2.00
20 - CYLINDER HIT-335261.A0 335261 £34.50 £41.40
21 - PIN D2.5 HIT-335264.A10 335264 £1.67 £2.00
22 - CYLINDER CLUTCH HIT-335263.A1 335263 £18.38 £22.05
23 - SECOND GEAR HIT-335265.A1 335265 £10.52 £12.62
24 - SPRING (A) HIT-335266.A10 335266 £1.67 £2.00
25 - WASHER (A) HIT-301679.A23 301679 £1.67 £2.00
26 - RETAINING RING FOR D30 SHAFT HIT-948310.A38 948310 £1.67 £2.00
27 - OIL SEAL (A) HIT-335262.A22 335262 £3.12 £3.74
28 - HAMMER HOLDER (C) HIT-335268.A9 335268 £16.28 £19.54
29 - SLEEVE (FW) HIT-335795.A0 335795 £7.66 £9.19
30 - SECOND HAMMER HIT-335269.A1 335269 £7.12 £8.54
31 - HAMMER HOLDER (A) HIT-335267.A1 335267 £5.43 £6.52
32 - DAMPER (A) HIT-322805.A26 322805 £1.67 £2.00
33 - O-RING (C) HIT-322808.A26 322808 £1.67 £2.00
34 - DAMPER HOLDER HIT-324524.A10 324524 £8.66 £10.39
35 - STOPPER RING HIT-322807.A2 322807 £1.67 £2.00
36 - STRIKER HIT-335246.A9 335246 £7.48 £8.97
37 - O-RING D17 HIT-335247.A0 335247 £4.72 £5.66
38 - PISTON HIT-335255.A0 335255 £19.02 £22.83
39 - PISTON PIN HIT-335793.A0 335793 £5.78 £6.94
40 - PISTON WASHER HIT-335794.A22 335794 £1.67 £2.00
41 - SECOND SHAFT HIT-335248.A2 335248 -
42 - WASHER (C) HIT-335251.A0 335251 -
43 - CLUTCH SPRING HIT-323182.A17 323182 £1.67 £2.00
44 - CLUTCH HIT-335254.A9 335254 £7.12 £8.54
45 - WASHER HIT-331315.A2 331315 £1.67 £2.00
46 - CHANGE PLATE HIT-335252.A5 335252 -
47 - RECIPROCATING BEARING HIT-335249.A0 335249 £19.98 £23.97
48 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A21 990079 £1.67 £2.00
49 - BEARING HOLDER HIT-335270.A5 335270 £15.84 £19.01
50 - BEARING COVER HIT-335271.A1 335271 £1.67 £2.00
51 - FIRST GEAR HIT-335253.A0 335253 £11.52 £13.82
52 - O-RING D72.2 HIT-335245.A0 335245 £1.67 £2.00
53 - INNER COVER HIT-335272.A2 335272 £15.94 £19.13
54 - FELT PACKING HIT-322816.A7 322816 £1.67 £2.00
55 - PACKING WASHER HIT-322818.A12 322818 £4.33 £5.20
56 - O-RING (P-22) HIT-876796.A1 876796 £1.67 £2.00
57 - BALL BEARING 608DD HIT-608DDM.A11 608DDM £6.35 £7.62
58 - WASHER (A) HIT-982631.A48 982631 £1.67 £2.00
*59 - ARMATURE 110V HIT-360962C.A0 360962C £27.88 £33.46
*59 - ARMATURE 220V-230V HIT-360962E.A1 360962E £27.88 £33.46
60 - FAN GUIDE HIT-335244.A6 335244 £1.67 £2.00
61 - HEX. HD. TAPPING SCREW D4X45 HIT-981824.A15 981824 -
*62 - STATOR 110V HIT-340866C.A0 340866C £25.03 £30.04
*62 - STATOR 220V-230V HIT-340866E.A1 340866E £30.47 £36.56
63 - AIR CAP HIT-334008.A7 334008 -
64 - FELT PACKING (A) HIT-324543.A13 324543 £1.67 £2.00
65A - HOUSING HIT-335660.A1 335660 -
66 - TAPPING SCREW (W/FLANGE) D5X35 HIT-301654.A20 301654 £1.67 £2.00
*67 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500450Z.A14 500450Z £35.67 £42.80
*67 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500490Z.A1 500490Z -
68 - BRUSH HOLDER HIT-955203.A26 955203 £4.16 £4.99
69 - CARBON BRUSH (1 PAIR) HIT-999041.A5 999041 £5.54 £6.65
70 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999072.A1 999072 £13.72 £16.46
71 - PUSHING BUTTON HIT-322853.A19 322853 £1.67 £2.00
*72 - SWITCH HIT-335796.A8 335796 £20.10 £24.12
*72A - SWITCH FOR TPE HIT-337388.A4 337388 £23.15 £27.78
*75 - CORD ARMOR D8.8 HIT-953327.A18 953327 £1.67 £2.00
76 - CORD CLIP HIT-937631.A114 937631 £1.67 £2.00
77 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A27 984750 £1.67 £2.00
*78 - NOISE SUPPRESSOR EXCEPT FOR BRA HIT-930039.A72 930039 £3.85 £4.62
*79 - CHOKE COIL (A) BROWN EXCEPT FOR BRA HIT-335857.A1 335857 £3.48 £4.17
*80 - CHOKE COIL (A) BLUE EXCEPT FOR BRA HIT-324551.A2 324551 £14.51 £17.41
81 - HANDLE COVER HIT-335661.A0 335661 -
82 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A59 301653 £1.67 £2.00
83 - BRAND LABEL HIT-000000.A4695 000000 -
84 - GRIP ASS'Y INCLUD.1-6 HIT-375172.A4 375172 £7.75 £9.30
501A - CASE HIT-337257.A1 337257 £30.05 £36.06
502 - SIDE HANDLE HIT-324548.A3 324548 £18.42 £22.11
*503 - DEPTH GAUGE HIT-303709.A60 303709 £1.67 £2.00
601 - DUST COLLECTOR (B) ASS'Y INCLUD.602 HIT-306885.A24 306885 £25.14 £30.17
602 - DUST COLLECTOR ASS'Y INCLUD.603-609 HIT-986802.A15 986802 -
603 - DUST COVER HIT-986803.A10 986803 -
604 - SEAL COVER HIT-986804.A15 986804 -
605 - RETAINING RING FOR D30 SHAFT HIT-948310.A37 948310 £1.67 £2.00
606 - WASHER HIT-958063.A25 958063 -
607 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A41 959150 £1.67 £2.00
608 - OUTER RACE HIT-986805.A10 986805 -
609 - SOCKET HIT-986806.A15 986806 -
610 - SOCKET ADAPTER (B) HIT-306910.A14 306910 -
611 - DUST CUP HIT-971787.A37 971787 £4.40 £5.28
612 - STOPPER HIT-931844.A12 931844 -
613 - DRILL CHUCK 13VLRB-D INCLUD.614 HIT-321814.A24 321814 -
614 - FLAT HD. SCREW (LEFT HAND) M6X20 HIT-331966.A25 331966 £11.39 £13.67
615 - DRILL CHUCK 13VLD-D HIT-321813.A24 321813 -
616 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A37 971511Z -
617 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A5 971512Z -
618 - COTTER HIT-944477.A43 944477 £5.17 £6.20
619 - CENTER PIN (A) 109L FOR CORE BIT D32-38 HIT-982684.A29 982684 -
620 - NO LONGER AVAILABLE HIT-982685.A0 982685 -
621 - NO LONGER AVAILABLE HIT-982672.A16 982672 -
622 - NO LONGER AVAILABLE HIT-982673.A0 982673 -
623 - NO LONGER AVAILABLE HIT-982674.A12 982674 -
624 - NO LONGER AVAILABLE HIT-982686.A18 982686 -
625 - NO LONGER AVAILABLE HIT-982675.A0 982675 -
626 - NO LONGER AVAILABLE HIT-982687.A0 982687 -
627 - CORE BIT (A) 38MM INCLUD.628 HIT-982676.A12 982676 -
628 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-982688.A18 982688 -
629 - CORE BIT (B) 45MM INCLUD.630 HIT-982677.A0 982677 £73.70 £88.44
630 - NO LONGER AVAILABLE HIT-982689.A0 982689 -
631 - CORE BIT (B) 50MM INCLUD.632 HIT-982678.A7 982678 -
632 - NO LONGER AVAILABLE HIT-982690.A18 982690 -
633 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A20 971794 -
634 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A13 971795 -
635 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A21 971796 -
636 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A13 971797 -
637 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A20 971798 -
638 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A14 971799 -
639 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A20 971800 -
640 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A13 971801 -
641 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A21 971802 -
642 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A12 971803 -
643 - TAPER SHANK DRILL BIT D11X100 HIT-944460.A2 944460 -
644 - TAPER SHANK DRILL BIT D12.3X110 HIT-944461.A17 944461 -
645 - TAPER SHANK DRILL BIT D12.7X110 HIT-993038.A20 993038 -
647 - TAPER SHANK DRILL BIT D14.5X110 HIT-944500.A17 944500 -
649 - TAPER SHANK DRILL BIT D21.5X140 HIT-944464.A1 944464 -
650 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A17 320859 £10.35 £12.42
651 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A22 303046 -
652 - CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L HIT-303044.A20 303044 -
653 - CHEMICAL ANCHOR ADAPTER(SDS+)19.0MMX100L HIT-303045.A0 303045 -
654 - SPECIAL SCREW M6X22 HIT-981122.A2 981122 £1.67 £2.00
655 - CHUCK WRENCH 10G HIT-930515.A22 930515 £6.38 £7.66
656 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L HIT-302976.A0 302976 -
657 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L HIT-302975.A23 302975 -
658 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L HIT-303621.A11 303621 -
659 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L HIT-302974.A0 302974 -
660 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L HIT-302979.A23 302979 -
661 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L HIT-302978.A0 302978 -
662 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L HIT-303622.A12 303622 -
663 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L HIT-302977.A23 302977 -
664 - HAMMER DRILL CHUCK SET 13MM INCLUD.665 HIT-303332.A11 303332 -
665 - CHUCK HANDLE HIT-303334.A26 303334 -
666 - RUBBER CAP HIT-303335.A11 303335 £7.78 £9.34
667 - TAPER SHANK ADAPTER (SDS PLUS) NO.1 HIT-303617.A11 303617 £39.42 £47.31
668 - TAPER SHANK ADAPTER (SDS PLUS) NO.2 HIT-303618.A9 303618 £40.02 £48.02
669 - A-TAPER SHANK ADAPTER (SDS PLUS) HIT-303619.A11 303619 £31.41 £37.69
670 - B-TAPER SHANK ADAPTER (SDS PLUS) HIT-303620.A12 303620 -
671 - CORE BIT SHANK (SDS PLUS) 25-38MM 105L HIT-303625.A11 303625 -
672 - CORE BIT SHANK (SDS PLUS) 25-38MM 300L HIT-303626.A7 303626 -
673 - CORE BIT SHANK (SDS PLUS) 45-90MM 300L HIT-303627.A11 303627 -
674 - CHUCK ADAPTER (D) (SDS PLUS) HIT-303624.A11 303624 £37.06 £44.47
675 - DRILL CHUCK AND ADAPTER SET INCLUD.613 HIT-321825.A3 321825 -
676 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A13 303623 -
677 - ADAPTER FOR SLENDER SHAFT (SDS PLUS) HIT-306370.A5 306370 -
678 - GREASE FOR ROTARY HAMMER (500G) HIT-335781.A5 335781 £91.40 £109.68
679 - GREASE FOR ROTARY HAMMER (60G) HIT-335782.A17 335782 £19.89 £23.87
