Hitachi / Hikoki DH24PF3 Rotary Hammer Spare Parts

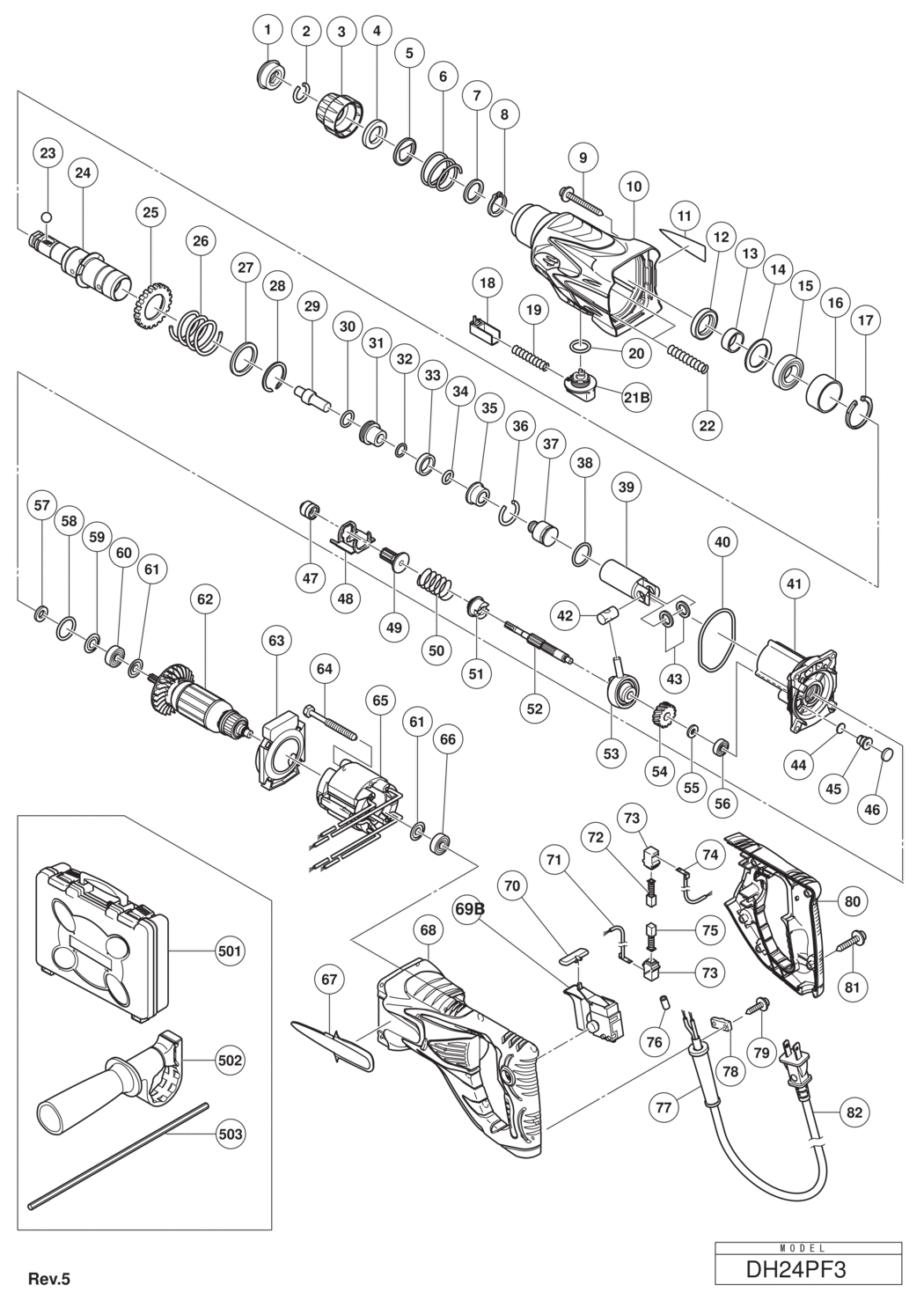

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH24PF3 Rotary Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-306345.A31 306345	£3.59	£4.31
2 - STOPPER RING HIT-306340.A5 306340	£1.67	£2.00
3 - GRIP HIT-324527.A15 324527	£4.33	£5.20
4 - BALL HOLDER HIT-324528.A0 324528	£8.66	£10.39
5 - HOLDER PLATE HIT-324526.A0 324526	£4.33	£5.20
6 - HOLDER SPRING HIT-322812.A16 322812	£1.67	£2.00
7 - WASHER (B) HIT-984118.A9 984118	£1.67	£2.00
8 - RETAINING RING FOR D20 SHAFT (10 PCS.) HIT-939547.A20 939547	£4.61	£5.53
9 - TAPPING SCREW (W/FLANGE) D5X35 HIT-301654.A15 301654	£1.67	£2.00
10 - GEAR COVER ASS'Y INCLUD.47 HIT-324605.A0 324605	£33.60	£40.32
11 - NAME PLATE HIT-000000.A4179 000000	-
12 - OIL SEAL HIT-307688.A2 307688	£5.34	£6.41
13 - SLEEVE HIT-322815.A5 322815	£1.67	£2.00
14 - FELT PACKING (B) HIT-323232.A4 323232	£1.67	£2.00
15 - BALL BEARING 6904DDPS2L HIT-6904DD.A4 6904DD	£14.68	£17.62
16 - SLEEVE (A) HIT-324522.A0 324522	£4.33	£5.20
17 - RETAINING RING 37MM HIT-322813.A12 322813	£1.67	£2.00
18 - PUSHING BUTTON HIT-324530.A1 324530	£1.67	£2.00
19 - PUSHING SPRING HIT-317223.A14 317223	£1.67	£2.00
20 - O-RING (S-18) HIT-878885.A25 878885	£1.67	£2.00
21B - CHANGE LEVER HIT-333588.A1 333588	£5.80	£6.96
22 - SPRING (B) HIT-317238.A0 317238	£1.67	£2.00
23 - STEEL BALL D7.0 (10 PCS.) HIT-959156.A14 959156	£1.67	£2.00
24 - CYLINDER HIT-323184.A0 323184	£82.80	£99.36
25 - SECOND GEAR HIT-323185.A2 323185	£24.16	£28.99
26 - SPRING (A) HIT-317233.A1 317233	£8.78	£10.54
27 - WASHER (A) HIT-317234.A2 317234	£4.10	£4.92
28 - RETAINING RING D30 HIT-317235.A1 317235	£1.67	£2.00
29 - SECOND HAMMER HIT-324525.A4 324525	£8.66	£10.39
30 - O-RING (1AP-20) HIT-944486.A5 944486	£1.67	£2.00
31 - HAMMER HOLDER HIT-324523.A5 324523	£14.51	£17.41
32 - O-RING (B) HIT-322802.A1 322802	£4.33	£5.20
33 - DAMPER (A) HIT-322805.A18 322805	£1.67	£2.00
34 - O-RING (C) HIT-322808.A18 322808	£1.67	£2.00
35 - DAMPER HOLDER HIT-324524.A0 324524	£8.66	£10.39
36 - STOPPER RING HIT-322807.A10 322807	£1.67	£2.00
37 - STRIKER HIT-324535.A5 324535	£12.98	£15.58
38 - O-RING (I.D. 16) HIT-322834.A0 322834	£4.33	£5.20
39 - PISTON HIT-324534.A0 324534	£19.63	£23.56
40 - O-RING (I.D. 66.5) HIT-322793.A1 322793	£4.33	£5.20
41 - INNER COVER ASS'Y INCLUD.44-46 HIT-324542.A0 324542	£40.25	£48.30
42 - PISTON PIN HIT-322798.A0 322798	£1.67	£2.00
43 - WASHER (C) HIT-322799.A7 322799	£1.67	£2.00
44 - FELT PACKING (A) HIT-324543.A2 324543	£1.67	£2.00
45 - VALVE HIT-324545.A0 324545	£1.67	£2.00
46 - FELT PACKING (B) HIT-324544.A13 324544	£1.67	£2.00
47 - PINION SLEEVE HIT-323249.A2 323249	£49.48	£59.37
48 - LOCK PLATE HIT-318522.A1 318522	£17.87	£21.44
49 - SECOND PINION HIT-323181.A1 323181	£21.65	£25.98
50 - CLUTCH SPRING HIT-323182.A23 323182	£1.67	£2.00
51 - CLUTCH HIT-324606.A1 324606	£16.80	£20.16
52 - SECOND SHAFT HIT-323180.A0 323180	£37.06	£44.47
53 - RECIPROCATING BEARING HIT-324533.A5 324533	£34.15	£40.98
54 - FIRST GEAR HIT-322797.A1 322797	£14.68	£17.62
55 - SPACER HIT-322795.A0 322795	£1.67	£2.00
56 - BALL BEARING 626VVC2PS2L HIT-626VVM.A32 626VVM	£5.77	£6.92
57 - FELT PACKING HIT-322816.A0 322816	£1.67	£2.00
58 - O-RING (P-22) HIT-876796.A3 876796	£1.67	£2.00
59 - PACKING WASHER HIT-322818.A19 322818	£4.33	£5.20
60 - BALL BEARING 608DD HIT-608DDM.A12 608DDM	£6.35	£7.62
61 - WASHER (A) HIT-982631.A35 982631	£1.67	£2.00
62 - ARMATURE ASS'Y 110V-120V INCLUD.60 HIT-360720U.A1 360720U	£60.37	£72.44
63 - FAN GUIDE HIT-324531.A0 324531	£4.33	£5.20
64 - HEX. HD. TAPPING SCREW D4X50 HIT-961672.A12 961672	-
65 - STATOR 110V-120V HIT-340637C.A0 340637C	-
66 - BALL BEARING 608VVC2PS2L HIT-608VVM.A25 608VVM	£5.70	£6.84
67 - BRAND PLATE HIT-324588.A0 324588	-
68 - HOUSING HIT-324589.A0 324589	-
69B - SWITCH HIT-335796.A5 335796	£20.10	£24.12
70 - PUSHING BUTTON HIT-322853.A25 322853	£1.67	£2.00
71 - INTERNAL WIRE (A) (BROWN) HIT-324587.A0 324587	-
72 - CARBON BRUSH (1 PAIR) HIT-999041.A27 999041	£5.54	£6.65
73 - BRUSH HOLDER HIT-955203.A16 955203	£4.16	£4.99
74 - INTERNAL WIRE (A) (BLUE) HIT-324586.A0 324586	-
75 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999072.A6 999072	£13.72	£16.46
76 - TUBE (D) FOR CORD HIT-981373.A115 981373	£1.67	£2.00
77 - CORD ARMOR D8.8 HIT-953327.A57 953327	£1.67	£2.00
78 - CORD CLIP HIT-937631.A165 937631	£1.67	£2.00
79 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A95 984750	£1.67	£2.00
80 - HANDLE COVER HIT-324590.A0 324590	-
81 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A115 301653	£1.67	£2.00
82 - CORD (CORD ARMOR D8.8) HIT-500249Z.A0 500249Z	-
501 - CASE HIT-324591.A0 324591	-
502 - SIDE HANDLE HIT-324548.A9 324548	£18.42	£22.11
503 - DEPTH GAUGE HIT-310331.A4 310331	-
601 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A7 981840	£8.22	£9.87
602 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A0 308471	£16.21	£19.45
603 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A28 980927	£55.68	£66.81
604 - DUST COLLECTOR (B) ASS'Y INCLUD.605 HIT-306885.A33 306885	£25.14	£30.17
605 - DUST COLLECTOR ASS'Y INCLUD.606-612 HIT-986802.A22 986802	-
606 - DUST COVER HIT-986803.A3 986803	-
607 - SEAL COVER HIT-986804.A22 986804	-
608 - RETAINING RING FOR D30 SHAFT HIT-948310.A50 948310	£1.67	£2.00
609 - WASHER HIT-958063.A18 958063	-
610 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A32 959150	£1.67	£2.00
611 - OUTER RACE HIT-986805.A3 986805	-
612 - SOCKET HIT-986806.A22 986806	-
613 - SOCKET ADAPTER (B) HIT-306910.A9 306910	-
614 - DUST CUP HIT-971787.A31 971787	£4.40	£5.28
615 - STOPPER HIT-931844.A4 931844	-
616 - DRILL CHUCK 13VLRB-D INCLUD.617 HIT-321814.A36 321814	-
617 - FLAT HD. SCREW (A) (LEFT HAND) M6X25 HIT-995344.A33 995344	-
618 - DRILL CHUCK 13VLD-D HIT-321813.A13 321813	-
619 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A30 971511Z	-
620 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A12 971512Z	-
621 - COTTER HIT-944477.A33 944477	£5.17	£6.20
622 - CENTER PIN (A) 109L FOR CORE BIT D32-38 HIT-982684.A26 982684	-
623 - NO LONGER AVAILABLE HIT-982685.A3 982685	-
627 - NO LONGER AVAILABLE HIT-982686.A15 982686	-
629 - NO LONGER AVAILABLE HIT-982687.A3 982687	-
631 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-982688.A15 982688	-
633 - NO LONGER AVAILABLE HIT-982689.A3 982689	-
635 - NO LONGER AVAILABLE HIT-982690.A15 982690	-
636 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A26 971794	-
637 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A7 971795	-
638 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A27 971796	-
639 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A7 971797	-
640 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A26 971798	-
641 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A7 971799	-
642 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A27 971800	-
643 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A6 971801	-
644 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A27 971802	-
645 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A6 971803	-
653 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A3 320859	£10.35	£12.42
654 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A16 303046	-
655 - CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L HIT-303044.A14 303044	-
656 - CHEMICAL ANCHOR ADAPTER(SDS+)19.0MMX100L HIT-303045.A6 303045	-
657 - CHUCK HANDLE HIT-303334.A1 303334	-
658 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L HIT-302976.A7 302976	-
659 - CHUCK WRENCH 10G HIT-930515.A12 930515	£6.38	£7.66
660 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L HIT-302975.A16 302975	-
661 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L HIT-303621.A18 303621	-
662 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L HIT-302974.A7 302974	-
663 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L HIT-302979.A16 302979	-
664 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L HIT-302978.A7 302978	-
665 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L HIT-303622.A5 303622	-
666 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L HIT-302977.A16 302977	-
667 - HAMMER DRILL CHUCK SET 13MM INCLUD.668 HIT-303332.A24 303332	-
668 - CHUCK HANDLE HIT-303334.A0 303334	-
669 - RUBBER CAP HIT-303335.A24 303335	£7.78	£9.34
670 - TAPER SHANK ADAPTER (SDS PLUS) NO.1 HIT-303617.A18 303617	£39.42	£47.31
671 - TAPER SHANK ADAPTER (SDS PLUS) NO.2 HIT-303618.A2 303618	£40.02	£48.02
672 - A-TAPER SHANK ADAPTER (SDS PLUS) HIT-303619.A18 303619	£31.41	£37.69
673 - B-TAPER SHANK ADAPTER (SDS PLUS) HIT-303620.A5 303620	-
674 - SPECIAL SCREW M6X22 HIT-981122.A7 981122	£1.67	£2.00
675 - CORE BIT SHANK (SDS PLUS) 25-38MM 105L HIT-303625.A16 303625	-
676 - CORE BIT SHANK (SDS PLUS) 25-38MM 300L HIT-303626.A2 303626	-
677 - CORE BIT SHANK (SDS PLUS) 45-90MM 300L HIT-303627.A16 303627	-
678 - CHUCK ADAPTER (D) (SDS PLUS) HIT-303624.A4 303624	£37.06	£44.47
679 - DRILL CHUCK AND ADAPTER SET INCLUD.680 HIT-321825.A13 321825	-
680 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A23 303623	-
684 - SERVICE KIT (DH 24PB3 ETC.) INCLUD.33 HIT-326305.A0 326305	£58.38	£70.06
