Hitachi / Hikoki DH24DVC Cordless Rotary Hammer Spare Parts

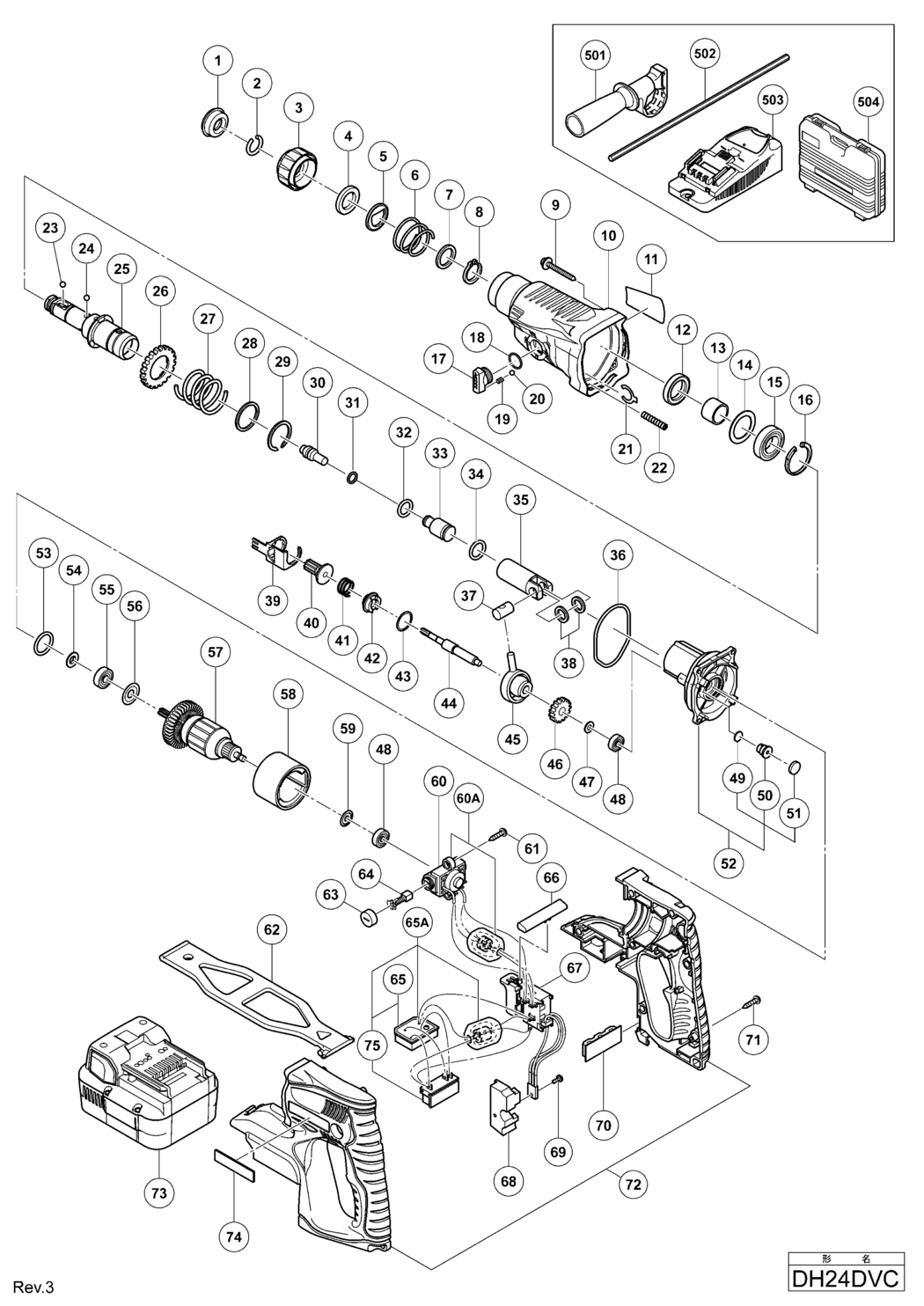

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH24DVC Cordless Rotary Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-306345.A33 306345	£3.59	£4.31
2 - STOPPER RING HIT-306340.A3 306340	£1.67	£2.00
3 - GRIP HIT-325597.A5 325597	£5.05	£6.06
4 - BALL HOLDER HIT-324528.A4 324528	£8.66	£10.39
5 - HOLDER PLATE HIT-324526.A7 324526	£4.33	£5.20
6 - HOLDER SPRING HIT-322812.A10 322812	£1.67	£2.00
7 - WASHER (B) HIT-984118.A10 984118	£1.67	£2.00
8 - RETAINING RING FOR D20 SHAFT (10 PCS.) HIT-939547.A14 939547	£4.61	£5.53
9 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK) HIT-305490.A9 305490	£1.67	£2.00
10 - GEAR COVER (A) HIT-331520.A1 331520	£31.33	£37.60
11 - NAME PLATE HIT-000000.A3807 000000	-
12 - OIL SEAL HIT-307688.A3 307688	£5.34	£6.41
13 - SLEEVE HIT-331301.A1 331301	£3.28	£3.93
14 - FELT PACKING (B) HIT-323232.A2 323232	£1.67	£2.00
15 - BALL BEARING 6904DDPS2L HIT-6904DD.A1 6904DD	£14.68	£17.62
16 - RETAINING RING 37MM HIT-322813.A14 322813	£1.67	£2.00
17 - CHANGE LEVER HIT-331303.A1 331303	£5.52	£6.63
18 - O-RING (S-15) HIT-319567.A6 319567	£2.91	£3.49
19 - SPRING (H) HIT-331306.A0 331306	£1.67	£2.00
20 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A21 959155	£1.67	£2.00
21 - RETAINING RING D15 HIT-331305.A1 331305	£5.52	£6.63
22 - SPRING (C) HIT-331302.A0 331302	£1.67	£2.00
23 - STEEL BALL D7.0 (10 PCS.) HIT-959156.A9 959156	£1.67	£2.00
24 - STEEL BALL D5.556 (10 PCS.) HIT-959154.A22 959154	£1.67	£2.00
25 - CYLINDER HIT-331307.A1 331307	£27.96	£33.55
26 - SECOND GEAR HIT-331309.A1 331309	£11.31	£13.57
27 - SPRING (A) HIT-331310.A0 331310	£1.67	£2.00
28 - WASHER (A) HIT-331311.A1 331311	£1.67	£2.00
29 - RETAINING RING D28 HIT-320846.A0 320846	£1.67	£2.00
30 - SECOND HAMMER HIT-331312.A0 331312	£3.28	£3.93
31 - O-RING (B) HIT-301672.A0 301672	£1.67	£2.00
32 - O-RING (A) HIT-331308.A0 331308	£1.67	£2.00
33 - STRIKER HIT-331296.A0 331296	£6.45	£7.74
34 - O-RING (A) HIT-301670.A1 301670	£3.15	£3.78
35 - PISTON HIT-331300.A0 331300	£34.33	£41.20
36 - O-RING (A) HIT-327870.A2 327870	£1.67	£2.00
37 - PISTON PIN HIT-322798.A2 322798	£1.67	£2.00
38 - WASHER (C) HIT-322799.A6 322799	£1.67	£2.00
39 - LOCK PLATE HIT-331313.A1 331313	£14.82	£17.78
40 - SECOND PINION HIT-323181.A2 323181	£21.65	£25.98
41 - CLUTCH SPRING HIT-323182.A21 323182	£1.67	£2.00
42 - CLUTCH HIT-331314.A0 331314	£8.77	£10.52
43 - WASHER HIT-331315.A5 331315	£1.67	£2.00
44 - SECOND SHAFT HIT-331297.A1 331297	£14.58	£17.50
45 - RECIPROCATING BEARING HIT-331298.A0 331298	£20.77	£24.92
46 - FIRST GEAR HIT-331299.A1 331299	-
47 - WASHER (B) D12.5 HIT-995634.A1 995634	£1.67	£2.00
48 - BALL BEARING 626VVC2PS2L HIT-626VVM.A38 626VVM	£5.77	£6.92
49 - FELT PACKING (A) HIT-324543.A6 324543	£1.67	£2.00
50 - VALVE HIT-324545.A2 324545	£1.67	£2.00
51 - FELT PACKING (B) HIT-324544.A7 324544	£1.67	£2.00
52 - INNER COVER ASS'Y (A) INCLUD.49-51 HIT-331521.A0 331521	-
53 - O-RING (S-24) HIT-878609.A2 878609	£1.67	£2.00
54 - FRINGER HIT-306312.A0 306312	£2.73	£3.28
55 - BALL BEARING 609DDC3PS2-L HIT-609DDC.A3 609DDC	£14.46	£17.35
56 - WASHER (A) HIT-958915.A4 958915	£1.67	£2.00
57 - ARMATURE ASS'Y DC 24V INCLUD.48 HIT-360895.A0 360895	£50.74	£60.89
58 - MAGNET HIT-332670.A0 332670	£15.58	£18.69
59 - WASHER (A) HIT-980865.A2 980865	£1.67	£2.00
*60 - BRUSH BLOCK EXCEPT FOR EUROPE (TILL 2.2012 FOR HIT-328486.A2 328486	£16.13	£19.36
*60A - BRUSH BLOCK SET SINCE 3.2012 FOR EUROPE HIT-334891.A0 334891	£22.22	£26.66
61 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A98 305812	£1.67	£2.00
62 - BATTERY BAND HIT-332669.A0 332669	£4.86	£5.83
63 - BRUSH CAP HIT-319847.A4 319847	£1.67	£2.00
64 - CARBON BRUSH (1 PAIR) HIT-999100.A0 999100	£7.98	£9.58
*65 - CONTROLLER TERMINAL SET INCLUD.75 EXCEPT FOR EUROPE HIT-332667.A0 332667	£29.80	£35.76
*65A - CONTROLLER SET INCLUD.75 SINCE 3.2012 FOR EUROPE HIT-334879.A0 334879	£28.44	£34.13
66 - PUSHING BUTTON HIT-328064.A4 328064	£1.67	£2.00
67 - DC-SPEED CONTROL SWITCH HIT-332666.A0 332666	£33.17	£39.80
68 - HEAT SINK HIT-319812.A7 319812	£4.07	£4.88
69 - MACHINE SCREW (W/WASHERS) M3X12 HIT-993963.A0 993963	£1.67	£2.00
70 - RUBBER CUSHION HIT-332668.A0 332668	£3.83	£4.60
71 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A30 302086	£1.67	£2.00
72 - HOUSING (A).(B) SET HIT-332665.A0 332665	£29.87	£35.84
*73 - BATTERY BSH 2420 (EUROPE AUS NZL) HIT-332484.A0 332484	£195.89	£235.07
74 - BRAND LABEL HIT-000000.A3810 000000	-
75 - BATTERY TERMINAL HIT-333991.A4 333991	£7.68	£9.21
501 - SIDE HANDLE HIT-324548.A6 324548	£18.42	£22.11
502 - DEPTH GAUGE HIT-303709.A40 303709	£1.67	£2.00
503 - CHARGER (MODEL UC 24SGH) HIT-000000.A3813 000000	-
504 - CASE HIT-332671.A0 332671	£30.75	£36.90
601 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A16 308471	£16.21	£19.45
602 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A43 980927	£55.68	£66.81
603 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A20 981840	£8.22	£9.87
604 - DRILL CHUCK 13VLRB-D INCLUD.605 HIT-321814.A46 321814	-
605 - FLAT HD. SCREW (A) (LEFT HAND) M6X25 HIT-995344.A27 995344	-
606 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A34 971511Z	-
607 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A8 971512Z	-
608 - SPECIAL SCREW M6X22 HIT-981122.A9 981122	£1.67	£2.00
609 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A24 971794	-
610 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A9 971795	-
611 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A25 971796	-
612 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A11 971799	-
613 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A23 971800	-
614 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A10 971801	-
615 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L HIT-302976.A3 302976	-
616 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L HIT-302975.A20 302975	-
617 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L HIT-303621.A20 303621	-
618 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L HIT-302974.A3 302974	-
619 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L HIT-302979.A20 302979	-
620 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L HIT-302978.A3 302978	-
621 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L HIT-303622.A3 303622	-
622 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L HIT-302977.A20 302977	-
623 - COLD CHISEL HIT-316657.A0 316657	-
624 - GROOVING CHISEL HIT-316659.A0 316659	-
625 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A13 303046	-
626 - SQUARE BULL POINT HIT-316656.A0 316656	-
627 - CUTTER HIT-316658.A0 316658	-
628 - COTTER HIT-944477.A37 944477	£5.17	£6.20
629 - CHUCK HANDLE HIT-303334.A12 303334	-
630 - CHUCK WRENCH 10G HIT-930515.A1 930515	£6.38	£7.66
631 - HAMMER DRILL CHUCK SET 13MM INCLUD.632 HIT-303332.A19 303332	-
632 - CHUCK HANDLE HIT-303334.A11 303334	-
633 - RUBBER CAP HIT-303335.A19 303335	£7.78	£9.34
634 - DRILL CHUCK 13VLD-D HIT-321813.A4 321813	-
635 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A11 320859	£10.35	£12.42
636 - TAPER SHANK ADAPTER (SDS PLUS) NO.1 HIT-303617.A21 303617	£39.42	£47.31
637 - TAPER SHANK ADAPTER (SDS PLUS) NO.2 HIT-303618.A0 303618	£40.02	£48.02
638 - A-TAPER SHANK ADAPTER (SDS PLUS) HIT-303619.A20 303619	£31.41	£37.69
639 - B-TAPER SHANK ADAPTER (SDS PLUS) HIT-303620.A3 303620	-
640 - CHUCK ADAPTER (D) (SDS PLUS) HIT-303624.A16 303624	£37.06	£44.47
641 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A7 303623	-
642 - DRILL CHUCK AND ADAPTER SET HIT-321825.A15 321825	-
645 - ADAPTER FOR SLENDER SHAFT (SDS PLUS) HIT-306370.A1 306370	-
647 - TAPER SHANK DRILL BIT D12.3X110 HIT-944461.A5 944461	-
648 - TAPER SHANK DRILL BIT D12.7X110 HIT-993038.A5 993038	-
650 - TAPER SHANK DRILL BIT D14.5X110 HIT-944500.A0 944500	-
653 - DUST CUP HIT-971787.A14 971787	£4.40	£5.28
654 - STOPPER HIT-931844.A28 931844	-
655 - DUST COLLECTOR (B) ASS'Y INCLUD.656 HIT-306885.A4 306885	£25.14	£30.17
656 - SOCKET ADAPTER (B) HIT-306910.A29 306910	-
657 - DUST COLLECTOR ASS'Y INCLUD.658-664 HIT-986802.A6 986802	-
658 - DUST COVER HIT-986803.A19 986803	-
659 - SEAL COVER HIT-986804.A6 986804	-
660 - RETAINING RING FOR D30 SHAFT HIT-948310.A16 948310	£1.67	£2.00
661 - WASHER HIT-958063.A6 958063	-
662 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A0 959150	£1.67	£2.00
663 - OUTER RACE HIT-986805.A19 986805	-
664 - SOCKET HIT-986806.A6 986806	-
