Hitachi / Hikoki DH22PG Rotary Hammer Drill Spare Parts

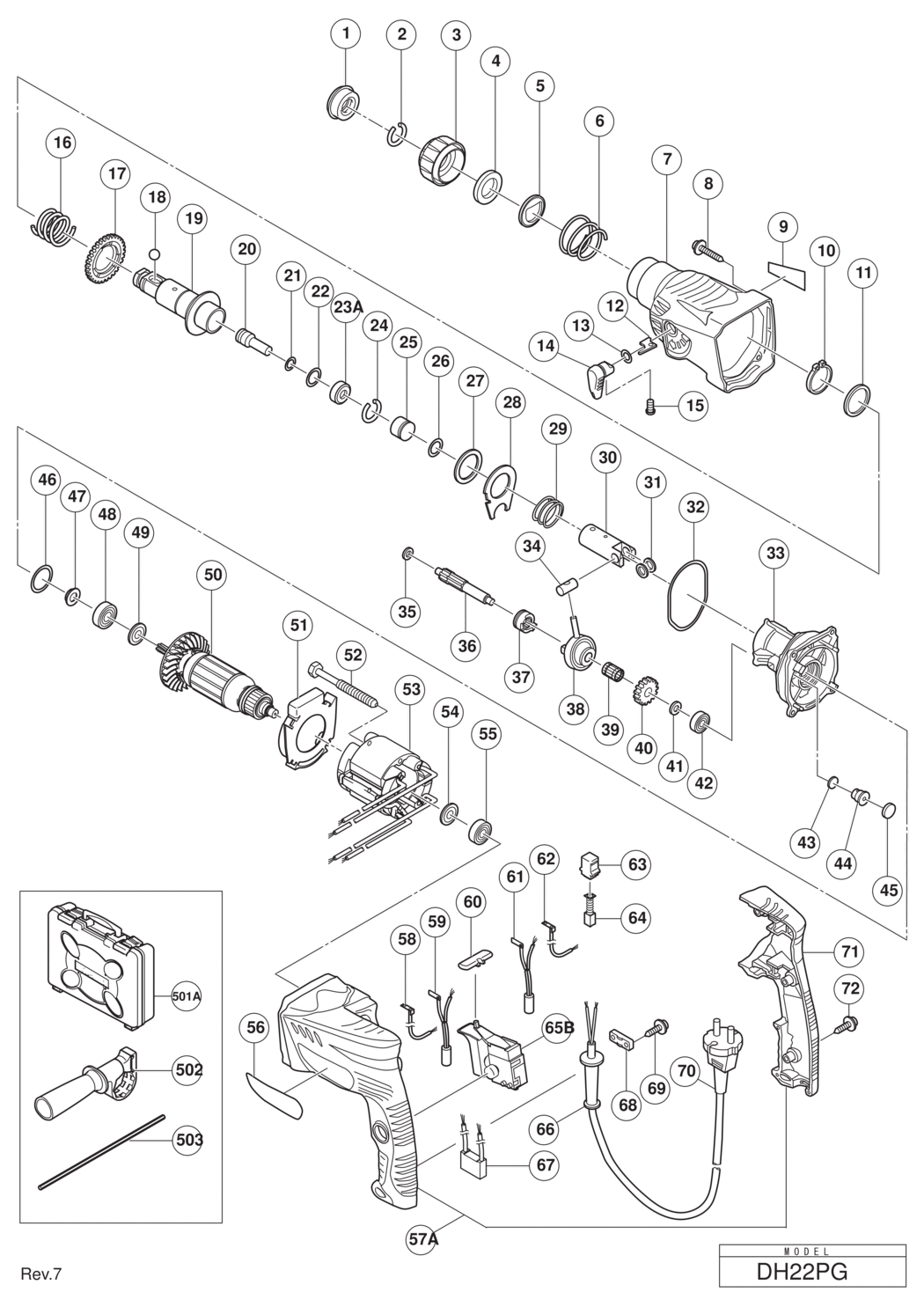

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH22PG Rotary Hammer Drill

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-306345.A20 306345	£3.59	£4.31
2 - STOPPER RING HIT-306340.A18 306340	£1.67	£2.00
3 - GRIP HIT-325597.A1 325597	£5.05	£6.06
4 - BALL HOLDER HIT-327879.A4 327879	£5.09	£6.11
5 - HOLDER PLATE HIT-324526.A11 324526	£4.33	£5.20
6 - HOLDER SPRING HIT-322812.A6 322812	£1.67	£2.00
8 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK) HIT-305490.A21 305490	£1.67	£2.00
9 - NAME PLATE HIT-000000.A4682 000000	-
10 - RETAINING RING FOR D25 SHAFT HIT-965469.A6 965469	£1.67	£2.00
11 - WASHER HIT-944274.A1 944274	-
12 - STOPPER HIT-327875.A2 327875	£1.67	£2.00
13 - O-RING (1AP-10) HIT-872654.A5 872654	£1.67	£2.00
14 - LEVER HIT-325594.A3 325594	£2.71	£3.25
15 - MACHINE SCREW M4X5 (10 PCS.) HIT-949213.A3 949213	£1.67	£2.00
16 - SPRING (A) HIT-306334.A0 306334	£4.96	£5.95
17 - SECOND GEAR HIT-306333.A3 306333	£18.48	£22.18
18 - STEEL BALL D7.0 (10 PCS.) HIT-959156.A17 959156	£1.67	£2.00
19 - CYLINDER HIT-327876.A1 327876	£31.12	£37.34
20 - SECOND HAMMER HIT-327877.A2 327877	£3.45	£4.14
21 - O-RING (B) HIT-301672.A4 301672	£1.67	£2.00
22 - O-RING (P-15) HIT-311814.A5 311814	£1.67	£2.00
23A - HAMMER HOLDER HIT-332673.A0 332673	£6.82	£8.18
24 - STOPPER RING HIT-306340.A15 306340	£1.67	£2.00
25 - STRIKER HIT-325601.A3 325601	£7.02	£8.42
26 - O-RING (A) HIT-306326.A4 306326	£3.97	£4.76
27 - THRUST WASHER HIT-327880.A0 327880	£1.67	£2.00
28 - THRUST PLATE HIT-325588.A2 325588	£4.68	£5.62
29 - SPRING (B) HIT-306976.A0 306976	£7.17	£8.60
30 - PISTON HIT-306324.A0 306324	£14.46	£17.35
31 - WASHER HIT-328660.A0 328660	-
32 - O-RING (A) HIT-327870.A0 327870	£1.67	£2.00
33 - INNER COVER ASS'Y INCLUD.43-45 HIT-327869.A0 327869	£23.22	£27.87
34 - PISTON PIN HIT-306322.A3 306322	£8.53	£10.24
35 - SPACER HIT-325587.A1 325587	£1.67	£2.00
36 - SECOND SHAFT HIT-327871.A2 327871	£8.74	£10.49
37 - CLUTCH HIT-325584.A1 325584	£11.88	£14.25
38 - RECIPROCATING BEARING HIT-325585.A2 325585	£29.36	£35.23
39 - NEEDLE CAGE HIT-306320.A0 306320	-
40 - FIRST GEAR HIT-327872.A1 327872	£6.72	£8.06
41 - WASHER (B) D12.5 HIT-995634.A5 995634	£1.67	£2.00
42 - BALL BEARING 626VVC2PS2L HIT-626VVM.A47 626VVM	£5.77	£6.92
43 - FELT PACKING (A) HIT-324543.A10 324543	£1.67	£2.00
44 - VALVE HIT-324545.A5 324545	£1.67	£2.00
45 - FELT PACKING (B) HIT-324544.A4 324544	£1.67	£2.00
46 - O-RING (S-24) HIT-878609.A4 878609	£1.67	£2.00
47 - FRINGER HIT-306312.A4 306312	£2.73	£3.28
48 - BALL BEARING 609DDC3PS2-L HIT-609DDC.A1 609DDC	£14.46	£17.35
49 - WASHER (A) HIT-958915.A11 958915	£1.67	£2.00
*50 - ARMATURE ASS'Y 110V-120V INCLUD.47-49 HIT-360798U.A0 360798U	£38.47	£46.16
*50 - ARMATURE 220V-230V HIT-360798E.A1 360798E	£23.13	£27.76
51 - FAN GUIDE HIT-327868.A0 327868	-
52 - HEX. HD. TAPPING SCREW D4X45 HIT-981824.A19 981824	-
*53 - STATOR 110V-120V HIT-340701C.A1 340701C	£17.32	£20.78
*53 - STATOR 220V-230V HIT-340701E.A0 340701E	£17.32	£20.78
54 - WASHER (A) HIT-982631.A50 982631	£1.67	£2.00
55 - BALL BEARING 608VVC2PS2L HIT-608VVM.A67 608VVM	£5.70	£6.84
56 - BRAND LABEL HIT-000000.A4683 000000	-
57A - HOUSING.HANDLE COVER SET HIT-331669.A1 331669	£32.00	£38.40
*59 - CHOKE COIL (A) BROWN EXCEPT FOR VEN HIT-324549.A1 324549	£14.51	£17.41
60 - PUSHING BUTTON HIT-322853.A16 322853	£1.67	£2.00
*62 - INTERNAL WIRE (A) (BLUE) FOR VEN HIT-324538.A1 324538	£6.50	£7.80
63 - BRUSH HOLDER HIT-955203.A28 955203	£4.16	£4.99
64 - CARBON BRUSH (1 PAIR) HIT-999041.A4 999041	£5.54	£6.65
65B - SWITCH HIT-335796.A10 335796	£20.10	£24.12
*66 - CORD ARMOR D8.8 HIT-953327.A22 953327	£1.67	£2.00
68 - CORD CLIP HIT-937631.A125 937631	£1.67	£2.00
69 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A29 984750	£1.67	£2.00
*70 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A5 500446Z	£33.79	£40.55
*70 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500465Z.A0 500465Z	£26.20	£31.44
72 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A61 301653	£1.67	£2.00
501A - CASE HIT-331439.A1 331439	£33.18	£39.81
502 - SIDE HANDLE HIT-324548.A2 324548	£18.42	£22.11
*503 - DEPTH GAUGE HIT-303709.A62 303709	£1.67	£2.00
601 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A28 308471	£16.21	£19.45
602 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A53 980927	£55.68	£66.81
603 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A0 981840	£8.22	£9.87
604 - DRILL CHUCK 13VLRB-D INCLUD.605 HIT-321814.A23 321814	-
605 - FLAT HD. SCREW (A) (LEFT HAND) M6X25 HIT-995344.A21 995344	-
606 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A38 971511Z	-
607 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A4 971512Z	-
608 - SPECIAL SCREW M6X22 HIT-981122.A0 981122	£1.67	£2.00
609 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A22 971794	-
610 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A11 971795	-
611 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A23 971796	-
612 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A11 971797	-
613 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A22 971798	-
614 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A12 971799	-
615 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A22 971800	-
616 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A11 971801	-
617 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A23 971802	-
618 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A10 971803	-
619 - COTTER HIT-944477.A41 944477	£5.17	£6.20
620 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A23 303046	-
621 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L HIT-302976.A1 302976	-
622 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L HIT-302975.A22 302975	-
623 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L HIT-303621.A12 303621	-
624 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L HIT-302974.A1 302974	-
625 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L HIT-302979.A22 302979	-
626 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L HIT-302978.A1 302978	-
627 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L HIT-303622.A11 303622	-
628 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L HIT-302977.A22 302977	-
629 - CHUCK HANDLE HIT-303334.A22 303334	-
630 - CHUCK WRENCH 10G HIT-930515.A20 930515	£6.38	£7.66
631 - HAMMER DRILL CHUCK SET 13MM INCLUD.632 HIT-303332.A13 303332	-
632 - CHUCK HANDLE HIT-303334.A21 303334	-
633 - RUBBER CAP HIT-303335.A13 303335	£7.78	£9.34
634 - DRILL CHUCK 13VLD-D HIT-321813.A26 321813	-
635 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A13 320859	£10.35	£12.42
636 - TAPER SHANK ADAPTER (SDS PLUS) NO.1 HIT-303617.A12 303617	£39.42	£47.31
637 - TAPER SHANK ADAPTER (SDS PLUS) NO.2 HIT-303618.A8 303618	£40.02	£48.02
638 - A-TAPER SHANK ADAPTER (SDS PLUS) HIT-303619.A12 303619	£31.41	£37.69
639 - B-TAPER SHANK ADAPTER (SDS PLUS) HIT-303620.A11 303620	-
640 - CHUCK ADAPTER (D) (SDS PLUS) HIT-303624.A10 303624	£37.06	£44.47
641 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A14 303623	-
642 - DRILL CHUCK AND ADAPTER SET INCLUD.604 HIT-321825.A4 321825	-
653 - DUST CUP HIT-971787.A35 971787	£4.40	£5.28
654 - STOPPER HIT-931844.A10 931844	-
655 - DUST COLLECTOR (B) ASS'Y INCLUD.656 HIT-306885.A23 306885	£25.14	£30.17
656 - SOCKET ADAPTER (B) HIT-306910.A15 306910	-
657 - DUST COLLECTOR ASS'Y INCLUD.658-664 HIT-986802.A17 986802	-
658 - DUST COVER HIT-986803.A8 986803	-
659 - SEAL COVER HIT-986804.A17 986804	-
660 - RETAINING RING FOR D30 SHAFT HIT-948310.A34 948310	£1.67	£2.00
661 - WASHER HIT-958063.A22 958063	-
662 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A39 959150	£1.67	£2.00
663 - OUTER RACE HIT-986805.A8 986805	-
664 - SOCKET HIT-986806.A17 986806	-
