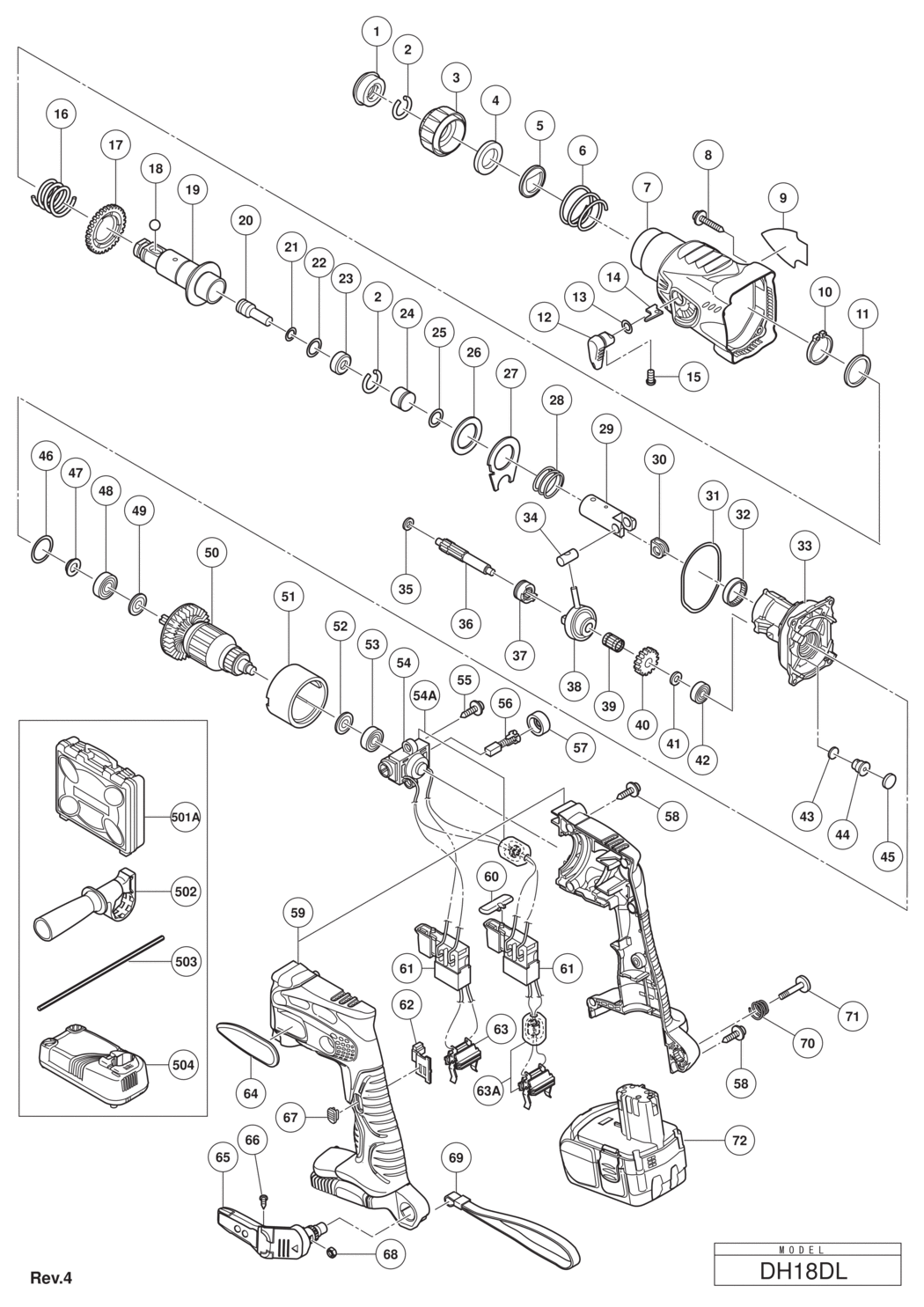

1 - FRONT CAP
HIT-306345.A35
306345
|
£3.59
|
£4.31
|
|
|
2 - STOPPER RING
HIT-306340.A1
306340
|
£1.67
|
£2.00
|
|
|
3 - GRIP
HIT-325597.A3
325597
|
£5.05
|
£6.06
|
|
|
4 - BALL HOLDER
HIT-327879.A1
327879
|
£5.09
|
£6.11
|
|
|
5 - HOLDER PLATE
HIT-324526.A5
324526
|
£4.33
|
£5.20
|
|
|
6 - HOLDER SPRING
HIT-322812.A8
322812
|
£1.67
|
£2.00
|
|
|
7 - GEAR COVER
HIT-325593.A1
325593
|
£76.89
|
£92.27
|
|
|
8 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK)
HIT-305490.A7
305490
|
£1.67
|
£2.00
|
|
|
9 - NAME PLATE
HIT-000000.A3797
000000
|
-
|
|
|
|
10 - RETAINING RING FOR D25 SHAFT
HIT-965469.A3
965469
|
£1.67
|
£2.00
|
|
|
11 - WASHER
HIT-944274.A3
944274
|
-
|
|
|
|
12 - LEVER
HIT-325594.A1
325594
|
£2.71
|
£3.25
|
|
|
13 - O-RING (1AP-10)
HIT-872654.A9
872654
|
£1.67
|
£2.00
|
|
|
14 - STOPPER
HIT-327875.A1
327875
|
£1.67
|
£2.00
|
|
|
15 - MACHINE SCREW M4X5 (10 PCS.)
HIT-949213.A7
949213
|
£1.67
|
£2.00
|
|
|
16 - SPRING (A)
HIT-306334.A2
306334
|
£4.96
|
£5.95
|
|
|
17 - SECOND GEAR
HIT-306333.A1
306333
|
£18.48
|
£22.18
|
|
|
18 - STEEL BALL D7.0 (10 PCS.)
HIT-959156.A11
959156
|
£1.67
|
£2.00
|
|
|
19 - CYLINDER
HIT-327876.A2
327876
|
£31.12
|
£37.34
|
|
|
20 - SECOND HAMMER
HIT-327877.A1
327877
|
£3.45
|
£4.14
|
|
|
21 - O-RING (B)
HIT-301672.A1
301672
|
£1.67
|
£2.00
|
|
|
22 - O-RING (P-15)
HIT-311814.A2
311814
|
£1.67
|
£2.00
|
|
|
23 - HAMMER HOLDER
HIT-327878.A1
327878
|
£3.45
|
£4.14
|
|
|
24 - STRIKER
HIT-325601.A1
325601
|
£7.02
|
£8.42
|
|
|
25 - O-RING (A)
HIT-306326.A1
306326
|
£3.97
|
£4.76
|
|
|
26 - THRUST WASHER
HIT-327880.A2
327880
|
£1.67
|
£2.00
|
|
|
27 - THRUST PLATE
HIT-325588.A1
325588
|
£4.68
|
£5.62
|
|
|
28 - SPRING (B)
HIT-306976.A2
306976
|
£7.17
|
£8.60
|
|
|
29 - PISTON
HIT-306324.A3
306324
|
£14.46
|
£17.35
|
|
|
30 - WASHER (A)
HIT-321007.A1
321007
|
£4.65
|
£5.58
|
|
|
31 - O-RING (I.D. D61)
HIT-325583.A1
325583
|
£1.67
|
£2.00
|
|
|
32 - NEEDLE BEARING
HIT-306328.A2
306328
|
£8.80
|
£10.56
|
|
|
33 - INNER COVER ASS'Y INCLUD.32
HIT-328479.A2
328479
|
£38.14
|
£45.77
|
|
|
34 - PISTON PIN
HIT-306322.A0
306322
|
£8.53
|
£10.24
|
|
|
35 - SPACER
HIT-325587.A2
325587
|
£1.67
|
£2.00
|
|
|
36 - SECOND SHAFT
HIT-327871.A0
327871
|
£8.74
|
£10.49
|
|
|
37 - CLUTCH
HIT-325584.A2
325584
|
£11.88
|
£14.25
|
|
|
38 - RECIPROCATING BEARING
HIT-325585.A1
325585
|
£29.36
|
£35.23
|
|
|
39 - NEEDLE CAGE
HIT-306320.A3
306320
|
-
|
|
|
|
40 - FIRST GEAR
HIT-327872.A3
327872
|
£6.72
|
£8.06
|
|
|
41 - WASHER (B) D12.5
HIT-995634.A2
995634
|
£1.67
|
£2.00
|
|
|
42 - BALL BEARING 626VVC2PS2L
HIT-626VVM.A42
626VVM
|
£5.77
|
£6.92
|
|
|
43 - FELT PACKING (A)
HIT-324543.A9
324543
|
£1.67
|
£2.00
|
|
|
44 - VALVE
HIT-324545.A4
324545
|
£1.67
|
£2.00
|
|
|
45 - FELT PACKING (B)
HIT-324544.A5
324544
|
£1.67
|
£2.00
|
|
|
46 - O-RING (S-24)
HIT-878609.A1
878609
|
£1.67
|
£2.00
|
|
|
47 - FRINGER
HIT-306312.A1
306312
|
£2.73
|
£3.28
|
|
|
48 - BALL BEARING 609DDC3PS2-L
HIT-609DDC.A4
609DDC
|
£14.46
|
£17.35
|
|
|
49 - WASHER (A)
HIT-958915.A8
958915
|
£1.67
|
£2.00
|
|
|
50 - ARMATURE ASS'Y (W/BEARING) DC 18V INCLUD.48
HIT-360809.A0
360809
|
£42.61
|
£51.13
|
|
|
51 - MAGNET
HIT-328482.A2
328482
|
£23.20
|
£27.84
|
|
|
52 - WASHER (A)
HIT-980865.A4
980865
|
£1.67
|
£2.00
|
|
|
53 - BALL BEARING 626VVC2PS2L
HIT-626VVM.A41
626VVM
|
£5.77
|
£6.92
|
|
|
*54 - BRUSH BLOCK EXCEPT FOR EUROPE(TILL 2.2012 FOR EUROPE
HIT-328486.A3
328486
|
£16.13
|
£19.36
|
|
|
*54A - BRUSH BLOCK SET SINCE 3.2012 FOR EUROPE
HIT-334890.A0
334890
|
£23.32
|
£27.99
|
|
|
55 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
HIT-305812.A99
305812
|
£1.67
|
£2.00
|
|
|
56 - CARBON BRUSH (1 PAIR)
HIT-999100.A2
999100
|
£7.98
|
£9.58
|
|
|
57 - BRUSH CAP
HIT-319847.A6
319847
|
£1.67
|
£2.00
|
|
|
58 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A70
301653
|
£1.67
|
£2.00
|
|
|
59 - HOUSING (A).(B) SET
HIT-328492.A0
328492
|
£34.58
|
£41.50
|
|
|
60 - PUSHING BUTTON
HIT-322853.A31
322853
|
£1.67
|
£2.00
|
|
|
61 - DC-SPEED CONTROL SWITCH
HIT-328484.A0
328484
|
£32.82
|
£39.38
|
|
|
62 - LEVER (B)
HIT-328480.A0
328480
|
£1.67
|
£2.00
|
|
|
*63 - BATTERY TERMINAL ASS'Y EXCEPT FOR EUROPE(TILL 2.2012 FOR EUROPE
HIT-328490.A0
328490
|
£22.75
|
£27.30
|
|
|
*63A - TERMINAL SET SINCE 3.2012 FOR EUROPE
HIT-334881.A0
334881
|
-
|
|
|
|
64 - BRAND PLATE
HIT-000000.A3798
000000
|
-
|
|
|
|
65 - HOOK ASS'Y (W/LIGHT) INCLUD.66
HIT-321918.A1
321918
|
£16.23
|
£19.48
|
|
|
66 - TAPPING SCREW D2X6
HIT-321672.A3
321672
|
-
|
|
|
|
67 - LEVER (A)
HIT-326276.A1
326276
|
£1.67
|
£2.00
|
|
|
68 - V-LOCK NUT M5
HIT-320288.A3
320288
|
£1.67
|
£2.00
|
|
|
69 - STRAP (BLACK)
HIT-306952.A40
306952
|
£7.97
|
£9.57
|
|
|
70 - HOOK SPRING
HIT-319926.A7
319926
|
£1.67
|
£2.00
|
|
|
71 - SPECIAL SCREW (A) M5
HIT-320881.A4
320881
|
£1.67
|
£2.00
|
|
|
*72 - BATTERY EBM 1830 (EUROPE AUS NZL)
HIT-326240.A7
326240
|
£134.10
|
£160.92
|
|
|
501A - CASE
HIT-337088.A2
337088
|
£40.45
|
£48.54
|
|
|
502 - SIDE HANDLE
HIT-324548.A5
324548
|
£18.42
|
£22.11
|
|
|
503 - DEPTH GAUGE
HIT-303709.A41
303709
|
£1.67
|
£2.00
|
|
|
*504 - CHARGER (MODEL UC 18YRL)
HIT-000000.A3800
000000
|
-
|
|
|
|
601 - HAMMER DRILL CHUCK SET 13MM INCLUD.602
HIT-303332.A18
303332
|
-
|
|
|
|
602 - CHUCK HANDLE
HIT-303334.A13
303334
|
-
|
|
|
|
603 - RUBBER CAP
HIT-303335.A18
303335
|
£7.78
|
£9.34
|
|
|
604 - DRILL CHUCK AND ADAPTER SET INCLUD.605
HIT-321825.A6
321825
|
-
|
|
|
|
605 - CHUCK ADAPTER (G) (SDS PLUS)
HIT-303623.A27
303623
|
-
|
|
|
|
606 - DRILL CHUCK 13VLRB-D INCLUD.607
HIT-321814.A48
321814
|
-
|
|
|
|
607 - FLAT HD. SCREW (A) (LEFT HAND) M6X25
HIT-995344.A26
995344
|
-
|
|
|
|
608 - CHUCK WRENCH FOR 13VLB-D 1
HIT-987576.A8
987576
|
-
|
|
|
|
609 - DRILL CHUCK 13VLD-D INCLUD.610
HIT-321813.A2
321813
|
-
|
|
|
|
610 - CHUCK HANDLE
HIT-303334.A14
303334
|
-
|
|
|
|
611 - DUST CUP
HIT-971787.A32
971787
|
£4.40
|
£5.28
|
|
|
612 - STOPPER
HIT-931844.A2
931844
|
-
|
|
|
|
613 - + DRIVER BIT (A) NO.2 25L
HIT-971511Z.A32
971511Z
|
-
|
|
|
|
614 - + DRIVER BIT (A) NO.3 25L
HIT-971512Z.A10
971512Z
|
-
|
|
|
|
615 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL)
HIT-971794.A25
971794
|
-
|
|
|
|
616 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL)
HIT-971795.A8
971795
|
-
|
|
|
|
617 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL)
HIT-971796.A26
971796
|
-
|
|
|
|
618 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL)
HIT-971797.A8
971797
|
-
|
|
|
|
619 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL)
HIT-971798.A25
971798
|
-
|
|
|
|
620 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL)
HIT-971799.A8
971799
|
-
|
|
|
|
621 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL)
HIT-971800.A26
971800
|
-
|
|
|
|
622 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL)
HIT-971801.A7
971801
|
-
|
|
|
|
623 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL)
HIT-971802.A26
971802
|
-
|
|
|
|
624 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL)
HIT-971803.A7
971803
|
-
|
|
|
|
625 - COTTER
HIT-944477.A38
944477
|
£5.17
|
£6.20
|
|
|
626 - TAPER SHANK ADAPTER (SDS PLUS) NO.1
HIT-303617.A22
303617
|
£39.42
|
£47.31
|
|
|
627 - A-TAPER SHANK ADAPTER (SDS PLUS)
HIT-303619.A23
303619
|
£31.41
|
£37.69
|
|
|
628 - B-TAPER SHANK ADAPTER (SDS PLUS)
HIT-303620.A0
303620
|
-
|
|
|
|
629 - CHUCK ADAPTER (D) (SDS PLUS)
HIT-303624.A0
303624
|
£37.06
|
£44.47
|
|
|
630 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L
HIT-302976.A5
302976
|
-
|
|
|
|
631 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L
HIT-302975.A17
302975
|
-
|
|
|
|
632 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L
HIT-303621.A23
303621
|
-
|
|
|
|
633 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L
HIT-302974.A6
302974
|
-
|
|
|
|
634 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L
HIT-302979.A17
302979
|
-
|
|
|
|
635 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L
HIT-302978.A6
302978
|
-
|
|
|
|
636 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L
HIT-303622.A0
303622
|
-
|
|
|
|
637 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L
HIT-302977.A17
302977
|
-
|
|
|
|
638 - CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L
HIT-303044.A13
303044
|
-
|
|
|
|
639 - DUST COLLECTOR (B) ASS'Y INCLUD.640
HIT-306885.A29
306885
|
£25.14
|
£30.17
|
|
|
640 - SOCKET ADAPTER (B)
HIT-306910.A2
306910
|
-
|
|
|
|
642 - TAPER SHANK DRILL BIT D12.3X110
HIT-944461.A14
944461
|
-
|
|
|
|
643 - TAPER SHANK DRILL BIT D12.7X110
HIT-993038.A16
993038
|
-
|
|
|
|
645 - TAPER SHANK DRILL BIT D14.5X110
HIT-944500.A13
944500
|
-
|
|
|
|
646 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G)
HIT-981840.A30
981840
|
£8.22
|
£9.87
|
|
|
647 - GREASE FOR HAMMER.HAMMER DRILL (70G)
HIT-308471.A13
308471
|
£16.21
|
£19.45
|
|
|
648 - GREASE FOR HAMMER.HAMMER DRILL (500G)
HIT-980927.A40
980927
|
£55.68
|
£66.81
|
|
|
649 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE
HIT-303046.A14
303046
|
-
|
|
|
|
650 - GREASE (MOLUB-ALLOY NO.777-1) 75G
HIT-325149.A10
325149
|
£18.35
|
£22.02
|
|
