Hitachi / Hikoki DH14DSL Cordless Rotary Hammer Spare Parts

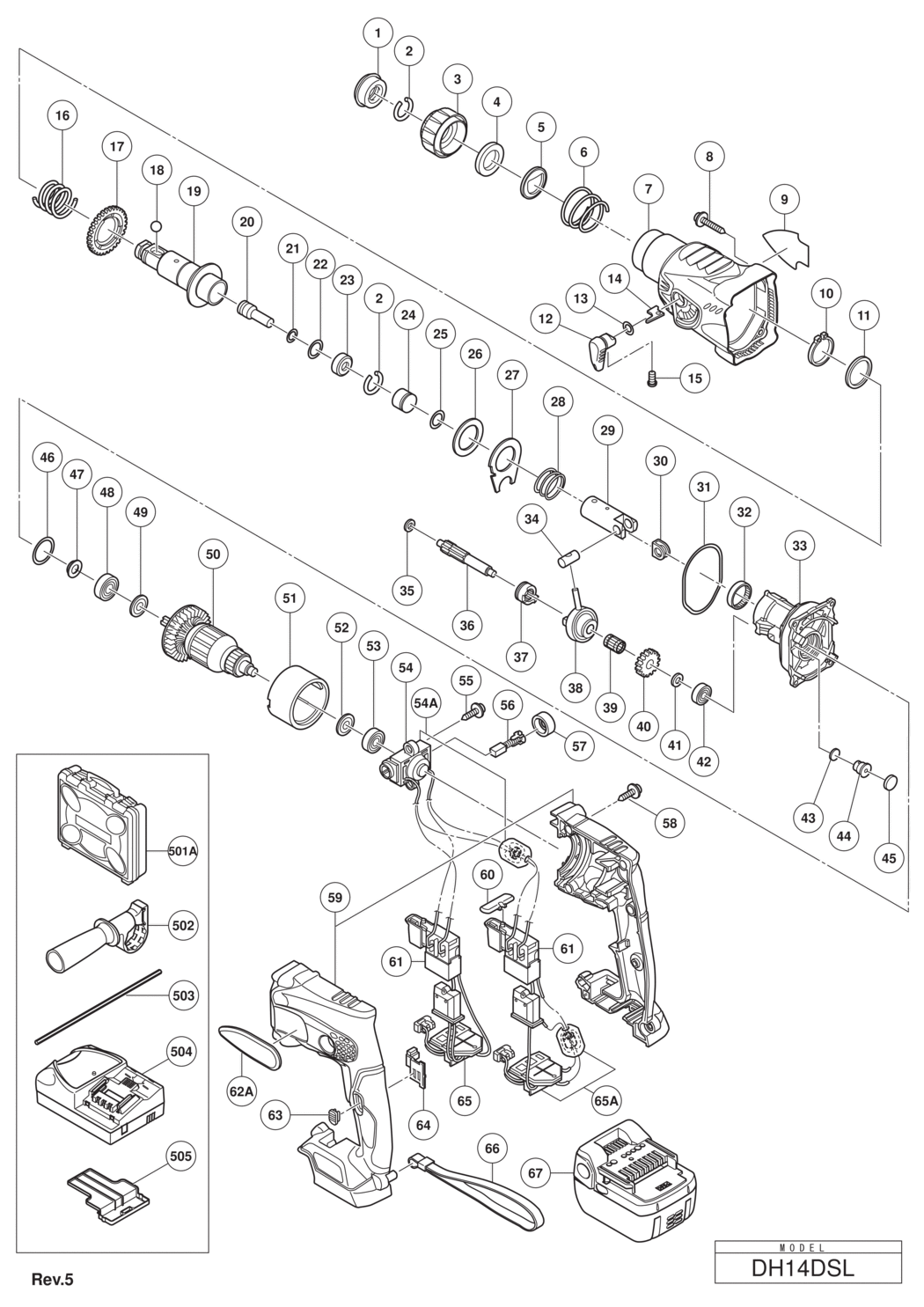

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH14DSL Cordless Rotary Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-306345.A25 306345	£3.59	£4.31
2 - STOPPER RING HIT-306340.A12 306340	£1.67	£2.00
3 - GRIP HIT-325597.A2 325597	£5.05	£6.06
4 - BALL HOLDER HIT-327879.A2 327879	£5.09	£6.11
5 - HOLDER PLATE HIT-324526.A14 324526	£4.33	£5.20
6 - HOLDER SPRING HIT-322812.A2 322812	£1.67	£2.00
7 - GEAR COVER HIT-325593.A0 325593	£76.89	£92.27
8 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK) HIT-305490.A16 305490	£1.67	£2.00
9 - NAME PLATE HIT-000000.A5062 000000	-
10 - RETAINING RING FOR D25 SHAFT HIT-965469.A7 965469	£1.67	£2.00
11 - WASHER HIT-944274.A0 944274	-
12 - LEVER HIT-325594.A2 325594	£2.71	£3.25
13 - O-RING (1AP-10) HIT-872654.A3 872654	£1.67	£2.00
14 - STOPPER HIT-327875.A3 327875	£1.67	£2.00
15 - MACHINE SCREW M4X5 (10 PCS.) HIT-949213.A6 949213	£1.67	£2.00
16 - SPRING (A) HIT-306334.A1 306334	£4.96	£5.95
17 - SECOND GEAR HIT-306333.A2 306333	£18.48	£22.18
18 - STEEL BALL D7.0 (10 PCS.) HIT-959156.A15 959156	£1.67	£2.00
19 - CYLINDER HIT-327876.A0 327876	£31.12	£37.34
20 - SECOND HAMMER HIT-327877.A3 327877	£3.45	£4.14
21 - O-RING (B) HIT-301672.A5 301672	£1.67	£2.00
22 - O-RING (P-15) HIT-311814.A6 311814	£1.67	£2.00
23 - HAMMER HOLDER HIT-327878.A0 327878	£3.45	£4.14
24 - STRIKER HIT-325601.A2 325601	£7.02	£8.42
25 - O-RING (A) HIT-306326.A3 306326	£3.97	£4.76
26 - THRUST WASHER HIT-327880.A1 327880	£1.67	£2.00
27 - THRUST PLATE HIT-325588.A3 325588	£4.68	£5.62
28 - SPRING (B) HIT-306976.A1 306976	£7.17	£8.60
29 - PISTON HIT-306324.A1 306324	£14.46	£17.35
30 - WASHER (A) HIT-321007.A0 321007	£4.65	£5.58
31 - O-RING (I.D. D61) HIT-325583.A2 325583	£1.67	£2.00
32 - NEEDLE BEARING HIT-306328.A0 306328	£8.80	£10.56
33 - INNER COVER ASS'Y INCLUD.32 HIT-328479.A0 328479	£38.14	£45.77
34 - PISTON PIN HIT-306322.A2 306322	£8.53	£10.24
35 - SPACER HIT-325587.A0 325587	£1.67	£2.00
36 - SECOND SHAFT HIT-327871.A3 327871	£8.74	£10.49
37 - CLUTCH HIT-325584.A0 325584	£11.88	£14.25
38 - RECIPROCATING BEARING HIT-325585.A3 325585	£29.36	£35.23
39 - NEEDLE CAGE HIT-306320.A1 306320	-
40 - FIRST GEAR HIT-327872.A0 327872	£6.72	£8.06
41 - WASHER (B) D12.5 HIT-995634.A7 995634	£1.67	£2.00
42 - BALL BEARING 626VVC2PS2L HIT-626VVM.A51 626VVM	£5.77	£6.92
43 - FELT PACKING (A) HIT-324543.A16 324543	£1.67	£2.00
44 - VALVE HIT-324545.A7 324545	£1.67	£2.00
45 - FELT PACKING (B) HIT-324544.A2 324544	£1.67	£2.00
46 - O-RING (S-24) HIT-878609.A9 878609	£1.67	£2.00
47 - FRINGER HIT-306312.A3 306312	£2.73	£3.28
48 - BALL BEARING 609DDC3PS2-L HIT-609DDC.A0 609DDC	£14.46	£17.35
49 - WASHER (A) HIT-958915.A9 958915	£1.67	£2.00
50 - ARMATURE ASS'Y (W/BEARING) DC 14.4V INCLUD.48 HIT-360808.A0 360808	£42.95	£51.54
51 - MAGNET HIT-328482.A0 328482	£23.20	£27.84
52 - WASHER (A) HIT-980865.A0 980865	£1.67	£2.00
53 - BALL BEARING 626VVC2PS2L HIT-626VVM.A52 626VVM	£5.77	£6.92
54 - BRUSH BLOCK EXCEPT FOR EUROPE(TILL 2.2012 FOR EUROPE HIT-328486.A0 328486	£16.13	£19.36
*54A - BRUSH BLOCK SET SINCE 3.2012 FOR EUROPE HIT-334890.A2 334890	£23.32	£27.99
55 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A153 305812	£1.67	£2.00
56 - CARBON BRUSH (1 PAIR) HIT-999100.A3 999100	£7.98	£9.58
57 - BRUSH CAP HIT-319847.A1 319847	£1.67	£2.00
58 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A35 301653	£1.67	£2.00
59 - HOUSING(A).(B)SET HIT-329892.A0 329892	-
60 - PUSHING BUTTON HIT-322853.A22 322853	£1.67	£2.00
61 - DC-SPEED CONTROL SWITCH HIT-328484.A2 328484	£32.82	£39.38
62A - BRAND PLATE HIT-000000.A5063 000000	-
63 - LEVER (A) HIT-326276.A3 326276	£1.67	£2.00
64 - LEVER (B) HIT-328480.A2 328480	£1.67	£2.00
*65 - CONTROLLER TERMINAL SET EXCEPT FOR EUROPE(TILL 2.2012 FOR EUROPE HIT-329891.A0 329891	-
*65A - CONTROLLER SET SINCE 3.2012 FOR EUROPE HIT-334880.A0 334880	-
66 - STRAP (BLACK) HIT-306952.A71 306952	£7.97	£9.57
67 - BATTERY BSL 1430 (EUROPE AUS NZL) HIT-329083.A9 329083	£109.82	£131.78
501A - CASE HIT-337088.A0 337088	£40.45	£48.54
502 - SIDE HANDLE HIT-324548.A0 324548	£18.42	£22.11
503 - DEPTH GAUGE HIT-303709.A47 303709	£1.67	£2.00
504 - CHARGER (MODEL UC 18YRSL) HIT-000000.A5065 000000	-
505 - BATTERY COVER HIT-329897.A0 329897	£1.67	£2.00
601 - HAMMER DRILL CHUCK SET 13MM INCLUD.602 HIT-303332.A16 303332	-
602 - CHUCK HANDLE HIT-303334.A17 303334	-
603 - RUBBER CAP HIT-303335.A16 303335	£7.78	£9.34
604 - DRILL CHUCK AND ADAPTER SET INCLUD.605 HIT-321825.A2 321825	-
605 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A16 303623	-
606 - DRILL CHUCK 13VLRB-D INCLUD.607 HIT-321814.A30 321814	-
607 - FLAT HD. SCREW (A) (LEFT HAND) M6X25 HIT-995344.A25 995344	-
608 - CHUCK WRENCH FOR 13VLB-D 1 HIT-987576.A0 987576	-
609 - DRILL CHUCK 13VLD-D INCLUD.610 HIT-321813.A20 321813	-
610 - CHUCK HANDLE HIT-303334.A18 303334	-
611 - DUST CUP HIT-971787.A38 971787	£4.40	£5.28
612 - STOPPER HIT-931844.A15 931844	-
613 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A40 971511Z	-
614 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A2 971512Z	-
615 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A19 971794	-
616 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A14 971795	-
617 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A20 971796	-
618 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A9 971797	-
619 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A24 971798	-
620 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A9 971799	-
621 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A25 971800	-
622 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A8 971801	-
623 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A25 971802	-
624 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A8 971803	-
625 - COTTER HIT-944477.A39 944477	£5.17	£6.20
626 - TAPER SHANK ADAPTER (SDS PLUS) NO.1 HIT-303617.A23 303617	£39.42	£47.31
627 - A-TAPER SHANK ADAPTER (SDS PLUS) HIT-303619.A22 303619	£31.41	£37.69
628 - B-TAPER SHANK ADAPTER (SDS PLUS) HIT-303620.A1 303620	-
629 - CHUCK ADAPTER (D) (SDS PLUS) HIT-303624.A1 303624	£37.06	£44.47
630 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L HIT-302976.A6 302976	-
631 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L HIT-302975.A18 302975	-
632 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L HIT-303621.A22 303621	-
633 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L HIT-302974.A5 302974	-
634 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L HIT-302979.A18 302979	-
635 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L HIT-302978.A5 302978	-
636 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L HIT-303622.A1 303622	-
637 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L HIT-302977.A18 302977	-
638 - CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L HIT-303044.A12 303044	-
639 - DUST COLLECTOR (B) ASS'Y INCLUD.640 HIT-306885.A30 306885	£25.14	£30.17
640 - SOCKET ADAPTER (B) HIT-306910.A1 306910	-
642 - TAPER SHANK DRILL BIT D12.3X110 HIT-944461.A13 944461	-
643 - TAPER SHANK DRILL BIT D12.7X110 HIT-993038.A17 993038	-
645 - TAPER SHANK DRILL BIT D14.5X110 HIT-944500.A14 944500	-
646 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A29 981840	£8.22	£9.87
647 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A14 308471	£16.21	£19.45
648 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A41 980927	£55.68	£66.81
649 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A15 303046	-
650 - GREASE (MOLUB-ALLOY NO.777-1) 75G HIT-325149.A11 325149	£18.35	£22.02
