Hitachi / Hikoki D13Y Angle Drill Spare Parts

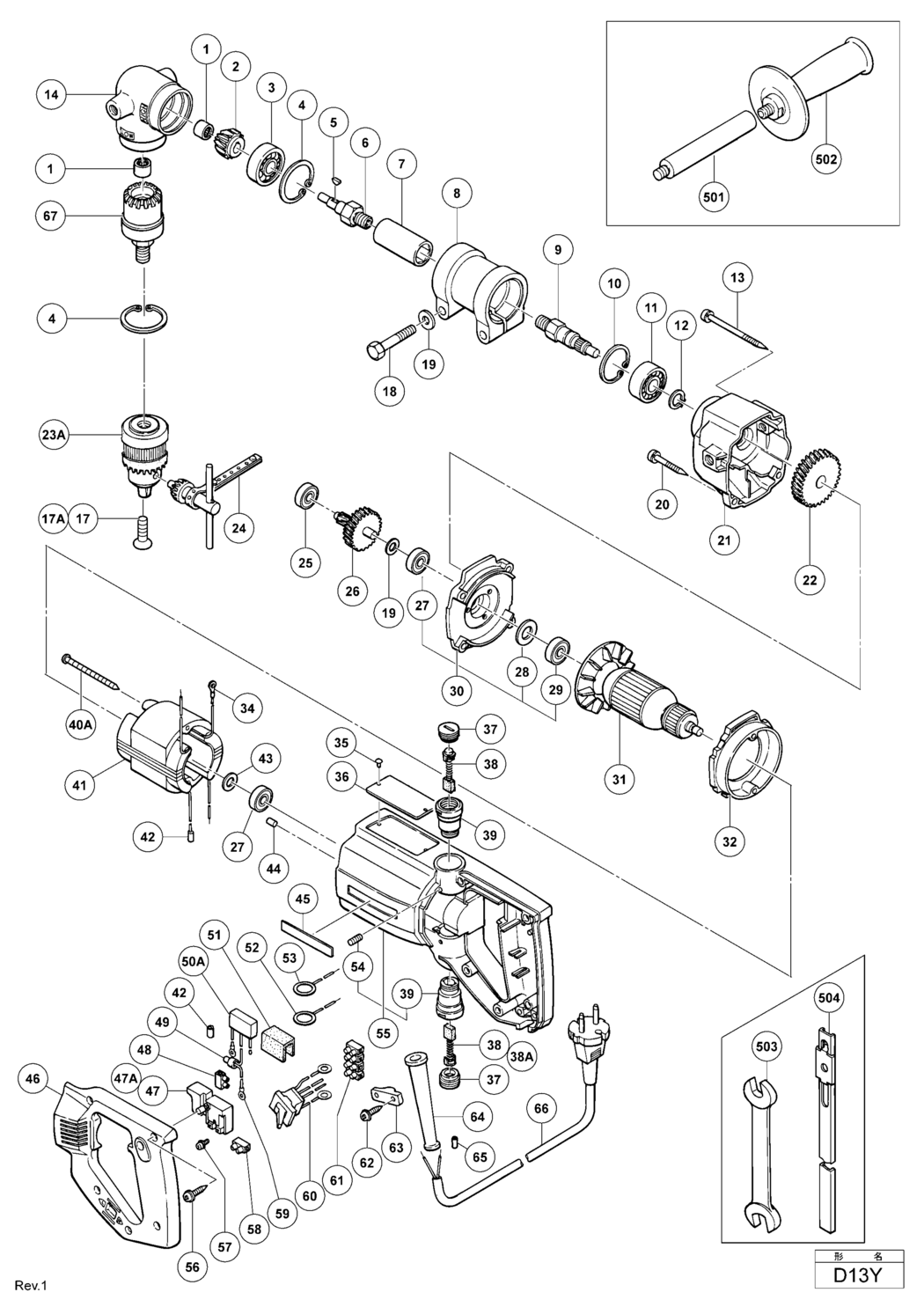

An exploded diagram and spare parts listing for the Hitachi / Hikoki D13Y Angle Drill

	Ex VAT	Inc VAT
1 - NEEDLE BEARING (HK0810) HIT-670714.A2 670714	£6.98	£8.38
2 - PINION HIT-986149.A1 986149	£25.86	£31.03
3 - BALL BEARING 6301VVCMPS2L HIT-6301VV.A15 6301VV	£9.32	£11.19
4 - RETAINING RING FOR D37 HOLE HIT-986147.A0 986147	£1.67	£2.00
5 - WOODRUFF KEY 3X10 HIT-932819.A3 932819	£1.67	£2.00
6 - SPINDLE HIT-986146.A1 986146	£33.32	£39.98
7 - COUPLING HIT-986143.A1 986143	£7.99	£9.59
8 - JOINT SLEEVE HIT-986142.A0 986142	£25.96	£31.15
9 - SPINDLE HIT-981667.A0 981667	£44.32	£53.18
10 - RETAINING RING FOR D35 HOLE (10 PCS.) HIT-939556.A8 939556	£11.82	£14.18
11 - BALL BEARING 6202VVCMPS2L HIT-6202VV.A31 6202VV	£7.02	£8.42
12 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A46 939544	£3.64	£4.37
13 - TAPPING SCREW (W/SP. WASHER) D5X70 HIT-986141.A0 986141	-
14 - ANGLE HEAD ASS'Y INCLUD.1 HIT-986144.A0 986144	£43.82	£52.58
17 - SPECIAL SCREW M6X22 TILL 11.2007 HIT-981122.A11 981122	£1.67	£2.00
17A - FLAT HD. SCREW (LEFT HAND) M6X20 SINCE 12.2007 HIT-331966.A17 331966	£11.39	£13.67
18 - BOLT M8X45 (10 PCS.) HIT-949632.A1 949632	£3.68	£4.42
19 - WASHER M8 (10 PCS.) HIT-949426.A11 949426	£1.67	£2.00
20 - TAPPING SCREW (W/SP. WASHER) D5X35 HIT-986140.A1 986140	£1.67	£2.00
21 - GEAR COVER HIT-981650.A0 981650	£37.48	£44.97
22 - FINAL GEAR HIT-983448.A1 983448	£24.90	£29.88
23A - DRILL CHUCK 13VLRB-D INCLUD.17 HIT-321814.A49 321814	-
24 - CHUCK WRENCH 10G HIT-930515.A0 930515	£6.38	£7.66
25 - BALL BEARING 627VVC2PS2L HIT-627VVM.A0 627VVM	£7.30	£8.76
26 - SECOND PINION HIT-981652Z.A1 981652Z	£28.33	£34.00
27 - BALL BEARING 608VVC2PS2L HIT-608VVM.A46 608VVM	£5.70	£6.84
28 - WASHER HIT-984357.A1 984357	£1.67	£2.00
29 - BALL BEARING 609VVC2PS2L HIT-609VVM.A1 609VVM	£6.35	£7.62
30 - INNER COVER ASS'Y INCLUD.27-29 HIT-982791.A0 982791	£43.12	£51.74
*31 - ARMATURE ASS'Y 110V-127V INCLUD.27 HIT-981657U.A0 981657U	£106.65	£127.98
*31 - ARMATURE 220V-230V HIT-981657E.A0 981657E	£65.92	£79.11
*31 - ARMATURE 240V HIT-981657F.A0 981657F	£86.42	£103.70
32 - FAN GUIDE HIT-981562.A0 981562	£3.97	£4.76
34 - TERMINAL (A) M3.5 (10 PCS.) HIT-960356.A1 960356	£3.64	£4.37
35 - RIVET D2.5X2.8 FOR USA HIT-932642.A2 932642	-
36 - NAME PLATE HIT-000000.A3929 000000	-
37 - BRUSH CAP HIT-961781.A3 961781	£3.15	£3.78
38 - CARBON BRUSH (1 PAIR) HIT-999043.A31 999043	£5.54	£6.65
38A - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999073.A7 999073	£18.73	£22.48
39 - BRUSH HOLDER HIT-981586.A4 981586	£7.62	£9.15
40A - TAPPING SCREW D5X60 HIT-991007.A2 991007	£1.67	£2.00
*41 - STATOR ASS'Y 110V-127V INCLUD.34 HIT-981656C.A0 981656C	-
*41 - STATOR ASS'Y 220V INCLUD.34 HIT-981656E.A0 981656E	-
*41 - STATOR ASS'Y 230V-240V INCLUD.34 HIT-981656F.A0 981656F	-
*41 - STATOR ASS'Y 220V-230V INCLUD.34 HIT-981656G.A0 981656G	-
*41 - STATOR ASS'Y 220V-230V FIN HIT-981656G.A1 981656G	-
*41 - STATOR ASS'Y 230V-240V INCLUD.34 HIT-981656H.A0 981656H	-
*41 - STATOR ASS'Y 240V INCLUD.34 HIT-981656K.A0 981656K	-
42 - TUBE (D) HIT-981373.A129 981373	£1.67	£2.00
43 - WASHER (C) HIT-984367.A1 984367	£1.67	£2.00
44 - BEARING LOCK HIT-946362.A11 946362	£1.67	£2.00
45 - BRAND LABEL HIT-957561.A12 957561	-
46 - HANDLE COVER HIT-981661.A0 981661	-
*47 - SWITCH (2P PILLAR TYPE) W/LOCK INCLUD.57 FOR NZL HIT-971667Z.A0 971667Z	£17.96	£21.55
*47 - SWITCH (2P PILLAR TYPE) W/LOCK FRA HIT-971667Z.A1 971667Z	£17.96	£21.55
47A - SWITCH (A) (1P PLUG IN TYPE) W/O LOCK INCLUD.57 FOR USA HIT-305409.A0 305409	-
48 - PILLAR TERMINAL (B) FOR FIN HIT-982805Z.A1 982805Z	£3.28	£3.93
49 - CONNECTOR 50091 (10 PCS.) HIT-959140.A92 959140	£4.98	£5.97
50A - NOISE SUPPRESSOR HIT-994273.A49 994273	£7.30	£8.76
51 - SUPPORT (B) FOR NOISE SUPPRESSOR HIT-930153.A9 930153	£1.67	£2.00
52 - BRUSH TERMINAL FOR USA HIT-986153.A0 986153	-
53 - BRUSH TERMINAL FOR USA HIT-986154.A0 986154	-
54 - HEX. SOCKET SET SCREW M4X5 HIT-961681.A8 961681	£1.67	£2.00
55 - HOUSING ASS'Y INCLUD.39 HIT-981560.A1 981560	£39.75	£47.70
56 - TAPPING SCREW (W/WASHER) D4X20 HIT-982095.A11 982095	£1.67	£2.00
57 - MACHINE SCREW (W/WASHER) M3.5X5 HIT-980060.A0 980060	£1.67	£2.00
58 - PILLAR TERMINAL (B) FOR USA HIT-982805Z.A0 982805Z	£3.28	£3.93
59 - INTERNAL WIRE HIT-986277.A1 986277	-
60 - REVERSING SWITCH HIT-981658Z.A0 981658Z	-
*60 - REVERSING SWITCH FOR NZL HIT-981659.A0 981659	-
*60 - REVERSING SWITCH SWE HIT-981659.A1 981659	-
*60 - REVERSING SWITCH FOR USA HIT-981663P.A0 981663P	-
61 - PILLAR TERMINAL (B) HIT-981666Z.A0 981666Z	-
*61 - PILLAR TERMINAL (B) FOR USA HIT-982804Z.A1 982804Z	£16.39	£19.67
62 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A132 984750	£1.67	£2.00
63 - CORD CLIP HIT-960266.A72 960266	£1.67	£2.00
64 - CORD ARMOR D8.8 HIT-953327.A79 953327	£1.67	£2.00
*64 - CORD ARMOR D10.1 HIT-938051.A29 938051	£1.67	£2.00
65 - TUBE (D) FOR SUI HIT-981373.A130 981373	£1.67	£2.00
66 - CORD (CORD ARMOR D10.1) HIT-500201Z.A20 500201Z	-
*66 - CORD (CORD ARMOR D8.8) FOR NZL HIT-500439Z.A12 500439Z	-
*66 - CORD (CORD ARMOR D8.8) FOR GBR HIT-500231Z.A3 500231Z	-
*66 - CORD (CORD ARMOR D8.8) FOR USA HIT-500240Z.A18 500240Z	-
*66 - CORD (CORD ARMOR D10.1) FOR SYR HIT-500245Z.A1 500245Z	-
*66 - CORD (CORD ARMOR D10.1) FOR ITA HIT-500247Z.A25 500247Z	-
*66 - CORD DEN HIT-500247Z.A26 500247Z	-
*66 - CORD (CORD ARMOR D10.1) FOR SUI HIT-500248Z.A10 500248Z	-
67 - SPINDLE AND GEAR SET SINCE 7.1984 HIT-986156.A0 986156	£71.89	£86.27
501 - HANDLE JOINT HIT-930886.A2 930886	£8.59	£10.31
502 - SIDE HANDLE HIT-956633.A4 956633	-
503 - WRENCH 13/17MM HIT-949168.A1 949168	£7.83	£9.40
504 - DEPTH STOPPER HIT-981655Z.A0 981655Z	£10.25	£12.30
601A - CASE (PLASTIC) HIT-312831.A2 312831	£53.21	£63.85
602A - WRENCH 17/19MM HIT-931161.A0 931161	£8.66	£10.39
