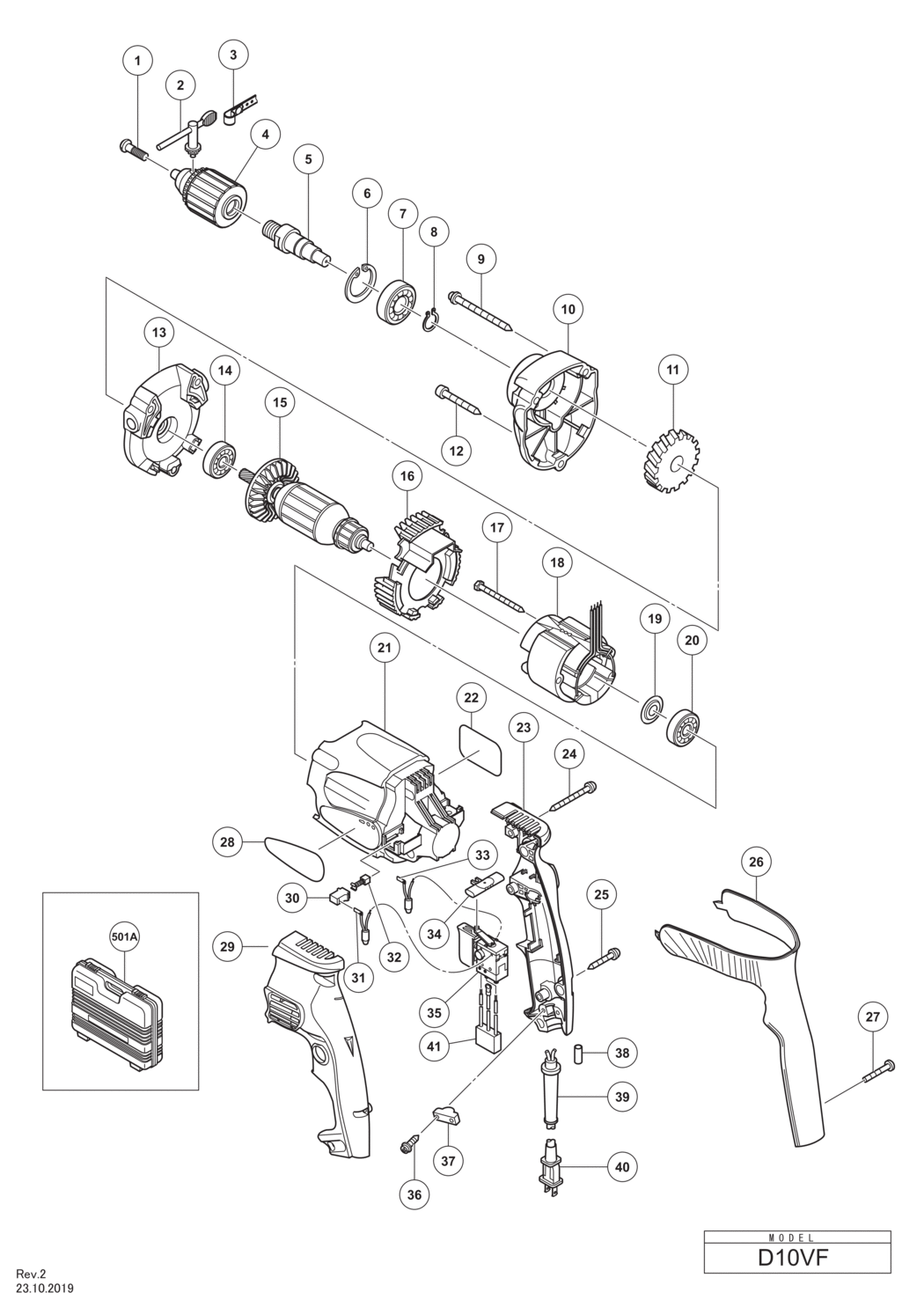

An exploded diagram and spare parts listing for the Hitachi / Hikoki D10VF Drill
Ex VAT Inc VAT
1 - SPECIAL SCREW (LEFT HAND) M6X23 HIT-311959.A9 311959 £1.67 £2.00
*4 - DRILL CHUCK 10VLRD-N (W/O CHUCK WRENCH) HIT-319343.A1 319343 -
5 - SPINDLE (B) HIT-319335.A0 319335 £17.42 £20.90
6 - RETAINING RING FOR D32 HOLE HIT-948001.A3 948001 £1.67 £2.00
7 - BALL BEARING 6002VVCMPS2L HIT-6002VV.A19 6002VV £9.32 £11.19
8 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A15 939544 £3.64 £4.37
9 - TAPPING SCREW (W/FLANGE) D5X50 HIT-317449.A2 317449 £1.67 £2.00
10 - GEAR COVER (B) HIT-319334.A0 319334 -
11 - GEAR HIT-319336.A0 319336 £9.70 £11.64
12 - TAPPING SCREW D5X40 (BLACK) HIT-316458.A0 316458 -
13 - INNER COVER HIT-319333.A0 319333 £32.64 £39.17
14 - BALL BEARING 608DD HIT-608DDM.A45 608DDM £6.35 £7.62
*15 - ARMATURE ASS'Y 110V-120V INCLUD.14 HIT-360542U.A0 360542U £66.57 £79.88
*15 - ARMATURE 220V-230V HIT-360542E.A0 360542E £66.57 £79.88
16 - FAN GUIDE HIT-319329.A0 319329 -
17 - HEX. HD. TAPPING SCREW D4X55 HIT-981421.A2 981421 -
*18 - STATOR 110V HIT-340486D.A0 340486D £38.90 £46.68
*18 - STATOR 230V-240V HIT-340504E.A2 340504E £38.90 £46.68
19 - WASHER (A) HIT-982631.A1 982631 £1.67 £2.00
20 - BALL BEARING 608VVC2PS2L HIT-608VVM.A216 608VVM £5.70 £6.84
21 - HOUSING HIT-319328.A2 319328 £16.38 £19.65
22 - NAME PLATE HIT-000000.A1662 000000 -
23 - HANDLE (B) HIT-319331.A1 319331 -
24 - TAPPING SCREW (W/FLANGE) D4X35 (BLACK) HIT-303694.A8 303694 £1.67 £2.00
25 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A224 301653 £1.67 £2.00
26 - GRIP COVER HIT-319332.A1 319332 £16.02 £19.22
27 - SCREW (PLASTIC TIE) D4X25 HIT-319337.A0 319337 £1.67 £2.00
28 - BRAND LABEL HIT-000000.A1663 000000 -
29 - HANDLE (A) HIT-319330.A1 319330 -
30 - BRUSH HOLDER HIT-955203.A38 955203 £4.16 £4.99
*31 - CHOKE COIL (BLUE) 110V FOR GBR (110V) HIT-320204.A1 320204 -
*31 - CHOKE COIL (BLUE) 220V-240V FOR NZL HIT-320197.A1 320197 -
32 - CARBON BRUSH (1 PAIR) HIT-999041.A44 999041 £5.54 £6.65
*33 - CHOKE COIL (BROWN) 110V FOR GBR (110V) HIT-320203.A1 320203 -
*33 - CHOKE COIL (BROWN) 220V-240V FOR NZL HIT-320196.A1 320196 -
34 - PUSHING BUTTON HIT-316166.A2 316166 £1.67 £2.00
*35 - SWITCH (1P SCREW TYPE) W/LOCK FOR USA HIT-319339.A2 319339 £28.14 £33.77
*35 - SWITCH (1P SCREW TYPE) W/LOCK FOR NZL HIT-320195.A1 320195 £28.14 £33.77
36 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A212 984750 £1.67 £2.00
37 - CORD CLIP HIT-937631.A50 937631 £1.67 £2.00
38 - TUBE (D) HIT-981373.A48 981373 £1.67 £2.00
39 - CORD ARMOR D8.8 HIT-953327.A90 953327 £1.67 £2.00
*40 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A32 500461Z £15.56 £18.67
*40 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A31 500435Z £14.14 £16.97
*41 - NOISE SUPPRESSOR EXCEPT FOR USA HIT-320198.A1 320198 -
501A - CASE HIT-319543.A0 319543 -
601 - SIDE HANDLE FOR M10 HIT-981205.A3 981205 £6.72 £8.06
602 - HOOK (A) HIT-317676.A0 317676 -
