Hitachi / Hikoki CV12DA Cordless Multi Tools Spare Parts

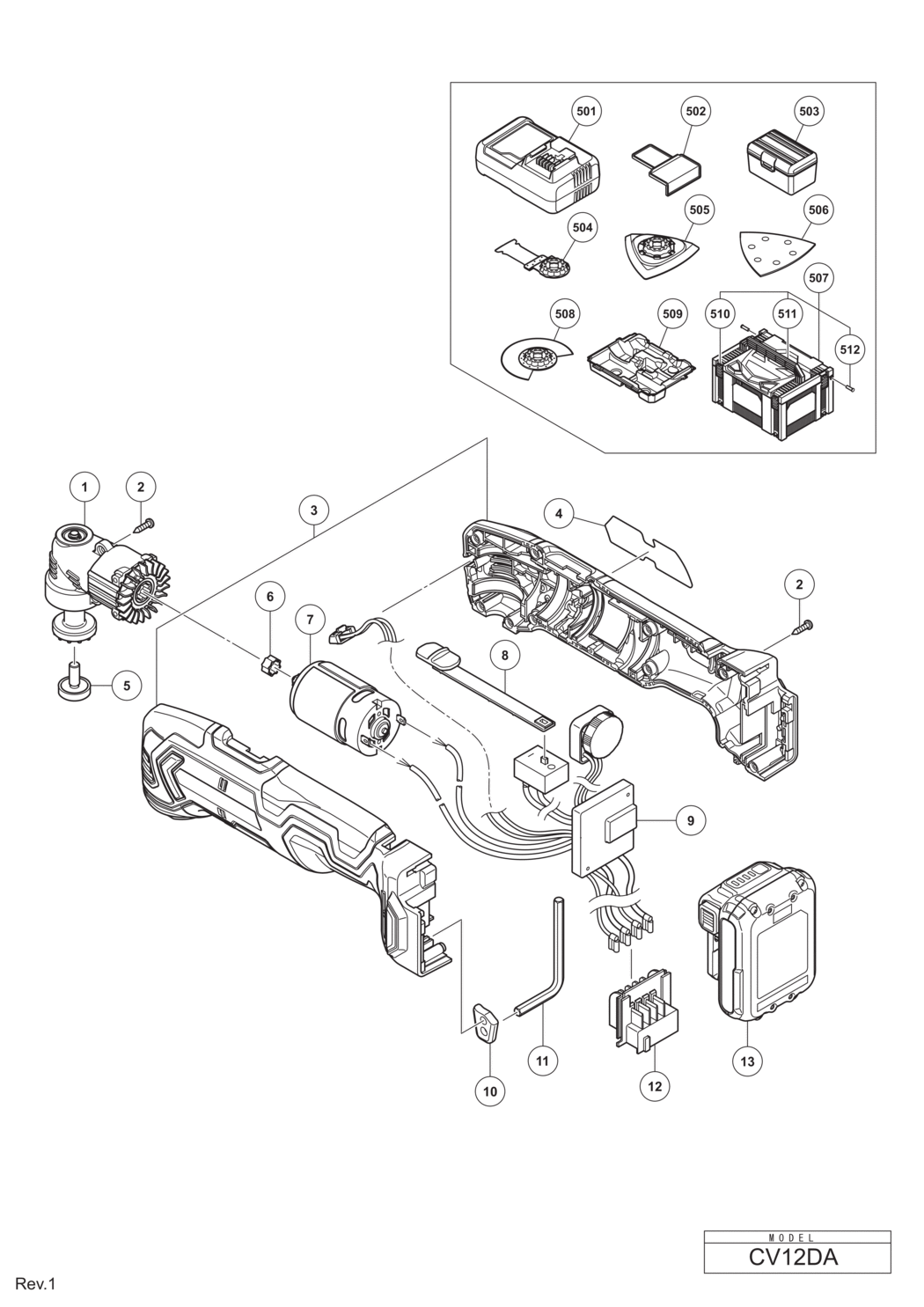

An exploded diagram and spare parts listing for the Hitachi / Hikoki CV12DA Cordless Multi Tools

	Ex VAT	Inc VAT
1 - HEAD CASE HIT-376101.A0 376101	-
2 - SCREW SET (12 PCS.) HIT-376100.A0 376100	-
3 - HOUSING SET HIT-376103.A0 376103	-
4 - NAME PLATE HIT-000000.A3772 000000	-
5 - SPECIAL BOLT HIT-376099.A0 376099	-
6 - SPLINE SHAFT HIT-376097.A0 376097	-
7 - MOTOR HIT-376102.A0 376102	-
8 - SLIDE KNOB HIT-376098.A0 376098	-
9 - CONTROLLER HIT-376104.A0 376104	-
10 - WRENCH HOLDER HIT-376095.A0 376095	-
11 - HEX. WRENCH HIT-376096.A0 376096	-
12 - BATTERY TERMINAL HIT-374398.A3 374398	-
*13 - BATTERY BSL 1225M (EUROPE) INCLUD.502 HIT-374954.A4 374954	-
501 - CHARGER(MODEL UC 12SL) HIT-000000.A3778 000000	-
502 - BATTERY COVER HIT-374778.A3 374778	-
503 - TOOL BOX HIT-337685.A1 337685	-
504 - MULTI TOOL BLADE(MSD32PBC) HIT-000000.A3773 000000	-
505 - MULTI TOOL BLADE(MSU93D) HIT-000000.A3775 000000	-
506 - SANDING PAPERS 94X94 AA60 (10 PCS.) HIT-338252.A2 338252	-
506 - SANDING PAPERS 94X94 AA80 (10 PCS.) HIT-338253.A0 338253	-
506 - SANDING PAPERS 94X94 AA100 (10 PCS.) HIT-338254.A2 338254	-
506 - SANDING PAPERS 94X94 AA120 (10 PCS.) HIT-338255.A0 338255	-
506 - SANDING PAPERS 94X94 AA180 (10 PCS.) HIT-338257.A1 338257	-
507 - CASE ASS'Y (STACKABLE 2) INCLUD.510-512 HIT-336471.A19 336471	-
508 - MULTI TOOL BLADE(MSW85S) HIT-000000.A3779 000000	-
509 - INNER TRAY HIT-376106.A0 376106	-
510 - LATCH HIT-336472.A37 336472	£1.67	£2.00
511 - HANDLE HIT-336473.A37 336473	£6.43	£7.72
512 - HINGE HIT-336474.A37 336474	£1.67	£2.00
601 - DUST COLLECTION ADAPTER SET INCLUD.602 HIT-376066.A0 376066	-
602 - FELT PACKING HIT-376118.A0 376118	-

Attribute Name	Value
Brand	Hikoki
