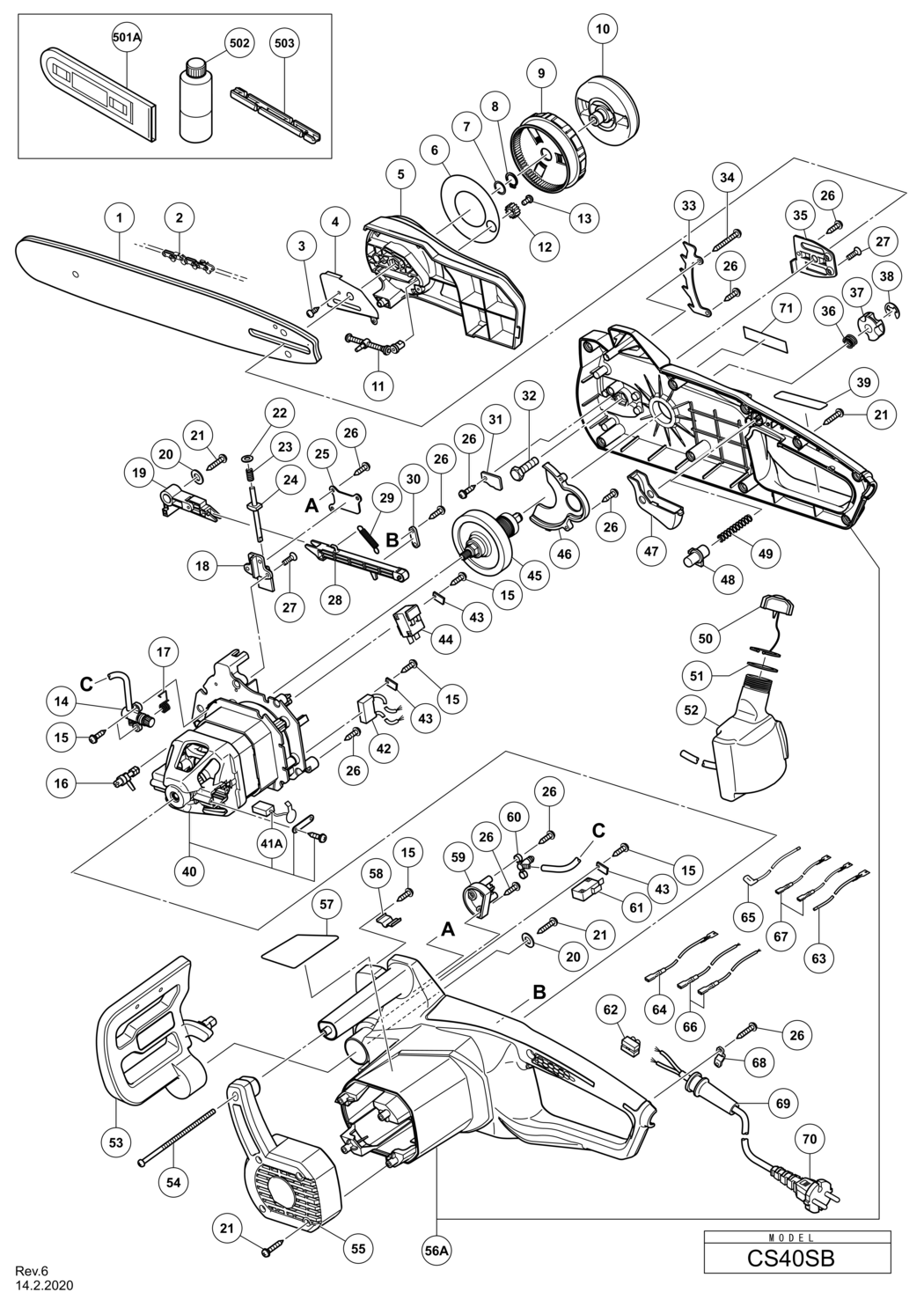

1 - CHAIN BAR 16 INCH 3/8 SPROCKET PRC
HIT-6696992.A4
6696992
|
£29.63
|
£35.56
|
|
|
2 - SAW CHAIN (3/8X16) 91PX-57XJ
HIT-781126.A11
781126
|
£19.00
|
£22.80
|
|
|
3 - TAPPING SCREW D3X6
HIT-696352.A17
696352
|
-
|
|
|
|
4 - GUIDE PLATE
HIT-338943.A0
338943
|
-
|
|
|
|
5 - END CAP
HIT-338794.A1
338794
|
-
|
|
|
|
6 - DUST SHEET
HIT-335688.A2
335688
|
-
|
|
|
|
7 - O-RING (1AP-12)
HIT-996407.A12
996407
|
£1.67
|
£2.00
|
|
|
8 - RETAINING RING FOR D14 SHAFT (10 PCS.)
HIT-939543.A10
939543
|
£3.12
|
£3.74
|
|
|
9 - TENSION DIAL
HIT-335150.A4
335150
|
-
|
|
|
|
10 - KNOB
HIT-335151.A2
335151
|
-
|
|
|
|
11 - CHAIN PULLER
HIT-335966.A4
335966
|
-
|
|
|
|
12 - TENSION GEAR
HIT-335152.A4
335152
|
-
|
|
|
|
13 - MACHINE SCREW (W/WASHER) M4X8 (BLACK)
HIT-315500.A15
315500
|
£1.67
|
£2.00
|
|
|
14 - OIL PUMP
HIT-338820.A0
338820
|
-
|
|
|
|
15 - TAPPING SCREW D3X8
HIT-6685415.A5
6685415
|
£3.49
|
£4.19
|
|
|
16 - ADJUSTING BOLT
HIT-335967.A1
335967
|
-
|
|
|
|
17 - EXTENSION SPRING
HIT-338821.A1
338821
|
-
|
|
|
|
18 - FRAME PLATE
HIT-338812.A0
338812
|
-
|
|
|
|
19 - FRONT PUSH ROD
HIT-338825.A0
338825
|
-
|
|
|
|
20 - FLAT WASHER
HIT-338824.A1
338824
|
-
|
|
|
|
21 - TAPPING SCREW D5X16
HIT-339124.A0
339124
|
-
|
|
|
|
22 - WASHER
HIT-338809.A1
338809
|
-
|
|
|
|
23 - SPRING
HIT-338810.A0
338810
|
-
|
|
|
|
24 - BRAKE BAR
HIT-338811.A1
338811
|
-
|
|
|
|
25 - PRESS BOARD (BRAKE LEVER)
HIT-338816.A0
338816
|
-
|
|
|
|
26 - TAPPING SCREW D4X12
HIT-954017.A13
954017
|
£1.67
|
£2.00
|
|
|
27 - FLAT HD. SCREW M4X12 (10 PCS.)
HIT-949323.A1
949323
|
£1.67
|
£2.00
|
|
|
28 - PUSH ROD
HIT-338830.A0
338830
|
-
|
|
|
|
29 - RETURN SPRING
HIT-338829.A1
338829
|
-
|
|
|
|
30 - PRESS BOARD
HIT-338831.A1
338831
|
-
|
|
|
|
31 - PRESS BOARD (B)
HIT-338813.A1
338813
|
-
|
|
|
|
32 - MACHINE SCREW
HIT-338814.A0
338814
|
-
|
|
|
|
33 - SPIKE
HIT-338797.A0
338797
|
-
|
|
|
|
34 - TAPPING SCREW D5X30
HIT-957580.A2
957580
|
£1.67
|
£2.00
|
|
|
35 - INSULATION BLANKET
HIT-338796.A1
338796
|
-
|
|
|
|
36 - SPRING
HIT-338798.A1
338798
|
-
|
|
|
|
37 - SPROCKET
HIT-338799.A0
338799
|
-
|
|
|
|
38 - RETAINING RING (E-TYPE) FOR D7 SHAFT
HIT-974577.A3
974577
|
£1.67
|
£2.00
|
|
|
39 - CAUTION LABEL
HIT-000000.A1078
000000
|
-
|
|
|
|
40 - MOTOR ASS'Y INCLUD.41
HIT-338818.A1
338818
|
-
|
|
|
|
41A - CARBON BRUSH 230V (1 PAIR)
HIT-999104.A1
999104
|
£31.47
|
£37.76
|
|
|
42 - CAPACITOR
HIT-338808.A0
338808
|
-
|
|
|
|
43 - PRESS BOARD (A)
HIT-338806.A0
338806
|
-
|
|
|
|
44 - SWITCH
HIT-338807.A1
338807
|
-
|
|
|
|
45 - OUTPUT SHAFT
HIT-338819.A0
338819
|
-
|
|
|
|
46 - DUST COVER
HIT-338815.A1
338815
|
-
|
|
|
|
47 - SWITCH BUTTON
HIT-338833.A1
338833
|
-
|
|
|
|
48 - LOCK OFF BUTTON
HIT-338832.A0
338832
|
-
|
|
|
|
49 - LOCK OFF SPRING
HIT-338804.A0
338804
|
-
|
|
|
|
50 - OIL TANK CAP
HIT-338801.A1
338801
|
-
|
|
|
|
51 - RUBBER RING
HIT-338803.A1
338803
|
-
|
|
|
|
52 - OIL TANK
HIT-338805.A1
338805
|
-
|
|
|
|
53 - PROTECTION BOARD
HIT-338837.A1
338837
|
-
|
|
|
|
54 - TAPPING SCREW D5X130
HIT-339125.A1
339125
|
-
|
|
|
|
55 - MOTOR REAR COVER
HIT-338838.A0
338838
|
-
|
|
|
|
56A - HOUSING SET
HIT-338802.A0
338802
|
-
|
|
|
|
57 - NAME PLATE
HIT-000000.A1079
000000
|
-
|
|
|
|
58 - SPRING LEAF
HIT-338828.A0
338828
|
-
|
|
|
|
59 - CONNECTOR BASE
HIT-338823.A0
338823
|
-
|
|
|
|
60 - CONNECTOR
HIT-338822.A1
338822
|
-
|
|
|
|
61 - CONTROL SWITCH
HIT-338827.A1
338827
|
-
|
|
|
|
62 - TERMINAL SET
HIT-338834.A0
338834
|
-
|
|
|
|
63 - CONNECTING WIRE 280L (BLUE)
HIT-338842.A0
338842
|
-
|
|
|
|
64 - CONNECTING WIRE 390L (BLUE)
HIT-338841.A1
338841
|
-
|
|
|
|
65 - CONNECTING WIRE 300L (RED)
HIT-338843.A1
338843
|
-
|
|
|
|
66 - CONNECTING WIRE 390L (RED)
HIT-338840.A0
338840
|
-
|
|
|
|
67 - CONNECTING WIRE 65L (BLUE)
HIT-338839.A1
338839
|
-
|
|
|
|
68 - PRESS BOARD (FOR CORD)
HIT-338835.A1
338835
|
-
|
|
|
|
69 - CORD ARMOR
HIT-338836.A0
338836
|
-
|
|
|
|
*70 - CORD (UK) FOR GBR
HIT-339122.A1
339122
|
-
|
|
|
|
71 - BRAND LABEL
HIT-000000.A1080
000000
|
-
|
|
|
|
501A - CHAIN COVER 16
HIT-6685440.A17
6685440
|
£13.86
|
£16.63
|
|
|
502 - CHAIN OIL (100ML)
HIT-000000.A1082
000000
|
-
|
|
|
|
503 - PLUG CLIP
HIT-309686.A1
309686
|
-
|
|
|
