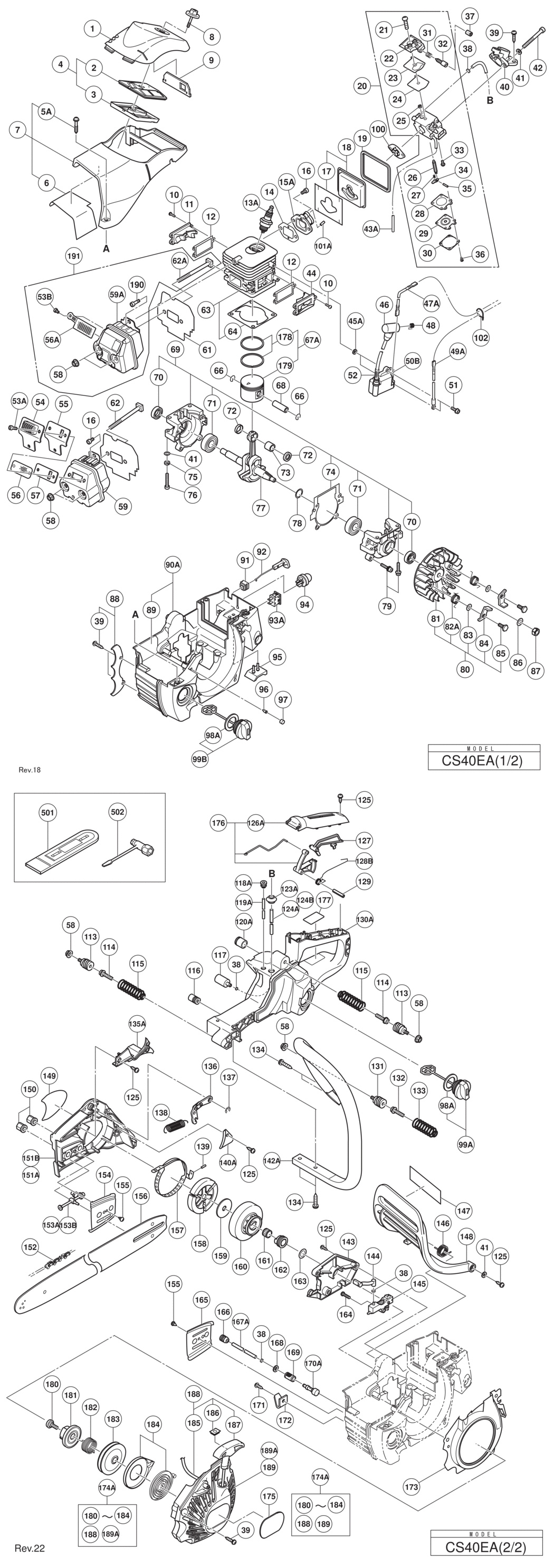

1 - CLEANER COVER
HIT-6698424.A0
6698424
|
£5.88
|
£7.06
|
|
|
2 - CLEANER ELEMENT (B)
HIT-6696908.A0
6696908
|
-
|
|
|
|
3 - CLEANER ELEMENT (A)
HIT-6696907.A1
6696907
|
-
|
|
|
|
4 - CLEANER ELEMENT ASS'Y INCLUD.2
HIT-6696891.A1
6696891
|
£10.43
|
£12.52
|
|
|
5A - COVER SET BOLT (B)
HIT-6699946.A0
6699946
|
-
|
|
|
|
6 - ALUMINUM TAPE (A)
HIT-6698520.A1
6698520
|
-
|
|
|
|
*7 - CYLINDER COVER ASS'Y INCLUD.5
HIT-6698462.A1
6698462
|
-
|
|
|
|
*7 - CYLINDER COVER ASS'Y INCLUD.5
HIT-6698519.A0
6698519
|
-
|
|
|
|
*8 - CLEANER KNOB (VERMILION)
HIT-6698425.A1
6698425
|
£1.67
|
£2.00
|
|
|
*8 - CLEANER KNOB (GREEN) FOR USA
HIT-6698438.A0
6698438
|
-
|
|
|
|
9 - SHUTTER PLATE
HIT-6696904.A1
6696904
|
-
|
|
|
|
10 - SEAL LOCK SCREW M4X10
HIT-6696835.A5
6696835
|
-
|
|
|
|
11 - SCAVENGING COVER(B)
HIT-6698407.A1
6698407
|
-
|
|
|
|
12 - COVER PACKING
HIT-6696852.A1
6696852
|
£1.67
|
£2.00
|
|
|
13A - SPARK PLUG ASS'Y BPMR7A
HIT-6699320.A11
6699320
|
-
|
|
|
|
14 - INTAKE PACKING
HIT-6696895.A0
6696895
|
£1.67
|
£2.00
|
|
|
15A - INTAKE
HIT-6601577.A0
6601577
|
-
|
|
|
|
16 - HEX. SOCKET HD. BOLT M5X12 (PRECOAT) TILL 12.2017
HIT-6696836.A6
6696836
|
-
|
|
|
|
*16 - HEX. SOCKET HD. BOLT M5X12 (PRECOAT) SINCE 1.2018 FOR USA
HIT-6696836.A7
6696836
|
-
|
|
|
|
17 - ALUMINUM TAPE (B)
HIT-6698524.A1
6698524
|
-
|
|
|
|
18 - CARBURETOR INSULATOR ASS'Y INCLUD.17
HIT-6698461.A0
6698461
|
-
|
|
|
|
19 - CARB. INSULATOR RUBBER
HIT-6696896.A1
6696896
|
-
|
|
|
|
20 - CARBURETOR ASS'Y INCLUD.21-36
HIT-6698433.A0
6698433
|
£110.12
|
£132.15
|
|
|
21 - SCREW
HIT-6685210.A45
6685210
|
-
|
|
|
|
23 - PUMP GASKET
HIT-6685212.A42
6685212
|
£3.29
|
£3.95
|
|
|
24 - PUMP DIAPHRAGM
HIT-6685213.A14
6685213
|
£8.44
|
£10.13
|
|
|
25 - INLET SCREEN
HIT-6684700.A37
6684700
|
-
|
|
|
|
26 - NEEDLE VALVE
HIT-6685215.A62
6685215
|
£6.79
|
£8.15
|
|
|
27 - VALVE SPRING
HIT-6690873.A11
6690873
|
-
|
|
|
|
28 - DIAPHRAGM PACKING-METERING
HIT-6685220.A83
6685220
|
£2.81
|
£3.37
|
|
|
29 - METERING DIAPHRAGM
HIT-6684690.A103
6684690
|
£24.05
|
£28.86
|
|
|
30 - DIAPHRAGM COVER-METERING
HIT-6685222.A95
6685222
|
£5.70
|
£6.84
|
|
|
31 - IDLE ADJUST SPRING
HIT-6690766.A37
6690766
|
-
|
|
|
|
32 - IDLE ADJUST SCREW
HIT-6685298.A20
6685298
|
£1.67
|
£2.00
|
|
|
33 - HINGE PIN SET SCREW
HIT-6685218.A26
6685218
|
-
|
|
|
|
34 - CONTROL LEVER
HIT-6685217.A42
6685217
|
-
|
|
|
|
35 - HINGE PIN
HIT-6685219.A55
6685219
|
-
|
|
|
|
36 - SET SCREW
HIT-6685223.A25
6685223
|
-
|
|
|
|
37 - IDLE SPONGE
HIT-6685224.A12
6685224
|
-
|
|
|
|
38 - CLIP
HIT-6685311.A13
6685311
|
£1.67
|
£2.00
|
|
|
39 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
HIT-302089.A13
302089
|
£1.67
|
£2.00
|
|
|
40 - CLEANER SUPPORT
HIT-6698427.A0
6698427
|
£1.67
|
£2.00
|
|
|
41 - WASHER 5
HIT-6685408.A16
6685408
|
£3.49
|
£4.19
|
|
|
42 - HEX. SOCKET HD. BOLT M5X45
HIT-6696317.A2
6696317
|
-
|
|
|
|
43A - FUEL PIPE 2X4X100
HIT-6698721.A1
6698721
|
-
|
|
|
|
44 - SCAVENGING COVER (A)
HIT-6698406.A0
6698406
|
-
|
|
|
|
45A - GLASS WASHER
HIT-6698700.A67
6698700
|
£1.67
|
£2.00
|
|
|
46 - PLUG CAP
HIT-6698435.A1
6698435
|
-
|
|
|
|
47A - CORD (C)
HIT-6696840.A1
6696840
|
-
|
|
|
|
48 - METAL FITTING OF PLUG CAP
HIT-6698436.A0
6698436
|
-
|
|
|
|
49A - CORD (B)
HIT-6698974.A1
6698974
|
-
|
|
|
|
50B - IGNITION COIL ASS'Y INCLUD.47A
HIT-6696841.A0
6696841
|
-
|
|
|
|
51 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X18
HIT-6696326.A19
6696326
|
-
|
|
|
|
52 - CORD INSULATION TUBE
HIT-6698457.A0
6698457
|
-
|
|
|
|
53A - HEX. SOCKET HD. BOLT M4X10 (10 PCS.) TILL 12.2017
HIT-949812.A15
949812
|
£2.98
|
£3.57
|
|
|
53B - HEX.SOCKET BOLT M4X6 SINCE 1.2018 FOR USA
HIT-370899.A2
370899
|
-
|
|
|
|
54 - MUFFLER PROTECTOR TILL 12.2017
HIT-6698458.A1
6698458
|
-
|
|
|
|
55 - MUFFLER PROTECTOR PACKING TILL 12.2017
HIT-6698459.A0
6698459
|
-
|
|
|
|
56 - MUFFLER GAUZE TILL 12.2017
HIT-6696874.A1
6696874
|
-
|
|
|
|
56A - MUFFLER GAUZE (B) SINCE 1.2018 FOR USA
HIT-6601574.A1
6601574
|
-
|
|
|
|
57 - EXHAUST PLATE TILL 12.2017
HIT-6698460.A1
6698460
|
-
|
|
|
|
58 - FLANGE NUT M6
HIT-329934.A9
329934
|
-
|
|
|
|
*59 - MUFFLER TILL 12.2017
HIT-6698410.A0
6698410
|
-
|
|
|
|
*59 - MUFFLER
HIT-6698411.A1
6698411
|
-
|
|
|
|
59A - MUFFLER (B) SINCE 1.2018 FOR USA
HIT-6601573.A0
6601573
|
-
|
|
|
|
61 - MUFFLER PACKING
HIT-6698412.A0
6698412
|
-
|
|
|
|
62 - SQUARE HEAD BOLT M6 TILL 12.2017
HIT-6698437.A1
6698437
|
-
|
|
|
|
62A - SQUARE HEAD BOLT M6 SINCE 1.2018 FOR USA
HIT-6601576.A1
6601576
|
-
|
|
|
|
63 - CYLINDER ASS'Y INCLUD.64
HIT-6698430.A1
6698430
|
£44.02
|
£52.83
|
|
|
64 - CYLINDER PACKING
HIT-6696864.A1
6696864
|
£1.67
|
£2.00
|
|
|
66 - CIR CLIP
HIT-6696854.A3
6696854
|
£1.67
|
£2.00
|
|
|
67A - PISTON INCLUD.178
HIT-6698526.A0
6698526
|
£36.46
|
£43.75
|
|
|
68 - PISTON PIN
HIT-6696855.A2
6696855
|
£3.02
|
£3.63
|
|
|
69 - CRANK CASE SET INCLUD.70
HIT-6698441.A0
6698441
|
-
|
|
|
|
70 - OIL SEAL TB 12227
HIT-6684607.A126
6684607
|
£4.07
|
£4.88
|
|
|
71 - BALL BEARING
HIT-6685328.A2
6685328
|
-
|
|
|
|
72 - PISTON PIN COLLAR
HIT-6696856.A1
6696856
|
-
|
|
|
|
73 - NEEDLE BEARING (A)
HIT-6698445.A1
6698445
|
-
|
|
|
|
74 - CRANK CASE PACKING
HIT-6696863.A0
6696863
|
-
|
|
|
|
75 - SPRING WASHER M5 (10 PCS.)
HIT-949454.A69
949454
|
£1.67
|
£2.00
|
|
|
76 - SEAL LOCK HEX. SOCKET HD. BOLT M5
HIT-6685412.A5
6685412
|
-
|
|
|
|
77 - CRANK SHAFT
HIT-6696853.A0
6696853
|
-
|
|
|
|
*78 - SHIM T 0.2
HIT-6696865.A0
6696865
|
-
|
|
|
|
*78 - SHIM T 0.3
HIT-6696866.A1
6696866
|
-
|
|
|
|
*78 - SHIM T 0.4
HIT-6696867.A0
6696867
|
-
|
|
|
|
79 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X20
HIT-305583.A5
305583
|
£1.67
|
£2.00
|
|
|
80 - MAGNETO SUB ASS'Y INCLUD.81-85
HIT-6698414.A1
6698414
|
-
|
|
|
|
81 - MAGNETO ROTOR
HIT-6698415.A0
6698415
|
-
|
|
|
|
82A - STARTER PAWL SPRING (B)
HIT-6699405.A4
6699405
|
-
|
|
|
|
83 - WASHER 0.8
HIT-6696857.A0
6696857
|
£1.67
|
£2.00
|
|
|
84 - STARTER PAWL
HIT-6696877.A0
6696877
|
-
|
|
|
|
85 - STEP BOLT
HIT-6696878.A13
6696878
|
£1.67
|
£2.00
|
|
|
86 - BOLT WASHER D7
HIT-6696880.A27
6696880
|
-
|
|
|
|
87 - FLYWHEEL NUT M7
HIT-6696879.A0
6696879
|
-
|
|
|
|
88 - SPIKE SET INCLUD.39
HIT-6696329.A2
6696329
|
£13.43
|
£16.12
|
|
|
89 - ALUMINUM TAPE
HIT-6698523.A0
6698523
|
-
|
|
|
|
90A - ENGINE CASE ASS'Y INCLUD.89
HIT-6699012.A1
6699012
|
£31.92
|
£38.31
|
|
|
91 - CHOKE ROD RUBBER
HIT-6685369.A4
6685369
|
£1.67
|
£2.00
|
|
|
*92 - CHOKE BUTTON
HIT-6698463.A0
6698463
|
-
|
|
|
|
*92 - CHOKE BUTTON FOR USA
HIT-6698464.A0
6698464
|
-
|
|
|
|
93A - STOP SWITCH
HIT-6601275.A34
6601275
|
£1.67
|
£2.00
|
|
|
94 - PRIMING PUMP COMP.
HIT-6685139.A81
6685139
|
£10.67
|
£12.80
|
|
|
95 - REAR DAMPER
HIT-6696870.A0
6696870
|
-
|
|
|
|
96 - AIR VENT VALVE (B)
HIT-6685370.A12
6685370
|
£6.75
|
£8.10
|
|
|
97 - AIR VENT SPONGE
HIT-6685371.A3
6685371
|
£3.49
|
£4.19
|
|
|
98A - TANK CAP PACKING
HIT-6685179.A30
6685179
|
£1.67
|
£2.00
|
|
|
*99A - FUEL TANK CAP ASS'Y (VERMILION) INCLUD.98A
HIT-6698854.A10
6698854
|
£7.03
|
£8.44
|
|
|
*99A - FUEL TANK CAP ASS'Y (GREEN) INCLUD.98A FOR USA
HIT-6698855.A3
6698855
|
-
|
|
|
|
99B - FUEL TANK CAP ASS'Y (BLACK) INCLUD.98A
HIT-6698358.A12
6698358
|
£3.56
|
£4.27
|
|
|
100 - INLET MANIFOLD SPACER
HIT-6685202.A19
6685202
|
-
|
|
|
|
101A - PULSE GUIDE 2.5X3.5X12
HIT-6699673.A1
6699673
|
-
|
|
|
|
102 - WIRE BAND
HIT-6696839.A1
6696839
|
-
|
|
|
|
113 - SPRING HOLDER
HIT-6698409.A13
6698409
|
-
|
|
|
|
114 - FLANGED TAPPING SCREW D6
HIT-6696872.A5
6696872
|
£1.67
|
£2.00
|
|
|
115 - ANTIVIBRATION SPRING
HIT-6698408.A0
6698408
|
-
|
|
|
|
116 - FRONT DAMPER
HIT-6696873.A2
6696873
|
£1.67
|
£2.00
|
|
|
117A - PUMP FILTER
HIT-6600351.A34
6600351
|
£4.45
|
£5.34
|
|
|
118A - RETURN GROMMET
HIT-6697846.A168
6697846
|
£2.08
|
£2.50
|
|
|
119A - FUEL PIPE L70
HIT-6699014.A22
6699014
|
£2.77
|
£3.32
|
|
|
120A - INNER CAP
HIT-6685351.A12
6685351
|
-
|
|
|
|
123A - FUEL GROMMET
HIT-6688156.A58
6688156
|
-
|
|
|
|
124A - FUEL PIPE
HIT-6698718.A1
6698718
|
-
|
|
|
|
124B - FUEL PIPE L250 FOR USA
HIT-6698947.A1
6698947
|
-
|
|
|
|
125 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
HIT-305812.A27
305812
|
£1.67
|
£2.00
|
|
|
126A - REAR HANDLE GRIP
HIT-6698805.A5
6698805
|
£1.67
|
£2.00
|
|
|
*127 - TRIGGER LOCKOUT (VERMILION)
HIT-6685350.A3
6685350
|
£1.67
|
£2.00
|
|
|
*127 - TRIGGER LOCKOUT (GREEN) FOR USA
HIT-6685420.A1
6685420
|
-
|
|
|
|
128B - THROTTLE LEVER SPRING
HIT-6600341.A11
6600341
|
£1.67
|
£2.00
|
|
|
129 - SPRING PIN 5X25
HIT-6685282.A18
6685282
|
£1.67
|
£2.00
|
|
|
130A - REAR HANDLE
HIT-6698990.A0
6698990
|
-
|
|
|
|
131 - SPRING HOLDER
HIT-6698429.A1
6698429
|
-
|
|
|
|
132 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X20
HIT-881722.A6
881722
|
£1.67
|
£2.00
|
|
|
133 - ANTIVIBRATION SPRING
HIT-6698428.A5
6698428
|
-
|
|
|
|
134 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK)
HIT-305558.A6
305558
|
£1.67
|
£2.00
|
|
|
135A - BRAKE LINK COVER
HIT-6698527.A1
6698527
|
£1.67
|
£2.00
|
|
|
136 - BRAKE LINK
HIT-6685388.A21
6685388
|
£12.57
|
£15.08
|
|
|
137 - RETAINING RING (E-TYPE) FOR D6 SHAFT
HIT-955479.A19
955479
|
£1.67
|
£2.00
|
|
|
138 - BRAKE SPRING
HIT-6696900.A1
6696900
|
£3.02
|
£3.63
|
|
|
139 - NEEDLE ROLLER D3
HIT-6685391.A11
6685391
|
£3.49
|
£4.19
|
|
|
140A - BRAKE BAND PLATE
HIT-6698528.A0
6698528
|
£1.67
|
£2.00
|
|
|
142A - FRONT HANDLE
HIT-6698989.A1
6698989
|
-
|
|
|
|
143 - OIL PUMP COVER
HIT-6696893.A1
6696893
|
-
|
|
|
|
144 - OIL PIPE
HIT-6696892.A0
6696892
|
-
|
|
|
|
145 - OIL PUMP
HIT-6696887.A0
6696887
|
£29.63
|
£35.56
|
|
|
146 - BRAKE LEVER SPRING
HIT-6685374.A1
6685374
|
-
|
|
|
|
147 - CAUTION LABEL
HIT-000000.A2421
000000
|
-
|
|
|
|
148 - BRAKE HANDLE
HIT-6685373.A2
6685373
|
£15.77
|
£18.92
|
|
|
149 - NAME PLATE
HIT-000000.A2420
000000
|
-
|
|
|
|
150 - CHAIN BAR CLAMP NUT
HIT-6685416.A2
6685416
|
£3.49
|
£4.19
|
|
|
151A - SIDE CASE SUB (GREEN) FOR USA
HIT-6698454.A0
6698454
|
-
|
|
|
|
151B - SIDE CASE SUB ASS'Y (VERMILION)
HIT-6699721.A0
6699721
|
£15.94
|
£19.13
|
|
|
*152 - SAW CHAIN 13 INCH
HIT-6687270.A4
6687270
|
-
|
|
|
|
*152 - SAW CHAIN 15 INCH
HIT-6687335.A4
6687335
|
£30.92
|
£37.11
|
|
|
*152 - SAW CHAIN 16 INCH
HIT-6687296.A1
6687296
|
-
|
|
|
|
*152 - SAW CHAIN 18 INCH
HIT-6687284.A6
6687284
|
£35.37
|
£42.44
|
|
|
153A - CHAIN PULLER TILL 7.2012
HIT-6685393.A0
6685393
|
£12.57
|
£15.08
|
|
|
153B - CHAIN PULLER SINCE 8.2012
HIT-6698986.A0
6698986
|
£18.88
|
£22.66
|
|
|
154 - GUIDE PLATE (B)
HIT-6696902.A0
6696902
|
£3.02
|
£3.63
|
|
|
155 - TAPPING SCREW D3X8
HIT-6685415.A2
6685415
|
£3.49
|
£4.19
|
|
|
*156 - CHAIN BAR 13 INCH
HIT-6696911.A1
6696911
|
£46.08
|
£55.29
|
|
|
*156 - CHAIN BAR 15 INCH
HIT-6696912.A1
6696912
|
£50.30
|
£60.36
|
|
|
*156 - CHAIN BAR 16 INCH
HIT-6696983.A2
6696983
|
£50.30
|
£60.36
|
|
|
*156 - CHAIN BAR 18 INCH
HIT-6696982.A0
6696982
|
£59.38
|
£71.26
|
|
|
157 - BRAKE BAND
HIT-6698423.A1
6698423
|
-
|
|
|
|
158 - CLUTCH
HIT-6696883.A0
6696883
|
£16.20
|
£19.44
|
|
|
159 - CLUTCH WASHER (B)
HIT-6696882.A3
6696882
|
-
|
|
|
|
160 - CLUTCH HOUSING
HIT-6696881.A0
6696881
|
£16.45
|
£19.74
|
|
|
161 - NEEDLE BEARING
HIT-6696884.A3
6696884
|
£7.12
|
£8.54
|
|
|
162 - WORM
HIT-6696886.A2
6696886
|
-
|
|
|
|
163 - WASHER
HIT-6696885.A1
6696885
|
-
|
|
|
|
164 - MACHINE SCREW M4X16 (10 PCS.)
HIT-949219.A17
949219
|
-
|
|
|
|
165 - GUIDE PLATE (A)
HIT-6696898.A0
6696898
|
-
|
|
|
|
166 - OIL GROMMET (A)
HIT-6696868.A3
6696868
|
-
|
|
|
|
167A - FUEL PIPE
HIT-6698719.A0
6698719
|
-
|
|
|
|
168 - BOLT WASHER D5
HIT-6685407.A28
6685407
|
-
|
|
|
|
169 - OIL FILTER
HIT-6698455.A0
6698455
|
-
|
|
|
|
170A - OIL FILTER BODY
HIT-6698536.A4
6698536
|
-
|
|
|
|
171 - FLANGED TAPPING SCREW D5X15
HIT-6698456.A13
6698456
|
-
|
|
|
|
173 - AIR DEFLECTOR
HIT-6696906.A0
6696906
|
-
|
|
|
|
174A - RECOIL STARTER (GREEN) INCLUD.180-184
HIT-6601384.A0
6601384
|
-
|
|
|
|
174A - RECOIL STARTER ASS'Y INCLUD.180-184
HIT-6699497.A1
6699497
|
£25.32
|
£30.39
|
|
|
175 - BRAND LABEL
HIT-000000.A2422
000000
|
-
|
|
|
|
*176 - THROTTLE ASS'Y INCLUD.126A
HIT-6698825.A0
6698825
|
£5.61
|
£6.73
|
|
|
*176 - THROTTLE ASS'Y INCLUD.126A FOR USA
HIT-6698826.A0
6698826
|
-
|
|
|
|
177 - CAUTION LABEL (L) FOR USA
HIT-6698923.A9
6698923
|
-
|
|
|
|
178 - PISTON RING SINCE 2.2010 EXCEPT FOR USA
HIT-6699003.A1
6699003
|
-
|
|
|
|
179 - PISTON (M) SINCE 2.2010 EXCEPT FOR USA
HIT-6699004.A0
6699004
|
-
|
|
|
|
180 - SET SCREW
HIT-6699476.A1
6699476
|
£1.67
|
£2.00
|
|
|
181 - CAM PLATE
HIT-6699478.A1
6699478
|
-
|
|
|
|
182 - DAMPER SPRING
HIT-6699479.A6
6699479
|
£2.77
|
£3.32
|
|
|
183 - REEL
HIT-6699485.A3
6699485
|
£4.01
|
£4.81
|
|
|
184 - SPIRAL SPRING CASE
HIT-6699480.A2
6699480
|
£9.34
|
£11.21
|
|
|
185 - STARTER ROPE
HIT-6699469.A3
6699469
|
-
|
|
|
|
186 - ROPE STOPPER
HIT-6699465.A10
6699465
|
-
|
|
|
|
187 - STARTER KNOB
HIT-6699467.A11
6699467
|
-
|
|
|
|
188 - STARTER HANDLE ASS'Y INCLUD.185-187
HIT-6699473.A7
6699473
|
-
|
|
|
|
*189 - FAN CASE
HIT-6699498.A0
6699498
|
-
|
|
|
|
189A - FAN CASE FOR USA
HIT-6601385.A0
6601385
|
-
|
|
|
|
190 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 SINCE 1.2018 FOR USA
HIT-6699044.A7
6699044
|
-
|
|
|
|
191 - MUFFLER (B) ASS'Y (REPAIR) INCLUD.53B
HIT-6601575.A0
6601575
|
-
|
|
|
|
*501 - CHAIN COVER 14 13 INCH
HIT-6685439.A2
6685439
|
-
|
|
|
|
*501 - CHAIN COVER 16 15
HIT-6696909.A3
6696909
|
£6.50
|
£7.80
|
|
|
*501 - CHAIN COVER 18 18 INCH
HIT-6696910.A2
6696910
|
£6.50
|
£7.80
|
|
|
502 - COMBI BOX SPANNER 10/19MM
HIT-6685402.A0
6685402
|
£9.50
|
£11.40
|
|
