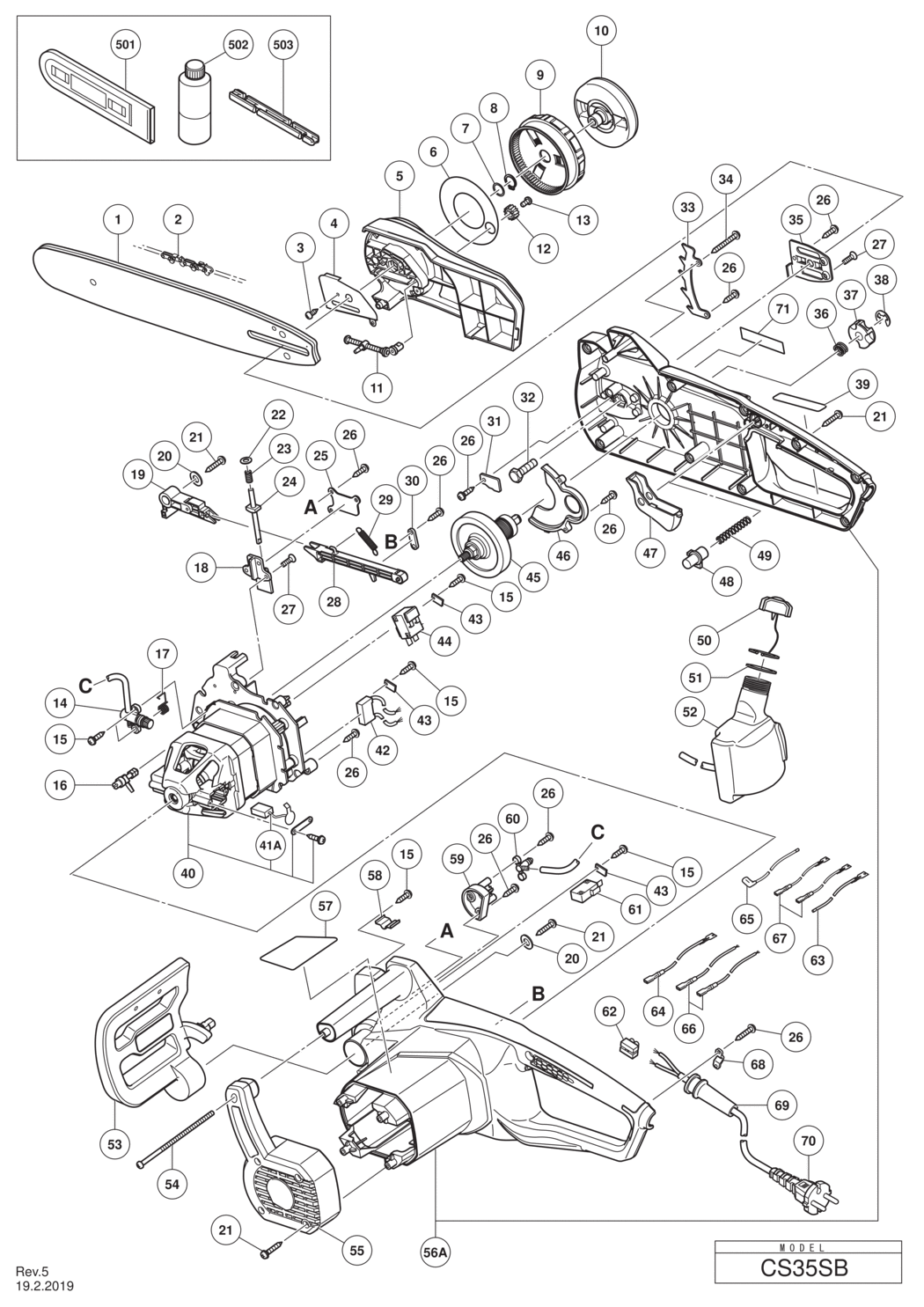

An exploded diagram and spare parts listing for the Hitachi / Hikoki CS35SB Chain Saw
Ex VAT Inc VAT
1 - CHAIN BAR 14 INCH 3/8 SPROCKET PRC HIT-6696991.A5 6696991 £32.28 £38.73
2 - SAW CHAIN (3/8X14) 91PX-52XJ HIT-781124.A17 781124 £13.99 £16.79
3 - TAPPING SCREW D3X6 HIT-696352.A18 696352 -
4 - GUIDE PLATE HIT-338943.A1 338943 -
5 - END CAP HIT-338794.A0 338794 -
6 - DUST SHEET HIT-335688.A3 335688 -
7 - O-RING (1AP-12) HIT-996407.A11 996407 £1.67 £2.00
8 - RETAINING RING FOR D14 SHAFT (10 PCS.) HIT-939543.A9 939543 £3.12 £3.74
9 - TENSION DIAL HIT-335150.A3 335150 -
10 - KNOB HIT-335151.A3 335151 -
11 - CHAIN PULLER HIT-335966.A3 335966 -
12 - TENSION GEAR HIT-335152.A3 335152 -
13 - MACHINE SCREW (W/WASHER) M4X8 (BLACK) HIT-315500.A16 315500 £1.67 £2.00
14 - OIL PUMP HIT-338820.A1 338820 -
15 - TAPPING SCREW D3X8 HIT-6685415.A4 6685415 £3.49 £4.19
16 - ADJUSTING BOLT HIT-335967.A2 335967 -
17 - EXTENSION SPRING HIT-338821.A0 338821 -
18 - FRAME PLATE HIT-338812.A1 338812 -
19 - FRONT PUSH ROD HIT-338825.A1 338825 -
20 - FLAT WASHER HIT-338824.A0 338824 -
21 - TAPPING SCREW D5X16 HIT-339124.A1 339124 -
22 - WASHER HIT-338809.A0 338809 -
23 - SPRING HIT-338810.A1 338810 -
24 - BRAKE BAR HIT-338811.A0 338811 -
25 - PRESS BOARD (BRAKE LEVER) HIT-338816.A1 338816 -
26 - TAPPING SCREW D4X12 HIT-954017.A12 954017 £1.67 £2.00
27 - FLAT HD. SCREW M4X12 (10 PCS.) HIT-949323.A2 949323 £1.67 £2.00
28 - PUSH ROD HIT-338830.A1 338830 -
29 - RETURN SPRING HIT-338829.A0 338829 -
30 - PRESS BOARD HIT-338831.A0 338831 -
31 - PRESS BOARD (B) HIT-338813.A0 338813 -
32 - MACHINE SCREW HIT-338814.A1 338814 -
33 - SPIKE HIT-338797.A1 338797 -
34 - TAPPING SCREW D5X30 HIT-957580.A1 957580 £1.67 £2.00
35 - INSULATION BLANKET HIT-338796.A0 338796 -
36 - SPRING HIT-338798.A0 338798 -
37 - SPROCKET HIT-338799.A1 338799 -
38 - RETAINING RING (E-TYPE) FOR D7 SHAFT HIT-974577.A4 974577 £1.67 £2.00
39 - CAUTION LABEL HIT-000000.A1073 000000 -
40 - MOTOR ASS'Y INCLUD.41 HIT-338818.A0 338818 -
41A - CARBON BRUSH 230V (1 PAIR) HIT-999104.A0 999104 £31.47 £37.76
42 - CAPACITOR HIT-338808.A1 338808 -
43 - PRESS BOARD (A) HIT-338806.A1 338806 -
44 - SWITCH HIT-338807.A0 338807 -
45 - OUTPUT SHAFT HIT-338819.A1 338819 -
46 - DUST COVER HIT-338815.A0 338815 -
47 - SWITCH BUTTON HIT-338833.A0 338833 -
48 - LOCK OFF BUTTON HIT-338832.A1 338832 -
49 - LOCK OFF SPRING HIT-338804.A1 338804 -
50 - OIL TANK CAP HIT-338801.A0 338801 -
51 - RUBBER RING HIT-338803.A0 338803 -
52 - OIL TANK HIT-338805.A0 338805 -
53 - PROTECTION BOARD HIT-338837.A0 338837 -
54 - TAPPING SCREW D5X130 HIT-339125.A0 339125 -
55 - MOTOR REAR COVER HIT-338838.A1 338838 -
56A - HOUSING SET HIT-338802.A1 338802 -
57 - NAME PLATE HIT-000000.A1074 000000 -
58 - SPRING LEAF HIT-338828.A1 338828 -
59 - CONNECTOR BASE HIT-338823.A1 338823 -
60 - CONNECTOR HIT-338822.A0 338822 -
61 - CONTROL SWITCH HIT-338827.A0 338827 -
62 - TERMINAL SET HIT-338834.A1 338834 -
63 - CONNECTING WIRE 280L (BLUE) HIT-338842.A1 338842 -
64 - CONNECTING WIRE 390L (BLUE) HIT-338841.A0 338841 -
65 - CONNECTING WIRE 300L (RED) HIT-338843.A0 338843 -
66 - CONNECTING WIRE 390L (RED) HIT-338840.A1 338840 -
67 - CONNECTING WIRE 65L (BLUE) HIT-338839.A0 338839 -
68 - PRESS BOARD (FOR CORD) HIT-338835.A0 338835 -
69 - CORD ARMOR HIT-338836.A1 338836 -
*70 - CORD (UK) FOR GBR HIT-339122.A0 339122 -
71 - BRAND LABEL HIT-000000.A1075 000000 -
501 - CHAIN COVER HIT-6699116.A1 6699116 -
502 - CHAIN OIL (100ML) HIT-000000.A1077 000000 -
503 - PLUG CLIP HIT-309686.A5 309686 -
