Hitachi / Hikoki CS33ET Engine Chain Saw (top Handle) Spare Parts

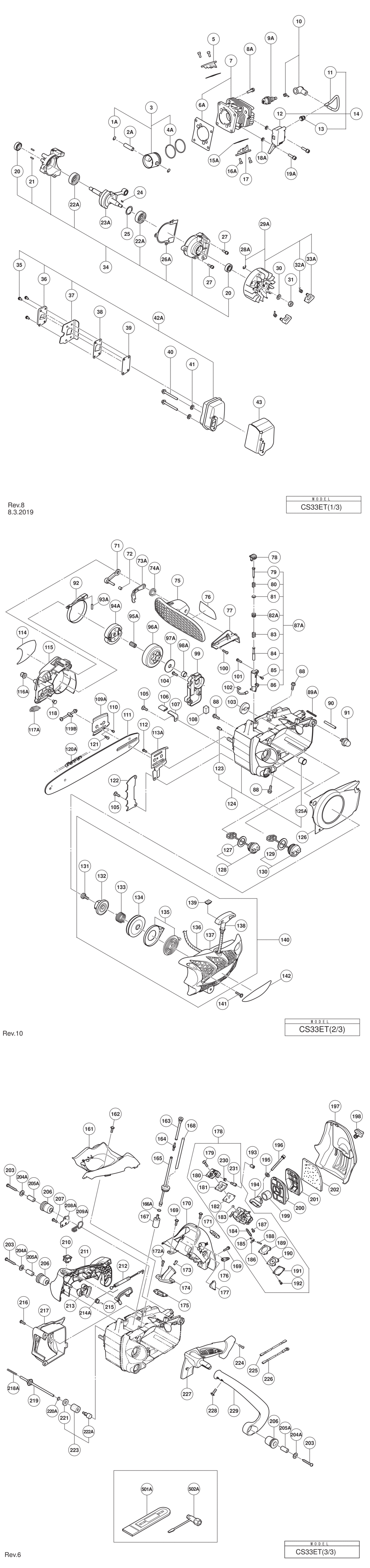

An exploded diagram and spare parts listing for the Hitachi / Hikoki CS33ET Engine Chain Saw (top Handle)

	Ex VAT	Inc VAT
1A - CIRCLIP HIT-6685326.A9 6685326	-
2A - PISTON PIN HIT-6696764.A7 6696764	-
3 - PISTON SET INCLUD.1 HIT-6685080.A0 6685080	£25.30	£30.36
4A - PISTON RING (XR1-1856) HIT-6685331.A11 6685331	£12.57	£15.08
5 - SCAVENGING COVER (B) HIT-6685082.A1 6685082	-
6A - CYLINDER PACKING HIT-6698697.A1 6698697	-
7 - CYLINDER SET INCLUD.6 HIT-6685084.A0 6685084	£38.60	£46.32
8A - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X20 HIT-305583.A12 305583	£1.67	£2.00
*9A - SPARK PLUG ASS'Y BPM6A FOR USA HIT-6699317.A3 6699317	-
*9A - SPARK PLUG ASS'Y BPMR6A FOR EUROPE HIT-6699319.A0 6699319	-
10 - SPARK PLUG CAP ASS'Y HIT-6685087.A1 6685087	-
11 - HIGH VOLTAGE CORD HIT-6685088.A0 6685088	-
12 - IGNITION COIL COMP. HIT-6685089.A2 6685089	£39.71	£47.65
13 - RUBBER CAP HIT-6684602.A8 6684602	-
14 - IGNITION COIL ASS'Y INCLUD.11-13 HIT-6685091.A0 6685091	-
15A - COVER PACKING HIT-6698698.A0 6698698	-
16A - HEX. SOCKET HD. BOLT M4X10 (10 PCS.) HIT-949812.A11 949812	£2.98	£3.57
17 - SCAVENGING COVER (A) HIT-6685094.A0 6685094	-
18A - GLASS WASHER HIT-6698700.A3 6698700	£1.67	£2.00
19A - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A72 6698388	£1.67	£2.00
20 - OIL SEAL TB 12227 HIT-6684607.A22 6684607	£4.07	£4.88
21 - NEEDLE ROLLER 2.5X9.8 HIT-6685095.A5 6685095	-
22A - BALL BEARING HIT-6685328.A8 6685328	-
23A - CRANK SHAFT HIT-6698693.A1 6698693	-
24 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A69 6684899	-
*25 - SHIM S T0.2 HIT-6685098.A13 6685098	-
*25 - SHIM S T0.3 HIT-6685099.A21 6685099	-
26A - CRANK CASE PACKING HIT-6698694.A0 6698694	-
27 - HEX.HOLE BOLT M5X20/S HIT-6684668.A31 6684668	-
28A - RETAINING RING D4 HIT-6685336.A22 6685336	£3.49	£4.19
29A - MAGNETO SUB ASS'Y INCLUD.28A HIT-6600090.A4 6600090	-
30 - BOLT WASHER M7 HIT-6685103.A22 6685103	-
31 - FLYWHEEL NUT HIT-6685104.A9 6685104	-
32A - STARTER PAWL SPRING HIT-6685335.A14 6685335	£2.84	£3.41
33A - STARTER PAWL HIT-6685334.A19 6685334	£2.84	£3.41
34 - CRANK CASE ASS'Y INCLUD.20-22 HIT-6685107.A1 6685107	-
*35 - MACHINE SCREW (W/WASHERS) M4X10 FOR USA HIT-986662.A5 986662	£1.67	£2.00
*35 - MACHINE SCREW (W/SP. WASHER) M4X8 FOR EUROPE HIT-6685109.A0 6685109	-
36 - EXHAUST PIPE HIT-6685110.A1 6685110	-
37 - MUFFLER SPECIAL PACKING HIT-6685111.A0 6685111	-
38 - GAUZE FIXING PLATE FOR USA HIT-6685112.A1 6685112	-
39 - MUFFLER GAUZE FOR USA HIT-6685113.A0 6685113	-
40 - HEX. SOCKET HD. BOLT M5X50 HIT-6685114.A18 6685114	£1.67	£2.00
41 - WASHER 5 HIT-6684661.A111 6684661	£1.67	£2.00
*42 - MUFFLER COMP. FOR USA HIT-6685115.A0 6685115	-
42A - MUFFLER ASS'Y INCLUD.35-37 FOR EUROPE HIT-6697102.A1 6697102	-
43 - MUFFLER PACKING HIT-6685117.A1 6685117	-
71 - BRAKE SUPPORT PLATE COMP. HIT-6685119.A0 6685119	-
72 - COLLAR HIT-6685120.A16 6685120	-
73A - BRAKE LINK HIT-6685388.A14 6685388	£12.57	£15.08
74A - BRAKE LEVER SPRING HIT-6696783.A7 6696783	-
75 - BRAKE HANDLE HIT-6685123.A0 6685123	-
76 - CAUTION MARK HIT-000000.A5686 000000	-
77 - BRAKE LINK COVER HIT-6685126.A0 6685126	£1.67	£2.00
78 - OIL ADJUST GROMMET HIT-6685127.A1 6685127	-
79 - OIL PUMP ADJUSTER HIT-6685128.A0 6685128	£1.67	£2.00
80 - ADJUSTER SPRING HIT-6685129.A6 6685129	-
81 - BOLT WASHER M4 HIT-6685070.A18 6685070	£1.67	£2.00
82A - OIL PUMP ADJUST CAP HIT-6685130.A0 6685130	-
83 - PUMP GEAR SPRING HIT-6685131.A6 6685131	-
84 - PUMP GEAR COMP. HIT-6685132.A0 6685132	-
85 - MACHINE SCREW M3X8 HIT-6685133.A6 6685133	-
86 - OIL PUMP CASE COMP. HIT-6685134.A0 6685134	-
87A - OIL PUMP CASE ASS'Y INCLUD.79-86 HIT-6685135.A6 6685135	£27.85	£33.42
88 - SEAL LOCK BOLT M5X15 HIT-6685136.A0 6685136	-
89A - PROTECTIVE COIL HIT-6698699.A3 6698699	-
90 - FUEL PIPE 2.5X4X42 HIT-6685138.A10 6685138	£1.67	£2.00
91 - PRIMING PUMP COMP. HIT-6685139.A0 6685139	£10.67	£12.80
92 - BRAKE BAND HIT-6685140.A9 6685140	£22.02	£26.43
93A - NEEDLE ROLLER D3 HIT-6685391.A16 6685391	£3.49	£4.19
94A - CLUTCH HIT-6685142.A17 6685142	£16.34	£19.61
95A - NEEDLE BEARING (D) HIT-6685361.A6 6685361	£12.57	£15.08
96A - CLUTCH HOUSING HIT-6685403.A2 6685403	£27.52	£33.02
97A - CLUTCH WASHER HIT-6685414.A5 6685414	£3.49	£4.19
98A - CRANK SHAFT COLLAR HIT-6685360.A5 6685360	£6.75	£8.10
99 - OIL PUMP COVER HIT-6685147.A0 6685147	-
100 - TAPPING SCREW D4X15 HIT-6685148.A9 6685148	-
101 - MACHINE SCREW (W/SP. WASHER) M4X14 HIT-6685149.A7 6685149	-
102 - OIL PIPE (A) HIT-6685150.A1 6685150	-
103 - SCREW GEAR HIT-6685151.A5 6685151	-
104 - TAPPING SCREW D4.5X14 HIT-6685152.A13 6685152	-
105 - TAPPING SCREW D4.5X14 HIT-6685153.A11 6685153	-
106 - FUEL PIPE HIT-6685154.A9 6685154	-
107 - CHAIN CATCHER HIT-6685155.A15 6685155	-
108 - AIR VENT SPONGE HIT-6685156.A2 6685156	-
109A - GUIDE PLATE (B) HIT-6696784.A2 6696784	£3.02	£3.63
110 - TAPPING SCREW D3X8 HIT-6685158.A0 6685158	£1.67	£2.00
*111 - CHAIN BAR 12 INCH 3/8 SPROCKET FOR EUROPE HIT-6685294.A4 6685294	£27.59	£33.11
*111 - CHAIN BAR 14 INCH 3/8 SPROCKET FOR EUROPE HIT-6685295.A0 6685295	£30.92	£37.11
112 - TAPPING SCREW D4X10 HIT-6685161.A34 6685161	£1.67	£2.00
113A - GUIDE PLATE (A) HIT-6698692.A0 6698692	£7.03	£8.44
114 - NAME PLATE (CS 33ET) HIT-000000.A5687 000000	-
115 - SIDE COVER COMP. HIT-6685165.A1 6685165	£12.98	£15.58
*115 - SIDE COVER COMP. (GREEN) FOR USA HIT-6698344.A0 6698344	-
116A - CHAIN BAR CLAMP NUT HIT-6685416.A8 6685416	£3.49	£4.19
117A - BRAKE SPRING HIT-6685389.A4 6685389	£3.49	£4.19
118 - GEAR (A) HIT-6685168.A19 6685168	£3.45	£4.14
119B - CHAIN PULLER INCLUD.118 HIT-6698986.A27 6698986	£18.88	£22.66
*120A - SAW CHAIN (3/8X12) 91PX-45XJ HIT-781122.A1 781122	£12.41	£14.89
*120A - SAW CHAIN (3/8X14) 91PX-52XJ HIT-781124.A0 781124	£13.99	£16.79
121 - TAPPING SCREW D4X10 HIT-6685161.A35 6685161	£1.67	£2.00
123 - AIR VENT VALVE (B) HIT-6685173.A0 6685173	-
124 - ENGINE CASE ASS'Y INCLUD.123 HIT-6685174.A0 6685174	-
125A - INNER CAP HIT-6685175.A0 6685175	-
126 - AIR DEFLECTOR HIT-6685176.A1 6685176	-
129 - TANK CAP PACKING HIT-6685179.A0 6685179	£1.67	£2.00
130 - TANK CAP ASS'Y INCLUD.129 HIT-6685180.A8 6685180	£6.69	£8.03
*130 - FUEL TANK CAP ASS'Y (GREEN) FOR USA HIT-6698348.A0 6698348	-
131 - SET SCREW HIT-6684679.A17 6684679	£2.98	£3.57
132 - CAM PLATE HIT-6685182.A0 6685182	£3.56	£4.27
133 - DAMPER SPRING HIT-6685183.A31 6685183	£5.70	£6.84
134 - STARTER PULLEY HIT-6685184.A1 6685184	£6.18	£7.41
135 - SPRING CASE SET HIT-6685185.A12 6685185	£11.12	£13.35
136 - ROPE HIT-6685186.A1 6685186	-
137 - FAN CASE COMP. HIT-6685187.A1 6685187	-
138 - STARTER HANDLE HIT-6685188.A0 6685188	-
139 - PLATE HIT-6685189.A48 6685189	-
140 - RECOIL STARTER ASS'Y INCLUD.131-139 HIT-6685190.A0 6685190	£30.92	£37.11
*140 - RECOIL STARTER ASS'Y (GREEN) FOR USA HIT-6698345.A0 6698345	-
141 - TAPPING SCREW D4.5X20 HIT-6685191.A10 6685191	-
142 - BRAND LABEL (C) HIT-000000.A5688 000000	-
161 - ENGINE CASE COVER HIT-6685194.A0 6685194	-
162 - TAPPING SCREW D4.5X14 HIT-6685152.A14 6685152	-
164 - PIPE JOINT HIT-6685196.A0 6685196	-
165 - SHIELD TUBE ASS'Y HIT-6685197.A1 6685197	-
166A - CLIP HIT-6685311.A31 6685311	£1.67	£2.00
167 - PUMP FILTER BODY HIT-6685199.A26 6685199	£6.38	£7.66
168 - FUEL PIPE 2.5X4X260 HIT-6685200.A0 6685200	-
169 - TAPPING SCREW D4.5X14 HIT-6685153.A10 6685153	-
170 - CLEANER BODY COMP. HIT-6685201.A0 6685201	-
171 - INLET MANIFOLD SPACER HIT-6685202.A0 6685202	-
172A - HEX. SOCKET BOLT M4 HIT-6698792.A5 6698792	-
173 - PULSE GUIDE HIT-6685203.A6 6685203	-
174 - INTAKE COMP. HIT-6685204.A0 6685204	-
175 - INTAKE PACKING HIT-6685205.A0 6685205	£1.67	£2.00
176 - CHOKE LEVER HIT-6685206.A1 6685206	-
*176 - CHOKE LEVER (GREEN) FOR USA HIT-6698349.A1 6698349	-
177 - ADJUSTER CAP HIT-6685207.A0 6685207	-
*178 - CARBURETOR ASS'Y WT-940 INCLUD.179-192 HIT-6685208.A0 6685208	£99.12	£118.95
*178 - CARBURETOR ASS'Y WT-949 INCLUD.179-192 HIT-6685209.A0 6685209	£85.09	£102.11
179 - SCREW HIT-6685210.A0 6685210	-
180 - PUMP BODY HIT-6685211.A15 6685211	-
181 - PUMP GASKET HIT-6685212.A0 6685212	£3.29	£3.95
182 - PUMP DIAPHRAGM HIT-6685213.A56 6685213	£8.44	£10.13
183 - INLET SCREEN HIT-6684700.A176 6684700	-
184 - NEEDLE VALVE HIT-6685215.A0 6685215	£6.79	£8.15
185 - VALVE SPRING HIT-6685216.A9 6685216	-
186 - CONTROL LEVER HIT-6685217.A0 6685217	-
187 - HINGE PIN SET SCREW HIT-6685218.A68 6685218	-
188 - HINGE PIN HIT-6685219.A2 6685219	-
189 - DIAPHRAGM PACKING-METERING HIT-6685220.A158 6685220	£2.81	£3.37
190 - METERING DIAPHRAGM HIT-6684690.A42 6684690	£24.05	£28.86
191 - DIAPHRAGM COVER-METERING HIT-6685222.A16 6685222	£5.70	£6.84
192 - SET SCREW HIT-6685223.A69 6685223	-
193 - IDLE SPONGE HIT-6685224.A0 6685224	-
194 - AIR CLEANER BASE HIT-6685225.A2 6685225	-
195 - WASHER M5 (BLACK) HIT-6685226.A2 6685226	-
196 - HEX. SOCKET HD. BOLT M5X50 HIT-6685114.A2 6685114	£1.67	£2.00
197 - CLEANER COVER HIT-6685227.A0 6685227	£5.70	£6.84
198 - CLEANER KNOB HIT-6685228.A0 6685228	£3.89	£4.67
199 - CLEANER SPONGE (B) HIT-6685229.A0 6685229	£1.67	£2.00
200 - CLEANER ELEMENT A COMP. HIT-6685230.A0 6685230	£4.26	£5.11
201 - CLEANER ELEMENT B COMP. HIT-6685231.A4 6685231	£4.26	£5.11
202 - CLEANER SPONGE (A) HIT-6685232.A0 6685232	£2.81	£3.37
203 - TAPPING SCREW D5X45 HIT-6685233.A0 6685233	-
204A - WASHER 1.0 HIT-6696799.A1 6696799	£1.67	£2.00
205A - COLLAR 28.2 HIT-6696800.A0 6696800	£3.02	£3.63
206 - DAMPER COMP. HIT-6685236.A1 6685236	-
207 - TAPPING SCREW D4.5X14 HIT-6685153.A19 6685153	-
208A - HOOK HOLDER PLATE HIT-6698695.A0 6698695	-
209A - HOOK HIT-6698696.A0 6698696	-
210 - STOP SWITCH HIT-6685239.A0 6685239	£6.88	£8.25
211 - REAR HANDLE (B) COMP. HIT-6685240.A0 6685240	£12.98	£15.58
212 - THROTTLE WIRE COMP. HIT-6685241.A0 6685241	£8.82	£10.58
213 - THROTTLE LEVER HIT-6685242.A0 6685242	-
*213 - THROTTLE LEVER (GREEN) FOR USA HIT-6698346.A0 6698346	-
214A - THROTTLE LEVER SPRING HIT-6698691.A0 6698691	-
215 - TRIGGER LOCKOUT HIT-6685244.A4 6685244	-
*215 - TRIGGER LOCK OUT (GREEN) FOR USA HIT-6698347.A1 6698347	-
216 - TAPPING SCREW D4.5X14 HIT-6685152.A7 6685152	-
217 - MUFFLER COVER HIT-6685245.A0 6685245	-
218A - PROTECTIVE COIL (A) HIT-6696806.A1 6696806	-
219 - SHIELD TUBE HIT-6685247.A17 6685247	£4.32	£5.19
220A - CLIP HIT-6685311.A16 6685311	£1.67	£2.00
221 - WASHER 5 HIT-6684661.A86 6684661	£1.67	£2.00
222A - OIL FILTER BODY HIT-6685310.A8 6685310	£1.67	£2.00
223 - OIL FILTER BODY ASS'Y INCLUD.221 HIT-6685249.A0 6685249	£1.67	£2.00
224 - TAPPING SCREW D4X15 HIT-6685250.A0 6685250	-
225 - CORD 325MM HIT-6685251.A0 6685251	-
226 - CORD 180MM HIT-6685252.A0 6685252	-
227 - REAR HANDLE (A) COMP. HIT-6685253.A0 6685253	£8.22	£9.87
228 - TAPPING SCREW D5X16 HIT-6685074.A8 6685074	-
229 - FRONT HANDLE HIT-6685254.A0 6685254	-
230 - IDLE ADJUST SPRING HIT-6685297.A1 6685297	-
231 - IDLE ADJUST SCREW HIT-6685298.A44 6685298	£1.67	£2.00
*501A - CHAIN COVER 12 HIT-6685401.A6 6685401	-
*501A - CHAIN COVER 14 HIT-6685439.A9 6685439	-
502A - COMBI BOX SPANNER 10/19MM HIT-6685402.A7 6685402	£9.50	£11.40

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CS33ET Engine Chain Saw (top Handle) Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki CS33ET Engine Chain Saw (top Handle) Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki CS33ET Engine Chain Saw (top Handle) Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
