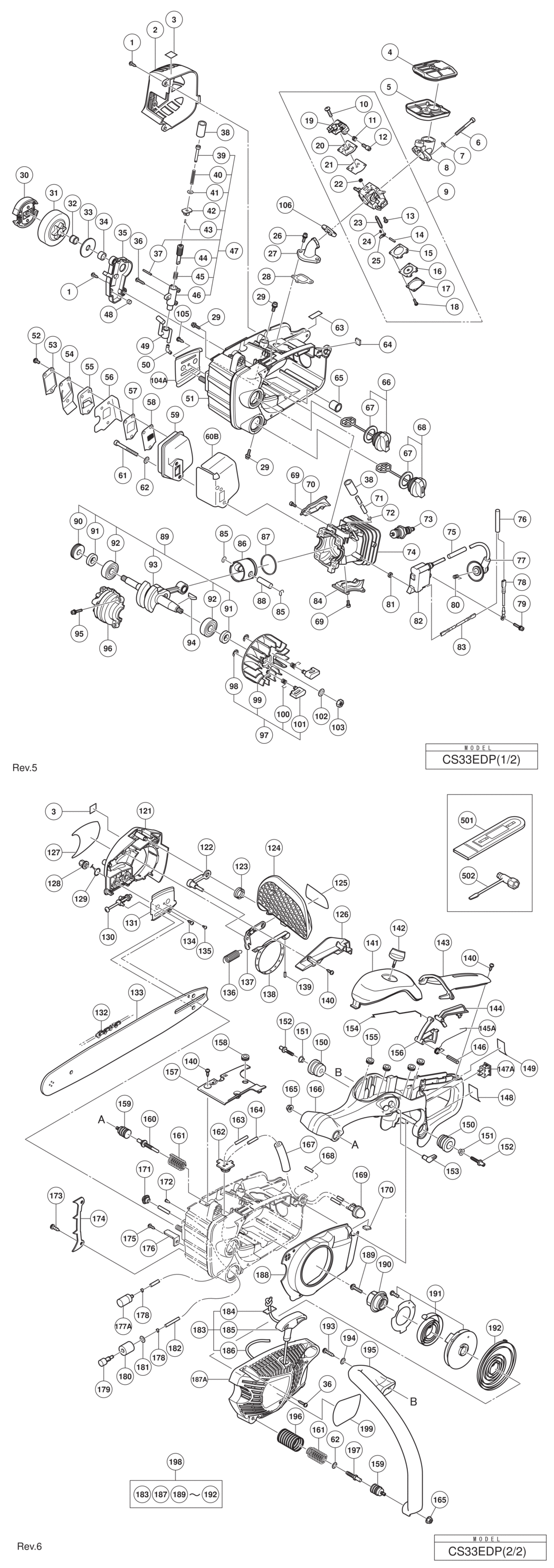

1 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
HIT-305812.A60
305812
|
£1.67
|
£2.00
|
|
|
2 - MUFFLER COVER
HIT-6696821.A1
6696821
|
-
|
|
|
|
3 - CAUTION LABEL (HOT)
HIT-6698864.A9
6698864
|
-
|
|
|
|
4 - CLEANER ELEMENT (B)
HIT-6699969.A2
6699969
|
£5.70
|
£6.84
|
|
|
5 - CLEANER ELEMENT (A)
HIT-6699968.A1
6699968
|
£5.34
|
£6.41
|
|
|
6 - HEX. SOCKET HD. BOLT M5X45 (10 PCS.)
HIT-949824.A9
949824
|
-
|
|
|
|
7 - WASHER 5
HIT-6685408.A4
6685408
|
£3.49
|
£4.19
|
|
|
8 - CLEANER SUPPORT
HIT-6699966.A2
6699966
|
-
|
|
|
|
9 - CARBURETOR ASS'Y INCLUD.10-25
HIT-6699976.A1
6699976
|
-
|
|
|
|
10 - SCREW
HIT-6685210.A56
6685210
|
-
|
|
|
|
11 - IDLE ADJUST SPRING
HIT-6685297.A23
6685297
|
-
|
|
|
|
12 - IDLE ADJUST SCREW
HIT-6685298.A9
6685298
|
£1.67
|
£2.00
|
|
|
13 - HINGE PIN SET SCREW
HIT-6685218.A10
6685218
|
-
|
|
|
|
14 - HINGE PIN
HIT-6685219.A77
6685219
|
-
|
|
|
|
15 - DIAPHRAGM PACKING-METERING
HIT-6685220.A27
6685220
|
£2.81
|
£3.37
|
|
|
16 - METERING DIAPHRAGM
HIT-6684690.A88
6684690
|
£24.05
|
£28.86
|
|
|
17 - DIAPHRAGM COVER-METERING
HIT-6685222.A153
6685222
|
£5.70
|
£6.84
|
|
|
18 - SET SCREW
HIT-6685223.A10
6685223
|
-
|
|
|
|
19 - PUMP COVER
HIT-6600091.A3
6600091
|
-
|
|
|
|
20 - PUMP GASKET
HIT-6685212.A47
6685212
|
£3.29
|
£3.95
|
|
|
21 - PUMP DIAPHRAGM
HIT-6685213.A9
6685213
|
£8.44
|
£10.13
|
|
|
22 - INLET SCREEN
HIT-6684700.A65
6684700
|
-
|
|
|
|
23 - NEEDLE VALVE
HIT-6685215.A73
6685215
|
£6.79
|
£8.15
|
|
|
24 - VALVE SPRING
HIT-6685216.A0
6685216
|
-
|
|
|
|
25 - CONTROL LEVER
HIT-6685217.A53
6685217
|
-
|
|
|
|
26 - HEX. SOCKET BOLT M4
HIT-6698792.A1
6698792
|
-
|
|
|
|
27 - INTAKE
HIT-6699951.A1
6699951
|
£7.66
|
£9.19
|
|
|
28 - INTAKE PACKING
HIT-6699952.A2
6699952
|
-
|
|
|
|
29 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
HIT-6699044.A14
6699044
|
-
|
|
|
|
30 - CLUTCH
HIT-6600316.A3
6600316
|
-
|
|
|
|
31 - CLUTCH HOUSING COMP.
HIT-6685144.A14
6685144
|
£11.93
|
£14.32
|
|
|
32 - NEEDLE BEARING (D)
HIT-6685361.A7
6685361
|
£12.57
|
£15.08
|
|
|
33 - CLUTCH WASHER
HIT-6685414.A4
6685414
|
£3.49
|
£4.19
|
|
|
34 - CRANK SHAFT COLLAR
HIT-6685360.A4
6685360
|
£6.75
|
£8.10
|
|
|
35 - OIL PUMP COVER
HIT-6699610.A3
6699610
|
-
|
|
|
|
36 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-302086.A10
302086
|
£1.67
|
£2.00
|
|
|
37 - NEEDLE ROLLER 2.5X19.8
HIT-6685356.A5
6685356
|
£3.49
|
£4.19
|
|
|
38 - IDOL SPONGE
HIT-6696793.A4
6696793
|
-
|
|
|
|
39 - OIL PUMP ADJUSTER (ED)
HIT-6699960.A1
6699960
|
-
|
|
|
|
40 - ADJUSTER SPRING
HIT-6699961.A2
6699961
|
-
|
|
|
|
41 - BOLT WASHER M4 (BLACK)
HIT-323210.A6
323210
|
-
|
|
|
|
42 - ADJUSTER CAP
HIT-6699959.A2
6699959
|
-
|
|
|
|
43 - NEEDLE ROLLER
HIT-6600046.A2
6600046
|
-
|
|
|
|
44 - PUMP GEAR (ED)
HIT-6699957.A2
6699957
|
-
|
|
|
|
45 - PUMP GEAR SPRING (ED)
HIT-6699958.A1
6699958
|
-
|
|
|
|
46 - PUMP CASE
HIT-6699119.A3
6699119
|
-
|
|
|
|
47 - PUMP ASS'Y INCLUD.37
HIT-6600085.A1
6600085
|
£22.86
|
£27.43
|
|
|
48 - AIR VENT SPONGE
HIT-6685371.A10
6685371
|
£3.49
|
£4.19
|
|
|
49 - OIL PIPE
HIT-6696811.A1
6696811
|
-
|
|
|
|
50 - PIPE JOINT
HIT-6685358.A8
6685358
|
£3.49
|
£4.19
|
|
|
51 - ENGINE CASE ASS'Y INCLUD.64
HIT-6600084.A2
6600084
|
-
|
|
|
|
52 - SCREW (W/WASHERS) M4 (BLACK)
HIT-6600048.A4
6600048
|
-
|
|
|
|
53 - PACKING PLATE
HIT-6698861.A4
6698861
|
-
|
|
|
|
54 - MUFFLER SPECIAL PACKING (S)
HIT-6698862.A3
6698862
|
-
|
|
|
|
55 - EXHAUST PIPE
HIT-6696816.A6
6696816
|
-
|
|
|
|
56 - MUFFLER SPECIAL PACKING
HIT-6696818.A6
6696818
|
-
|
|
|
|
57 - GAUZE FIXING PLATE
HIT-6696817.A1
6696817
|
-
|
|
|
|
58 - MUFFLER GAUZE
HIT-6696815.A1
6696815
|
-
|
|
|
|
59 - MUFFLER
HIT-6600049.A1
6600049
|
-
|
|
|
|
60B - MUFFLER PACKING
HIT-6600445.A5
6600445
|
-
|
|
|
|
61 - HEX. SOCKET HD. BOLT M6X55
HIT-6696819.A1
6696819
|
-
|
|
|
|
62 - BOLT WASHER M6 (10 PCS.)
HIT-949432.A107
949432
|
£1.67
|
£2.00
|
|
|
63 - TANK MARK LABEL (50:1)
HIT-6698921.A11
6698921
|
-
|
|
|
|
64 - PROTECTION SHEET
HIT-6600047.A1
6600047
|
-
|
|
|
|
65 - INNER CAP
HIT-6685351.A4
6685351
|
-
|
|
|
|
*66 - FUEL TANK CAP ASS'Y (VERMILION) INCLUD.67
HIT-6698854.A11
6698854
|
£7.03
|
£8.44
|
|
|
*66 - FUEL TANK CAP ASS'Y (GREEN) INCLUD.67 FOR USA
HIT-6698855.A2
6698855
|
-
|
|
|
|
67 - TANK CAP PACKING
HIT-6685179.A4
6685179
|
£1.67
|
£2.00
|
|
|
68 - FUEL TANK CAP ASS'Y (BLACK) INCLUD.67
HIT-6698358.A5
6698358
|
£3.56
|
£4.27
|
|
|
69 - HEX. SOCKET HD. BOLT M4X10 (10 PCS.)
HIT-949812.A9
949812
|
£2.98
|
£3.57
|
|
|
70 - SCAVENGING COVER (B)
HIT-6696766.A5
6696766
|
-
|
|
|
|
71 - FUEL PIPE (FKM) 3X6X80
HIT-6698907.A7
6698907
|
-
|
|
|
|
72 - CLIP
HIT-6685311.A30
6685311
|
£1.67
|
£2.00
|
|
|
73 - SPARK PLUG ASS'Y BPMR7A
HIT-6699320.A31
6699320
|
-
|
|
|
|
74 - CYLINDER
HIT-6600083.A0
6600083
|
-
|
|
|
|
75 - CORD INSULATION TUBE L100
HIT-6600051.A6
6600051
|
-
|
|
|
|
76 - CORD INSULATION TUBE L60
HIT-6699175.A15
6699175
|
-
|
|
|
|
77 - SPARK PLUG CAP
HIT-6696771.A5
6696771
|
-
|
|
|
|
78 - CORD
HIT-6600052.A1
6600052
|
-
|
|
|
|
79 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X18
HIT-6696326.A5
6696326
|
-
|
|
|
|
80 - METAL FITTING OF PLUG CAP (A)
HIT-6696772.A2
6696772
|
-
|
|
|
|
81 - GLASS WASHER
HIT-6698700.A1
6698700
|
£1.67
|
£2.00
|
|
|
82 - IGNITION COIL
HIT-6699977.A2
6699977
|
-
|
|
|
|
83 - CORD (A)
HIT-6699948.A0
6699948
|
-
|
|
|
|
84 - SCAVENGING COVER (A)
HIT-6696765.A2
6696765
|
-
|
|
|
|
85 - CIRCLIP
HIT-6685326.A10
6685326
|
-
|
|
|
|
86 - PISTON (M)
HIT-6698806.A6
6698806
|
-
|
|
|
|
87 - PISTON RING (XR1-1856)
HIT-6685331.A9
6685331
|
£12.57
|
£15.08
|
|
|
88 - PISTON PIN
HIT-6696764.A6
6696764
|
-
|
|
|
|
89 - CRANK WORM ASS'Y INCLUD.90-93
HIT-6698853.A5
6698853
|
-
|
|
|
|
90 - WORM
HIT-6685330.A5
6685330
|
-
|
|
|
|
91 - OIL SEAL
HIT-6685329.A4
6685329
|
£5.87
|
£7.04
|
|
|
92 - BALL BEARING
HIT-6685328.A7
6685328
|
-
|
|
|
|
93 - CRANK SHAFT
HIT-6696762.A2
6696762
|
-
|
|
|
|
94 - WOODRUFF KEY 3X13X4.5
HIT-6684899.A70
6684899
|
-
|
|
|
|
95 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18
HIT-6698386.A64
6698386
|
-
|
|
|
|
96 - CRANK CASE
HIT-6696767.A2
6696767
|
-
|
|
|
|
97 - MAGNETO SUB ASS'Y INCLUD.98-101
HIT-6600090.A3
6600090
|
-
|
|
|
|
98 - RETAINING RING D4
HIT-6685336.A24
6685336
|
£3.49
|
£4.19
|
|
|
99 - MAGNETO ROTOR COMP.
HIT-6600053.A9
6600053
|
-
|
|
|
|
100 - STARTER PAWL SPRING
HIT-6685335.A12
6685335
|
£2.84
|
£3.41
|
|
|
101 - STARTER PAWL
HIT-6685334.A22
6685334
|
£2.84
|
£3.41
|
|
|
102 - BOLT WASHER D7
HIT-6696880.A0
6696880
|
-
|
|
|
|
103 - FLYWHEEL NUT M7
HIT-6696879.A26
6696879
|
-
|
|
|
|
104A - GUIDE PLATE (C)
HIT-6600346.A2
6600346
|
-
|
|
|
|
105 - TAPPING SCREW D4X10
HIT-958715.A5
958715
|
£1.67
|
£2.00
|
|
|
106 - INLET MANIFOLD SPACER
HIT-6685202.A10
6685202
|
-
|
|
|
|
*121 - SIDE CASE FOR EUROPE
HIT-6600088.A0
6600088
|
-
|
|
|
|
*121 - SIDE CASE FOR USA
HIT-6600087.A0
6600087
|
-
|
|
|
|
122 - BRAKE SUPPORT PLATE
HIT-6696782.A3
6696782
|
-
|
|
|
|
123 - BRAKE LEVER SPRING
HIT-6696783.A6
6696783
|
-
|
|
|
|
124 - BRAKE HANDLE
HIT-6699972.A0
6699972
|
-
|
|
|
|
125 - CAUTION LABEL
HIT-000000.A5671
000000
|
-
|
|
|
|
126 - BRAKE LINK COVER
HIT-6696779.A5
6696779
|
-
|
|
|
|
127 - NAME PLATE (EURO.A) CS33EDP FOR EUROPE
HIT-6600071.A0
6600071
|
-
|
|
|
|
*128 - CHAIN BAR CLAMP NUT (EU) FOR EUROPE
HIT-6600057.A0
6600057
|
-
|
|
|
|
*128 - CHAIN BAR CLAMP NUT FOR USA
HIT-6685416.A9
6685416
|
£3.49
|
£4.19
|
|
|
129 - NUT HOLDER FOR EUROPE
HIT-6600058.A1
6600058
|
-
|
|
|
|
130 - CHAIN PULLER
HIT-6698986.A25
6698986
|
£18.88
|
£22.66
|
|
|
131 - GUIDE PLATE (B)
HIT-6696784.A3
6696784
|
£3.02
|
£3.63
|
|
|
*132 - SAW CHAIN (3/8X14) 91PX-52XJ
HIT-781124.A3
781124
|
£13.99
|
£16.79
|
|
|
*132 - SAW CHAIN (3/8X16) 91PX-57XJ
HIT-781126.A1
781126
|
£19.00
|
£22.80
|
|
|
*133 - CHAIN BAR 14 INCH 3/8 SPROCKET PRC
HIT-6696991.A2
6696991
|
£32.28
|
£38.73
|
|
|
*133 - CHAIN BAR 16 INCH 3/8 SPROCKET PRC
HIT-6696992.A1
6696992
|
£29.63
|
£35.56
|
|
|
134 - TAPPING SCREW D4X10
HIT-958715.A4
958715
|
£1.67
|
£2.00
|
|
|
135 - TAPPING SCREW D3X6
HIT-696352.A1
696352
|
-
|
|
|
|
136 - BRAKE SPRING
HIT-6600054.A1
6600054
|
-
|
|
|
|
137 - BRAKE LINK
HIT-6685388.A12
6685388
|
£12.57
|
£15.08
|
|
|
138 - BRAKE BAND
HIT-6685140.A7
6685140
|
£22.02
|
£26.43
|
|
|
139 - NEEDLE ROLLER D3
HIT-6685391.A15
6685391
|
£3.49
|
£4.19
|
|
|
140 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
HIT-305812.A169
305812
|
£1.67
|
£2.00
|
|
|
141 - CLEANER COVER
HIT-6699970.A0
6699970
|
£4.45
|
£5.34
|
|
|
142 - CLEANER KNOB
HIT-6699971.A3
6699971
|
£1.67
|
£2.00
|
|
|
143 - REAR HANDLE GRIP
HIT-6699965.A3
6699965
|
-
|
|
|
|
*144 - TRIGGER LOCKOUT (VERMILION) FOR EUROPE
HIT-6685350.A9
6685350
|
£1.67
|
£2.00
|
|
|
*144 - TRIGGER LOCKOUT (GREEN) FOR USA
HIT-6685420.A2
6685420
|
-
|
|
|
|
145A - THROTTLE LEVER SPRING
HIT-6600341.A2
6600341
|
£1.67
|
£2.00
|
|
|
146 - SPRING PIN 5X25
HIT-6685282.A12
6685282
|
£1.67
|
£2.00
|
|
|
147A - STOP SWITCH
HIT-6601275.A73
6601275
|
£1.67
|
£2.00
|
|
|
148 - START LABEL (CS33ED) EX FOR EUROPE
HIT-6600082.A3
6600082
|
-
|
|
|
|
149 - CAUTION LABEL (L) FOR USA
HIT-6698923.A4
6698923
|
-
|
|
|
|
150 - DAMPER (A)
HIT-6696327.A5
6696327
|
£12.57
|
£15.08
|
|
|
151 - DISTANCE PIECE (B)
HIT-696314.A5
696314
|
-
|
|
|
|
152 - DAMPER SET BOLT
HIT-6685413.A2
6685413
|
-
|
|
|
|
*153 - CHOKE LEVER FOR EUROPE
HIT-6685206.A7
6685206
|
-
|
|
|
|
*153 - CHOKE LEVER (GREEN) FOR USA
HIT-6698349.A0
6698349
|
-
|
|
|
|
154 - THROTTLE ROD (ED)
HIT-6699964.A0
6699964
|
-
|
|
|
|
155 - GROMMET
HIT-6698787.A9
6698787
|
-
|
|
|
|
*156 - THROTTLE LEVER (VERMILION) FOR EUROPE
HIT-6698916.A8
6698916
|
-
|
|
|
|
*156 - THROTTLE LEVER (GREEN) FOR USA
HIT-6698917.A0
6698917
|
-
|
|
|
|
157 - ENGINE CASE COVER
HIT-6699974.A0
6699974
|
-
|
|
|
|
158 - GROMMET
HIT-6698787.A8
6698787
|
-
|
|
|
|
159 - SPRING HOLDER
HIT-6698409.A5
6698409
|
-
|
|
|
|
160 - DAMPER SET BOLT (A)
HIT-6699962.A0
6699962
|
-
|
|
|
|
161 - ANTIVIBRATION SPRING
HIT-6698428.A8
6698428
|
-
|
|
|
|
162 - FUEL GROMMET
HIT-6696167.A6
6696167
|
-
|
|
|
|
*163 - FUEL PIPE
HIT-6699975.A3
6699975
|
-
|
|
|
|
*163 - FUEL PIPE (FKM) FOR USA
HIT-6600059.A0
6600059
|
-
|
|
|
|
164 - FUEL PIPE L220
HIT-6600055.A2
6600055
|
-
|
|
|
|
165 - FLANGE NUT M6
HIT-329934.A0
329934
|
-
|
|
|
|
166 - REAR HANDLE
HIT-6699963.A3
6699963
|
-
|
|
|
|
167 - IDLE SPONGE
HIT-6600056.A1
6600056
|
-
|
|
|
|
168 - FUEL PIPE 2.5X4X90
HIT-6685267.A9
6685267
|
£1.67
|
£2.00
|
|
|
169 - PRIMING PUMP COMP.
HIT-6685139.A3
6685139
|
£10.67
|
£12.80
|
|
|
170 - PROTECTION SHEET
HIT-6600047.A2
6600047
|
-
|
|
|
|
171 - FUEL GROMMET (A)
HIT-6685308.A10
6685308
|
£3.49
|
£4.19
|
|
|
172 - AIR VENT VALVE (B)
HIT-6685370.A6
6685370
|
£6.75
|
£8.10
|
|
|
173 - FLANGED TAPPING SCREW D5X15
HIT-6698456.A5
6698456
|
-
|
|
|
|
174 - SPIKE
HIT-6699973.A3
6699973
|
-
|
|
|
|
175 - FLANGED TAPPING SCREW D5X15
HIT-6698456.A6
6698456
|
-
|
|
|
|
176 - CHAIN CATCHER
HIT-6699950.A7
6699950
|
-
|
|
|
|
177A - PUMP FILTER
HIT-6600351.A67
6600351
|
£4.45
|
£5.34
|
|
|
178 - CLIP
HIT-6685311.A28
6685311
|
£1.67
|
£2.00
|
|
|
179 - OIL FILTER BODY
HIT-6685310.A1
6685310
|
£1.67
|
£2.00
|
|
|
180 - OIL FILTER
HIT-6696804.A1
6696804
|
-
|
|
|
|
181 - BOLT WASHER D5
HIT-6685407.A17
6685407
|
-
|
|
|
|
182 - FUEL PIPE
HIT-6698715.A1
6698715
|
£17.16
|
£20.59
|
|
|
183 - STARTER HANDLE ASS'Y INCLUD.184-186
HIT-6600061.A2
6600061
|
-
|
|
|
|
184 - ROPE STOPPER
HIT-6699465.A1
6699465
|
-
|
|
|
|
185 - STARTER KNOB
HIT-6699467.A4
6699467
|
-
|
|
|
|
186 - STARTER ROPE (NS)
HIT-6600060.A1
6600060
|
-
|
|
|
|
*187 - FAN CASE (NS) FOR USA
HIT-6600067.A0
6600067
|
-
|
|
|
|
187A - FAN CASE (NS)
HIT-6600066.A1
6600066
|
-
|
|
|
|
188 - AIR DEFLECTOR ASS'Y INCLUD.170
HIT-6600089.A1
6600089
|
-
|
|
|
|
189 - SET SCREW (NS)
HIT-6600062.A1
6600062
|
-
|
|
|
|
190 - CAM PLATE (NS)
HIT-6600064.A1
6600064
|
-
|
|
|
|
191 - REEL (NS)
HIT-6600065.A2
6600065
|
-
|
|
|
|
192 - SPIRAL SPRING (NS)
HIT-6600063.A2
6600063
|
-
|
|
|
|
193 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK)
HIT-305558.A26
305558
|
£1.67
|
£2.00
|
|
|
194 - WASHER 5
HIT-6685408.A33
6685408
|
£3.49
|
£4.19
|
|
|
195 - FRONT HANDLE
HIT-6699967.A2
6699967
|
-
|
|
|
|
196 - SPRING COVER
HIT-6698865.A7
6698865
|
-
|
|
|
|
197 - DAMPER SET BOLT
HIT-6698859.A5
6698859
|
-
|
|
|
|
*198 - RECOIL STARTER ASS'Y (NS) INCLUD.183
HIT-6699953.A0
6699953
|
-
|
|
|
|
*198 - RECOIL STARTER ASS'Y (NS) INCLUD.183
HIT-6699954.A0
6699954
|
-
|
|
|
|
199 - BRAND LABEL
HIT-000000.A5672
000000
|
-
|
|
|
|
*501 - CHAIN COVER 14
HIT-6685439.A16
6685439
|
-
|
|
|
|
*501 - CHAIN COVER 16
HIT-6685440.A0
6685440
|
£13.86
|
£16.63
|
|
|
502 - COMBI BOX SPANNER 10/19MM
HIT-6685402.A6
6685402
|
£9.50
|
£11.40
|
|
