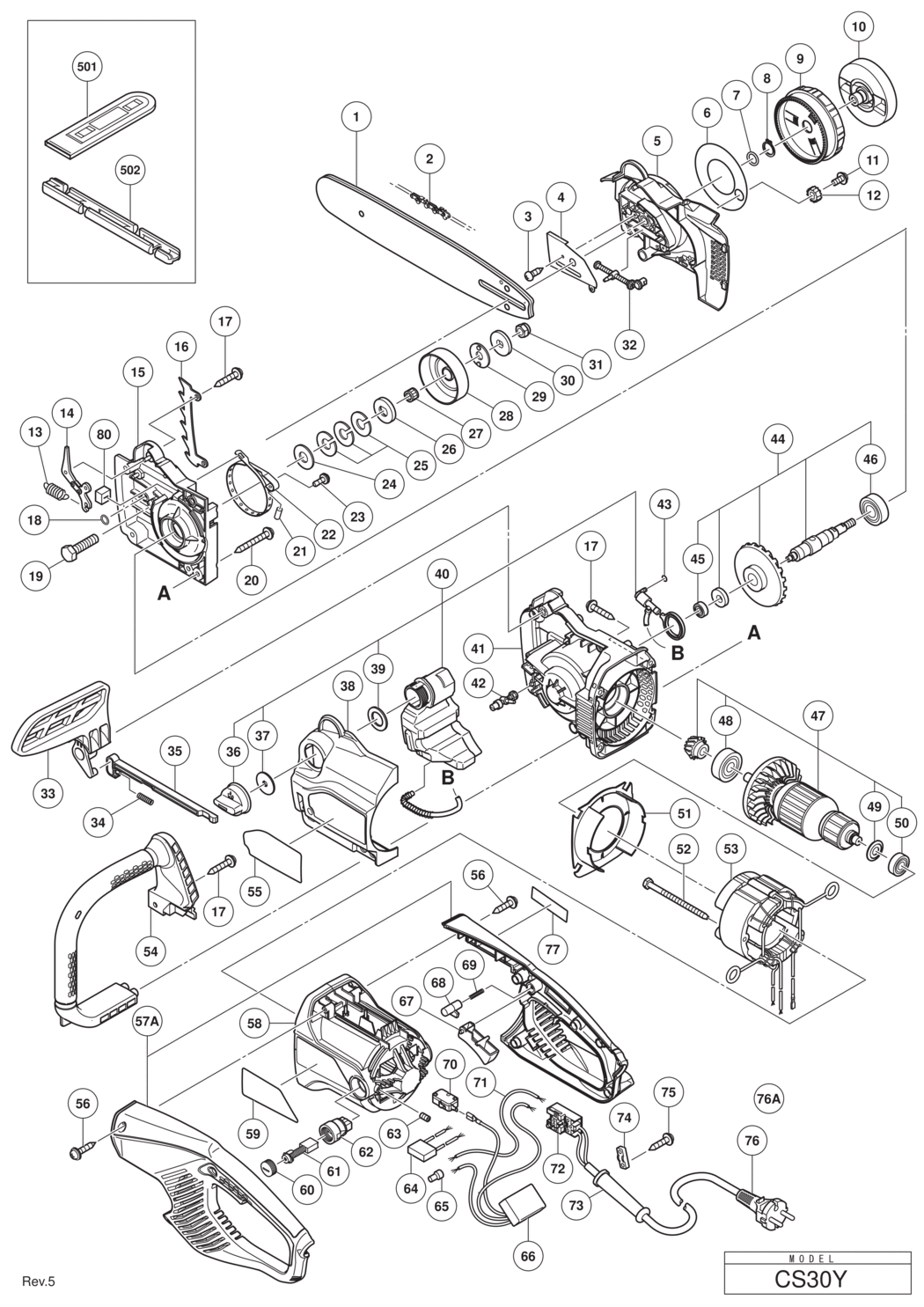

1 - CHAIN BAR 12 INCH 3/8 SPROCKET PRC
HIT-6696990.A4
6696990
|
£28.51
|
£34.21
|
|
|
2 - SAW CHAIN (3/8X12) 91PX-45XJ
HIT-781122.A3
781122
|
£12.41
|
£14.89
|
|
|
3 - TAPPING SCREW D3X6
HIT-696352.A2
696352
|
-
|
|
|
|
4 - GUIDE PLATE
HIT-335471.A2
335471
|
-
|
|
|
|
5 - SIDE COVER (R)
HIT-335470.A1
335470
|
-
|
|
|
|
6 - DUST SHEET
HIT-335688.A6
335688
|
-
|
|
|
|
7 - O-RING (1AP-12)
HIT-996407.A2
996407
|
£1.67
|
£2.00
|
|
|
8 - RETAINING RING FOR D14 SHAFT (10 PCS.)
HIT-939543.A5
939543
|
£3.12
|
£3.74
|
|
|
9 - TENSION DIAL
HIT-335150.A5
335150
|
-
|
|
|
|
10 - KNOB
HIT-335151.A1
335151
|
-
|
|
|
|
11 - MACHINE SCREW (W/WASHER) M4X8 (BLACK)
HIT-315500.A1
315500
|
£1.67
|
£2.00
|
|
|
12 - TENSION GEAR
HIT-335152.A5
335152
|
-
|
|
|
|
13 - BRAKE SPRING
HIT-6685389.A6
6685389
|
£3.49
|
£4.19
|
|
|
14 - BRAKE LINK
HIT-6698587.A2
6698587
|
-
|
|
|
|
15 - INNER COVER
HIT-335472.A1
335472
|
-
|
|
|
|
16 - SPIKE BAR
HIT-335482.A1
335482
|
-
|
|
|
|
17 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK)
HIT-305558.A27
305558
|
£1.67
|
£2.00
|
|
|
18 - O-RING (S-6)
HIT-997218.A6
997218
|
-
|
|
|
|
19 - BOLT M8X35 (10 PCS.)
HIT-949678.A8
949678
|
£3.45
|
£4.14
|
|
|
20 - TAPPING SCREW D5X55
HIT-325336.A1
325336
|
-
|
|
|
|
21 - NEEDLE ROLLER D3
HIT-6685391.A12
6685391
|
£3.49
|
£4.19
|
|
|
22 - BRAKE BAND
HIT-6685390.A2
6685390
|
£12.57
|
£15.08
|
|
|
23 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK)
HIT-935196.A33
935196
|
£1.67
|
£2.00
|
|
|
24 - WASHER (E)
HIT-335484.A1
335484
|
-
|
|
|
|
25 - SPRING WASHER
HIT-335485.A2
335485
|
-
|
|
|
|
26 - COLLAR (B)
HIT-335486.A1
335486
|
-
|
|
|
|
27 - NEEDLE BEARING (D)
HIT-6685361.A10
6685361
|
£12.57
|
£15.08
|
|
|
28 - CLUTCH HOUSING
HIT-6685403.A4
6685403
|
£27.52
|
£33.02
|
|
|
29 - WASHER (C)
HIT-335487.A2
335487
|
-
|
|
|
|
30 - WASHER (D)
HIT-335488.A1
335488
|
-
|
|
|
|
31 - NYLON NUT M8
HIT-975348.A0
975348
|
-
|
|
|
|
32 - CHAIN PULLER
HIT-335966.A0
335966
|
-
|
|
|
|
33 - BRAKE HANDLE
HIT-335479.A2
335479
|
-
|
|
|
|
34 - SPRING (C)
HIT-335483.A2
335483
|
-
|
|
|
|
35 - SWITCH ROD
HIT-335480.A1
335480
|
-
|
|
|
|
36 - TANK CAP
HIT-335144.A4
335144
|
-
|
|
|
|
37 - TANK CAP PACKING
HIT-335691.A4
335691
|
-
|
|
|
|
38 - SIDE COVER (L)
HIT-335477.A2
335477
|
-
|
|
|
|
39 - GASKET
HIT-335490.A2
335490
|
-
|
|
|
|
40 - OIL PUMP ASS'Y INCLUD.36
HIT-335474.A1
335474
|
-
|
|
|
|
41 - GEAR CASE
HIT-335476.A1
335476
|
-
|
|
|
|
42 - ADJUSTING BOLT
HIT-335967.A5
335967
|
-
|
|
|
|
43 - O-RING (S-4)
HIT-981317.A39
981317
|
£1.67
|
£2.00
|
|
|
44 - SPINDLE GEAR ASS'Y INCLUD.45
HIT-335473.A2
335473
|
-
|
|
|
|
45 - BALL BEARING 606VV
HIT-606ZZM.A5
606ZZM
|
£14.07
|
£16.88
|
|
|
46 - BALL BEARING 6202VVCMPS2L
HIT-6202VV.A28
6202VV
|
£7.02
|
£8.42
|
|
|
47 - ARMATURE AND PINION SET 220V-230V INCLUD.48-50
HIT-360957E.A0
360957E
|
-
|
|
|
|
48 - BALL BEARING 6301VVCMPS2L
HIT-6301VV.A24
6301VV
|
£9.32
|
£11.19
|
|
|
49 - WASHER (A)
HIT-302428.A10
302428
|
£1.67
|
£2.00
|
|
|
50 - BALL BEARING 6000VVCMPS2L
HIT-6000VV.A64
6000VV
|
£7.62
|
£9.15
|
|
|
51 - FAN GUIDE
HIT-335481.A2
335481
|
-
|
|
|
|
52 - HEX. HD. TAPPING SCREW D5X50
HIT-953121.A12
953121
|
£1.04
|
£1.25
|
|
|
53 - STATOR ASS'Y 220V-230V
HIT-340864E.A1
340864E
|
-
|
|
|
|
54 - FRONT HANDLE
HIT-335478.A1
335478
|
-
|
|
|
|
55 - CAUTION LABEL
HIT-335466.A0
335466
|
-
|
|
|
|
56 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
HIT-307811.A48
307811
|
-
|
|
|
|
57A - HANDLE SET
HIT-335475.A2
335475
|
-
|
|
|
|
58 - HOUSING ASS'Y INCLUD.62
HIT-335469.A2
335469
|
-
|
|
|
|
59 - NAME PLATE
HIT-000000.A5252
000000
|
-
|
|
|
|
60 - BRUSH CAP
HIT-945161.A47
945161
|
£1.67
|
£2.00
|
|
|
61 - CARBON BRUSH (1 PAIR)
HIT-999065.A11
999065
|
£12.43
|
£14.92
|
|
|
62 - BRUSH HOLDER
HIT-938241.A2
938241
|
£8.28
|
£9.94
|
|
|
63 - HEX. SOCKET SET SCREW M5X8
HIT-938477.A100
938477
|
£1.67
|
£2.00
|
|
|
64 - NOISE SUPPRESSOR
HIT-335462.A0
335462
|
-
|
|
|
|
65 - CONNECTOR 50092 (10 PCS.)
HIT-959141.A57
959141
|
£7.12
|
£8.54
|
|
|
66 - CONTROLLER 200V-240V
HIT-335455.A3
335455
|
-
|
|
|
|
67 - TRIGGER
HIT-335463.A3
335463
|
-
|
|
|
|
68 - OFF LOCK BUTTON
HIT-335464.A0
335464
|
-
|
|
|
|
69 - SPRING (A)
HIT-335465.A5
335465
|
£1.67
|
£2.00
|
|
|
70 - MICRO SWITCH
HIT-335460.A0
335460
|
-
|
|
|
|
71 - INTERNAL WIRE
HIT-335461.A3
335461
|
-
|
|
|
|
72 - SWITCH
HIT-335453.A0
335453
|
-
|
|
|
|
73 - CORD ARMOR D8.8
HIT-953327.A33
953327
|
£1.67
|
£2.00
|
|
|
74 - CORD CLIP
HIT-937631.A112
937631
|
£1.67
|
£2.00
|
|
|
75 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A62
984750
|
£1.67
|
£2.00
|
|
|
*76 - CORD (SUI) FOR SUI
HIT-335494.A1
335494
|
-
|
|
|
|
76A - CORD (HOL)
HIT-337722.A3
337722
|
-
|
|
|
|
*76A - CORD (HOL) L5030
HIT-337723.A0
337723
|
-
|
|
|
|
77 - BRAND LABEL
HIT-000000.A5253
000000
|
-
|
|
|
|
80 - PACKING
HIT-339034.A0
339034
|
-
|
|
|
|
501 - CHAIN COVER
HIT-6699181.A0
6699181
|
-
|
|
|
|
502 - PLUG CLIP
HIT-309686.A0
309686
|
-
|
|
|
