Hitachi / Hikoki CS27EPAP Attachment Spare Parts

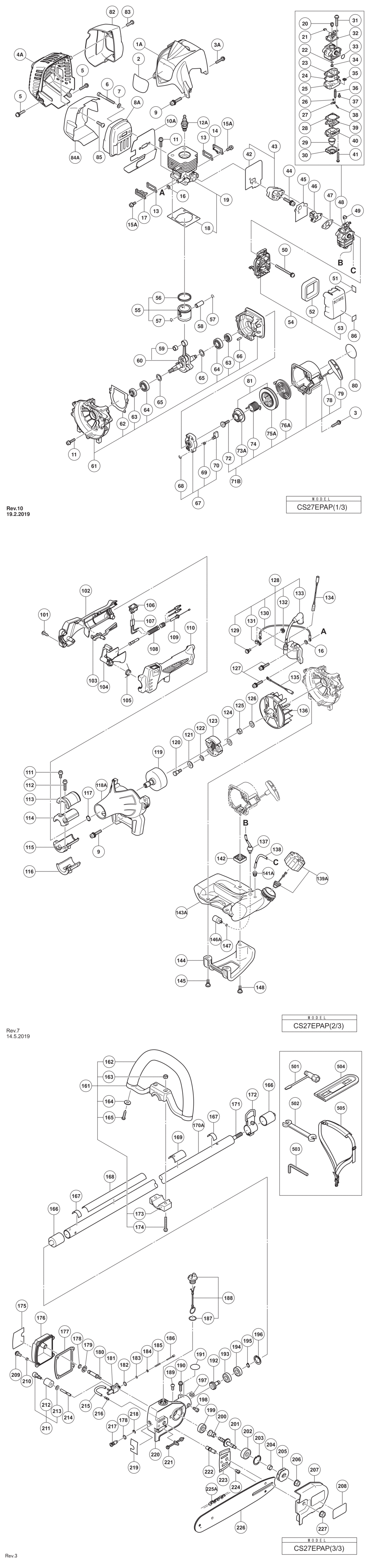

An exploded diagram and spare parts listing for the Hitachi / Hikoki CS27EPAP Attachment

	Ex VAT	Inc VAT
1A - CYLINDER COVER HIT-6697921.A9 6697921	£8.59	£10.31
2 - BRAND LABEL HIT-000000.A4617 000000	-
3A - M4 SCREW (BLACK) HIT-6699780.A9 6699780	-
4A - MUFFLER COVER SINCE 11.2013 HIT-6600336.A7 6600336	£10.02	£12.02
5 - SCREW 5X16/PS HIT-6695386.A14 6695386	£1.67	£2.00
6 - HEX. HOLE BOLT M6X65 HIT-6695067.A35 6695067	£1.67	£2.00
7 - BOLT WASHER 6 HIT-6684639.A173 6684639	£1.67	£2.00
8A - MUFFLER (B) HIT-6600004.A5 6600004	-
9 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A12 6698950	-
10A - HEAT PROTECTION PANEL SINCE 11.2013 HIT-6600324.A10 6600324	-
11 - HEX. HOLE BOLT 5X20S HIT-6695491.A7 6695491	£1.67	£2.00
12A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A70 6699316	£12.43	£14.92
13 - COVER PACKING HIT-6697684.A2 6697684	-
14 - SCAVENGING COVER (A) HIT-6698484.A20 6698484	-
15A - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A3 6684595	£1.67	£2.00
16 - WASHER T1.6 HIT-6684600.A58 6684600	-
17 - SCAVENGING COVER (B) HIT-6698485.A2 6698485	-
18 - CYLINDER GASKET HIT-6697681.A6 6697681	-
19 - CYLINDER SET PN INCLUD.18 HIT-6697679.A5 6697679	£39.62	£47.54
20 - SWIVEL HIT-6684697.A3 6684697	-
21 - STOP RING HIT-6684696.A216 6684696	-
22 - O-RING HIT-6684695.A3 6684695	£1.67	£2.00
23 - PUMP GASKET HIT-6684692.A1 6684692	£17.28	£20.73
24 - PUMP DIAPHRAGM HIT-6684693.A201 6684693	£5.70	£6.84
25 - PUMP BODY HIT-6699942.A0 6699942	-
26 - METERING LEVER SPRING HIT-6696323.A12 6696323	-
27 - CONTROL LEVER HIT-6685217.A31 6685217	-
28 - DIAPHRAGM GASKET HIT-6684691.A97 6684691	£5.70	£6.84
29 - PRIMING BODY HIT-6684689.A99 6684689	£5.87	£7.04
30 - DIAPHRAGM COVER HIT-6684688.A2 6684688	£5.70	£6.84
31 - THROTTLE SET SCREW HIT-6684698.A70 6684698	-
32 - THROTTLE VALVE HIT-6684883.A23 6684883	£32.24	£38.69
33 - O-RING P-15 HIT-6695670.A14 6695670	-
34 - MAIN JET #32 HIT-6699943.A10 6699943	-
35 - INLET SCREEN HIT-6684700.A231 6684700	-
36 - NEEDLE VALVE HIT-6685215.A41 6685215	£6.79	£8.15
37 - HINGE PIN SET SCREW HIT-6691305.A2 6691305	-
38 - HINGE PIN HIT-6685219.A41 6685219	-
39 - METERING DIAPHRAGM HIT-6684690.A1 6684690	£24.05	£28.86
40 - PRIMING PUMP COMP. HIT-6684687.A97 6684687	£9.27	£11.12
41 - SET SCREW HIT-6684699.A3 6684699	-
42 - INTAKE PACKING HIT-6697691.A1 6697691	-
43 - CARBURETOR INSULATOR SET PN INCLUD.42 HIT-6698954.A7 6698954	-
44 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A55 6698844	£1.67	£2.00
45 - CARBURETOR PACKING HIT-6684616.A2 6684616	£1.67	£2.00
46 - THROTTLE WIRE FIXING PLATE HIT-6684629.A17 6684629	-
47 - CARBURETOR GASKET HIT-6684615.A44 6684615	£1.67	£2.00
48 - CARBURETOR ASS'Y INCLUD.20-41 HIT-6698960.A7 6698960	£47.62	£57.14
50 - PLUS SCREW 5X60WS HIT-6695431.A9 6695431	-
51 - MARK PLATE (T) SINCE 11.2013 FOR EUROPE HIT-6600327.A26 6600327	-
52 - CLEANER ELEMENT HIT-6690347.A9 6690347	£7.15	£8.58
53 - AIR CLEANER CAP HIT-6690139.A9 6690139	£7.15	£8.58
54 - AIR FILTER ASS'Y INCLUD.52 HIT-6698961.A3 6698961	£8.46	£10.15
55 - PISTON SET PN INCLUD.56 HIT-6697683.A6 6697683	£15.61	£18.73
56 - PISTON RING HIT-6686121.A30 6686121	£6.47	£7.76
57 - CIR CLIP HIT-6684590.A8 6684590	£1.67	£2.00
58 - PISTON PIN HIT-6684591.A80 6684591	£3.29	£3.95
59 - NEEDLE BEARING HK0810B HIT-6695590.A2 6695590	-
60 - CRANK SHAFT ASS'Y INCLUD.59 HIT-6698969.A0 6698969	-
61 - CRANK CASE ASS'Y INCLUD.62-64 HIT-6697687.A4 6697687	-
62 - CRANK CASE PACKING HIT-6697688.A3 6697688	£1.67	£2.00
63 - OIL SEAL TB 12227 HIT-6684607.A37 6684607	£4.07	£4.88
64 - BALL BEARING 6001 C3 HIT-6684608.A160 6684608	£5.70	£6.84
65 - CRANK SHAFT WASHER HIT-6697685.A6 6697685	-
66 - KNOCK PIN 4X12 HIT-6695521.A30 6695521	-
67 - STARTER PULLEY ASS'Y INCLUD.68-70 HIT-6684681.A4 6684681	£18.16	£21.79
68 - D4E RETAINING RING HIT-6685101.A72 6685101	-
69 - STARTER PAWL SPRING HIT-6684684.A116 6684684	£3.29	£3.95
70 - STARTER PAWL HIT-6684685.A3 6684685	£5.07	£6.08
71B - RECOIL STARTER BODY ASS'Y INCLUD.72-76A HIT-6601570.A43 6601570	£23.15	£27.78
72 - SET SCREW HIT-6684679.A4 6684679	£2.98	£3.57
73A - CAM PLATE SINCE TE140001 HIT-6699996.A23 6699996	£4.28	£5.13
74 - DAMPER SPRING HIT-6684677.A4 6684677	£6.66	£7.99
75A - STARTER ROPE REEL SINCE TE140001 HIT-6699997.A66 6699997	-
76A - RECOIL SPRING HIT-6684675.A142 6684675	£8.82	£10.58
79 - STARTER HANDLE HIT-6684680.A111 6684680	£5.87	£7.04
80 - NAME PLATE HIT-000000.A4618 000000	-
81 - CAMPLATE ASS'Y INCLUD.73A HIT-6699691.A5 6699691	£7.75	£9.30
82 - MUFFLER REAR COVER SINCE 11.2013 HIT-6600335.A10 6600335	£13.36	£16.03
83 - TAPPING SCREW D4 SINCE 11.2013 HIT-6600332.A2 6600332	£1.67	£2.00
84A - MUFFLER HEAT COVER SINCE 11.2013 HIT-6600422.A4 6600422	-
85 - TAPPING SCREW D4X10 HIT-6600325.A15 6600325	-
86 - PRIMER LABEL SINCE 11.2013 FOR EUROPE HIT-6699000.A36 6699000	-
101 - TAPPING SCREW D4 HIT-6697190.A8 6697190	£1.67	£2.00
102 - HANDLE (B) HIT-6696487.A23 6696487	£5.88	£7.06
103 - LOCK LEVER HIT-6696490.A14 6696490	£2.84	£3.41
104 - LEVER HIT-6696488.A14 6696488	£1.67	£2.00
105 - SPRING (A) HIT-6698819.A2 6698819	£1.67	£2.00
106 - STOP SWITCH HIT-6685239.A7 6685239	£6.88	£8.25
107 - STOP SWITCH CORD HIT-6698820.A8 6698820	£4.28	£5.13
108 - PROTECTION TUBE HIT-6698822.A8 6698822	£1.67	£2.00
109 - THROTTLE WIRE HIT-6698821.A2 6698821	£6.42	£7.70
110 - HANDLE (A) HIT-6696486.A11 6696486	£5.88	£7.06
111 - HEX.HOLE BOLT M5X12/S HIT-6684667.A60 6684667	£1.67	£2.00
112 - HEX. HOLE BOLT M5X25/S HIT-6684709.A7 6684709	£1.67	£2.00
113 - ANTI-VIBE RUBBER (A) HIT-6684666.A2 6684666	£3.58	£4.29
114 - PIPE HOLDER (A) HIT-6698643.A44 6698643	£3.56	£4.27
115 - PIPE HOLDER (B) HIT-6698644.A3 6698644	£3.56	£4.27
116 - ANTI-VIBE RUBBER (B) HIT-6684665.A8 6684665	£3.58	£4.29
117 - STOP RING C-12 OUTER HIT-6684664.A3 6684664	-
118A - FAN CASE HIT-6697922.A4 6697922	-
119 - CLUTCH DRUM COMP. HIT-6684663.A8 6684663	£22.38	£26.85
120 - STEP BOLT HIT-6689627.A45 6689627	£1.67	£2.00
121 - BENT WASHER 8 HIT-6684648.A25 6684648	£1.67	£2.00
122 - CLUTCH PLATE (A) HIT-6689528.A19 6689528	£1.67	£2.00
123 - CLUTCH SET HIT-6697655.A17 6697655	£9.68	£11.62
124 - CLUTCH WASHER B HIT-6697619.A7 6697619	£1.67	£2.00
125 - HEX. NUT M8 HIT-6684612.A4 6684612	-
126 - BOLT WASHER M8 HIT-6684611.A111 6684611	-
127 - HEX. HOLE BOLT 4X18WS HIT-6695508.A5 6695508	£1.67	£2.00
*128 - IGNITION COIL ASS'Y INCLUD.133 HIT-6698492.A6 6698492	£28.42	£34.11
*128 - IGNITION COIL (A) ASS'Y INCLUD.129-133 HIT-6699941.A2 6699941	-
130 - EARTH CORD FOR EUROPE HIT-6699940.A2 6699940	-
131 - CLIP FOR EUROPE HIT-6699939.A5 6699939	-
132 - FLANGE NUT M4 FOR EUROPE HIT-6699938.A2 6699938	-
133 - CORD HIT-000000.A4619 000000	-
134 - CORD HIT-6698964.A0 6698964	-
135 - CORD HIT-6697690.A7 6697690	-
136 - MAGNETO ROTOR COMP. HIT-6698396.A23 6698396	£11.52	£13.82
137 - SHIELD TUBE 3X5X180 HIT-6684618.A6 6684618	£6.12	£7.35
138 - FUEL PIPE 3X5X85 HIT-6684880.A2 6684880	-
139A - FUEL TANK CAP ASS'Y INCLUD.TANK CAP CHAIN HIT-6698402.A22 6698402	-
140 - TANK CAP CHAIN HIT-6684625.A97 6684625	-
141A - RETURN GROMMET HIT-6697846.A72 6697846	£2.08	£2.50
142 - SPACER HIT-6698496.A1 6698496	-
143A - TANK (B) HIT-6600317.A18 6600317	£12.36	£14.83
144 - STAND HIT-6694787.A8 6694787	£3.56	£4.27
145 - FLANGE BOLT HIT-6696557.A21 6696557	£1.67	£2.00
146A - PUMP FILTER BODY COMP HIT-66A3864.A39 66A3864	-
147 - CLIP 1 HIT-6684619.A47 6684619	£1.67	£2.00
148 - BOLT (W/FLANGE) L27.8 HIT-6698991.A17 6698991	-
161 - LOOP HANDLE ASS'Y ANTI-VIB. INCLUD.162-165 HIT-6696088.A1 6696088	-
162 - HANDLE GRIP HIT-6691098.A9 6691098	£10.90	£13.08
163 - HEX.NUT 6 HIT-6684835.A41 6684835	£1.67	£2.00
164 - BRAKE SHAFT WASHER HIT-6689681.A2 6689681	£1.67	£2.00
165 - TAPPING SCREW 5X20 HIT-6695255.A35 6695255	-
166 - CAP (A) HIT-6698515.A11 6698515	-
167 - LEVEL MARK HIT-6684851.A45 6684851	-
168 - CAUTION PLATE HITACHI HIT-000000.A4620 000000	-
169 - LEVEL MARK HIT-6684852.A7 6684852	-
170A - MAIN PIPE COMP. HIT-6699654.A3 6699654	-
171 - DRIVE SHAFT 1829L HIT-6689443.A6 6689443	-
172 - HANGER D24 HIT-6689277.A15 6689277	-
173 - HANDLE BRACKET A HIT-6691134.A15 6691134	£3.10	£3.72
174 - BOLT 6X43/P (BLACK) HIT-6684838.A7 6684838	£1.67	£2.00
175 - OIL ADJUSTMENT MARK HIT-6694578.A3 6694578	£1.67	£2.00
176 - OIL TANK COVER HIT-6686138.A11 6686138	£2.81	£3.37
177 - OIL TANK PACKING HIT-6699567.A9 6699567	£2.77	£3.32
178 - O-RING P-5 HIT-6695661.A9 6695661	£1.67	£2.00
179 - 8 PUSH NUT HIT-6695239.A1 6695239	-
180 - STEP BOLT A HIT-6689757.A1 6689757	-
181 - OIL PUMP COMP. HIT-6686487.A0 6686487	£39.35	£47.22
183 - O-RING 1.4 HIT-6695656.A9 6695656	-
184 - WASHER 2 HIT-6695187.A0 6695187	-
185 - OIL PUMP SPRING HIT-6690381.A1 6690381	-
186 - OIL PUMP PISTON COMP. HIT-6686608.A1 6686608	-
187 - O-RING P-15 HIT-6698966.A2 6698966	£1.67	£2.00
188 - OIL TANK CAP ASS'Y INCLUD.187 HIT-6692050.A10 6692050	£15.87	£19.04
189 - SCREW 6X8 HIT-6695458.A10 6695458	-
190 - HEX. HOLE BOLT 5X22/S HIT-6695492.A42 6695492	-
192 - PINION HIT-6698967.A1 6698967	-
193 - BALL BEARING 609 HIT-6684734.A10 6684734	-
194 - BALL BEARING 609Z ST HIT-6684735.A25 6684735	£15.48	£18.57
195 - STOP RING C-9 1 HIT-6695281.A5 6695281	-
196 - STOP RING C-24 1 HIT-6684732.A19 6684732	£1.67	£2.00
198 - HEX. HOLE BOLT 5X10 HIT-6695042.A56 6695042	£1.67	£2.00
199 - BALL BEARING 627 C3 HIT-6695568.A0 6695568	£8.95	£10.74
200 - CAM HIT-6690428.A1 6690428	-
201 - GEAR HIT-6698968.A2 6698968	-
202 - BALL BEARING 638Z HIT-6697603.A10 6697603	-
203 - STOP RING C-28 1 HIT-6684741.A23 6684741	-
204 - COLLAR HIT-6685962.A9 6685962	-
205 - SPROCKET COMP. 1 HIT-6689117.A10 6689117	£47.37	£56.84
206 - FLANGE NUT 6 HIT-6695170.A66 6695170	£1.67	£2.00
207 - SIDE COVER COMP. HIT-6686038.A1 6686038	£9.67	£11.60
208 - SYMBOL MARK HIT-6694763.A0 6694763	-
209 - SMALL SCREW 4X12WS HIT-6695403.A8 6695403	-
210 - COLLAR 3 HIT-000000.A4621 000000	-
211 - FILTER ASS'Y INCLUD.212 HIT-6690913.A10 6690913	-
212 - OIL FILTER HIT-6690917.A10 6690917	£1.67	£2.00
213 - WASHER 5 HIT-6684661.A100 6684661	£1.67	£2.00
214 - FUEL PIPE 3X5X60 HIT-6692414.A1 6692414	-
215 - FUEL PIPE 3X5X75 HIT-6692415.A10 6692415	-
216 - BANJO 1 HIT-6686637.A9 6686637	-
217 - OIL PUMP ADJUSTER HIT-6691066.A1 6691066	£8.79	£10.55
218 - STOP RING E-6 HIT-6695311.A5 6695311	£1.67	£2.00
219 - OIL MARK HIT-6694576.A0 6694576	-
220 - CASE HIT-6685793.A10 6685793	£12.52	£15.03
221 - CHAIN TENSIONER HIT-6687063.A10 6687063	£5.70	£6.84
222 - CHAIN BAR TIGHTENING BOLT HIT-6686803.A10 6686803	£8.53	£10.24
223 - GUIDE PLATE HIT-6697596.A1 6697596	£4.38	£5.26
224 - CHAIN BAR KNOCK PIN HIT-6687130.A1 6687130	-
225A - SAW CHAIN HIT-6699679.A0 6699679	£20.67	£24.80
226 - CHAIN BAR 10 HIT-6686882.A0 6686882	£28.68	£34.41
227 - CHAIN BAR CLAMP NUT HIT-6687105.A15 6687105	£1.67	£2.00
501 - COMBI. BOX SPANNER 13X19 MINUS HIT-6693809.A8 6693809	-
502 - WRENCH 8X10 HIT-6684766.A4 6684766	-
503 - HEX. BAR WRENCH 4MM HIT-6684813.A87 6684813	-
504 - GUIDE BAR COVER 1 HIT-6694796.A1 6694796	£11.79	£14.15
505 - SHOULDER BELT HIT-6692867.A14 6692867	£8.37	£10.04
601 - CS-EX HIT-000000.A4624 000000	-
602 - CS-EXB HIT-000000.A4625 000000	-
603 - REPAIR KIT (D-4) TILL 10.2013 FOR EUROPE HIT-6600037.A3 6600037	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CS27EPAP Attachment Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki CS27EPAP Attachment Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki CS27EPAP Attachment Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
