Hitachi / Hikoki CS27EPA Engine Pole Saw Spare Parts

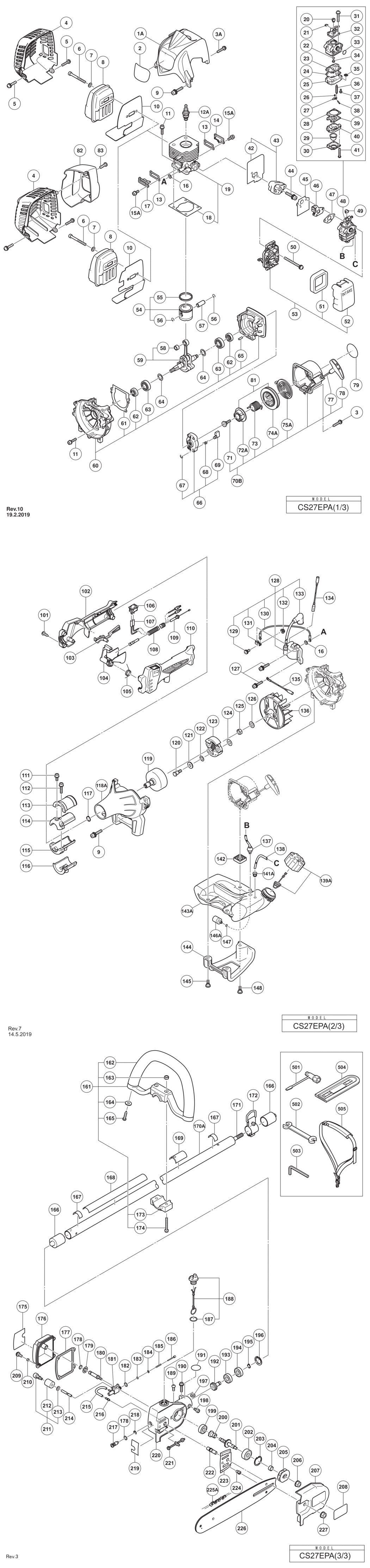

An exploded diagram and spare parts listing for the Hitachi / Hikoki CS27EPA Engine Pole Saw

	Ex VAT	Inc VAT
1A - CYLINDER COVER HIT-6697921.A2 6697921	£8.59	£10.31
2 - BRAND LABEL HIT-000000.A503 000000	-
3A - M4 SCREW (BLACK) HIT-6699780.A4 6699780	-
4 - MUFFLER COVER HIT-6698493.A7 6698493	£5.88	£7.06
*4 - MUFFLER COVER FOR EUROPE HIT-6600336.A4 6600336	£10.02	£12.02
5 - SCREW 5X16/PS HIT-6695386.A21 6695386	£1.67	£2.00
6 - HEX. HOLE BOLT M6X55 HIT-6684638.A27 6684638	£1.67	£2.00
*6 - HEX. HOLE BOLT M6X65 FOR EUROPE HIT-6695067.A18 6695067	£1.67	£2.00
7 - BOLT WASHER 6 HIT-6684639.A60 6684639	£1.67	£2.00
8 - MUFFLER HIT-6698477.A6 6698477	£15.61	£18.73
*8 - MUFFLER (B) FOR EUROPE HIT-6600461.A6 6600461	-
9 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A24 6698950	-
10 - HEAT PROTECTION PANEL HIT-6698491.A4 6698491	£5.88	£7.06
*10 - HEAT PROTECTION PANEL FOR EUROPE HIT-6600324.A17 6600324	-
11 - HEX. HOLE BOLT 5X20S HIT-6695491.A21 6695491	£1.67	£2.00
*12A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A6 6699316	£12.43	£14.92
*12A - SPARK PLUG ASS'Y CJ6 EXCEPT FOR AUS HIT-6699322.A46 6699322	£3.73	£4.48
13 - COVER PACKING HIT-6697684.A6 6697684	-
14 - SCAVENGING COVER (A) HIT-6698484.A9 6698484	-
15A - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A35 6684595	£1.67	£2.00
16 - WASHER T1.6 HIT-6684600.A25 6684600	-
17 - SCAVENGING COVER (B) HIT-6698485.A13 6698485	-
18 - CYLINDER GASKET HIT-6697681.A0 6697681	-
19 - CYLINDER SET PN INCLUD.18 HIT-6697679.A1 6697679	£39.62	£47.54
20 - SWIVEL HIT-6684697.A91 6684697	-
21 - STOP RING HIT-6684696.A95 6684696	-
22 - O-RING HIT-6684695.A110 6684695	£1.67	£2.00
23 - PUMP GASKET HIT-6684692.A66 6684692	£17.28	£20.73
24 - PUMP DIAPHRAGM HIT-6684693.A88 6684693	£5.70	£6.84
25 - PUMP BODY HIT-6699942.A9 6699942	-
26 - METERING LEVER SPRING HIT-6696323.A3 6696323	-
27 - CONTROL LEVER HIT-6685217.A68 6685217	-
28 - DIAPHRAGM GASKET HIT-6684691.A36 6684691	£5.70	£6.84
29 - PRIMING BODY HIT-6684689.A38 6684689	£5.87	£7.04
30 - DIAPHRAGM COVER HIT-6684688.A61 6684688	£5.70	£6.84
31 - THROTTLE SET SCREW HIT-6684698.A29 6684698	-
32 - THROTTLE VALVE HIT-6684883.A11 6684883	£32.24	£38.69
33 - O-RING P-15 HIT-6695670.A0 6695670	-
34 - MAIN JET #32 HIT-6699943.A1 6699943	-
35 - INLET SCREEN HIT-6684700.A114 6684700	-
36 - NEEDLE VALVE HIT-6685215.A95 6685215	£6.79	£8.15
37 - HINGE PIN SET SCREW HIT-6691305.A11 6691305	-
38 - HINGE PIN HIT-6685219.A89 6685219	-
39 - METERING DIAPHRAGM HIT-6684690.A66 6684690	£24.05	£28.86
40 - PRIMING PUMP COMP. HIT-6684687.A39 6684687	£9.27	£11.12
41 - SET SCREW HIT-6684699.A58 6684699	-
42 - INTAKE PACKING HIT-6697691.A6 6697691	-
43 - CARBURETOR INSULATOR SET PN INCLUD.42 HIT-6698954.A2 6698954	-
44 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A25 6698844	£1.67	£2.00
45 - CARBURETOR PACKING HIT-6684616.A24 6684616	£1.67	£2.00
46 - THROTTLE WIRE FIXING PLATE HIT-6684629.A4 6684629	-
47 - CARBURETOR GASKET HIT-6684615.A17 6684615	£1.67	£2.00
48 - CARBURETOR ASS'Y INCLUD.20-41 HIT-6698960.A9 6698960	£47.62	£57.14
50 - PLUS SCREW 5X60WS HIT-6695431.A7 6695431	-
51 - CLEANER ELEMENT HIT-6690347.A10 6690347	£7.15	£8.58
52 - AIR CLEANER CAP HIT-6690139.A8 6690139	£7.15	£8.58
53 - AIR FILTER ASS'Y INCLUD.51 HIT-6698961.A1 6698961	£8.46	£10.15
54 - PISTON SET PN INDLUD.55 HIT-6697683.A4 6697683	£15.61	£18.73
55 - PISTON RING HIT-6686121.A31 6686121	£6.47	£7.76
56 - CIR CLIP HIT-6684590.A7 6684590	£1.67	£2.00
57 - PISTON PIN HIT-6684591.A81 6684591	£3.29	£3.95
58 - NEEDLE BEARING HK0810B HIT-6695590.A1 6695590	-
59 - CRANK SHAFT ASS'Y INCLUD.58 HIT-6698969.A2 6698969	-
60 - CRANK CASE ASS'Y INCLUD.61-63 HIT-6697687.A6 6697687	-
61 - CRANK CASE PACKING HIT-6697688.A1 6697688	£1.67	£2.00
62 - OIL SEAL TB 12227 HIT-6684607.A35 6684607	£4.07	£4.88
63 - BALL BEARING 6001 C3 HIT-6684608.A162 6684608	£5.70	£6.84
64 - CRANK SHAFT WASHER HIT-6697685.A4 6697685	-
65 - KNOCK PIN 4X12 HIT-6695521.A29 6695521	-
66 - STARTER PULLEY ASS'Y INCLUD.67-69 HIT-6684681.A3 6684681	£18.16	£21.79
67 - D4E RETAINING RING HIT-6685101.A69 6685101	-
68 - STARTER PAWL SPRING HIT-6684684.A117 6684684	£3.29	£3.95
69 - STARTER PAWL HIT-6684685.A2 6684685	£5.07	£6.08
70B - RECOIL STARTER BODY ASS'Y INCLUD.71-75A HIT-6601570.A44 6601570	£23.15	£27.78
71 - SET SCREW HIT-6684679.A3 6684679	£2.98	£3.57
72A - CAM PLATE SINCE TE140001 HIT-6699996.A21 6699996	£4.28	£5.13
73 - DAMPER SPRING HIT-6684677.A5 6684677	£5.70	£6.84
74A - STARTER ROPE REEL SINCE TE140001 HIT-6699997.A68 6699997	-
75A - RECOIL SPRING HIT-6684675.A141 6684675	£8.82	£10.58
78 - STARTER HANDLE HIT-6684680.A112 6684680	£5.87	£7.04
79 - NAME PLATE HIT-000000.A4608 000000	-
81 - CAMPLATE ASS'Y INCLUD.72A HIT-6699691.A1 6699691	£7.75	£9.30
82 - MUFFLER REAR COVER FOR EUROPE HIT-6600335.A8 6600335	£13.36	£16.03
83 - TAPPING SCREW D4 FOR EUROPE HIT-6600332.A4 6600332	£1.67	£2.00
101 - TAPPING SCREW D4 HIT-6697190.A7 6697190	£1.67	£2.00
102 - HANDLE (B) HIT-6696487.A22 6696487	£5.88	£7.06
103 - LOCK LEVER HIT-6696490.A13 6696490	£2.84	£3.41
104 - LEVER HIT-6696488.A15 6696488	£1.67	£2.00
105 - SPRING (A) HIT-6698819.A4 6698819	£1.67	£2.00
106 - STOP SWITCH HIT-6685239.A8 6685239	£6.88	£8.25
107 - STOP SWITCH CORD HIT-6698820.A6 6698820	£4.28	£5.13
108 - PROTECTION TUBE HIT-6698822.A6 6698822	£1.67	£2.00
109 - THROTTLE WIRE HIT-6698821.A4 6698821	£6.42	£7.70
110 - HANDLE (A) HIT-6696486.A12 6696486	£5.88	£7.06
111 - HEX.HOLE BOLT M5X12/S HIT-6684667.A61 6684667	£1.67	£2.00
112 - HEX. HOLE BOLT M5X25/S HIT-6684709.A5 6684709	£1.67	£2.00
113 - ANTI-VIBE RUBBER (A) HIT-6684666.A1 6684666	£3.58	£4.29
114 - PIPE HOLDER (A) HIT-6698643.A46 6698643	£3.56	£4.27
115 - PIPE HOLDER (B) HIT-6698644.A1 6698644	£3.56	£4.27
116 - ANTI-VIBE RUBBER (B) HIT-6684665.A9 6684665	£3.58	£4.29
117 - STOP RING C-12 OUTER HIT-6684664.A1 6684664	£1.67	£2.00
118A - FAN CASE HIT-6697922.A5 6697922	-
119 - CLUTCH DRUM COMP. HIT-6684663.A9 6684663	£22.38	£26.85
120 - STEP BOLT HIT-6689627.A43 6689627	£1.67	£2.00
121 - BENT WASHER 8 HIT-6684648.A23 6684648	£1.67	£2.00
122 - CLUTCH PLATE (A) HIT-6689528.A21 6689528	£1.67	£2.00
123 - CLUTCH SET HIT-6697655.A18 6697655	£9.68	£11.62
124 - CLUTCH WASHER B HIT-6697619.A6 6697619	£1.67	£2.00
125 - HEX. NUT M8 HIT-6684612.A5 6684612	-
126 - BOLT WASHER M8 HIT-6684611.A110 6684611	-
127 - HEX. HOLE BOLT 4X18WS HIT-6695508.A4 6695508	£1.67	£2.00
128 - IGNITION COIL (A) ASS'Y INCLUD.129-133 FOR EUROPE HIT-6699941.A3 6699941	-
*128 - IGNITION COIL ASS'Y INCLUD.133 HIT-6698492.A7 6698492	£28.42	£34.11
*130 - EARTH CORD FOR EUROPE HIT-6699940.A1 6699940	-
*131 - CLIP FOR EUROPE HIT-6699939.A6 6699939	-
132 - FLANGE NUT M4 FOR EUROPE HIT-6699938.A1 6699938	-
*133 - CORD HIT-6696833.A9 6696833	-
133 - CORD HIT-000000.A4609 000000	-
134 - CORD HIT-6698964.A1 6698964	-
135 - CORD HIT-6697690.A8 6697690	-
136 - MAGNETO ROTOR COMP. HIT-6698396.A22 6698396	£11.52	£13.82
137 - SHIELD TUBE 3X5X180 HIT-6684618.A7 6684618	£6.12	£7.35
138 - FUEL PIPE 3X5X85 HIT-6684880.A1 6684880	-
139A - FUEL TANK CAP ASS'Y INCLUD.TANK CAP CHAIN HIT-6698402.A23 6698402	-
140 - TANK CAP CHAIN HIT-6684625.A98 6684625	-
141A - RETURN GROMMET HIT-6697846.A73 6697846	£2.08	£2.50
142 - SPACER HIT-6698496.A2 6698496	-
143A - TANK (B) HIT-6600317.A19 6600317	£12.36	£14.83
144 - STAND HIT-6694787.A7 6694787	£3.56	£4.27
145 - FLANGE BOLT HIT-6696557.A22 6696557	£1.67	£2.00
146A - PUMP FILTER BODY COMP HIT-66A3864.A38 66A3864	-
147 - CLIP 1 HIT-6684619.A46 6684619	£1.67	£2.00
148 - BOLT (W/FLANGE) L27.8 HIT-6698991.A16 6698991	-
161 - LOOP HANDLE ASS'Y ANTI-VIB. INCLUD.162-165 HIT-6696088.A0 6696088	-
162 - HANDLE GRIP HIT-6691098.A10 6691098	£10.90	£13.08
163 - HEX.NUT 6 HIT-6684835.A40 6684835	£1.67	£2.00
164 - BRAKE SHAFT WASHER HIT-6689681.A1 6689681	£1.67	£2.00
165 - TAPPING SCREW 5X20 HIT-6695255.A36 6695255	-
166 - CAP (A) HIT-6698515.A10 6698515	-
167 - LEVEL MARK HIT-6684851.A44 6684851	-
168 - CAUTION PLATE HITACHI HIT-000000.A4611 000000	-
169 - LEVEL MARK HIT-6684852.A8 6684852	-
170A - MAIN PIPE COMP. HIT-6699654.A2 6699654	-
171 - DRIVE SHAFT 1829L HIT-6689443.A5 6689443	-
172 - HANGER D24 HIT-6689277.A14 6689277	-
173 - HANDLE BRACKET A HIT-6691134.A14 6691134	£3.10	£3.72
174 - BOLT 6X43/P (BLACK) HIT-6684838.A8 6684838	£1.67	£2.00
175 - OIL ADJUSTMENT MARK HIT-6694578.A2 6694578	£1.67	£2.00
176 - OIL TANK COVER HIT-6686138.A10 6686138	£2.81	£3.37
177 - OIL TANK PACKING HIT-6699567.A10 6699567	£2.77	£3.32
178 - O-RING P-5 HIT-6695661.A8 6695661	£1.67	£2.00
179 - 8 PUSH NUT HIT-6695239.A0 6695239	-
180 - STEP BOLT A HIT-6689757.A0 6689757	-
181 - OIL PUMP COMP. HIT-6686487.A1 6686487	£39.35	£47.22
183 - O-RING 1.4 HIT-6695656.A10 6695656	-
184 - WASHER 2 HIT-6695187.A1 6695187	-
185 - OIL PUMP SPRING HIT-6690381.A0 6690381	-
186 - OIL PUMP PISTON COMP. HIT-6686608.A0 6686608	-
187 - O-RING P-15 HIT-6698966.A1 6698966	£1.67	£2.00
188 - OIL TANK CAP ASS'Y INCLUD.187 HIT-6692050.A9 6692050	£15.87	£19.04
189 - SCREW 6X8 HIT-6695458.A11 6695458	-
190 - HEX. HOLE BOLT 5X22/S HIT-6695492.A43 6695492	-
192 - PINION HIT-6698967.A2 6698967	-
193 - BALL BEARING 609 HIT-6684734.A11 6684734	-
194 - BALL BEARING 609Z ST HIT-6684735.A24 6684735	£15.48	£18.57
195 - STOP RING C-9 1 HIT-6695281.A4 6695281	-
196 - STOP RING C-24 1 HIT-6684732.A18 6684732	£1.67	£2.00
198 - HEX. HOLE BOLT 5X10 HIT-6695042.A55 6695042	£1.67	£2.00
199 - BALL BEARING 627 C3 HIT-6695568.A1 6695568	£8.95	£10.74
200 - CAM HIT-6690428.A0 6690428	-
201 - GEAR HIT-6698968.A1 6698968	-
202 - BALL BEARING 638Z HIT-6697603.A9 6697603	-
203 - STOP RING C-28 1 HIT-6684741.A24 6684741	-
204 - COLLAR HIT-6685962.A10 6685962	-
205 - SPROCKET COMP. 1 HIT-6689117.A9 6689117	£47.37	£56.84
206 - FLANGE NUT 6 HIT-6695170.A65 6695170	£1.67	£2.00
207 - SIDE COVER COMP. HIT-6686038.A0 6686038	£9.67	£11.60
208 - SYMBOL MARK HIT-6694763.A1 6694763	-
209 - SMALL SCREW 4X12WS HIT-6695403.A9 6695403	-
210 - COLLAR 3 HIT-000000.A4612 000000	-
211 - FILTER ASS'Y INCLUD.212 HIT-6690913.A9 6690913	-
212 - OIL FILTER HIT-6690917.A11 6690917	£1.67	£2.00
213 - WASHER 5 HIT-6684661.A99 6684661	£1.67	£2.00
214 - FUEL PIPE 3X5X60 HIT-6692414.A0 6692414	-
215 - FUEL PIPE 3X5X75 HIT-6692415.A11 6692415	-
216 - BANJO 1 HIT-6686637.A10 6686637	-
217 - OIL PUMP ADJUSTER HIT-6691066.A0 6691066	£8.79	£10.55
218 - STOP RING E-6 HIT-6695311.A6 6695311	£1.67	£2.00
219 - OIL MARK HIT-6694576.A1 6694576	-
220 - CASE HIT-6685793.A9 6685793	£12.52	£15.03
221 - CHAIN TENSIONER HIT-6687063.A9 6687063	£5.70	£6.84
222 - CHAIN BAR TIGHTENING BOLT HIT-6686803.A9 6686803	£8.53	£10.24
223 - GUIDE PLATE HIT-6697596.A2 6697596	£4.38	£5.26
224 - CHAIN BAR KNOCK PIN HIT-6687130.A0 6687130	-
225A - SAW CHAIN HIT-6699679.A1 6699679	£20.67	£24.80
226 - CHAIN BAR 10 HIT-6686882.A1 6686882	£28.68	£34.41
227 - CHAIN BAR CLAMP NUT HIT-6687105.A16 6687105	£1.67	£2.00
501 - COMBI. BOX SPANNER 13X19 MINUS HIT-6693809.A7 6693809	-
502 - WRENCH 8X10 HIT-6684766.A3 6684766	-
503 - HEX. BAR WRENCH 4MM HIT-6684813.A88 6684813	-
504 - GUIDE BAR COVER 1 HIT-6694796.A2 6694796	£11.79	£14.15
505 - SHOULDER BELT HIT-6692867.A13 6692867	£8.37	£10.04
601 - CS-EX HIT-000000.A4615 000000	-
602 - CS-EXB HIT-000000.A4616 000000	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CS27EPA Engine Pole Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki CS27EPA Engine Pole Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki CS27EPA Engine Pole Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
