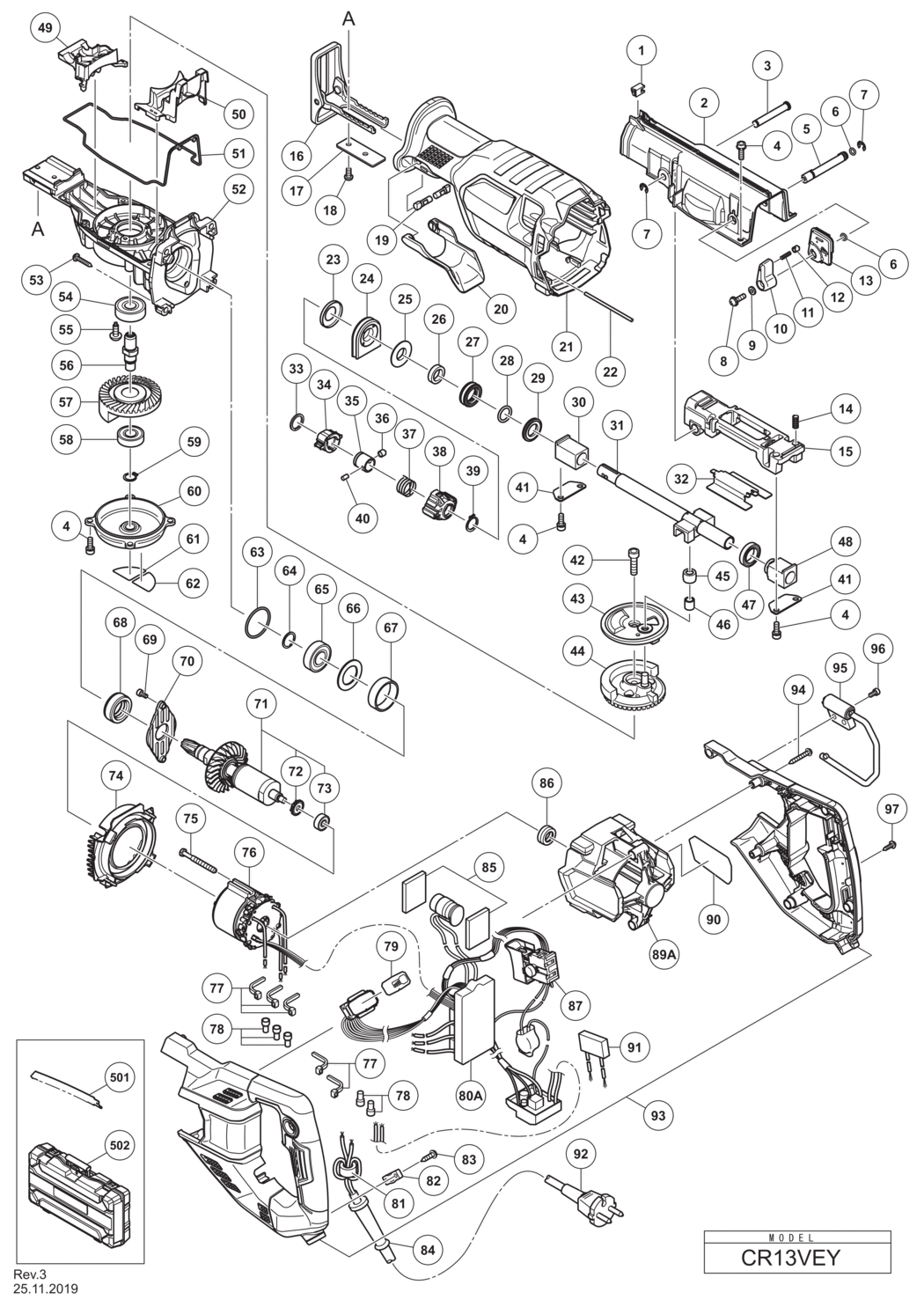

1 - LED HOLDER
HIT-375183.A0
375183
|
-
|
|
|
|
2 - UPPER COVER
HIT-373501.A1
373501
|
-
|
|
|
|
3 - SHAFT (A)
HIT-375184.A0
375184
|
-
|
|
|
|
4 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X16
HIT-305574.A6
305574
|
£1.67
|
£2.00
|
|
|
5 - CHANGE SHAFT
HIT-375185.A0
375185
|
-
|
|
|
|
6 - O-RING (S-5)
HIT-872822.A3
872822
|
£3.19
|
£3.83
|
|
|
7 - RETAINING RING (E-TYPE) FOR D6 SHAFT
HIT-955479.A0
955479
|
£1.67
|
£2.00
|
|
|
8 - SEAL LOCK SCREW (W/SP. WASHER) M4X12
HIT-307127.A12
307127
|
£1.67
|
£2.00
|
|
|
9 - BOLT WASHER M4 (BLACK)
HIT-323210.A15
323210
|
-
|
|
|
|
10 - CHANGE KNOB
HIT-373503.A0
373503
|
-
|
|
|
|
11 - SPRING (B)
HIT-373499.A1
373499
|
-
|
|
|
|
12 - SPRING CAP
HIT-373500.A0
373500
|
-
|
|
|
|
13 - LEVER PLATE
HIT-373508.A1
373508
|
-
|
|
|
|
14 - SPRING (A)
HIT-373490.A0
373490
|
-
|
|
|
|
15 - PLUNGER HOLDER
HIT-373487.A1
373487
|
-
|
|
|
|
16 - BASE
HIT-371382.A2
371382
|
£7.57
|
£9.08
|
|
|
17 - BASE PLATE
HIT-371383.A0
371383
|
£1.67
|
£2.00
|
|
|
18 - HEX. SOCKET BOLT M5X12
HIT-332662.A0
332662
|
£5.78
|
£6.94
|
|
|
19 - BASE LEVER SHAFT
HIT-375186.A1
375186
|
-
|
|
|
|
20 - BASE LEVER
HIT-373504.A1
373504
|
-
|
|
|
|
21 - FRONT COVER
HIT-373506.A0
373506
|
-
|
|
|
|
22 - ADJUSTING PIN
HIT-375187.A0
375187
|
-
|
|
|
|
23 - SEAL WASHER
HIT-373477.A1
373477
|
-
|
|
|
|
24 - DUST SEAL
HIT-373478.A0
373478
|
-
|
|
|
|
25 - SLEEVE PLATE
HIT-373479.A1
373479
|
-
|
|
|
|
26 - FELT WASHER
HIT-373480.A0
373480
|
-
|
|
|
|
27 - SEAL SLEEVE (A)
HIT-373481.A1
373481
|
-
|
|
|
|
28 - O-RING
HIT-373482.A0
373482
|
-
|
|
|
|
29 - SEAL SLEEVE (B)
HIT-373483.A1
373483
|
-
|
|
|
|
30 - METAL (A)
HIT-375189.A0
375189
|
-
|
|
|
|
31 - PLUNGER
HIT-373486.A0
373486
|
-
|
|
|
|
32 - PLATE (A)
HIT-373489.A1
373489
|
-
|
|
|
|
33 - SPIRAL RETAINING RING D16
HIT-371368.A0
371368
|
£1.67
|
£2.00
|
|
|
34 - BLADE HOLDER
HIT-373475.A1
373475
|
-
|
|
|
|
35 - SLEEVE
HIT-375190.A0
375190
|
-
|
|
|
|
36 - HOLDER PIN (A)
HIT-374951.A0
374951
|
-
|
|
|
|
37 - BLADE SPRING
HIT-371379.A2
371379
|
£1.67
|
£2.00
|
|
|
38 - BLADE HOLDER COVER
HIT-373476.A0
373476
|
-
|
|
|
|
39 - RETAINING RING FOR D13 SHAFT
HIT-371367.A2
371367
|
-
|
|
|
|
40 - PIN
HIT-371380.A0
371380
|
£1.67
|
£2.00
|
|
|
41 - METAL PLATE
HIT-373491.A1
373491
|
-
|
|
|
|
42 - SEAL LOCK HEX. SOCKET HD. BOLT M6X20
HIT-371991.A2
371991
|
-
|
|
|
|
43 - ORBITAL GUIDE
HIT-373492.A0
373492
|
-
|
|
|
|
44 - GEAR
HIT-373494.A1
373494
|
-
|
|
|
|
45 - CONNECTING PIECE
HIT-375191.A0
375191
|
-
|
|
|
|
46 - NEEDLE BEARING
HIT-373959.A1
373959
|
-
|
|
|
|
47 - BALL BEARING 6803
HIT-6803BB.A0
6803BB
|
-
|
|
|
|
48 - METAL (A)
HIT-373485.A1
373485
|
-
|
|
|
|
49 - LUBRICATOR (F)
HIT-374952.A0
374952
|
-
|
|
|
|
50 - LUBRICATOR (R)
HIT-374953.A0
374953
|
-
|
|
|
|
51 - PACKING
HIT-373498.A0
373498
|
-
|
|
|
|
52 - GEAR COVER
HIT-375192.A1
375192
|
-
|
|
|
|
53 - TAPPING SCREW (W/FLANGE) D5X30 (BLACK)
HIT-328707.A11
328707
|
£1.67
|
£2.00
|
|
|
54 - BALL BEARING 6201VV
HIT-6201VV.A28
6201VV
|
£8.30
|
£9.96
|
|
|
55 - SLOTTED HD. SCREW (SEAL LOCK) M4X10
HIT-301936.A3
301936
|
-
|
|
|
|
56 - SPINDLE
HIT-375193.A0
375193
|
-
|
|
|
|
57 - COUNTER GEAR
HIT-375194.A0
375194
|
-
|
|
|
|
58 - BALL BEARING 6001VV
HIT-6001VV.A51
6001VV
|
£8.68
|
£10.42
|
|
|
59 - RETAINING RING FOR D12 SHAFT (10 PCS.)
HIT-939542.A67
939542
|
£2.98
|
£3.57
|
|
|
60 - UNDER COVER
HIT-373510.A0
373510
|
-
|
|
|
|
61 - CAUTION SEAL (B)
HIT-000000.A4677
000000
|
-
|
|
|
|
62 - CAUTION SEAL (A)
HIT-000000.A4678
000000
|
-
|
|
|
|
63 - O-RING (I.D 31.5)
HIT-373527.A1
373527
|
-
|
|
|
|
64 - RETAINING RING D15
HIT-375195.A1
375195
|
-
|
|
|
|
65 - BALL BEARING 6002VVCMPS2L
HIT-6002VV.A11
6002VV
|
£9.32
|
£11.19
|
|
|
66 - WASHER D34.8
HIT-373511.A1
373511
|
-
|
|
|
|
67 - BUSHING
HIT-375196.A0
375196
|
-
|
|
|
|
68 - DAMPER
HIT-373513.A0
373513
|
-
|
|
|
|
69 - HEX. SOCKET HD. BOLT M5X8 (10 PCS.)
HIT-949818.A3
949818
|
-
|
|
|
|
70 - BEARING COVER
HIT-373514.A1
373514
|
-
|
|
|
|
71 - ROTOR ASS'Y INCLUD.72
HIT-361114.A0
361114
|
-
|
|
|
|
72 - DUST SEAL (606)
HIT-373515.A0
373515
|
-
|
|
|
|
73 - BALL BEARING 606VV
HIT-606ZZM.A1
606ZZM
|
£14.07
|
£16.88
|
|
|
74 - FAN GUIDE
HIT-373517.A0
373517
|
-
|
|
|
|
75 - HEX. HD. TAPPING SCREW D4X45
HIT-981824.A17
981824
|
-
|
|
|
|
*76 - STATOR SENSOR PCB
HIT-341037.A0
341037
|
-
|
|
|
|
*76 - STATOR SENSOR PCB FOR TPE
HIT-341036.A0
341036
|
-
|
|
|
|
77 - WIRE BAND EXCEPT FOR CHN
HIT-313505.A1
313505
|
-
|
|
|
|
78 - CONNECTOR 50092 (10 PCS.)
HIT-959141.A36
959141
|
£7.12
|
£8.54
|
|
|
79 - PANEL SEET
HIT-374950.A0
374950
|
-
|
|
|
|
80 - CONTROLLER SWITCH ASS'Y 220V-240V INCLUD.79
HIT-375199.A0
375199
|
-
|
|
|
|
80A - CONTROLLER SWITCH ASS'Y 110V INCLUD.79
HIT-375992.A0
375992
|
-
|
|
|
|
81 - FERRITE CORE
HIT-334379.A32
334379
|
-
|
|
|
|
82 - CORD CLIP
HIT-960266.A56
960266
|
£1.67
|
£2.00
|
|
|
83 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A31
984750
|
£1.67
|
£2.00
|
|
|
*84 - CORD ARMOR D8.8
HIT-953327.A20
953327
|
£1.67
|
£2.00
|
|
|
*84 - CORD ARMOR D10.1
HIT-938051.A13
938051
|
£1.67
|
£2.00
|
|
|
85 - SUPPORT (B)
HIT-322823.A0
322823
|
-
|
|
|
|
86 - RUBBER BUSH
HIT-373516.A1
373516
|
-
|
|
|
|
87 - SWITCH
HIT-374948.A0
374948
|
£20.68
|
£24.82
|
|
|
89A - HOUSING
HIT-373519.A1
373519
|
-
|
|
|
|
90 - NAME PLATE
HIT-000000.A4175
000000
|
-
|
|
|
|
91 - NOISE SUPPRESSOR
HIT-930039.A55
930039
|
£3.85
|
£4.62
|
|
|
*92 - CORD (CORD ARMOR D8.8)
HIT-500247Z.A17
500247Z
|
-
|
|
|
|
*92 - CORD (CORD ARMOR D8.8)
HIT-500435Z.A93
500435Z
|
£14.14
|
£16.97
|
|
|
*92 - CORD (CORD ARMOR D8.8) FOR AUS
HIT-500439Z.A20
500439Z
|
-
|
|
|
|
*92 - CORD (CORD ARMOR D8.8) FOR GBR (110V)
HIT-500463Z.A13
500463Z
|
£21.37
|
£25.64
|
|
|
*92 - CORD (CORD ARMOR D8.8) FOR CHN
HIT-500455Z.A9
500455Z
|
-
|
|
|
|
*92 - CORD (CORD ARMOR D10.1) FOR TPE
HIT-500474Z.A5
500474Z
|
-
|
|
|
|
93 - HANDLE (A).(B) SET
HIT-374949.A0
374949
|
-
|
|
|
|
94 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK)
HIT-305490.A3
305490
|
£1.67
|
£2.00
|
|
|
95 - HOOK
HIT-375200.A0
375200
|
-
|
|
|
|
96 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10
HIT-371992.A2
371992
|
-
|
|
|
|
97 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A116
301653
|
£1.67
|
£2.00
|
|
|
501 - CURVED BLADES NO.141(S)150L P.14(3 PCS.)
HIT-370683.A0
370683
|
-
|
|
|
|
502 - CASE
HIT-375202.A0
375202
|
-
|
|
|
|
601 - SABER SAW BLADES NO.4 (5 PCS.)
HIT-959611.A6
959611
|
-
|
|
|
|
602 - SABER SAW BLADES NO.5 (5 PCS.)
HIT-958185.A11
958185
|
-
|
|
|
|
603 - SABER SAW BLADES NO.101 150L P.10 (5 PCS
HIT-318611.A6
318611
|
-
|
|
|
|
604 - SABER SAW BLADES NO.102 228L P.10 (5 PCS
HIT-318612.A3
318612
|
-
|
|
|
|
605 - SABER SAW BLADES NO.103 150L P.14 (5 PCS
HIT-318613.A6
318613
|
-
|
|
|
|
606 - SABER SAW BLADES NO.104 228L P.14 (5 PCS
HIT-318614.A4
318614
|
-
|
|
|
|
607 - SABER SAW BLADES NO.109 150L P.18 (5 PCS
HIT-324818.A3
324818
|
-
|
|
|
|
608 - SABER SAW BLADES NO.110 228L P.18 (5 PCS
HIT-324819.A6
324819
|
-
|
|
|
|
609 - SABER SAW BLADES NO.107 150L P.24 (5 PCS
HIT-318617.A6
318617
|
-
|
|
|
|
610 - SABER SAW BLADES NO.108 228L P.24 (5 PCS
HIT-318618.A3
318618
|
-
|
|
|
|
611 - SABER SAW BLADES NO.121 305L P.6 (5 PCS.
HIT-318619.A6
318619
|
-
|
|
|
|
612 - SABER SAW BLADES NO.131 305L P.10/14(5PC
HIT-318620.A3
318620
|
-
|
|
|
|
613 - SABER SAW BLADES NO.132 203L (5 PCS.)
HIT-318621.A6
318621
|
-
|
|
|
