Hitachi / Hikoki CN16SA Nibbler Spare Parts

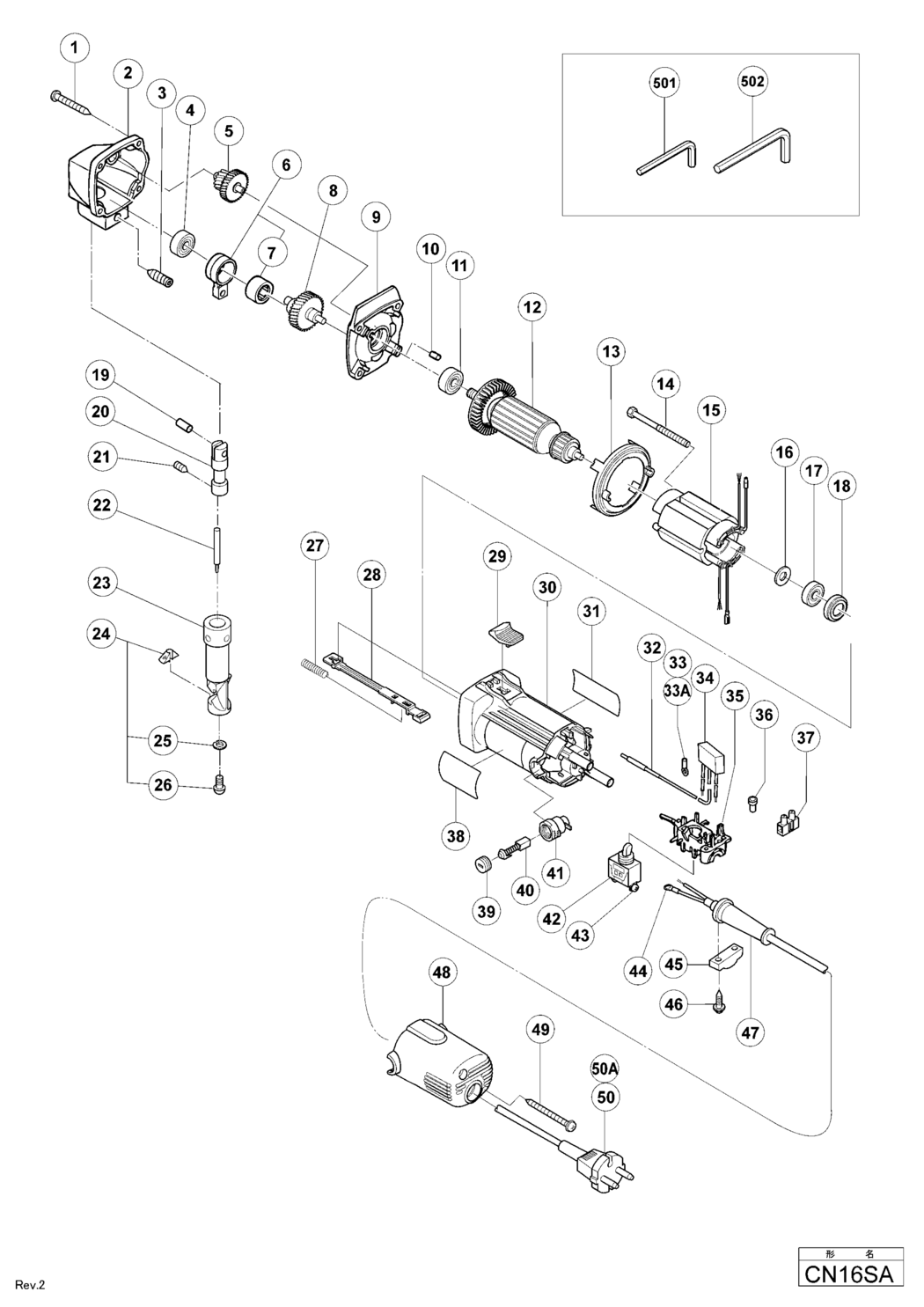

An exploded diagram and spare parts listing for the Hitachi / Hikoki CN16SA Nibbler

	Ex VAT	Inc VAT
1 - TAPPING SCREW D5X30 HIT-957580.A3 957580	£1.67	£2.00
2 - GEAR COVER HIT-998033.A0 998033	£40.22	£48.27
3 - HEX. SOCKET SET SCREW M8X20 HIT-998008.A2 998008	£1.67	£2.00
4 - BALL BEARING 608VVC2PS2L HIT-608VVM.A161 608VVM	£5.70	£6.84
5 - SECOND PINION AND GEAR SET HIT-998036.A0 998036	£34.11	£40.93
6 - CONNECTING ROD ASS'Y INCLUD.7 HIT-998004.A1 998004	£37.22	£44.67
7 - NEEDLE BEARING (M152112) HIT-993163.A2 993163	£8.28	£9.94
8 - SPINDLE AND GEAR SET HIT-998035.A1 998035	-
9 - INNER COVER HIT-998032.A0 998032	£40.22	£48.27
10 - BEARING LOCK HIT-931701.A20 931701	£1.67	£2.00
11 - BALL BEARING 608VVC2PS2L HIT-608VVM.A160 608VVM	£5.70	£6.84
*12 - ARMATURE 110V HIT-360622C.A0 360622C	£67.64	£81.17
*12 - ARMATURE 220V-230V HIT-360622E.A1 360622E	£67.64	£81.17
13 - FAN GUIDE HIT-306840.A2 306840	-
14 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A13 982021	£1.67	£2.00
*15 - STATOR 110V HIT-340567C.A0 340567C	£55.38	£66.46
*15 - STATOR 220V-230V HIT-340567E.A1 340567E	£55.38	£66.46
16 - WASHER HIT-942204.A1 942204	£1.67	£2.00
17 - BALL BEARING 626VVC2PS2L HIT-626VVM.A6 626VVM	£5.77	£6.92
18 - RUBBER BUSHING HIT-309929.A28 309929	£1.67	£2.00
19 - PIN D6 HIT-993546.A2 993546	£1.67	£2.00
20 - PISTON HIT-998034.A0 998034	£33.04	£39.65
21 - HEX. SOCKET SET SCREW M5X6 HIT-998037.A0 998037	£1.67	£2.00
*22 - PUNCH HIT-998030.A1 998030	£12.96	£15.55
23 - DIE HOLDER HIT-998038.A1 998038	£106.60	£127.92
24 - DIE ASS'Y INCLUD.25 HIT-998039.A0 998039	£26.98	£32.37
25 - SPRING WASHER M3 (10 PCS.) HIT-949451.A1 949451	£1.67	£2.00
26 - MACHINE SCREW M3X14 (10 PCS.) HIT-949206.A1 949206	£1.67	£2.00
27 - SPRING HIT-314429.A16 314429	£1.67	£2.00
28 - SLIDE BAR HIT-314427.A1 314427	£1.67	£2.00
29 - SLIDE KNOB HIT-314428.A13 314428	£1.67	£2.00
30 - HOUSING ASS'Y INCLUD.18 HIT-314438.A0 314438	£11.86	£14.23
31 - NAME PLATE HIT-000000.A174 000000	-
*32 - EARTH TERMINAL FOR NOISE SUPPRESSOR HIT-314854.A10 314854	£1.67	£2.00
*33 - TERMINAL HIT-311741.A4 311741	-
*34 - NOISE SUPPRESSOR FOR TPE HIT-994273.A16 994273	£7.30	£8.76
35 - SWITCH HOLDER HIT-314432.A0 314432	£2.81	£3.37
*37 - PILLAR TERMINAL FOR TPE HIT-938307.A42 938307	£3.28	£3.93
38 - BRAND LABEL HIT-000000.A177 000000	-
39 - BRUSH CAP HIT-936551.A3 936551	£1.67	£2.00
40 - CARBON BRUSH (1 PAIR) HIT-999021.A19 999021	£5.54	£6.65
41 - BRUSH HOLDER HIT-313777.A2 313777	£1.67	£2.00
42 - SWITCH (1P SOLDER TYPE) HIT-314603.A1 314603	£15.38	£18.45
43 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A16 305499	£1.67	£2.00
*44 - TERMINAL FOR CORD HIT-980063.A17 980063	£1.67	£2.00
45 - CORD CLIP HIT-937631.A66 937631	£1.67	£2.00
46 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A189 984750	£1.67	£2.00
*47 - CORD ARMOR D8.8 HIT-953327.A163 953327	£1.67	£2.00
48 - TAIL COVER HIT-314433.A1 314433	£7.03	£8.44
49 - TAPPING SCREW (W/FLANGE) D4X45 (BLACK) HIT-301815.A2 301815	£1.67	£2.00
*50 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500237Z.A7 500237Z	£14.33	£17.20
*50A - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500450Z.A30 500450Z	£35.67	£42.80
501 - HEX. BAR WRENCH 2.5MM HIT-990666.A2 990666	£5.98	£7.18
502 - HEX. BAR WRENCH 4MM HIT-944458.A131 944458	£1.67	£2.00
