Hitachi / Hikoki CM9UBY Cutter Spare Parts

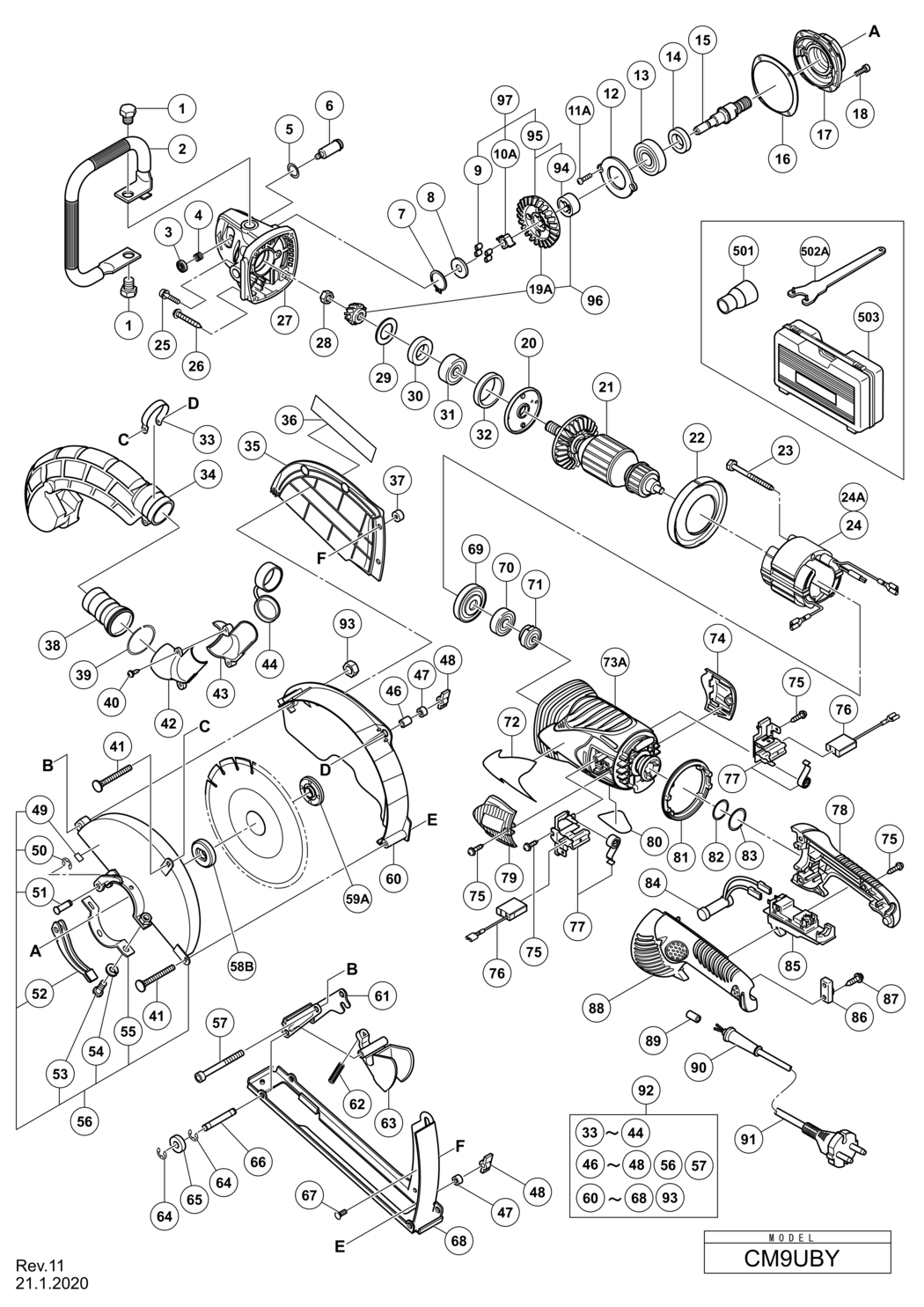

An exploded diagram and spare parts listing for the Hitachi / Hikoki CM9UBY Cutter

	Ex VAT	Inc VAT
1 - BOLT M14 HIT-985597.A9 985597	£3.28	£3.93
2 - PIPE HANDLE SET INCLUD.1 HIT-323993.A12 323993	£65.96	£79.15
3 - PUSHING BUTTON HIT-306888.A22 306888	£1.67	£2.00
4 - SPRING HIT-320219.A12 320219	£1.67	£2.00
5 - O-RING HIT-320218.A14 320218	£1.67	£2.00
6 - LOCK PIN HIT-306890.A26 306890	£2.78	£3.34
7 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A22 939540	£1.67	£2.00
8 - COUPLING COVER HIT-326722.A3 326722	£1.67	£2.00
9 - COUPLING DAMPER HIT-326721.A3 326721	£14.23	£17.08
10A - COUPLING HIT-333147.A5 333147	£5.09	£6.11
11A - SEAL LOCK SCREW (W/SP. WASHER) M5X10 HIT-992038.A9 992038	£1.67	£2.00
12 - BEARING COVER (B) HIT-326723.A3 326723	£1.67	£2.00
13 - BALL BEARING 6302VVCMPS2L HIT-6302VV.A20 6302VV	£9.67	£11.60
14 - FELT PACKING (B) HIT-990852.A17 990852	£1.67	£2.00
15 - SPINDLE HIT-326727.A3 326727	£14.95	£17.94
16 - SEAL PLATE HIT-320228.A11 320228	£1.67	£2.00
17 - PACKING GLAND HIT-320227.A16 320227	£8.32	£9.99
18 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A48 994192	£1.67	£2.00
19A - GEAR AND PINION SET HIT-326718.A0 326718	-
20 - BEARING COVER (A) HIT-320220.A13 320220	£4.16	£4.99
*21 - ARMATURE ASS'Y 110V-120V INCLUD.30 HIT-360594U.A6 360594U	£82.12	£98.54
*21 - ARMATURE 220V-230V HIT-360777E.A4 360777E	£74.41	£89.29
22 - FAN GUIDE HIT-320215.A7 320215	£1.67	£2.00
23 - HEX. HD. TAPPING SCREW D5X75 HIT-984271.A10 984271	£1.67	£2.00
*24 - STATOR 110V-120V HIT-340682C.A1 340682C	-
*24A - STATOR 220V-240V HIT-340682F.A0 340682F	-
25 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A3 984509	£1.67	£2.00
26 - TAPPING SCREW (W/FLANGE) D5X35 (BLACK) HIT-323209.A13 323209	£1.67	£2.00
27 - GEAR COVER ASS'Y INCLUD.3-6 HIT-326717.A4 326717	£34.92	£41.90
28 - SPECIAL NUT M10 HIT-320226.A12 320226	£1.67	£2.00
29 - SEAL WASHER HIT-320221.A7 320221	£1.67	£2.00
30 - FELT PACKING HIT-320222.A14 320222	£1.67	£2.00
31 - BALL BEARING 6301VVCMPS2L HIT-6301VV.A18 6301VV	£9.32	£11.19
32 - RUBBER RING (B) HIT-994208.A8 994208	£1.67	£2.00
33 - HOSE BAND HIT-328754.A0 328754	£2.71	£3.25
34 - DUST DUCT HIT-328748.A0 328748	£17.62	£21.15
35 - COVER (B) HIT-328752.A0 328752	£9.21	£11.05
36 - BRAND LABEL (B) HIT-000000.A4938 000000	-
37 - KNOB NUT HIT-997467.A5 997467	£5.27	£6.32
38 - ADAPTER HIT-328758.A0 328758	£2.71	£3.25
39 - RING HIT-328761.A1 328761	£2.71	£3.25
40 - TAPPING SCREW (W/FLANGE) D4X12 HIT-305720.A22 305720	£1.67	£2.00
41 - BOLT (SQUARE) M6X57 HIT-324877.A1 324877	£1.67	£2.00
42 - ADAPTER (A) HIT-328759.A1 328759	£2.71	£3.25
43 - ADAPTER (B) HIT-328760.A0 328760	£2.71	£3.25
44 - DUST CAP HIT-324865.A1 324865	£8.22	£9.87
46 - HOLDER SLEEVE (B) HIT-885414.A1 885414	£1.67	£2.00
47 - SLEEVE HIT-328841.A1 328841	£1.67	£2.00
48 - WING NUT M6 HIT-314622.A1 314622	£4.12	£4.94
49 - LABEL HIT-311492.A13 311492	£1.67	£2.00
50 - RETAINING RING (E-TYPE) FOR D5 SHAFT HIT-673489.A16 673489	£1.67	£2.00
51 - SET PIN HIT-321546.A7 321546	£4.86	£5.83
52 - LEVER HIT-321545.A9 321545	-
53 - BOLT M8X22 HIT-306887.A4 306887	£1.67	£2.00
54 - SPRING WASHER M8 (10 PCS.) HIT-949457.A81 949457	£1.67	£2.00
55 - SET PIECE HIT-321544.A7 321544	£1.67	£2.00
56 - WHEEL GUARD ASS'Y INCLUD.49-55 HIT-328745.A1 328745	-
57 - BOLT (A) HIT-328843.A1 328843	-
58B - WHEEL WASHER (C) HIT-376202.A4 376202	£9.67	£11.60
59A - WHEEL NUT M14X2 HIT-373779.A17 373779	£3.56	£4.27
60 - COVER (A) HIT-328749.A0 328749	£8.05	£9.66
61 - HOLDER HIT-328750.A1 328750	-
62 - SPRING HIT-314429.A17 314429	£1.67	£2.00
63 - POCKET GUIDE HIT-328751.A0 328751	-
64 - RETAINING RING (E-TYPE) FOR D7 SHAFT HIT-974577.A6 974577	£1.67	£2.00
65 - ROLLER HIT-328755.A1 328755	£2.99	£3.59
66 - ROLLER SHAFT HIT-328756.A0 328756	-
67 - BOLT (SQUARE) M5 HIT-328757.A1 328757	-
68 - BASE HIT-328747.A0 328747	-
69 - DUST SEAL HIT-320216.A8 320216	£1.67	£2.00
70 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A68 6000VV	£7.62	£9.15
71 - BEARING BUSHING HIT-321536.A8 321536	£15.83	£19.00
72 - BRAND LABEL HIT-000000.A4939 000000	-
73A - HOUSING ASS'Y INCLUD.71 HIT-326712.A1 326712	-
74 - BRUSH COVER HIT-326715.A5 326715	-
75 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A151 305812	£1.67	£2.00
*76 - CARBON BRUSH 7X17X22.5 (1 PAIR) FOR GBR HIT-999061.A7 999061	£8.12	£9.75
77 - BRUSH HOLDER SET HIT-322323.A10 322323	£9.56	£11.47
78 - HANDLE (A) HIT-326713.A5 326713	£15.66	£18.79
79 - BRUSH COVER HIT-326716.A1 326716	£5.20	£6.24
80 - NAME PLATE HIT-000000.A4940 000000	-
81 - HANDLE DAMPER HIT-326726.A3 326726	-
82 - O-RING HIT-326724.A3 326724	-
83 - O-RING HIT-326725.A3 326725	-
84 - RESISTOR HIT-320236.A0 320236	£15.66	£18.79
85 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK HIT-320371.A3 320371	£31.95	£38.34
86 - CORD CLIP HIT-960266.A39 960266	£1.67	£2.00
87 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A38 984750	£1.67	£2.00
88 - HANDLE (B) HIT-326714.A3 326714	£15.66	£18.79
89 - TUBE (D) FOR CORD HIT-981373.A90 981373	£1.67	£2.00
90 - CORD ARMOR D10.7 HIT-940778.A45 940778	£3.15	£3.78
*91 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-321539.A4 321539	£31.92	£38.31
*91 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500460Z.A5 500460Z	£41.12	£49.34
92 - DUST COVER ASS'Y INCLUD.33-44 HIT-328744.A1 328744	£213.81	£256.57
93 - U-NUT (B) M8 HIT-944950.A1 944950	-
94 - INNER HIT-328700.A3 328700	-
95 - INNER SET (W/GEAR) INCLUD.94 HIT-328694.A0 328694	-
96 - GEAR AND PINION ASS'Y INCLUD.19A HIT-328697.A1 328697	£40.73	£48.88
97 - GEAR (A) ASS'Y INCLUD.9 HIT-328698.A1 328698	-
501 - ADAPTER HIT-320994.A2 320994	£3.92	£4.70
502A - WRENCH HIT-711272.A23 711272	£6.18	£7.41
503 - CASE (A) HIT-328844.A1 328844	-
601 - SUPER WASHER SUPER WASHER HIT-310338.A3 310338	£23.30	£27.96
