Hitachi / Hikoki CM7MRU Wall Chaser Spare Parts

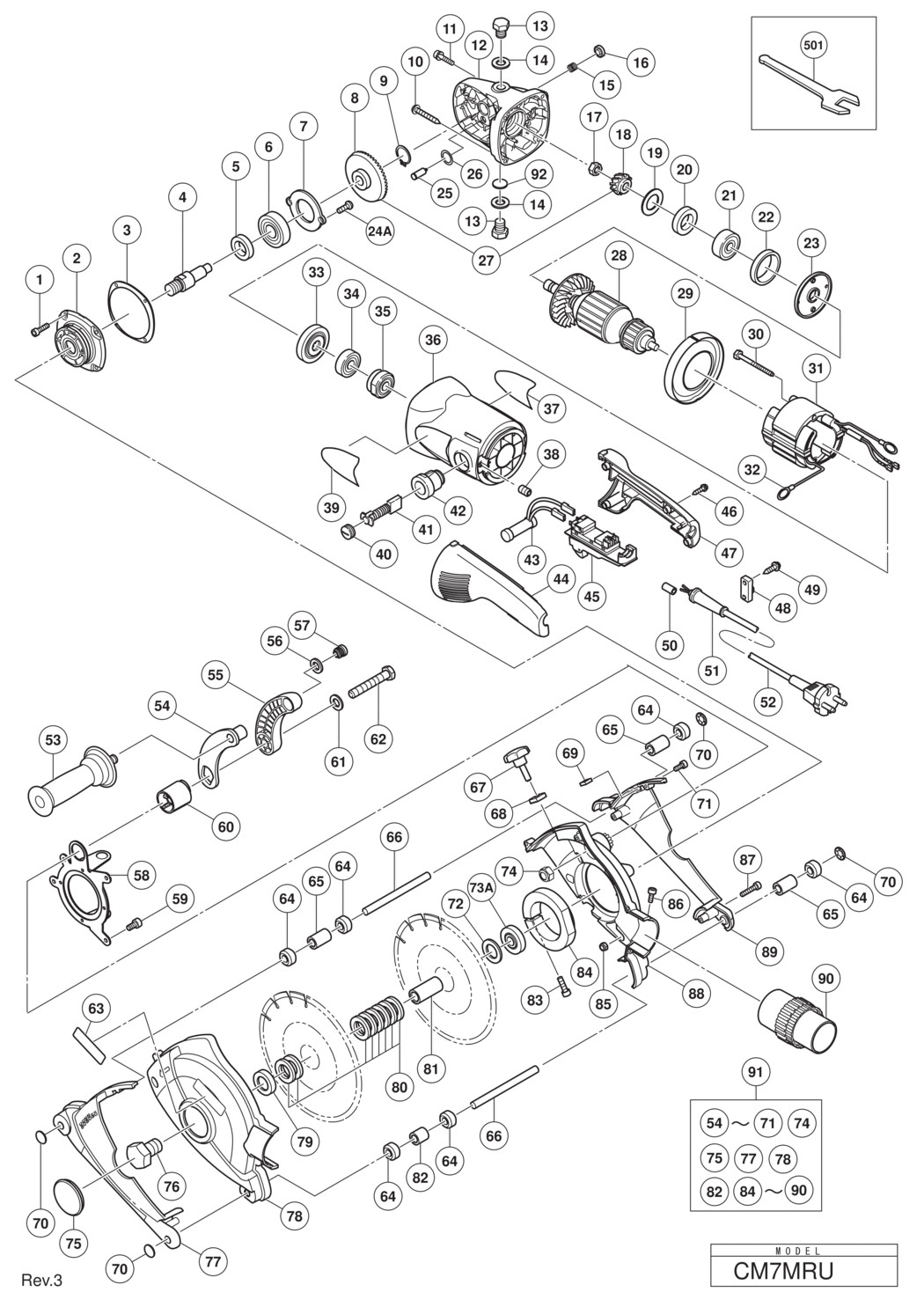

An exploded diagram and spare parts listing for the Hitachi / Hikoki CM7MRU Wall Chaser

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A15 994192	£1.67	£2.00
2 - PACKING GLAND HIT-320227.A9 320227	£8.32	£9.99
3 - SEAL PLATE HIT-320228.A18 320228	£1.67	£2.00
4 - SPINDLE HIT-320234.A6 320234	£11.83	£14.20
5 - FELT PACKING (B) HIT-990852.A26 990852	£1.67	£2.00
6 - BALL BEARING 6302VVCMPS2L HIT-6302VV.A8 6302VV	£9.67	£11.60
7 - BEARING COVER (B) HIT-320229.A7 320229	£1.67	£2.00
8 - GEAR HIT-000000.A2999 000000	-
9 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A0 939542	£2.98	£3.57
10 - TAPPING SCREW (W/FLANGE) D5X35 (BLACK) HIT-323209.A2 323209	£1.67	£2.00
11 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A21 984509	£1.67	£2.00
12 - GEAR COVER ASS'Y INCLUD.15 HIT-320217.A5 320217	£26.16	£31.39
13 - BOLT M14 HIT-331050.A1 331050	-
14 - NYLON WASHER D14 HIT-331045.A1 331045	-
15 - SPRING HIT-320219.A19 320219	£1.67	£2.00
16 - PUSHING BUTTON HIT-306888.A10 306888	£1.67	£2.00
17 - SPECIAL NUT M10 HIT-320226.A19 320226	£1.67	£2.00
18 - PINION HIT-000000.A3000 000000	-
19 - SEAL WASHER HIT-320221.A14 320221	£1.67	£2.00
20 - FELT PACKING HIT-320222.A7 320222	£1.67	£2.00
21 - BALL BEARING 6301VVCMPS2L HIT-6301VV.A11 6301VV	£9.32	£11.19
22 - RUBBER RING (B) HIT-994208.A16 994208	£1.67	£2.00
23 - BEARING COVER (A) HIT-320220.A7 320220	£4.16	£4.99
24A - SEAL LOCK SCREW (W/SP. WASHER) M5X10 HIT-992038.A2 992038	£1.67	£2.00
25 - LOCK PIN HIT-306890.A8 306890	£2.78	£3.34
26 - O-RING HIT-320218.A8 320218	£1.67	£2.00
27 - GEAR AND PINION SET INCLUD.8 HIT-330032.A2 330032	£25.68	£30.81
28 - ARMATURE 220V-240V HIT-360762E.A3 360762E	£63.25	£75.90
29 - FAN GUIDE HIT-320215.A12 320215	£1.67	£2.00
30 - HEX. HD. TAPPING SCREW D5X60 HIT-961501.A9 961501	£1.67	£2.00
31 - STATOR ASS'Y 220V-230V INCLUD.32 HIT-340664E.A2 340664E	£41.22	£49.47
32 - BRUSH TERMINAL HIT-958032.A1 958032	£1.67	£2.00
33 - DUST SEAL HIT-320216.A4 320216	£1.67	£2.00
34 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A8 6000VV	£7.62	£9.15
35 - BEARING BUSHING HIT-321536.A12 321536	£15.83	£19.00
36 - HOUSING ASS'Y INCLUD.42 HIT-325640.A2 325640	£66.08	£79.29
37 - NAME PLATE HIT-000000.A3002 000000	-
38 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A49 938477	£1.67	£2.00
39 - BRAND LABEL (A) HIT-000000.A3001 000000	-
40 - BRUSH CAP HIT-940540.A6 940540	£1.67	£2.00
*41 - CARBON BRUSH (1 PAIR) HIT-999044.A13 999044	£5.54	£6.65
*41 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999074.A7 999074	£20.63	£24.76
42 - BRUSH HOLDER HIT-980487.A4 980487	£9.03	£10.84
43 - RESISTOR HIT-320236.A1 320236	£15.66	£18.79
44 - HANDLE (B) HIT-325641.A1 325641	£11.57	£13.88
45 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK HIT-320371.A0 320371	£31.95	£38.34
46 - HANDLE (A) HIT-325642.A2 325642	£10.88	£13.05
47 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A0 305812	£1.67	£2.00
48 - CORD CLIP HIT-960266.A32 960266	£1.67	£2.00
49 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A266 984750	£1.67	£2.00
50 - TUBE (D) FOR CORD HIT-981373.A33 981373	£1.67	£2.00
51 - CORD ARMOR D10.7 HIT-940778.A11 940778	£3.15	£3.78
52 - CORD (CORD ARMOR D10.7) HIT-500247Z.A32 500247Z	-
53 - SIDE HANDLE FOR M14 HIT-711284.A1 711284	£10.05	£12.06
54 - HANDLE ARM (B) HIT-331027.A0 331027	-
55 - HANDLE ARM (A) HIT-331058.A0 331058	-
56 - NYLON WASHER D12 HIT-331053.A2 331053	-
57 - HANDLE PLUG HIT-331037.A0 331037	-
58 - GEAR BOX BRACKET HIT-331026.A2 331026	-
59 - HEX. SOCKET HD. BOLT M5X12 HIT-331048.A1 331048	-
60 - HANDLE RATCHET HIT-331059.A2 331059	-
61 - BOLT WASHER D12 HIT-331043.A2 331043	-
62 - BOLT M12 HIT-331044.A0 331044	-
63 - BRAND LABEL HIT-000000.A3003 000000	-
64 - ROLLER HIT-331028.A2 331028	-
65 - ROLLER SPACER (30) HIT-331031.A0 331031	-
66 - ROLLER SHAFT HIT-331029.A0 331029	-
67 - KNOB BOLT HIT-331052.A0 331052	-
68 - LOCK WASHER HIT-331062.A0 331062	-
69 - SQUARE NUT M8 HIT-331040.A0 331040	-
70 - SHAFT CAP HIT-331041.A2 331041	-
71 - HEX. SOCKET HD. BOLT M4X12 HIT-331046.A0 331046	-
72 - BLADE SPACER (3) HIT-331032.A2 331032	-
73A - WHEEL WASHER (C) HIT-376202.A27 376202	£9.67	£11.60
74 - NYLOCK NUT M12 HIT-331042.A0 331042	-
75 - RUBBER GROMMET HIT-331038.A2 331038	-
76 - BOLT M14 HIT-331050.A0 331050	-
77 - DUST GUARD (A) HIT-331056.A0 331056	-
78 - DUST COVER (A) HIT-331054.A0 331054	-
79 - BLADE WASHER HIT-331034.A2 331034	-
80 - BLADE SPACER (5) HIT-331033.A0 331033	-
81 - DRIVE SHAFT HIT-331035.A0 331035	-
82 - ROLLER SPACER(20) HIT-331030.A2 331030	-
83 - HEX. SOCKET HD. BOLT M6X25 HIT-331049.A2 331049	-
84 - GEAR BOX CLAMP HIT-331060.A0 331060	-
85 - NYLOCK NUT M5 HIT-331051.A2 331051	-
86 - HEX. SOCKET HD. BOLT M5X12 HIT-331048.A2 331048	-
87 - HEX. SOCKET HD. BOLT M4X20 HIT-331047.A1 331047	-
88 - DUST COVER (B) HIT-331055.A1 331055	-
89 - DUST GUARD (B) HIT-331057.A1 331057	-
90 - VACUUM COUPLING HIT-331061.A1 331061	-
91 - DUST COVER ASS'Y INCLUDE.54-71 HIT-331025.A1 331025	-
92 - FELT WASHER HIT-937033.A16 937033	£1.67	£2.00
501 - WRENCH 22MM HIT-331036.A1 331036	-
