Hitachi / Hikoki CM7MR Wall Chaser Spare Parts

Home Details Reviews Delivery

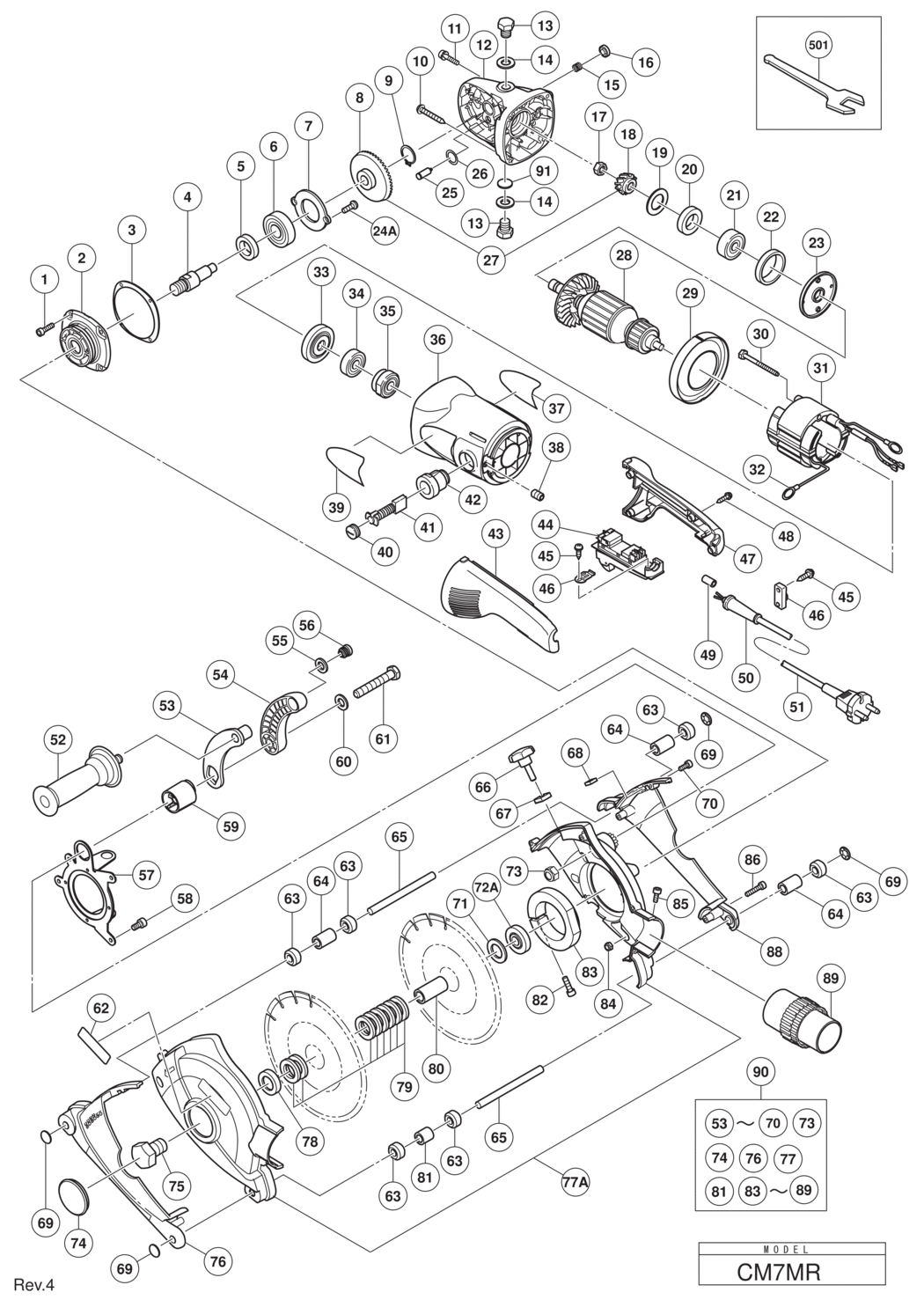

An exploded diagram and spare parts listing for the Hitachi / Hikoki CM7MR Wall Chaser

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A16 994192	£1.67	£2.00
2 - PACKING GLAND HIT-320227.A8 320227	£8.32	£9.99
3 - SEAL PLATE HIT-320228.A19 320228	£1.67	£2.00
4 - SPINDLE HIT-320234.A7 320234	£11.83	£14.20
5 - FELT PACKING (B) HIT-990852.A27 990852	£1.67	£2.00
6 - BALL BEARING 6302VVCMPS2L HIT-6302VV.A7 6302VV	£9.67	£11.60
7 - BEARING COVER (B) HIT-320229.A6 320229	£1.67	£2.00
8 - GEAR HIT-000000.A2993 000000	-
9 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A1 939542	£2.98	£3.57
10 - TAPPING SCREW (W/FLANGE) D5X35 (BLACK) HIT-323209.A1 323209	£1.67	£2.00
11 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A22 984509	£1.67	£2.00
12 - GEAR COVER ASS'Y INCLUD.15 HIT-320217.A6 320217	£26.16	£31.39
13 - BOLT M14 HIT-331050.A2 331050	-
14 - NYLON WASHER D14 HIT-331045.A0 331045	-
15 - SPRING HIT-320219.A20 320219	£1.67	£2.00
16 - PUSHING BUTTON HIT-306888.A9 306888	£1.67	£2.00
17 - SPECIAL NUT M10 HIT-320226.A20 320226	£1.67	£2.00
18 - PINION HIT-000000.A2994 000000	-
19 - SEAL WASHER HIT-320221.A15 320221	£1.67	£2.00
20 - FELT PACKING HIT-320222.A6 320222	£1.67	£2.00
21 - BALL BEARING 6301VVCMPS2L HIT-6301VV.A12 6301VV	£9.32	£11.19
22 - RUBBER RING (B) HIT-994208.A15 994208	£1.67	£2.00
23 - BEARING COVER (A) HIT-320220.A6 320220	£4.16	£4.99
24A - SEAL LOCK SCREW (W/SP. WASHER) M5X10 HIT-992038.A1 992038	£1.67	£2.00
25 - LOCK PIN HIT-306890.A9 306890	£2.78	£3.34
26 - O-RING HIT-320218.A7 320218	£1.67	£2.00
27 - GEAR AND PINION SET INCLUD.8 HIT-330032.A1 330032	£25.68	£30.81
*28 - ARMATURE 110V HIT-360762C.A0 360762C	£61.92	£74.30
*28 - ARMATURE 220V-240V HIT-360762E.A2 360762E	£63.25	£75.90
29 - FAN GUIDE HIT-320215.A13 320215	£1.67	£2.00
30 - HEX. HD. TAPPING SCREW D5X60 HIT-961501.A8 961501	£1.67	£2.00
*31 - STATOR ASS'Y 110V INCLUD.32 HIT-340664C.A0 340664C	£41.11	£49.33
*31 - STATOR ASS'Y 220V-230V INCLUD.32 HIT-340664E.A1 340664E	£41.22	£49.47
32 - BRUSH TERMINAL HIT-958032.A0 958032	£1.67	£2.00
33 - DUST SEAL HIT-320216.A3 320216	£1.67	£2.00
34 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A7 6000VV	£7.62	£9.15
35 - BEARING BUSHING HIT-321536.A13 321536	£15.83	£19.00
36 - HOUSING ASS'Y INCLUD.42 HIT-325640.A3 325640	£66.08	£79.29
37 - NAME PLATE HIT-000000.A2996 000000	-
38 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A48 938477	£1.67	£2.00
39 - BRAND LABEL (A) HIT-000000.A2995 000000	-
40 - BRUSH CAP HIT-940540.A5 940540	£1.67	£2.00
*41 - CARBON BRUSH (1 PAIR) HIT-999044.A15 999044	£5.54	£6.65
*41 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) FOR EUROPE HIT-999074.A6 999074	£20.63	£24.76
*41 - CARBON BRUSH (1 PAIR) FOR EUROPE HIT-999044.A14 999044	£5.54	£6.65
42 - BRUSH HOLDER HIT-980487.A5 980487	£9.03	£10.84
43 - HANDLE (B) HIT-325641.A0 325641	£11.57	£13.88
44 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK HIT-320238.A0 320238	£31.66	£37.99
*45 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A264 984750	£1.67	£2.00
*45 - TAPPING SCREW (W/FLANGE) D4X16 FOR GBR (110V) HIT-984750.A265 984750	£1.67	£2.00
*46 - CORD CLIP HIT-960266.A33 960266	£1.67	£2.00
*46 - CORD CLIP FOR GBR (110V) HIT-331336.A5 331336	-
47 - HANDLE (A) HIT-325642.A3 325642	£10.88	£13.05
48 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A1 305812	£1.67	£2.00
49 - TUBE (D) FOR CORD HIT-981373.A31 981373	£1.67	£2.00
*50 - CORD ARMOR D10.7 HIT-940778.A12 940778	£3.15	£3.78
*50 - CORD ARMOR D11.2 FOR GBR (110V) HIT-331335.A1 331335	£1.67	£2.00
*51 - CORD (CORD ARMOR D10.7) HIT-500247Z.A33 500247Z	-
*51 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500450Z.A28 500450Z	£35.67	£42.80
*51 - CORD (CORD ARMOR D11.2) FOR GBR (110V) HIT-500482Z.A2 500482Z	-
52 - SIDE HANDLE FOR M14 HIT-711284.A2 711284	£10.05	£12.06
53 - HANDLE ARM (B) HIT-331027.A1 331027	-
54 - HANDLE ARM (A) HIT-331058.A2 331058	-
55 - NYLON WASHER D12 HIT-331053.A0 331053	-
56 - HANDLE PLUG HIT-331037.A2 331037	-
57 - GEAR BOX BRACKET HIT-331026.A1 331026	-
58 - HEX. SOCKET HD. BOLT M5X12 HIT-331048.A5 331048	-
59 - HANDLE RATCHET HIT-331059.A0 331059	-
60 - BOLT WASHER D12 HIT-331043.A0 331043	-
61 - BOLT M12 HIT-331044.A2 331044	-
62 - BRAND LABEL (C) HIT-000000.A2997 000000	-
63 - ROLLER HIT-331028.A1 331028	-
64 - ROLLER SPACER (30) HIT-331031.A1 331031	-
65 - ROLLER SHAFT HIT-331029.A1 331029	-
66 - KNOB BOLT HIT-331052.A2 331052	-
67 - LOCK WASHER HIT-331062.A2 331062	-
68 - SQUARE NUT M8 HIT-331040.A2 331040	-
69 - SHAFT CAP HIT-331041.A0 331041	-
70 - HEX. SOCKET HD. BOLT M4X12 HIT-331046.A2 331046	-
71 - BLADE SPACER (3) HIT-331032.A1 331032	-
72A - WHEEL WASHER (C) HIT-376202.A26 376202	£9.67	£11.60
73 - NYLOCK NUT M12 HIT-331042.A2 331042	-
74 - RUBBER GROMMET HIT-331038.A0 331038	-
75 - BOLT M14 HIT-331050.A4 331050	-
76 - DUST GUARD (A) HIT-331056.A2 331056	-
77A - DUST COVER SET HIT-332984.A0 332984	-
78 - BLADE WASHER HIT-331034.A1 331034	-
79 - BLADE SPACER (5) HIT-331033.A1 331033	-
80 - DRIVE SHAFT HIT-331035.A1 331035	-
81 - ROLLER SPACER(20) HIT-331030.A1 331030	-
82 - HEX. SOCKET HD. BOLT M6X25 HIT-331049.A0 331049	-
83 - GEAR BOX CLAMP HIT-331060.A2 331060	-
84 - NYLOCK NUT M5 HIT-331051.A0 331051	-
85 - HEX. SOCKET HD. BOLT M5X12 HIT-331048.A0 331048	-
86 - HEX. SOCKET HD. BOLT M4X20 HIT-331047.A2 331047	-
88 - DUST GUARD (B) HIT-331057.A2 331057	-
89 - VACUUM COUPLING HIT-331061.A2 331061	-
90 - DUST COVER ASS'Y INCLUD.53-70 HIT-331025.A0 331025	-
91 - FELT WASHER HIT-937033.A17 937033	£1.67	£2.00
501 - WRENCH 22MM HIT-331036.A2 331036	-
