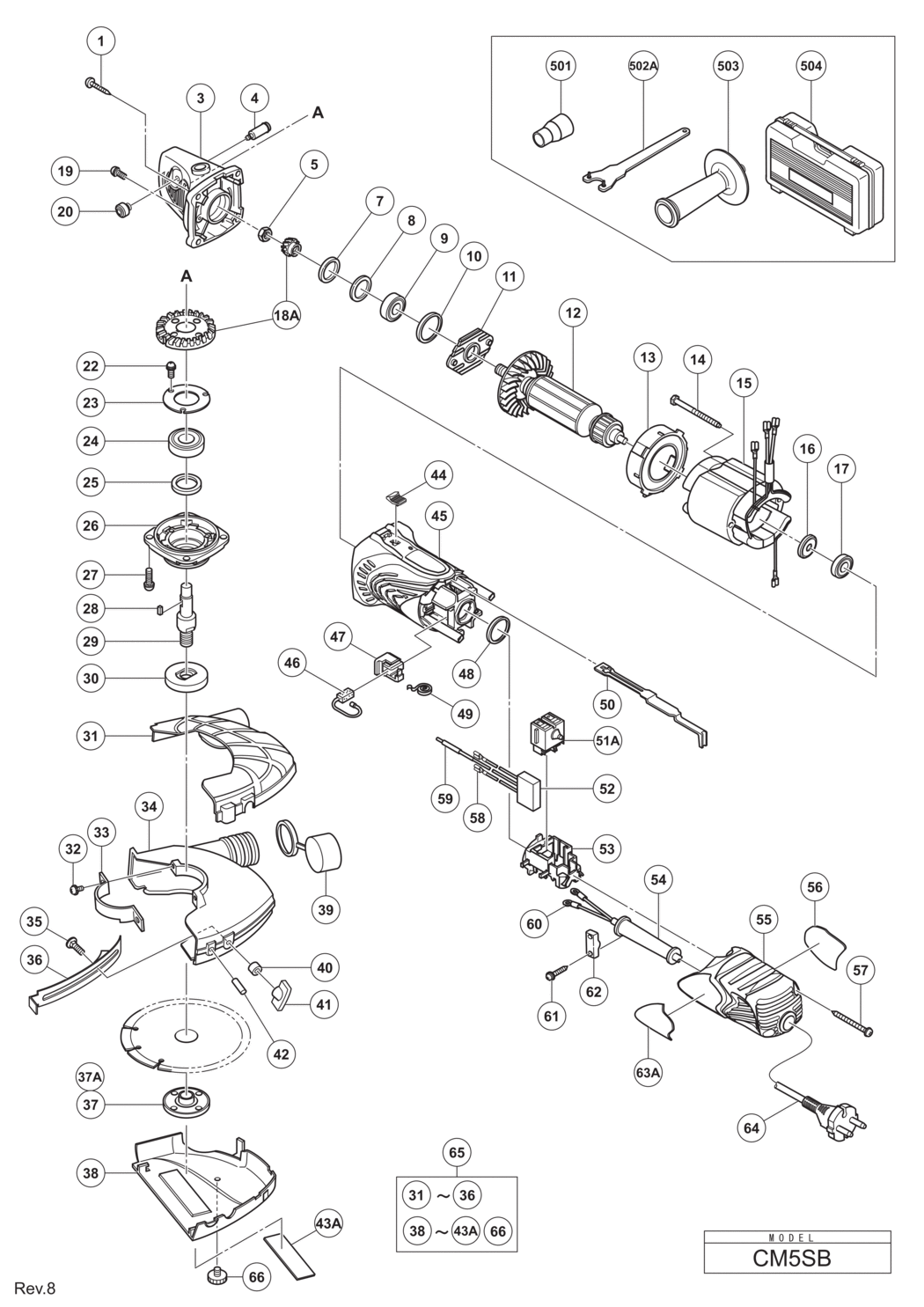

An exploded diagram and spare parts listing for the Hitachi / Hikoki CM5SB Cutter
Ex VAT Inc VAT
1 - TAPPING SCREW D5X25 (BLACK) HIT-320523.A3 320523 £1.67 £2.00
3 - GEAR COVER ASS'Y INCLUD.4 HIT-321737.A3 321737 £44.42 £53.30
4 - LOCK PIN HIT-301943.A31 301943 £3.28 £3.93
5 - NUT M8 (10 PCS.) HIT-949558.A17 949558 £1.67 £2.00
7 - SEAL RING (A) HIT-308543.A7 308543 £1.67 £2.00
8 - WASHER (C) HIT-980866.A3 980866 £1.67 £2.00
9 - BALL BEARING 629T12DDC3PS2-L HIT-629T12.A6 629T12 £9.62 £11.54
10 - RUBBER RING HIT-321733.A3 321733 £1.67 £2.00
11 - BEARING COVER HIT-321734.A3 321734 £1.67 £2.00
*12 - ARMATURE 110V HIT-360734C.A0 360734C £39.15 £46.98
*12 - ARMATURE 230V-240V HIT-360734E.A1 360734E £40.46 £48.55
13 - FAN GUIDE HIT-321732.A3 321732 £1.67 £2.00
14 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A20 982021 £1.67 £2.00
*15 - STATOR 110V HIT-340645C.A0 340645C £28.02 £33.63
*15 - STATOR 220V-230V HIT-340645E.A1 340645E £30.02 £36.03
16 - DUST SEAL HIT-315877.A1 315877 £1.67 £2.00
17 - BALL BEARING 608VVC2PS2L HIT-608VVM.A103 608VVM £5.70 £6.84
18A - GEAR AND PINION SET HIT-329054.A6 329054 £22.09 £26.51
19 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-303255.A17 303255 £1.67 £2.00
20 - PUSHING BUTTON HIT-301944.A14 301944 £1.67 £2.00
22 - SEAL LOCK SCREW (W/SP. WASHER) M4X8 HIT-991207.A3 991207 £1.67 £2.00
23 - BEARING COVER (B) HIT-936680.A7 936680 £1.67 £2.00
24 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A19 6201DD £8.64 £10.37
25 - FELT PACKING HIT-308546.A3 308546 £1.67 £2.00
26 - PACKING GLAND HIT-308545.A3 308545 £11.68 £14.02
27 - SEAL LOCK SCREW (W/SP. WASHER) M5X16 HIT-307046.A14 307046 £1.67 £2.00
28 - FEATHER KEY 3X3X8 HIT-944109.A32 944109 £3.28 £3.93
*29 - SPINDLE (A) HIT-994301.A3 994301 £24.03 £28.84
*30 - WHEEL WASHER HIT-937817Z.A4 937817Z £8.88 £10.66
31 - COVER (B) HIT-328743.A0 328743 £2.84 £3.41
32 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A25 308386 £1.67 £2.00
33 - SET PLATE HIT-301949.A13 301949 £1.67 £2.00
34 - DUST COLLECTOR COVER (A) HIT-328741.A0 328741 -
35 - BOLT (SQUARE) M6X20 HIT-942808.A5 942808 £1.67 £2.00
36 - SLIDE GUIDE (A) HIT-328809.A0 328809 £9.60 £11.52
*37A - WHEEL NUT M14 HIT-339579.A10 339579 £6.23 £7.48
38 - COVER (A) HIT-328742.A0 328742 £2.84 £3.41
39 - DUST CAP HIT-324865.A2 324865 £8.22 £9.87
40 - SLEEVE HIT-328841.A0 328841 £1.67 £2.00
41 - WING NUT M6 HIT-314622.A2 314622 £4.12 £4.94
42 - ROLL PIN D6X16 (10 PCS.) HIT-949785.A0 949785 -
*43A - BRAND PLATE FOR DUST COLLECTION ADAPTER ASS'Y HIT-328922.A7 328922 £2.71 £3.25
44 - SLIDE KNOB HIT-314428.A5 314428 £1.67 £2.00
45 - HOUSING HIT-325050.A0 325050 £22.38 £26.85
46 - CARBON BRUSH (1 PAIR) HIT-999088.A17 999088 £5.23 £6.28
47 - BRUSH HOLDER HIT-317810.A2 317810 £6.09 £7.31
48 - RUBBER RING HIT-957754.A3 957754 £1.67 £2.00
49 - SPRING HIT-308536.A4 308536 £1.67 £2.00
50 - SLIDE BAR HIT-325051.A1 325051 £1.67 £2.00
51A - PUSHING BUTTON SWITCH HIT-329057.A0 329057 £25.99 £31.19
*52 - NOISE SUPPRESSOR FOR GBR (110V) HIT-317491.A10 317491 £9.43 £11.32
53 - SWITCH HOLDER HIT-325054.A1 325054 £1.67 £2.00
54 - CORD ARMOR D8.8 HIT-953327.A43 953327 £1.67 £2.00
55 - TAIL COVER HIT-325052.A0 325052 £14.72 £17.67
56A - BRAND LABEL HIT-334347.A1 334347 -
57 - TAPPING SCREW (W/FLANGE) D4X45 (BLACK) HIT-301815.A13 301815 £1.67 £2.00
*58 - FASTON TERMINAL FOR GBR (110V) HIT-319320.A1 319320 £1.67 £2.00
*59 - EARTH TERMINAL FOR GBR (110V) HIT-314854.A1 314854 £1.67 £2.00
60 - TERMINAL FOR CORD HIT-980063.A110 980063 £1.67 £2.00
61 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A36 984750 £1.67 £2.00
62 - CORD CLIP HIT-937631.A102 937631 £1.67 £2.00
63 - NAME PLATE HIT-000000.A4930 000000 -
*64 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500237Z.A17 500237Z £14.33 £17.20
*64 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A68 500435Z £14.14 £16.97
65 - DUST COLLECTION ADAPTER ASS'Y INCLUD.31-36 HIT-328740.A0 328740 £87.80 £105.36
66 - KNOB BOLT M5 HIT-329497.A0 329497 -
501 - ADAPTER HIT-320994.A3 320994 £3.92 £4.70
502A - WRENCH HIT-711272.A12 711272 £6.18 £7.41
503 - SIDE HANDLE HIT-711283.A0 711283 £7.02 £8.42
504 - CASE (B) HIT-328845.A0 328845 -
*601 - SUPER WASHER EXCEPT FOR USA HIT-310338.A4 310338 £23.30 £27.96
