Hitachi / Hikoki CM12Y Cutter Spare Parts

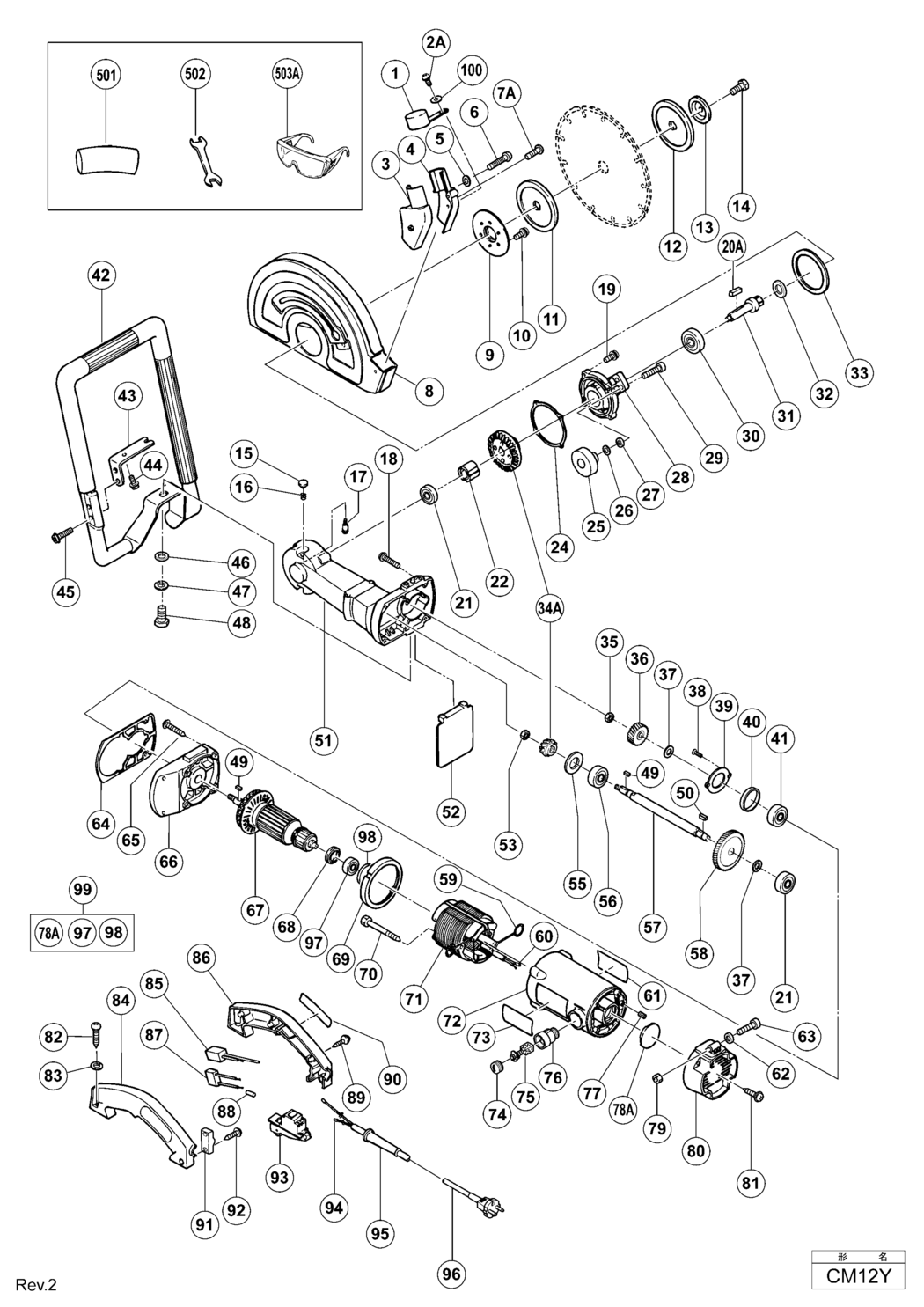

An exploded diagram and spare parts listing for the Hitachi / Hikoki CM12Y Cutter

	Ex VAT	Inc VAT
1 - RUBBER CAP HIT-312314.A0 312314	£7.80	£9.36
2A - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A22 935196	£1.67	£2.00
3 - DUST COLLECTOR (B) HIT-312312.A0 312312	£14.52	£17.43
4 - DUST COLLECTOR (A) HIT-312311.A0 312311	£14.52	£17.43
5 - SPRING WASHER M4 (10 PCS.) HIT-949453.A2 949453	£1.67	£2.00
6 - MACHINE SCREW M4X30 (10 PCS.) HIT-949224.A0 949224	£1.67	£2.00
7A - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A23 935196	£1.67	£2.00
8 - WHEEL GUARD HIT-312310.A0 312310	-
9 - GUARD HOLDER HIT-312307.A0 312307	£7.26	£8.71
10 - SEAL LOCK SCREW (W/SP. WASHER) M5X10 HIT-992038.A10 992038	£1.67	£2.00
11 - WHEEL WASHER (B) HIT-312327.A0 312327	£27.69	£33.23
12 - WHEEL WASHER (C) HIT-312324.A0 312324	£24.86	£29.83
13 - WHEEL WASHER (D) HIT-312308.A0 312308	£4.31	£5.17
14 - BOLT (LEFT HAND) M10X20 HIT-312309.A0 312309	£20.46	£24.55
15 - PUSHING BUTTON HIT-306888.A24 306888	£1.67	£2.00
16 - SPRING HIT-306889.A0 306889	£1.67	£2.00
17 - LOCK PIN HIT-306890.A24 306890	£2.78	£3.34
18 - MACHINE SCREW (W/WASHERS) M5X35 HIT-312298.A0 312298	£3.04	£3.65
19 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A47 994192	£1.67	£2.00
20A - FEATHER KEY 4X4X30 HIT-948920.A1 948920	£1.67	£2.00
21 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A6 6200VV	£7.36	£8.83
22 - LOCK SLEEVE HIT-312303.A0 312303	£30.57	£36.68
24 - SEAL PLATE (A) HIT-312304.A0 312304	£3.04	£3.65
25 - KNOB HIT-302458.A0 302458	£1.67	£2.00
26 - BOLT WASHER M8 (10 PCS.) HIT-949433.A4 949433	£1.67	£2.00
27 - SUPER LOCK WASHER M8 HIT-957042.A2 957042	£1.67	£2.00
28 - PACKING GLAND HIT-312305.A0 312305	£43.98	£52.78
29 - BOLT (SQUARE) M8X30 HIT-302457.A2 302457	£1.67	£2.00
30 - BALL BEARING 6302DDCMPS2L HIT-6302DD.A5 6302DD	£10.37	£12.44
31 - SPINDLE HIT-312302.A0 312302	£39.85	£47.82
32 - FELT PACKING HIT-312306.A0 312306	£1.67	£2.00
33 - SPACER HIT-312651.A0 312651	£9.34	£11.21
34A - GEAR SET HIT-332119.A0 332119	£29.87	£35.84
35 - U-NUT M8 HIT-946228.A0 946228	£1.67	£2.00
36 - PINION (A) HIT-312325.A0 312325	£26.51	£31.81
37 - SPACE WASHER HIT-312294.A0 312294	£3.93	£4.72
38 - SEAL LOCK FLAT HD. SCREW M4X10 HIT-990430.A7 990430	£1.67	£2.00
39 - BEARING COVER HIT-312293.A0 312293	£3.97	£4.76
40 - RUBBER RING (B) HIT-994208.A9 994208	£1.67	£2.00
41 - BALL BEARING 6301DDCMPS2L HIT-6301DD.A7 6301DD	£9.27	£11.12
42 - PIPE HANDLE (C) HIT-312315.A0 312315	£135.28	£162.33
43 - JOINT PLATE HIT-312316.A0 312316	£10.58	£12.70
44 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X16 HIT-878533.A0 878533	£1.67	£2.00
45 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X30 HIT-878877.A0 878877	£1.67	£2.00
46 - BOLT WASHER M12 (10 PCS.) HIT-949437.A0 949437	£1.67	£2.00
47 - SPRING WASHER M12 (10 PCS.) HIT-949463.A13 949463	£1.67	£2.00
48 - BOLT M12X25 (10 PCS.) HIT-949671.A1 949671	-
49 - FEATHER KEY 3X3X10 HIT-940533.A0 940533	£1.67	£2.00
50 - FEATHER KEY 4X4X15 HIT-948919.A0 948919	£1.67	£2.00
51 - GEAR COVER ASS'Y HIT-312297.A0 312297	£149.47	£179.36
52 - DUST GUARD HIT-312313.A0 312313	£10.58	£12.70
53 - U-NUT (LEFT HAND) M8 HIT-960256.A1 960256	£1.67	£2.00
55 - THRUST WASHER (A) HIT-312296.A0 312296	£1.67	£2.00
56 - BALL BEARING 6301VVCMPS2L HIT-6301VV.A16 6301VV	£9.32	£11.19
57 - DRIVE SHAFT HIT-312295.A0 312295	£39.05	£46.86
58 - FIRST GEAR (A) HIT-315326.A0 315326	£39.05	£46.86
59 - BRUSH TERMINAL HIT-958032.A6 958032	£1.67	£2.00
60 - TUBE (D) HIT-981373.A111 981373	£1.67	£2.00
61 - BRAND LABEL HIT-000000.A4926 000000	-
62 - WASHER M6 (10 PCS.) HIT-949425.A57 949425	£1.67	£2.00
63 - MACHINE SCREW M6X35 (10 PCS.) HIT-949263.A1 949263	£2.89	£3.47
64 - SEAL PLATE (B) HIT-312291.A0 312291	£3.93	£4.72
65 - TAPPING SCREW (W/FLANGE) D5X35 HIT-301654.A25 301654	£1.67	£2.00
66 - INNER COVER HIT-312292.A0 312292	-
*67 - ARMATURE ASS'Y 100V-115V HIT-360287C.A0 360287C	£84.39	£101.27
*67 - ARMATURE ASS'Y 220V-230V HIT-360287E.A0 360287E	£111.68	£134.02
68 - DUST SEAL HIT-310998.A0 310998	£1.67	£2.00
69 - FAN GUIDE HIT-306103.A0 306103	£3.19	£3.83
70 - HEX. HD. TAPPING SCREW D5X75 HIT-984271.A11 984271	£1.67	£2.00
*71 - STATOR ASS'Y 100V-110V INCLUD.59 HIT-340348.A0 340348	£108.32	£129.99
*71 - STATOR ASS'Y 230V INCLUD.59 HIT-340349E.A0 340349E	£127.03	£152.44
72 - HOUSING ASS'Y INCLUD.76 HIT-306102.A0 306102	£33.02	£39.63
73 - NAME PLATE HIT-000000.A4927 000000	-
74 - BRUSH CAP HIT-940540.A18 940540	£1.67	£2.00
75 - CARBON BRUSH (1 PAIR) HIT-999044.A0 999044	£5.54	£6.65
76 - BRUSH HOLDER HIT-980487.A12 980487	£9.03	£10.84
77 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A106 938477	£1.67	£2.00
78A - BEARING BUSHING SINCE 6.1996 HIT-313306.A0 313306	£26.16	£31.39
79 - NUT M6 (10 PCS.) HIT-949556.A14 949556	£1.67	£2.00
80 - TAIL COVER HIT-312299.A0 312299	£16.77	£20.12
81 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) HIT-305558.A31 305558	£1.67	£2.00
82 - MACHINE SCREW M5X20 (10 PCS.) HIT-949241.A1 949241	£1.67	£2.00
83 - SPRING WASHER M5 (10 PCS.) HIT-949454.A135 949454	£1.67	£2.00
84 - HANDLE (A) HIT-312300.A0 312300	£19.42	£23.31
*85 - NO LONGER AVAILABLE HIT-312318.A0 312318	-
86 - HANDLE (B) HIT-312301.A0 312301	£19.42	£23.31
*88 - TUBE (D) HIT-981373.A110 981373	£1.67	£2.00
89 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-304035.A5 304035	£1.67	£2.00
90 - GRIP RUBBER HIT-312317.A0 312317	£9.34	£11.21
91 - CORD CLIP HIT-960266.A38 960266	£1.67	£2.00
92 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A37 984750	£1.67	£2.00
93 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK HIT-307650.A0 307650	£51.41	£61.69
*94 - TUBE (D) EXCEPT FOR GBR HIT-981373.A108 981373	£1.67	£2.00
*95 - CORD ARMOR D10.7 HIT-940778.A40 940778	£3.15	£3.78
*95 - CORD ARMOR D8.2 HIT-958049.A9 958049	£1.67	£2.00
*96 - CORD (CORD ARMOR D8.2) FOR GBR (110V) HIT-500246Z.A3 500246Z	£27.87	£33.44
*96 - CORD (CORD ARMOR D8.2) FOR GBR (230V) HIT-500469Z.A0 500469Z	-
97 - BALL BEARING 6000VVCMPS2L SINCE 6.1996 HIT-6000VV.A66 6000VV	£7.62	£9.15
98 - RUBBER RING (A) SINCE 6.1996 HIT-994202.A0 994202	£1.67	£2.00
99 - BEARING BUSHING ASS'Y INCLUD.78A HIT-313307.A0 313307	£30.57	£36.68
100 - THRUST WASHER HIT-322270.A0 322270	£1.67	£2.00
501 - HOSE HIT-312360.A0 312360	£10.28	£12.34
502 - WRENCH 17/19MM HIT-974254.A1 974254	£8.08	£9.69
503A - PROTECTIVE GLASSES HIT-875769.A12 875769	-
601 - WHEEL WASHER (A) HIT-312323.A0 312323	£36.56	£43.87
602 - CUT-OFF WHEEL FOR METAL D25.4 (10 PCS.) HIT-985608.A0 985608	-
603 - NO LONGER AVAILABLE HIT-985609.A0 985609	-
604 - CUT-OFF WHEEL FOR STONE D25.4 (10 PCS.) HIT-985610.A0 985610	-
605 - NO LONGER AVAILABLE HIT-985611.A0 985611	-
606 - DIAMOND WHEEL (SEGMENT) 305MM-D22.2 HOLE HIT-985618.A0 985618	-
607 - DIAMOND WHEEL (SEGMENT) 305MM-D22.2 HOLE HIT-985619.A0 985619	-
608 - DIAMOND WHEEL (SEGMENT) 305MM-D22.2 HOLE HIT-312367.A0 312367	£341.57	£409.88
