Hitachi / Hikoki CL10SA 10mm Stud Cutter Spare Parts

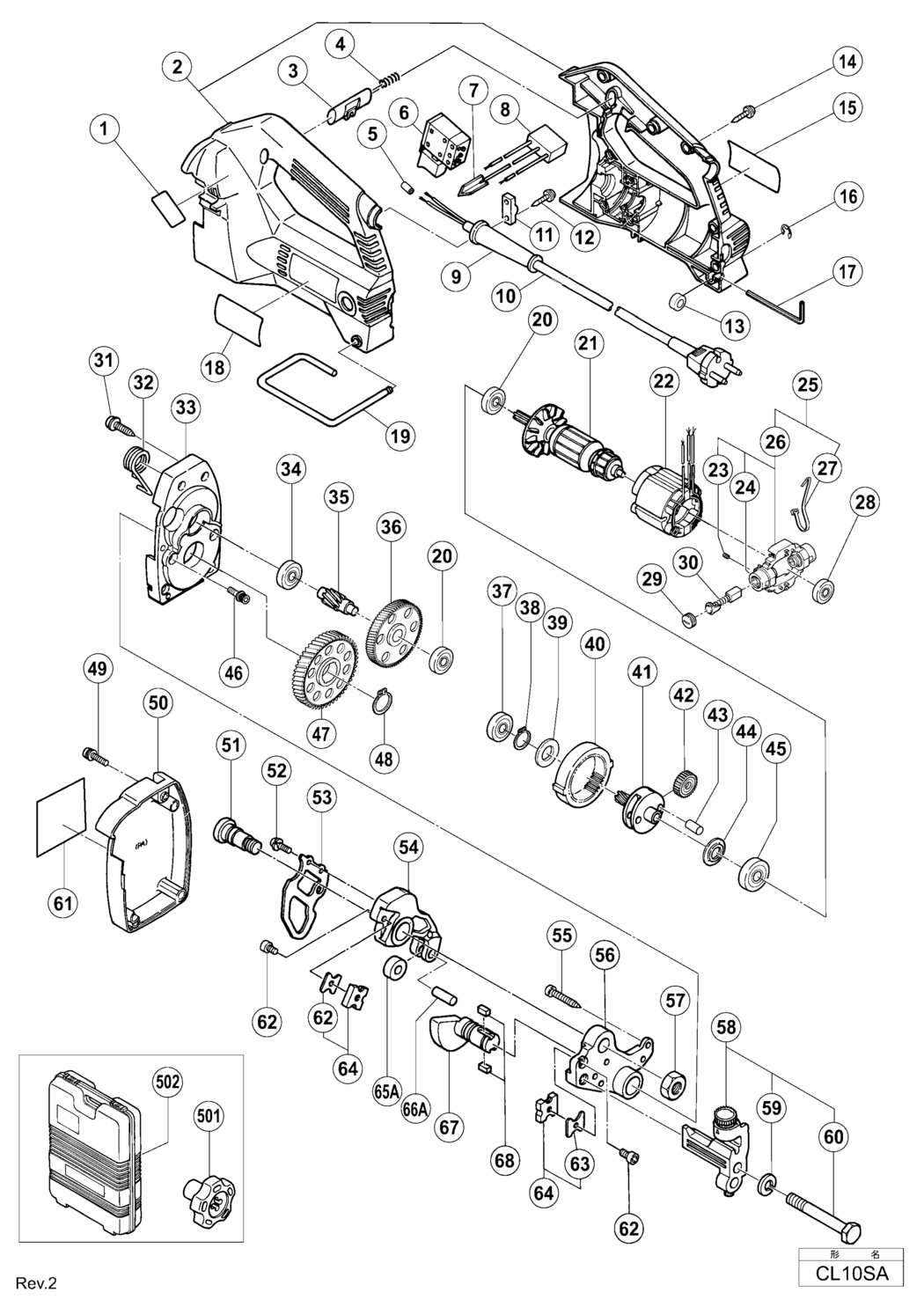

An exploded diagram and spare parts listing for the Hitachi / Hikoki CL10SA 10mm Stud Cutter

	Ex VAT	Inc VAT
1 - CAUTION PLATE (E) HIT-000000.A1689 000000	-
2 - HOUSING (A).(B) SET HIT-319411.A0 319411	-
3 - PUSHING BUTTON (A) HIT-319402.A2 319402	-
4 - SPRING (A) HIT-319403.A0 319403	-
5 - TUBE (D) FOR CORD HIT-981373.A55 981373	£1.67	£2.00
6 - SWITCH HIT-319412.A0 319412	-
7 - EARTH TERMINAL HIT-992635.A5 992635	£1.67	£2.00
8 - NOISE SUPPRESSOR HIT-994273.A11 994273	£7.30	£8.76
*9 - CORD ARMOR D8.8 HIT-953327.A94 953327	£1.67	£2.00
*9 - CORD ARMOR D10.1 HIT-938051.A60 938051	£1.67	£2.00
*10 - CORD (CORD ARMOR D8.8) HIT-500235Z.A9 500235Z	-
*10 - CORD (CORD ARMOR D10.1) FOR SUI HIT-500391Z.A10 500391Z	-
*10 - CORD (CORD ARMOR D8.8) FOR GBR HIT-500440Z.A9 500440Z	£22.75	£27.30
*10 - CORD (CORD ARMOR D10.1) FOR TPE HIT-930055.A0 930055	-
11 - CORD CLIP HIT-937631.A42 937631	£1.67	£2.00
12 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A203 984750	£1.67	£2.00
13 - WRENCH HOLDER HIT-307607.A0 307607	£1.67	£2.00
14 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A220 301653	£1.67	£2.00
15 - NAME PLATE HIT-000000.A1699 000000	-
16 - RETAINING RING (E-TYPE) FOR D4 SHAFT HIT-968643.A19 968643	£1.67	£2.00
17 - HEX. BAR WRENCH 4MM HIT-944458.A98 944458	£1.67	£2.00
18 - BRAND LABEL HIT-000000.A1700 000000	-
19 - HOOK HIT-319401.A0 319401	£9.70	£11.64
20 - BALL BEARING 608VVC2PS2L HIT-608VVM.A224 608VVM	£5.70	£6.84
21 - ARMATURE 230V HIT-360545E.A0 360545E	-
*21 - ARMATURE 110V HIT-360545C.A0 360545C	-
22 - STATOR 230V HIT-340490E.A0 340490E	-
*22 - STATOR 110V HIT-340490C.A0 340490C	-
23 - HEX. SOCKET SET SCREW M4X4 HIT-981478.A0 981478	£1.67	£2.00
24 - BRUSH HOLDER HIT-957571.A9 957571	£3.97	£4.76
25 - BRUSH BLOCK ASS'Y INCLUD.26 HIT-319408.A0 319408	-
26 - BRUSH BLOCK ASS'Y INCLUD.23 HIT-315992.A0 315992	-
27 - WIRE BAND HIT-313505.A6 313505	-
28 - BALL BEARING 626VVC2PS2L HIT-626VVM.A13 626VVM	£5.77	£6.92
29 - BRUSH CAP HIT-931266.A0 931266	£1.67	£2.00
30 - CARBON BRUSH (1 PAIR) HIT-999021.A14 999021	£5.54	£6.65
31 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) HIT-305558.A1 305558	£1.67	£2.00
32 - RETURN SPRING HIT-307624.A0 307624	£6.61	£7.93
33 - GEAR COVER HIT-307622.A2 307622	£50.76	£60.91
34 - BALL BEARING 629VV HIT-629VVM.A33 629VVM	£6.00	£7.20
35 - THIRD PINION HIT-319407.A2 319407	£20.28	£24.34
36 - SECOND GEAR HIT-319406.A0 319406	£51.87	£62.24
37 - BALL BEARING 609VVC2PS2L HIT-609VVM.A5 609VVM	£6.35	£7.62
38 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A10 939544	£3.64	£4.37
39 - WASHER HIT-302714.A0 302714	£1.67	£2.00
40 - RING GEAR HIT-310254.A0 310254	£8.12	£9.75
41 - SECOND PINION HIT-319405.A2 319405	£63.12	£75.74
42 - IDLE GEAR HIT-319404.A0 319404	£8.12	£9.75
43 - NEEDLE HIT-307609.A0 307609	£12.39	£14.87
44 - WASHER HIT-307608.A2 307608	£1.67	£2.00
45 - BALL BEARING 6001VV HIT-6001VV.A8 6001VV	£8.68	£10.42
46 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A19 998471	£1.67	£2.00
47 - FINAL GEAR HIT-319393.A0 319393	£37.45	£44.94
48 - RETAINING RING FOR D18 SHAFT (10 PCS.) HIT-939546.A3 939546	-
49 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A15 307606	£1.67	£2.00
50 - COVER HIT-319838.A0 319838	£16.48	£19.78
51 - BOLT (A) HIT-319396.A2 319396	£29.88	£35.86
52 - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-987203.A12 987203	£1.67	£2.00
53 - RETURN PLATE HIT-319398.A2 319398	£1.67	£2.00
54 - BRACKET (A) HIT-319397.A0 319397	£134.65	£161.58
55 - TAPPING SCREW D5X35 HIT-931875.A3 931875	£1.67	£2.00
56 - BRACKET (B) HIT-319395.A0 319395	£208.93	£250.72
57 - LOCK NUT M12 (10 PCS.) HIT-949574.A2 949574	£3.64	£4.37
58 - STUD GUIDE ASS'Y INCLUD.59 HIT-309180.A2 309180	£57.72	£69.27
59 - SPRING WASHER M10 (10 PCS.) HIT-949458.A21 949458	£1.67	£2.00
60 - BOLT W3/8X75 HIT-309621.A0 309621	£7.10	£8.52
61 - CAUTION PLATE (F) HIT-000000.A1741 000000	-
62 - SPECIAL BOLT M5X9 HIT-998486.A0 998486	£4.82	£5.79
63 - SPACER M8 (10 PCS.) HIT-308779.A0 308779	£21.46	£25.75
64 - CUTTER ASS'Y M8 (1 PAIR) INCLUD.63 HIT-308564.A3 308564	£103.18	£123.81
*64 - CUTTER W3/8 (1 PAIR) HIT-998479.A0 998479	£69.32	£83.19
65A - ROLLER (A) HIT-327317.A2 327317	£7.02	£8.42
66A - ROLLER PIN HIT-327318.A0 327318	£4.89	£5.87
67 - CAM SHAFT HIT-319394.A2 319394	£79.70	£95.64
68 - FEATHER KEY 5X5X10 HIT-948015.A4 948015	£1.67	£2.00
501 - TRIMMER M8 HIT-308569.A4 308569	£63.58	£76.29
*501 - TRIMMER W3/8 HIT-308567.A3 308567	£42.08	£50.50
502 - CASE HIT-319774.A0 319774	£47.42	£56.90
601 - CUTTER ASS'Y M6 (1 PAIR) INCLUD.602 HIT-308563.A0 308563	£103.18	£123.81
602 - SPACER M6 (10 PCS.) HIT-309181.A0 309181	£21.46	£25.75
603 - CUTTER ASS'Y M10 (1 PAIR) INCLUD.604 HIT-308565.A0 308565	£103.18	£123.81
604 - SPACER M10 (10 PCS.) HIT-308780.A4 308780	£21.46	£25.75
605 - CUTTER W3/8 (1 PAIR) HIT-998479.A1 998479	£69.32	£83.19
606 - TRIMMER M6 HIT-308568.A0 308568	£63.58	£76.29
607 - TRIMMER M10 HIT-308570.A0 308570	£63.58	£76.29
608 - TRIMMER W3/8 HIT-308567.A2 308567	£42.08	£50.50
