Hitachi / Hikoki CJ90VST Jig Saw Spare Parts

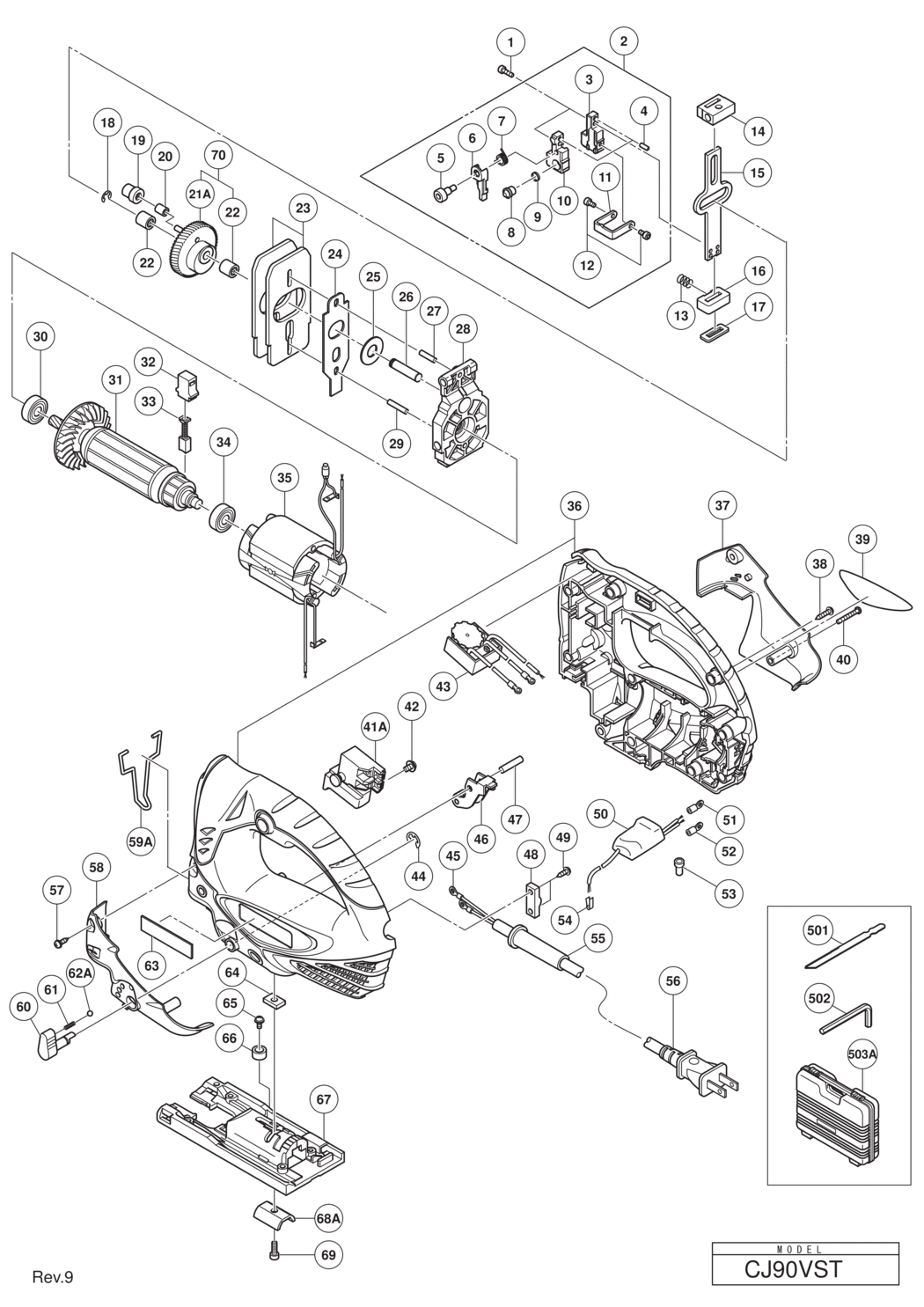

An exploded diagram and spare parts listing for the Hitachi / Hikoki CJ90VST Jig Saw

	Ex VAT	Inc VAT
1 - SEAL LOCK HEX. SOCKET HD. BOLT M3X10 HIT-332446.A0 332446	£1.67	£2.00
2 - BLADE HOLDER ASS'Y INCLUD.3-12 HIT-332443.A0 332443	£27.98	£33.57
3 - BLADE HOLDER (A) HIT-332429.A0 332429	£4.86	£5.83
4 - PIN D3 HIT-332436.A0 332436	£1.67	£2.00
5 - SPECIAL BOLT M4 HIT-332434.A0 332434	£1.67	£2.00
6 - LEVER (A) HIT-332432.A0 332432	£10.00	£12.00
7 - SPRING (D) HIT-332438.A0 332438	£1.67	£2.00
8 - HOLDER PIN (B) HIT-332435.A0 332435	£4.86	£5.83
9 - SPRING (B) HIT-332439.A0 332439	£1.67	£2.00
10 - BLADE HOLDER (B) HIT-332430.A0 332430	£4.62	£5.55
11 - HOLDER PLATE HIT-332426.A0 332426	£1.67	£2.00
12 - SEAL LOCK HEX. SOCKET HD. BOLT M3X6 HIT-325077.A12 325077	£1.67	£2.00
13 - SPRING HIT-332437.A0 332437	£1.67	£2.00
14 - PLUNGER HOLDER (A) HIT-332427.A0 332427	£3.83	£4.60
15 - PLUNGER HIT-332422.A0 332422	£7.68	£9.21
16 - PLUNGER HOLDER (B) HIT-332428.A0 332428	£1.67	£2.00
17 - PACKING HIT-332441.A0 332441	£1.67	£2.00
18 - RETAINING RING FOR D7 SHAFT HIT-994251.A6 994251	£1.67	£2.00
19 - CONNECTING PIECE (A) HIT-332829.A0 332829	-
20 - NEEDLE BEARING HIT-325242.A5 325242	£6.50	£7.80
21 - GEAR TILL 5.2016 HIT-332445.A0 332445	£27.98	£33.57
21A - GEAR SINCE 6.2016 HIT-337759.A0 337759	£25.53	£30.64
22 - NEEDLE BEARING TILL 5.2016 HIT-332983.A0 332983	£3.28	£3.93
*22 - NEEDLE BEARING SINCE 6.2016 HIT-332983.A1 332983	£3.28	£3.93
23 - BALANCE WEIGHT HIT-332424.A0 332424	-
24 - ORBITAL CAM HIT-332423.A0 332423	£3.83	£4.60
25 - WASHER (A) HIT-957540.A4 957540	£1.67	£2.00
26 - SPINDLE HIT-332828.A0 332828	-
27 - NEEDLE ROLLER HIT-998426.A2 998426	£1.67	£2.00
28 - GEAR HOLDER ASS'Y INCLUD.26 HIT-332444.A0 332444	£14.83	£17.80
29 - NEEDLE ROLLER D4X20 HIT-943364.A2 943364	£1.67	£2.00
30 - BALL BEARING 608VVC2PS2L HIT-608VVM.A9 608VVM	£5.70	£6.84
*31 - ARMATURE 110V HIT-360893C.A0 360893C	£42.27	£50.72
*31 - ARMATURE ASS'Y 120V-127V INCLUD.30 HIT-360893U.A0 360893U	-
*31 - ARMATURE 220V-240V HIT-360893E.A0 360893E	£38.87	£46.64
32 - BRUSH HOLDER HIT-955203.A10 955203	£4.16	£4.99
33 - CARBON BRUSH (1 PAIR) HIT-999041.A36 999041	£5.54	£6.65
34 - BALL BEARING 608VVC2PS2L HIT-608VVM.A10 608VVM	£5.70	£6.84
*35 - STATOR 110V HIT-340773C.A0 340773C	-
*35 - STATOR 110V FOR TPE HIT-340774C.A0 340774C	£18.73	£22.48
*35 - STATOR 120V HIT-340773D.A0 340773D	-
*35 - STATOR 220V-240V HIT-340774E.A0 340774E	£18.73	£22.48
*35 - STATOR 220V-240V FOR BRA HIT-340773E.A0 340773E	-
*35 - STATOR 220V-240V IND HIT-340773E.A1 340773E	-
36 - HOUSING (A).(B) SET HIT-332442.A0 332442	£32.36	£38.83
37 - SIDE COVER (B) HIT-332419.A0 332419	-
38 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A119 301653	£1.67	£2.00
39 - NAME PLATE HIT-000000.A4285 000000	-
40 - MACHINE SCREW M4X30 (BLACK) HIT-332447.A0 332447	-
41A - TRIGGER SWITCH HIT-339021.A1 339021	-
42 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A1 305499	£1.67	£2.00
*43 - CONTROLLER 110V HIT-332831.A0 332831	£24.24	£29.09
*43 - CONTROLLER 120V-127V HIT-332834.A0 332834	-
*43 - CONTROLLER 220V-230V HIT-332832.A0 332832	-
*43 - CONTROLLER 240V HIT-332833.A0 332833	-
44 - RETAINING RING (E-TYPE) FOR D5 SHAFT HIT-673489.A27 673489	£1.67	£2.00
45 - TERMINAL HIT-980063.A70 980063	£1.67	£2.00
46 - ROLLER HOLDER HIT-332448.A0 332448	£15.65	£18.78
47 - NEEDLE ROLLER HIT-332433.A0 332433	£1.67	£2.00
48 - CORD CLIP HIT-960266.A100 960266	£1.67	£2.00
49 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A67 984750	£1.67	£2.00
50 - VARISTOR FOR TPE HIT-332835.A0 332835	-
*50 - VARISTOR SWE HIT-332835.A1 332835	-
51 - TERMINAL FOR TPE HIT-311741.A17 311741	-
*51 - TERMINAL SWE HIT-311741.A18 311741	-
52 - TERMINAL (A) M3.5 (10 PCS.) HIT-960356.A7 960356	£3.64	£4.37
53 - CONNECTOR 50091 (10 PCS.) HIT-959140.A113 959140	£4.98	£5.97
54 - EARTH TERMINAL FOR TPE HIT-302488.A4 302488	£1.67	£2.00
*54 - EARTH TERMINAL SWE HIT-302488.A5 302488	£1.67	£2.00
*55 - CORD ARMOR D8.2 HIT-930487.A7 930487	£3.85	£4.62
*55 - CORD ARMOR D10.2 HIT-930026.A6 930026	£3.97	£4.76
*56 - CORD (CORD ARMOR D8.2) HIT-500234Z.A39 500234Z	-
*56 - CORD (CORD ARMOR D8.2) FOR FIN HIT-500247Z.A12 500247Z	-
*56 - CORD (CORD ARMOR D8.2) FOR USA HIT-500240Z.A15 500240Z	-
*56 - CORD MEX HIT-500240Z.A16 500240Z	-
*56 - CORD (CORD ARMOR D8.2) FOR NZL HIT-500439Z.A18 500439Z	-
*56 - CORD (CORD ARMOR D8.2) FOR THA HIT-500455Z.A10 500455Z	-
*56 - CORD (CORD ARMOR D8.2) FOR GBR (230V) HIT-500450Z.A2 500450Z	£35.67	£42.80
*56 - CORD (CORD ARMOR D8.2) FOR SIN HIT-500423Z.A3 500423Z	-
*56 - CORD (CORD ARMOR D10.2) FOR VEN HIT-323974.A3 323974	-
*56 - CORD (CORD ARMOR D8.2) FOR GBR (110V) HIT-500461Z.A73 500461Z	£15.56	£18.67
*56 - CORD (CORD ARMOR D8.2) FOR SUI HIT-500447Z.A9 500447Z	£7.92	£9.51
*56 - CORD (CORD ARMOR D8.2) FOR BRA HIT-500487Z.A6 500487Z	-
57 - TAPPING SCREW (W/FLANGE) D4X12 (BLACK) HIT-325083.A8 325083	£1.67	£2.00
58 - SIDE COVER (A) HIT-332418.A0 332418	-
59A - GUARD BAR HIT-338039.A0 338039	£1.67	£2.00
60 - CHANGE KNOB HIT-332421.A0 332421	£4.86	£5.83
61 - SPRING (C) HIT-982454.A13 982454	£1.67	£2.00
62A - STEEL BALL 5/32 (10 PCS.) HIT-335297.A2 335297	-
63 - BRAND LABEL HIT-000000.A4286 000000	-
64 - PLATE NUT HIT-332425.A0 332425	£1.67	£2.00
65 - MACHINE SCREW (W/WASHER) M4X8 (BLACK) HIT-315500.A11 315500	£1.67	£2.00
66 - RUBBER BUSHING HIT-321576.A6 321576	£1.67	£2.00
67 - BASE HIT-321573.A3 321573	£16.94	£20.33
68A - BASE LOCKER HIT-339663.A4 339663	£1.67	£2.00
69 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.) HIT-949821.A5 949821	£3.28	£3.93
70 - GEAR ASS'Y INCLUD.21A HIT-370721.A0 370721	-
501 - JIG SAW BLADES NO.41 (5 PCS.) HIT-879357.A7 879357	-
502 - HEX. BAR WRENCH 4MM HIT-944458.A76 944458	£1.67	£2.00
*503A - CASE EXCEPT FOR VEN HIT-337883.A0 337883	-
601 - JIG SAW BLADES NO.11 (5 PCS.) HIT-879336.A1 879336	-
602 - JIG SAW BLADES NO.12 (5 PCS.) HIT-879337.A10 879337	-
603 - JIG SAW BLADES NO.15 (5 PCS.) HIT-879338.A1 879338	-
604 - JIG SAW BLADES NO.16 (5 PCS.) HIT-879339.A11 879339	-
605 - JIG SAW BLADES NO.21 (5 PCS.) HIT-879340.A1 879340	-
606 - JIG SAW BLADES NO.22 (5 PCS.) HIT-879341.A11 879341	-
607 - JIG SAW BLADES NO.97 FOR STAINLESS(5PCS) HIT-963400.A12 963400	-
608 - GUIDE HIT-321593.A3 321593	£28.99	£34.79
609 - SUB BASE (A) SET (STEEL) INCLUD.611 HIT-321992.A4 321992	£33.82	£40.58
610 - SUB BASE (B) SET (PLASTIC) INCLUD.611 HIT-321993.A4 321993	£13.21	£15.85
611 - SPECIAL BOLT HIT-321996.A6 321996	£1.67	£2.00
612 - DUST COLLECTOR HIT-321591.A4 321591	£16.75	£20.10
613 - GREASE (MOLUB-ALLOY NO.777-1) 75G HIT-325149.A7 325149	£18.35	£22.02
614 - SPLINTER GUARD HIT-321590.A3 321590	£3.26	£3.91
