Hitachi / Hikoki CJ120V 120mm Jig Saw Spare Parts

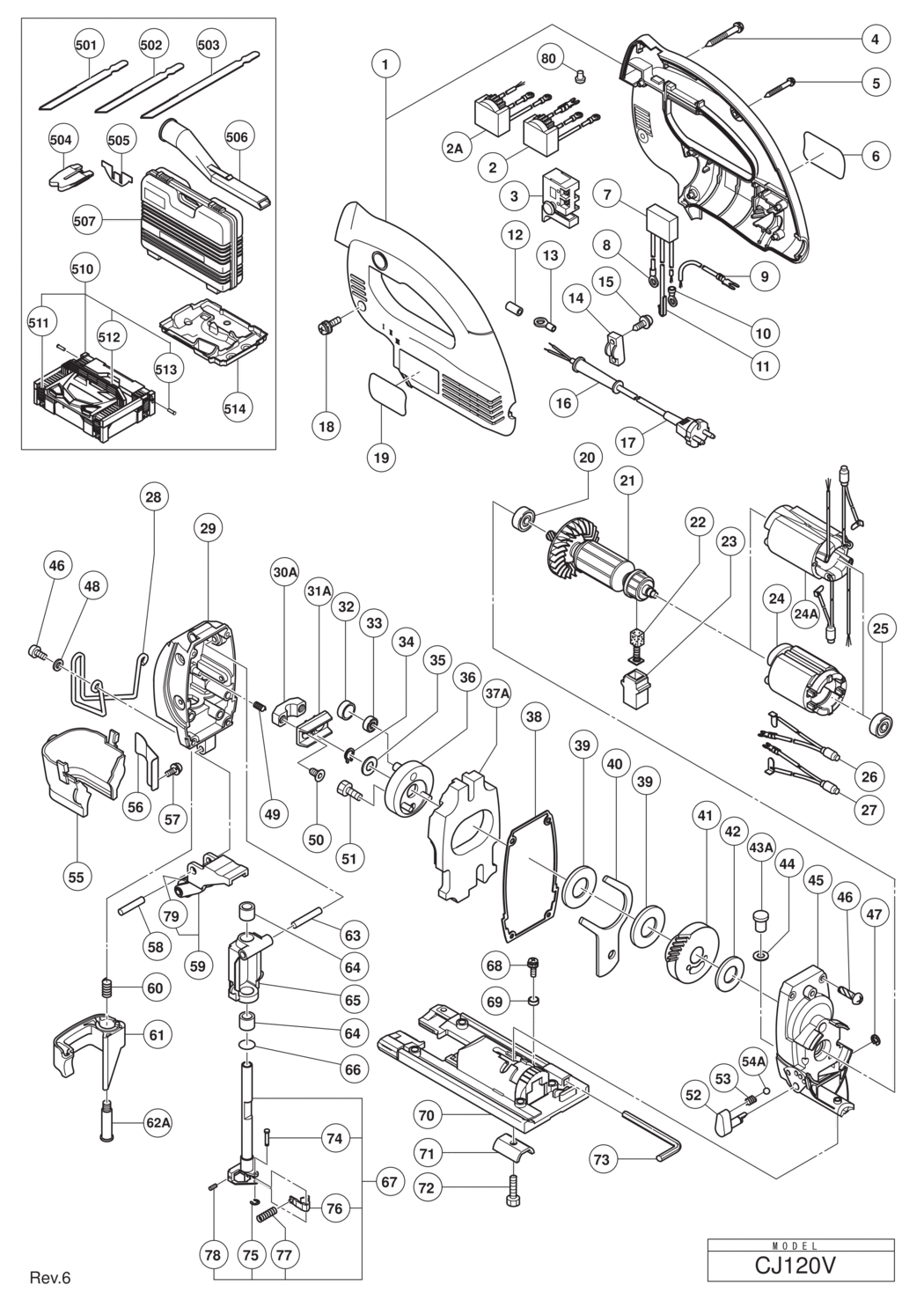

An exploded diagram and spare parts listing for the Hitachi / Hikoki CJ120V 120mm Jig Saw

	Ex VAT	Inc VAT
1 - HOUSING (A).(B) SET HIT-321585.A0 321585	£45.61	£54.73
*2 - CONTROLLER CIRCUIT 100V-110V (TILL 10.2010) FOR GBR (110V) HIT-321589.A0 321589	£68.08	£81.70
*2 - CONTROLLER CIRCUIT 220V-240V (TILL 12.2010) HIT-321588.A1 321588	£41.33	£49.60
*2 - CONTROLLER CIRCUIT 120V FOR USA HIT-321685.A0 321685	-
*2A - CONTROLLER 100V-110V (SINCE 02.2011) HIT-326286.A1 326286	£40.54	£48.65
*2A - CONTROLLER 220V-240V (SINCE 02.2011) HIT-326288.A1 326288	£32.52	£39.03
3 - SWITCH (2P SCREW TYPE) W/LOCK HIT-314887.A0 314887	£15.80	£18.96
4 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK) HIT-305490.A4 305490	£1.67	£2.00
5 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A122 301653	£1.67	£2.00
6 - NAME PLATE HIT-000000.A4267 000000	-
7 - NOISE SUPPRESSOR HIT-994273.A38 994273	£7.30	£8.76
8 - TERMINAL (A) M3.5 (10 PCS.) HIT-960356.A11 960356	£3.64	£4.37
9 - INTERNAL WIRE (GRAY) 260L (TILL 12.2010) HIT-321587.A0 321587	-
10 - TERMINAL HIT-311741.A15 311741	-
11 - EARTH TERMINAL HIT-302488.A2 302488	£1.67	£2.00
12 - TUBE (D) FOR GBR (110V) HIT-981373.A124 981373	£1.67	£2.00
13 - TERMINAL FOR CORD HIT-980063.A69 980063	£1.67	£2.00
14 - CORD CLIP HIT-960266.A97 960266	£1.67	£2.00
15 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A71 984750	£1.67	£2.00
16 - CORD ARMOR D8.8 HIT-953327.A66 953327	£1.67	£2.00
*17 - CORD (CORD ARMOR D8.8) HIT-500234Z.A38 500234Z	-
*17 - CORD (CORD ARMOR D8.8) FOR NOR HIT-500247Z.A9 500247Z	-
*17 - CORD (CORD ARMOR D8.8) FOR SIN HIT-500423Z.A1 500423Z	-
*17 - CORD (CORD ARMOR D8.8) FOR USA HIT-500240Z.A10 500240Z	-
*17 - CORD (CORD ARMOR D8.8) FOR AUS HIT-500439Z.A16 500439Z	-
*17 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500450Z.A0 500450Z	£35.67	£42.80
*17 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500237Z.A11 500237Z	£14.33	£17.20
*17 - CORD (CORD ARMOR D8.8) FOR SUI HIT-500447Z.A12 500447Z	£7.92	£9.51
18 - SEAL LOCK SCREW (W/WASHER) M4X10 HIT-321577.A4 321577	£4.86	£5.83
19 - BRAND LABEL HIT-000000.A4268 000000	-
20 - BALL BEARING 608DDW HIT-608DDW.A3 608DDW	£6.57	£7.88
*21 - ARMATURE ASS'Y 110V-120V INCLUD.20 HIT-360593U.A0 360593U	£63.32	£75.99
*21 - ARMATURE 230V HIT-360593E.A0 360593E	£63.32	£75.99
*21 - ARMATURE 240V HIT-360593F.A1 360593F	-
22 - CARBON BRUSH (1 PAIR) HIT-999041.A35 999041	£5.54	£6.65
23 - BRUSH HOLDER HIT-955203.A4 955203	£4.16	£4.99
*24 - STATOR 110V-120V (TILL 12.2010) HIT-340545C.A0 340545C	£47.46	£56.95
*24 - STATOR 220V-240V (TILL 12.2010) HIT-340545E.A4 340545E	£47.46	£56.95
*24A - STATOR 110V (SINCE 02.2011) FOR GBR (110V) HIT-340818C.A0 340818C	-
*24A - STATOR 220V-240V (SINCE 02.2011) FOR EUROPE HIT-340818E.A0 340818E	-
*24A - STATOR 220V-240V (SINCE 02.2011) FOR SIN HIT-340819E.A0 340819E	-
25 - BALL BEARING 608DD HIT-608DDM.A19 608DDM	£6.35	£7.62
26 - CHOKE COIL (TILL 12.2010) HIT-321609.A0 321609	-
27 - CHOKE COIL (TILL 12.2010) HIT-321608.A0 321608	-
28 - GUARD BAR HIT-321582.A1 321582	£7.38	£8.85
29 - UPPER COVER HIT-321584.A1 321584	£22.71	£27.25
30A - CONNECTOR HOLDER HIT-321572.A1 321572	£10.15	£12.18
31A - CONNECTOR HIT-321570.A0 321570	£20.59	£24.71
32 - CONNECTING PIECE HIT-321569.A1 321569	£13.92	£16.71
33 - NEEDLE BEARING HIT-940917.A3 940917	£10.60	£12.72
34 - RETAINING RING FOR D8 SHAFT HIT-940079.A2 940079	£1.67	£2.00
35 - WASHER (B) HIT-963351.A1 963351	£1.67	£2.00
36 - WEIGHT HOLDER HIT-305742.A1 305742	£15.52	£18.63
37A - BALANCE WEIGHT HIT-321565.A0 321565	-
38 - PACKING HIT-321564.A1 321564	£1.67	£2.00
39 - WASHER (A) HIT-963349.A0 963349	£1.67	£2.00
40 - ORBITAL CAM HIT-305738.A1 305738	£5.22	£6.26
41 - GEAR HIT-321563.A0 321563	£54.77	£65.72
42 - WASHER (A) HIT-957540.A6 957540	£1.67	£2.00
43A - ORBITAL PIN HIT-321988.A1 321988	£4.86	£5.83
44 - FELT HIT-305740.A0 305740	£1.67	£2.00
45 - GEAR COVER HIT-321562.A1 321562	£63.70	£76.44
46 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A21 949217	£1.67	£2.00
47 - RETAINING RING (E-TYPE) FOR D5 SHAFT HIT-673489.A30 673489	£1.67	£2.00
48 - WASHER M4 (10 PCS.) HIT-949423.A42 949423	£1.67	£2.00
49 - SPRING HIT-305752.A0 305752	£1.67	£2.00
50 - SEAL LOCK FLAT HD. SCREW M5X10 HIT-321566.A1 321566	£4.86	£5.83
51 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-305755.A1 305755	£1.67	£2.00
52 - CHANGE KNOB HIT-321578.A0 321578	£15.83	£19.00
53 - SPRING (C) HIT-982454.A11 982454	£1.67	£2.00
*54 - STEEL BALL 5/32 (10 PCS.) HIT-335297.A4 335297	-
55 - CHIP COVER HIT-321583.A1 321583	£6.78	£8.13
56 - FENCE HIT-321592.A1 321592	£4.86	£5.83
57 - MACHINE SCREW (W/SP. WASHER) M4X8 HIT-958523.A6 958523	£1.67	£2.00
58 - NEEDLE D5X19.8 HIT-305592.A3 305592	£1.67	£2.00
59 - ROLLER HOLDER ASS'Y INCLUD.79 HIT-321574.A0 321574	£33.82	£40.58
60 - LEVER SPRING HIT-321580.A1 321580	£1.67	£2.00
61 - LEVER HIT-321581.A0 321581	£6.59	£7.91
62A - LEVER BOLT HIT-325081.A2 325081	£8.92	£10.70
63 - NO LONGER AVAILABLE HIT-321568.A0 321568	-
64 - METAL (C) HIT-941625.A1 941625	£1.67	£2.00
65 - PLUNGER HOLDER ASS'Y INCLUD.64 HIT-321571.A1 321571	£26.92	£32.30
66 - O-RING (P-16) HIT-873095.A6 873095	£1.67	£2.00
67 - PLUNGER ASS'Y INCLUD.74-78 HIT-321567.A1 321567	£62.95	£75.54
68 - MACHINE SCREW (W/WASHER) M4X8 (BLACK) HIT-315500.A9 315500	£1.67	£2.00
69 - RUBBER BUSHING HIT-321576.A4 321576	£1.67	£2.00
70 - BASE HIT-321573.A0 321573	£16.94	£20.33
71 - BASE LOCKER HIT-321575.A0 321575	£8.59	£10.31
72 - HEX. SOCKET HD. BOLT M5X14 (10 PCS.) HIT-949665.A1 949665	£3.15	£3.78
73 - HEX. BAR WRENCH 4MM HIT-944458.A74 944458	£1.67	£2.00
74 - PIN HIT-322539.A0 322539	£4.33	£5.20
75 - RETAINING RING (E-TYPE) FOR D1.2 SHAFT HIT-322540.A1 322540	£1.67	£2.00
76 - SET PIECE HIT-322541.A0 322541	£16.23	£19.48
77 - SET SPRING HIT-322542.A1 322542	£1.67	£2.00
78 - ROLL PIN D2X5 HIT-882519.A0 882519	£1.67	£2.00
79 - BLADE ROLLER HIT-323410.A1 323410	£15.83	£19.00
80 - CONNECTOR 50091 (10 PCS.) (SINCE 02.2011) HIT-959140.A108 959140	£4.98	£5.97
501 - BLADE NO.41 HIT-000000.A4270 000000	-
502 - BLADE NO.123X HIT-000000.A4271 000000	-
503 - BLADE NO.42 HIT-000000.A4272 000000	-
504 - SPLINTER GUARD HIT-321590.A2 321590	£3.26	£3.91
505 - SHUTTER HIT-321586.A0 321586	£3.26	£3.91
506 - DUST COLLECTOR HIT-321591.A5 321591	£16.75	£20.10
507 - CASE HIT-317262.A0 317262	-
510 - CASE ASS'Y (STACKABLE 1) INCLUD.511-513 HIT-337739.A3 337739	-
511 - LATCH HIT-336472.A61 336472	£1.67	£2.00
512 - HANDLE HIT-336473.A13 336473	£6.43	£7.72
513 - HINGE HIT-336474.A61 336474	£1.67	£2.00
514 - INNER TRAY HIT-337740.A2 337740	-
605 - JIG SAW BLADES NO.97 FOR STAINLESS(5PCS) HIT-963400.A9 963400	-
606 - JIG SAW BLADES NO.11 (5 PCS.) HIT-879336.A3 879336	-
607 - JIG SAW BLADES NO.12 (5 PCS.) HIT-879337.A8 879337	-
608 - JIG SAW BLADES NO.15 (5 PCS.) HIT-879338.A3 879338	-
609 - JIG SAW BLADES NO.16 (5 PCS.) HIT-879339.A9 879339	-
610 - JIG SAW BLADES NO.21 (5 PCS.) HIT-879340.A3 879340	-
611 - JIG SAW BLADES NO.22 (5 PCS.) HIT-879341.A9 879341	-
612 - GUIDE HIT-321593.A6 321593	£28.99	£34.79
613 - SUB BASE (A) SET (STEEL) INCLUD.615 HIT-321992.A1 321992	£33.82	£40.58
614 - SUB BASE (B) SET (PLASTIC) INCLUD.615 HIT-321993.A7 321993	£13.21	£15.85
615 - SPECIAL BOLT HIT-321996.A2 321996	£1.67	£2.00
616 - JIG SAW BLADES (LONG) 185L (3PCS.) HIT-321878.A2 321878	-
