Hitachi / Hikoki CJ110MVA Jig Saw Spare Parts

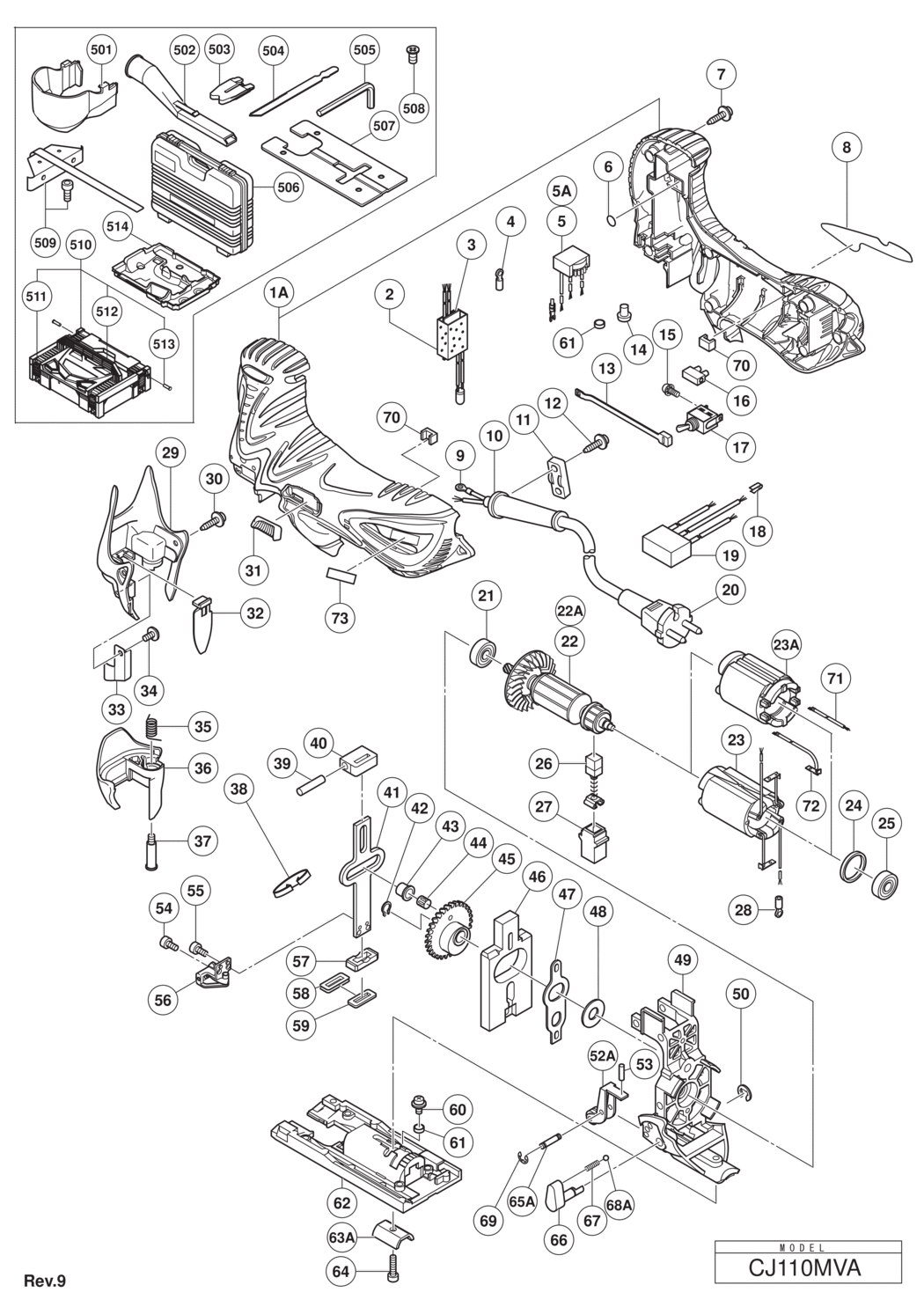

An exploded diagram and spare parts listing for the Hitachi / Hikoki CJ110MVA Jig Saw

	Ex VAT	Inc VAT
1A - HOUSING (A).(B) SET HIT-325419.A0 325419	-
2 - SUPPORT (B) HIT-930153.A14 930153	£1.67	£2.00
*3 - PRINTED CIRCUIT BOARD (LED LIGHT) HIT-325415.A0 325415	-
*3 - PRINTED CIRCUIT BOARD (LED LIGHT) FOR USA HIT-325416.A0 325416	-
4 - TERMINAL (A) M3.5 (10 PCS.) HIT-960356.A9 960356	£3.64	£4.37
*5 - CONTROLLER 120V HIT-325417.A0 325417	-
*5 - CONTROLLER 230V-240V SINCE 12.2005 FOR NZL HIT-325418.A0 325418	-
*5 - CONTROLLER 230V-240V (TILL 12.2009 HIT-325418.A1 325418	-
*5 - CONTROLLER 230V-240V NZL HIT-325418.A2 325418	-
5A - CONTROLLER CIRCUIT 230V-240V SINCE 1.2010 HIT-321597.A1 321597	-
*5A - CONTROLLER CIRCUIT 230V-240V NZL HIT-321597.A2 321597	-
6 - O-RING (P-6) HIT-984528.A9 984528	£1.67	£2.00
7 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A118 301653	£1.67	£2.00
8 - NAME PLATE HIT-000000.A4290 000000	-
9 - TERMINAL (A) M3.5 (10 PCS.) HIT-960356.A8 960356	£3.64	£4.37
10 - CORD ARMOR D8.8 HIT-953327.A68 953327	£1.67	£2.00
11 - CORD CLIP HIT-937631.A175 937631	£1.67	£2.00
12 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A63 984750	£1.67	£2.00
13 - SLIDE BAR HIT-321594.A1 321594	-
14 - CONNECTOR 50091 (10 PCS.) SINCE 12.2005 FOR NZL HIT-959140.A110 959140	£4.98	£5.97
*14 - CONNECTOR 50091 (10 PCS.) (TILL 12.2009 HIT-959140.A111 959140	£4.98	£5.97
*14 - CONNECTOR 50091 (10 PCS.) NZL HIT-959140.A112 959140	£4.98	£5.97
15 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A2 305499	£1.67	£2.00
16 - PILLAR TERMINAL HIT-938307.A65 938307	£3.28	£3.93
17 - SWITCH (1P SCREW TYPE) HIT-955509.A3 955509	£12.72	£15.27
18 - EARTH TERMINAL EXCEPT FOR USA HIT-302488.A6 302488	£1.67	£2.00
19 - NOISE SUPPRESSOR EXCEPT FOR USA HIT-325566.A7 325566	£11.98	£14.38
*20 - CORD (CORD ARMOR D8.8) HIT-500234Z.A40 500234Z	-
*20 - CORD (CORD ARMOR D8.8) FOR FIN HIT-500247Z.A13 500247Z	-
*20 - CORD (CORD ARMOR D8.8) FOR NZL HIT-500439Z.A19 500439Z	-
*20 - CORD (CORD ARMOR D8.8) FOR USA HIT-500240Z.A14 500240Z	-
*20 - CORD (CORD ARMOR D8.8) FOR SUI HIT-500447Z.A8 500447Z	£7.92	£9.51
21 - BALL BEARING 608VVC2PS2L HIT-608VVM.A11 608VVM	£5.70	£6.84
*22 - ARMATURE ASS'Y 120V INCLUD.21 HIT-360764U.A1 360764U	-
*22 - ARMATURE 230V SINCE 12.2005 FOR NZL HIT-360764E.A1 360764E	£67.72	£81.26
*22 - ARMATURE 230V (TILL 12.2009 HIT-360764E.A2 360764E	£67.72	£81.26
*22 - ARMATURE 230V NZL HIT-360764E.A3 360764E	£67.72	£81.26
*22 - ARMATURE 240V HIT-360764F.A0 360764F	-
22A - ARMATURE 220V-230V SINCE 1.2010 HIT-360741E.A1 360741E	£87.80	£105.36
*23 - STATOR 120V HIT-340666D.A2 340666D	-
*23 - STATOR 230V-240V SINCE 12.2005 FOR NZL HIT-340666E.A0 340666E	£36.46	£43.75
*23 - STATOR 230V-240V (TILL 12.2009 HIT-340666E.A1 340666E	£36.46	£43.75
*23 - STATOR 230V-240V NZL HIT-340666E.A2 340666E	£36.46	£43.75
23A - STATOR 220V-240V SINCE 1.2010 HIT-340545E.A2 340545E	£47.46	£56.95
*23A - STATOR 220V-240V NZL HIT-340545E.A3 340545E	£47.46	£56.95
24 - RUBBER RING HIT-323420.A0 323420	£1.67	£2.00
25 - BALL BEARING 608VVC2PS2L HIT-608VVM.A12 608VVM	£5.70	£6.84
26 - CARBON BRUSH (1 PAIR) HIT-999041.A40 999041	£5.54	£6.65
27 - BRUSH HOLDER HIT-955203.A12 955203	£4.16	£4.99
*28 - TERMINAL HIT-311741.A16 311741	-
*28 - TERMINAL (A) M3.5 (10 PCS.) FOR USA HIT-960356.A10 960356	£3.64	£4.37
29 - FRONT COVER HIT-325078.A0 325078	£22.51	£27.01
30 - TAPPING SCREW (W/FLANGE) D4X12 (BLACK) HIT-325083.A7 325083	£1.67	£2.00
31 - SLIDE KNOB HIT-325414.A0 325414	-
32 - LIGHT BAR HIT-325082.A0 325082	£1.67	£2.00
33 - FENCE HIT-321592.A3 321592	£4.86	£5.83
34 - MACHINE SCREW (W/SP. WASHER) M4X8 (BLACK HIT-325079.A3 325079	£1.67	£2.00
35 - LEVER SPRING HIT-321580.A2 321580	£1.67	£2.00
36 - LEVER HIT-325080.A0 325080	£8.66	£10.39
37 - LEVER BOLT HIT-325081.A1 325081	£8.92	£10.70
38 - PLATE SPRING HIT-325071.A5 325071	£4.33	£5.20
39 - PIN D6 HIT-983564.A4 983564	£3.64	£4.37
40 - PLUNGER HOLDER (A) HIT-325070.A0 325070	£8.66	£10.39
41 - PLUNGER HIT-325072.A0 325072	£17.85	£21.42
42 - RETAINING RING FOR D7 SHAFT HIT-994251.A5 994251	£1.67	£2.00
43 - CONNECTING PIECE HIT-325069.A1 325069	£11.12	£13.35
44 - NEEDLE BEARING HIT-325242.A4 325242	£6.50	£7.80
45 - GEAR HIT-325068.A0 325068	£33.56	£40.27
46 - BALANCE WEIGHT HIT-325067.A1 325067	£18.83	£22.60
47 - ORBITAL CAM HIT-325066.A0 325066	£6.50	£7.80
48 - WASHER (A) HIT-957540.A5 957540	£1.67	£2.00
49 - GEAR HOLDER HIT-325061.A1 325061	£55.62	£66.75
50 - RETAINING RING (E-TYPE) FOR D5 SHAFT HIT-673489.A29 673489	£1.67	£2.00
52A - ROLLER HOLDER SET HIT-326270.A0 326270	£20.22	£24.27
53 - NEEDLE ROLLER HIT-325062.A0 325062	£1.67	£2.00
54 - SEAL LOCK HEX. SOCKET HD. BOLT M3X8 HIT-325241.A16 325241	£1.67	£2.00
55 - SEAL LOCK HEX. SOCKET HD. BOLT M3X6 HIT-325077.A11 325077	£1.67	£2.00
56 - BLADE HOLDER HIT-325076.A0 325076	£20.22	£24.27
57 - PLUNGER HOLDER (B) HIT-325073.A1 325073	£4.33	£5.20
58 - PACKING COVER HIT-325075.A1 325075	£1.67	£2.00
59 - PACKING HIT-325074.A0 325074	£1.67	£2.00
60 - MACHINE SCREW (W/WASHER) M4X8 (BLACK) HIT-315500.A12 315500	£1.67	£2.00
61 - RUBBER BUSHING TILL 12.2009 HIT-321576.A7 321576	£1.67	£2.00
*61 - RUBBER BUSHING SINCE 1.2010 HIT-321576.A8 321576	£1.67	£2.00
62 - BASE HIT-321573.A2 321573	£16.94	£20.33
63A - BASE LOCKER HIT-339663.A5 339663	£1.67	£2.00
64 - HEX. SOCKET HD. BOLT M5X14 (10 PCS.) HIT-949665.A0 949665	£3.15	£3.78
65A - PIN HIT-328331.A4 328331	£4.84	£5.81
66 - CHANGE KNOB HIT-325065.A1 325065	£16.23	£19.48
67 - SPRING (C) HIT-982454.A14 982454	£1.67	£2.00
68A - STEEL BALL 5/32 (10 PCS.) HIT-335297.A3 335297	-
69 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A24 872971	£1.67	£2.00
70 - STATOR SPACER SINCE 10.2010 HIT-326297.A1 326297	-
71 - INTERNAL WIRE SINCE 1.2010 HIT-321610.A1 321610	-
*71 - INTERNAL WIRE NZL HIT-321610.A2 321610	-
72 - INTERNAL WIRE (BLUE) 50L SINCE 1.2010 HIT-325088.A1 325088	-
*72 - INTERNAL WIRE (BLUE) 50L NZL HIT-325088.A2 325088	-
73 - BRAND LABEL HIT-000000.A4291 000000	-
501 - CHIP COVER FOR EUROPE HIT-325096.A1 325096	£4.12	£4.95
502 - DUST COLLECTOR FOR EUROPE HIT-321591.A3 321591	£16.75	£20.10
503 - SPLINTER GUARD FOR EUROPE HIT-321590.A4 321590	£3.26	£3.91
504 - JIG SAW BLADES NO.41 (5 PCS.) HIT-879357.A6 879357	-
505 - HEX. BAR WRENCH 4MM HIT-944458.A75 944458	£1.67	£2.00
506 - CASE HIT-325090.A0 325090	£86.86	£104.23
507 - SUB BASE (B) SET (PLASTIC) INCLUD.508 FOR FRA HIT-321993.A5 321993	£13.21	£15.85
508 - SPECIAL BOLT FOR FRA HIT-321996.A4 321996	£1.67	£2.00
509 - GUIDE FOR FRA HIT-321593.A4 321593	£28.99	£34.79
510 - CASE ASS'Y (STACKABLE 1) INCLUD.511-513 HIT-337739.A4 337739	-
511 - LATCH HIT-336472.A60 336472	£1.67	£2.00
512 - HANDLE HIT-336473.A14 336473	£6.43	£7.72
513 - HINGE HIT-336474.A60 336474	£1.67	£2.00
514 - INNER TRAY HIT-337740.A1 337740	-
601 - JIG SAW BLADES NO.97 FOR STAINLESS(5PCS) HIT-963400.A11 963400	-
602 - JIG SAW BLADES NO.11 (5 PCS.) HIT-879336.A0 879336	-
603 - JIG SAW BLADES NO.12 (5 PCS.) HIT-879337.A11 879337	-
604 - JIG SAW BLADES NO.15 (5 PCS.) HIT-879338.A0 879338	-
605 - JIG SAW BLADES NO.16 (5 PCS.) HIT-879339.A12 879339	-
606 - JIG SAW BLADES NO.21 (5 PCS.) HIT-879340.A0 879340	-
607 - JIG SAW BLADES NO.22 (5 PCS.) HIT-879341.A12 879341	-
608 - JIG SAW BLADES (LONG) 185L (3PCS.) HIT-321878.A4 321878	-
609 - SUB BASE (A) SET (STEEL) INCLUD.610 HIT-321992.A3 321992	£33.82	£40.58
610 - SPECIAL BOLT HIT-321996.A5 321996	£1.67	£2.00
611 - GUIDE HIT-321593.A5 321593	£28.99	£34.79
612 - GREASE (MOLUB-ALLOY NO.777-1) 75G HIT-325149.A6 325149	£18.35	£22.02
