Hitachi / Hikoki CJ110MV 110mm Jig Saw Spare Parts

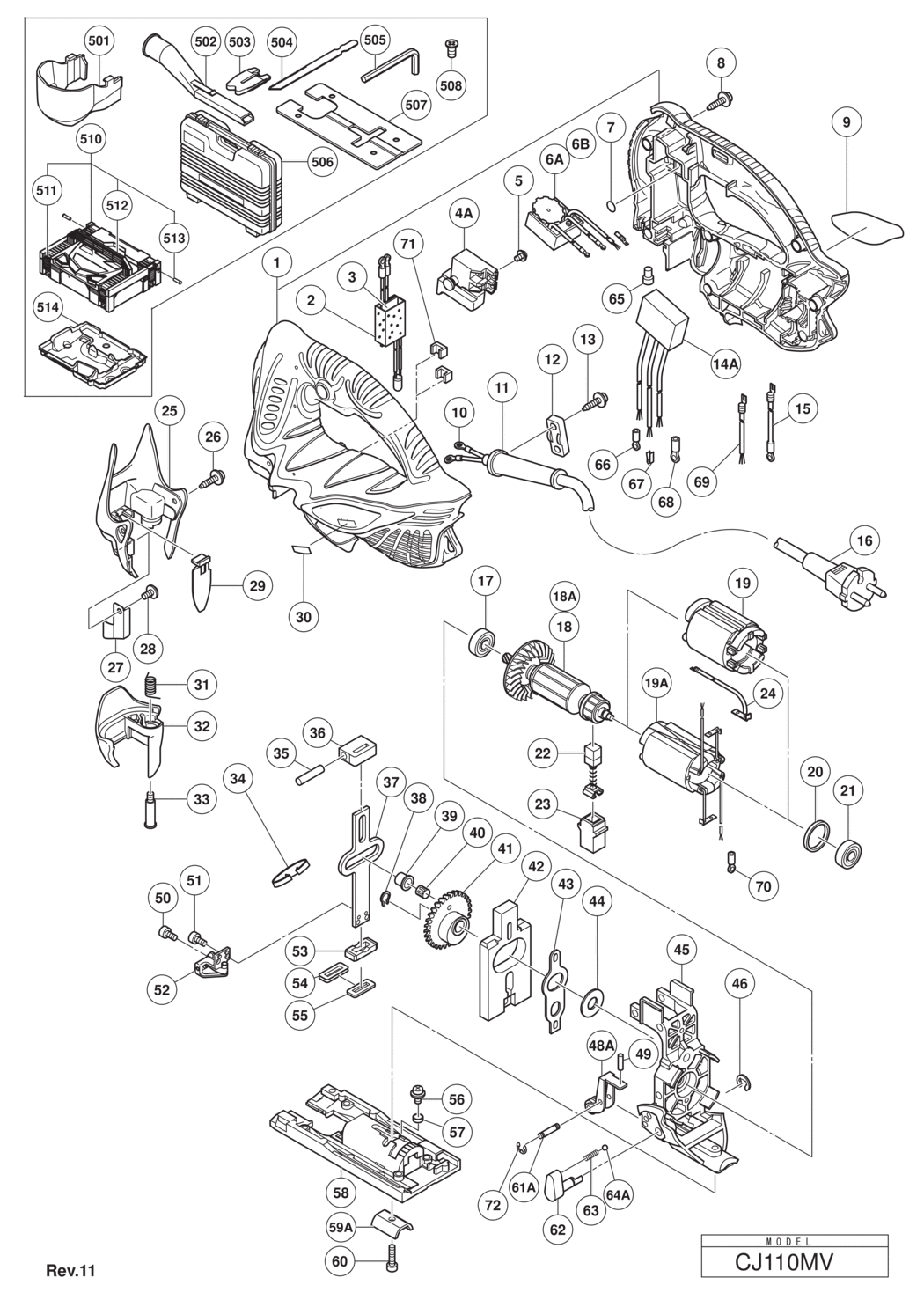

An exploded diagram and spare parts listing for the Hitachi / Hikoki CJ110MV 110mm Jig Saw

	Ex VAT	Inc VAT
1 - HOUSING (A).(B) SET HIT-325097.A0 325097	£55.62	£66.75
2 - SUPPORT (B) HIT-930153.A1 930153	£1.67	£2.00
*3 - PRINTED CIRCUIT BOARD (LED LIGHT) HIT-325091.A0 325091	£14.78	£17.73
*3 - PRINTED CIRCUIT BOARD (LED LIGHT) FOR TPE HIT-325084.A0 325084	£14.78	£17.73
*3 - PRINTED CIRCUIT BOARD 127V FOR MEX HIT-328663.A0 328663	-
4A - TRIGGER SWITCH HIT-339021.A5 339021	-
5 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A18 305499	£1.67	£2.00
*6 - CONTROLLER CIRCUIT 100V-110V TILL 12.2005 HIT-321589.A1 321589	£68.08	£81.70
*6 - CONTROLLER 120V TILL 11.2005 HIT-325093.A0 325093	-
*6A - CONTROLLER 100V-110V SINCE 12.2005 HIT-326286.A0 326286	£40.54	£48.65
*6A - CONTROLLER 120V SINCE 12.2005 HIT-326287.A0 326287	-
*6A - CONTROLLER 220V-240V (SINCE 12.2005) FOR NZL HIT-326288.A0 326288	£32.52	£39.03
6B - CONTROLLER CIRCUIT 220V-240V (TILL 11.2005) FOR NZL HIT-321588.A0 321588	£41.33	£49.60
7 - O-RING (P-6) HIT-984528.A0 984528	£1.67	£2.00
8 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A211 301653	£1.67	£2.00
9 - NAME PLATE HIT-000000.A2905 000000	-
10 - TERMINAL HIT-980063.A64 980063	£1.67	£2.00
*11 - CORD ARMOR D8.8 HIT-953327.A124 953327	£1.67	£2.00
*11 - CORD ARMOR D10.1 HIT-938051.A54 938051	£1.67	£2.00
12 - CORD CLIP HIT-937631.A17 937631	£1.67	£2.00
13 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A259 984750	£1.67	£2.00
*14A - NOISE SUPPRESSOR FOR TPE HIT-325566.A3 325566	£11.98	£14.38
15 - INTERNAL WIRE (GRAY) 260L (TILL 11.2005) FOR USA HIT-325095.A0 325095	-
*16 - CORD (CORD ARMOR D8.8) HIT-500234Z.A10 500234Z	-
*16 - CORD (CORD ARMOR D8.8) FOR SYR HIT-500447Z.A1 500447Z	£7.92	£9.51
*16 - CORD (CORD ARMOR D8.8) FOR THA HIT-500455Z.A4 500455Z	-
*16 - CORD (CORD ARMOR D8.8) FOR SIN HIT-500423Z.A29 500423Z	-
*16 - CORD (CORD ARMOR D8.8) FOR FIN HIT-500247Z.A28 500247Z	-
*16 - CORD (CORD ARMOR D8.8) FOR NZL HIT-500439Z.A37 500439Z	-
*16 - CORD (CORD ARMOR D8.8) FOR USA HIT-500240Z.A2 500240Z	-
*16 - CORD (CORD ARMOR D8.8) FOR HKG HIT-500450Z.A23 500450Z	£35.67	£42.80
*16 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A18 500461Z	£15.56	£18.67
*16 - CORD (CORD ARMOR D10.1) FOR TPE HIT-323974.A13 323974	-
*16 - CORD (CORD ARMOR D8.8) FOR ARG HIT-500484Z.A0 500484Z	-
*16 - CORD (CORD ARMOR D8.8) FOR BRA HIT-500487Z.A9 500487Z	-
17 - BALL BEARING 608VVC2PS2L HIT-608VVM.A200 608VVM	£5.70	£6.84
*18 - ARMATURE 110V (TILL 11.2005 SINCE 1.2010 TILL 9.2010) HIT-360741C.A0 360741C	£87.80	£105.36
*18 - ARMATURE ASS'Y 120V INCLUD.17 HIT-360741U.A0 360741U	-
*18 - ARMATURE 220V-230V (TILL 11.2005) FOR NZL (TILL 11.2005 HIT-360741E.A0 360741E	£87.80	£105.36
*18 - ARMATURE 240V (TILL 11.2005) FOR AUS HIT-360741F.A0 360741F	-
*18A - ARMATURE 110V SINCE 12.2005 HIT-360764C.A0 360764C	£87.80	£105.36
*18A - ARMATURE ASS'Y 120V SINCE 12.2005 INCLUD.17 HIT-360764U.A0 360764U	-
*18A - ARMATURE 230V (SINCE 12.2005) FOR NZL HIT-360764E.A0 360764E	£67.72	£81.26
*18A - ARMATURE 240V (SINCE 12.2005) FOR AUS HIT-360764F.A1 360764F	-
*19 - STATOR 110V-120V (TILL 11.2005 SINCE 1.2010 TILL 9.2010) HIT-340545C.A2 340545C	£47.46	£56.95
*19 - STATOR 120V FOR USA HIT-340545D.A0 340545D	-
*19 - STATOR 220V-240V (TILL 11.2005) FOR NZL HIT-340545E.A0 340545E	£47.46	£56.95
*19A - STATOR 110V SINCE 12.2005 HIT-340666C.A0 340666C	£47.46	£56.95
*19A - STATOR 120V SINCE 12.2005 FOR USA HIT-340666D.A0 340666D	-
*19A - STATOR 120V (SINCE 04.2007 FOR MEX) HIT-340666D.A1 340666D	-
*19A - STATOR 230V-240V (SINCE 12.2005) FOR NZL HIT-340666E.A3 340666E	£36.46	£43.75
20 - RUBBER RING HIT-323420.A4 323420	£1.67	£2.00
21 - BALL BEARING 608VVC2PS2L HIT-608VVM.A201 608VVM	£5.70	£6.84
22 - CARBON BRUSH (1 PAIR) HIT-999041.A54 999041	£5.54	£6.65
23 - BRUSH HOLDER HIT-955203.A34 955203	£4.16	£4.99
24 - INTERNAL WIRE (BLUE) 50L (TILL 11.2005) FOR NZL HIT-325088.A0 325088	-
25 - FRONT COVER HIT-325078.A1 325078	£22.51	£27.01
26 - TAPPING SCREW (W/FLANGE) D4X12 (BLACK) HIT-325083.A0 325083	£1.67	£2.00
27 - FENCE HIT-321592.A0 321592	£4.86	£5.83
28 - MACHINE SCREW (W/SP. WASHER) M4X8 (BLACK HIT-325079.A0 325079	£1.67	£2.00
29 - LIGHT BAR HIT-325082.A1 325082	£1.67	£2.00
30 - MODEL NAME PLATE HIT-000000.A2922 000000	-
31 - LEVER SPRING HIT-321580.A7 321580	£1.67	£2.00
32 - LEVER HIT-325080.A1 325080	£8.66	£10.39
33 - LEVER BOLT HIT-325081.A0 325081	£8.92	£10.70
34 - PLATE SPRING HIT-325071.A0 325071	£4.33	£5.20
35 - PIN D6 HIT-983564.A6 983564	£3.64	£4.37
36 - PLUNGER HOLDER (A) HIT-325070.A5 325070	£8.66	£10.39
37 - PLUNGER HIT-325072.A1 325072	£17.85	£21.42
38 - RETAINING RING FOR D7 SHAFT HIT-994251.A8 994251	£1.67	£2.00
39 - CONNECTING PIECE HIT-325069.A0 325069	£11.12	£13.35
40 - NEEDLE BEARING HIT-325242.A6 325242	£6.50	£7.80
41 - GEAR HIT-325068.A1 325068	£33.56	£40.27
42 - BALANCE WEIGHT HIT-325067.A0 325067	£18.83	£22.60
43 - ORBITAL CAM HIT-325066.A1 325066	£6.50	£7.80
44 - WASHER (A) HIT-957540.A0 957540	£1.67	£2.00
45 - GEAR HOLDER HIT-325061.A0 325061	£55.62	£66.75
46 - RETAINING RING (E-TYPE) FOR D5 SHAFT HIT-673489.A2 673489	£1.67	£2.00
48A - ROLLER HOLDER SET HIT-326270.A1 326270	£20.22	£24.27
49 - NEEDLE ROLLER HIT-325062.A1 325062	£1.67	£2.00
50 - SEAL LOCK HEX. SOCKET HD. BOLT M3X8 HIT-325241.A8 325241	£1.67	£2.00
51 - SEAL LOCK HEX. SOCKET HD. BOLT M3X6 HIT-325077.A0 325077	£1.67	£2.00
52 - BLADE HOLDER HIT-325076.A5 325076	£20.22	£24.27
53 - PLUNGER HOLDER (B) HIT-325073.A0 325073	£4.33	£5.20
54 - PACKING COVER HIT-325075.A0 325075	£1.67	£2.00
55 - PACKING HIT-325074.A1 325074	£1.67	£2.00
56 - MACHINE SCREW (W/WASHER) M4X8 (BLACK) HIT-315500.A13 315500	£1.67	£2.00
57 - RUBBER BUSHING HIT-321576.A10 321576	£1.67	£2.00
58 - BASE HIT-321573.A8 321573	£16.94	£20.33
59A - BASE LOCKER HIT-339663.A2 339663	£1.67	£2.00
60 - HEX. SOCKET HD. BOLT M5X14 (10 PCS.) HIT-949665.A16 949665	£3.15	£3.78
61A - PIN HIT-328331.A5 328331	£4.84	£5.81
62 - CHANGE KNOB HIT-325065.A0 325065	£16.23	£19.48
63 - SPRING (C) HIT-982454.A21 982454	£1.67	£2.00
64A - STEEL BALL 5/32 (10 PCS.) HIT-335297.A6 335297	-
65 - CONNECTOR 50091 (10 PCS.) (SINCE 12.2005) FOR NZL HIT-959140.A43 959140	£4.98	£5.97
66 - TERMINAL (A) M3.5 (10 PCS.) FOR TPE HIT-960356.A20 960356	£3.64	£4.37
67 - EARTH TERMINAL FOR TPE HIT-302488.A9 302488	£1.67	£2.00
68 - TERMINAL FOR TPE HIT-311741.A11 311741	-
69 - INTERNAL WIRE (GRAY) 260L (TILL 11.2005) FOR NZL HIT-321587.A1 321587	-
70 - TERMINAL (A) M3.5 (10 PCS.) (SINCE 12.2005) FOR USA HIT-960356.A21 960356	£3.64	£4.37
71 - STATOR SPACER (SINCE 12.2005) FOR NZL HIT-326297.A0 326297	-
72 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A23 872971	£1.67	£2.00
501 - CHIP COVER FOR EUROPE HIT-325096.A0 325096	£4.12	£4.95
502 - DUST COLLECTOR FOR EUROPE HIT-321591.A7 321591	£16.75	£20.10
503 - SPLINTER GUARD FOR EUROPE HIT-321590.A0 321590	£3.26	£3.91
504 - JIG SAW BLADES NO.41 (5 PCS.) HIT-879357.A8 879357	-
505 - HEX. BAR WRENCH 4MM HIT-944458.A77 944458	£1.67	£2.00
506 - CASE EXCEPT FOR USA HIT-325090.A1 325090	£86.86	£104.23
507 - SUB BASE (B) SET (PLASTIC) INCLUD.508 HIT-321993.A8 321993	£13.21	£15.85
508 - SPECIAL BOLT HIT-321996.A0 321996	£1.67	£2.00
510 - CASE ASS'Y (STACKABLE 1) INCLUD.511-513 HIT-337739.A5 337739	-
511 - LATCH HIT-336472.A59 336472	£1.67	£2.00
512 - HANDLE HIT-336473.A15 336473	£6.43	£7.72
513 - HINGE HIT-336474.A59 336474	£1.67	£2.00
514 - INNER TRAY HIT-337740.A0 337740	-
601 - JIG SAW BLADES NO.97 FOR STAINLESS(5PCS) HIT-963400.A8 963400	-
602 - JIG SAW BLADES NO.11 (5 PCS.) HIT-879336.A4 879336	-
603 - JIG SAW BLADES NO.12 (5 PCS.) HIT-879337.A7 879337	-
604 - JIG SAW BLADES NO.15 (5 PCS.) HIT-879338.A4 879338	-
605 - JIG SAW BLADES NO.16 (5 PCS.) HIT-879339.A8 879339	-
606 - JIG SAW BLADES NO.21 (5 PCS.) HIT-879340.A4 879340	-
607 - JIG SAW BLADES NO.22 (5 PCS.) HIT-879341.A8 879341	-
608 - JIG SAW BLADES (LONG) 185L (3PCS.) HIT-321878.A1 321878	-
609 - SUB BASE (A) SET (STEEL) INCLUD.610 HIT-321992.A0 321992	£33.82	£40.58
610 - SPECIAL BOLT HIT-321996.A1 321996	£1.67	£2.00
611 - GUIDE HIT-321593.A8 321593	£28.99	£34.79
612 - GREASE (MOLUB-ALLOY NO.777-1) 75G HIT-325149.A8 325149	£18.35	£22.02
