Hitachi / Hikoki CH78EC3 Engine Hedge Trimmer Spare Parts

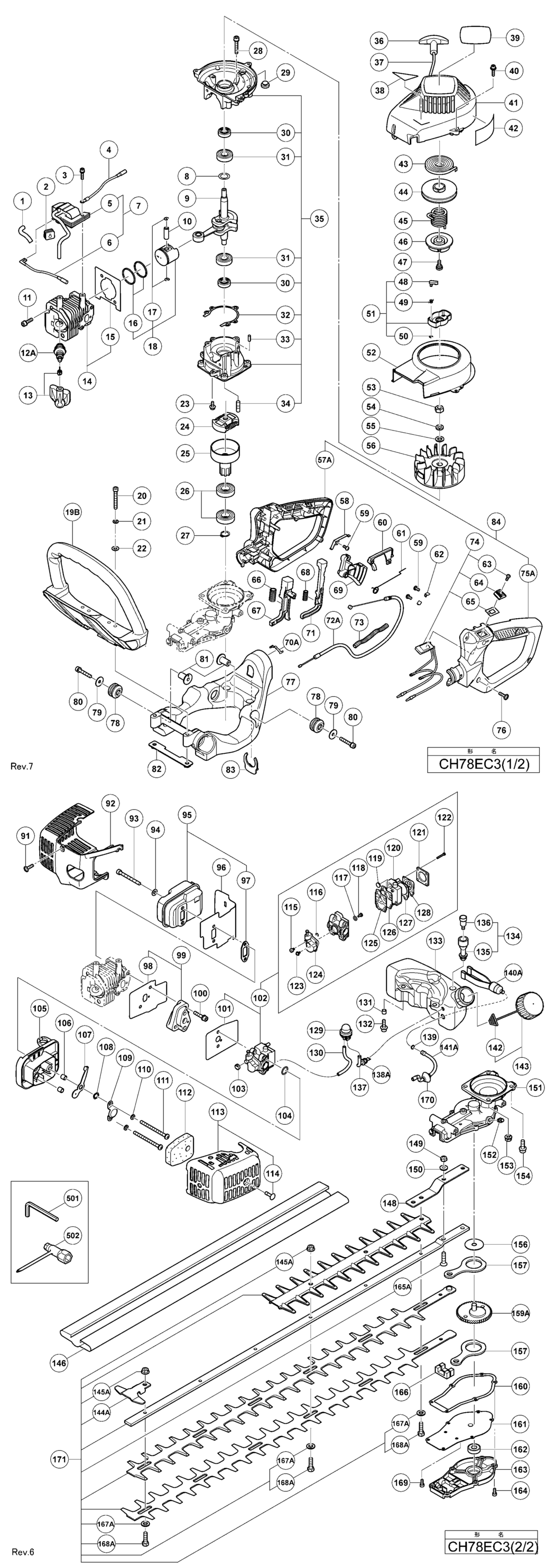

An exploded diagram and spare parts listing for the Hitachi / Hikoki CH78EC3 Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - INSULATOR TUBE 50L HIT-6684597.A25 6684597	-
2 - GROMMET HIT-6688050.A29 6688050	£1.67	£2.00
3 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A22 6684599	-
4 - CORD HIT-6688477.A2 6688477	£8.18	£9.81
6 - CORD 200M HIT-6687918.A0 6687918	-
*8 - GEAR SHAFT SHIM 0.20 HIT-6684604.A62 6684604	-
*8 - GEAR SHAFT SHIM 0.30 HIT-6684605.A19 6684605	-
9 - CRANK SHAFT COMP. HIT-6686205.A3 6686205	£145.70	£174.84
10 - PISTON PIN HIT-6684591.A60 6684591	£3.29	£3.95
11 - HEX.HOLE BOLT M5X18/S HIT-6684586.A75 6684586	-
12A - SPARK PLUG ASS'Y BPMR6A HIT-6699319.A17 6699319	-
13 - SPARK PLUG CAP HIT-6687476.A6 6687476	-
14 - CYLINDER ASS'Y INCLUD.15 HIT-6685481.A5 6685481	£68.00	£81.60
15 - CYLINDER GASKET HIT-6685744.A0 6685744	£1.67	£2.00
16 - PISTON RING HIT-6684588.A16 6684588	£6.38	£7.66
17 - PISTON PIN CIRCLIP HIT-6686028.A10 6686028	-
18 - PISTON ASS'Y INCLUD.16 HIT-6685893.A1 6685893	£34.72	£41.67
19B - HANDLE HIT-6699079.A22 6699079	£8.55	£10.26
20 - HEX. HOLE BOLT 5X40 HIT-6695054.A14 6695054	£1.67	£2.00
21 - SPRING WASHER 5 HIT-6684834.A16 6684834	£1.67	£2.00
22 - WASHER M5 (BLACK) HIT-6684918.A28 6684918	£1.67	£2.00
23 - BOLT 4X12PS HIT-6695441.A1 6695441	-
24 - CLUTCH HIT-6688494.A2 6688494	£14.82	£17.78
25 - CLUTCH DRUM COMP. HIT-6688570.A15 6688570	£22.90	£27.48
26 - BALL BEARING #6002Z 2 HIT-6695538.A17 6695538	£12.57	£15.08
27 - STOP RING C-15 1 HIT-6695285.A35 6695285	£1.67	£2.00
28 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A66 6684786	£1.67	£2.00
30 - OIL SEAL TB 12227 HIT-6684607.A82 6684607	£4.07	£4.88
31 - BALL BEARING 6001 C3 HIT-6684608.A120 6684608	£5.70	£6.84
32 - CRANK CASE GASKET HIT-6686720.A17 6686720	-
33 - KNOCK PIN 4X12 HIT-6695521.A40 6695521	-
34 - STUD BOLT 6X22 HIT-6686771.A21 6686771	-
35 - CRANK CASE ASS'Y INCLUD.30-34 HIT-6686574.A2 6686574	-
36 - STARTER HANDLE HIT-6693237.A5 6693237	£4.55	£5.46
37 - ROPE 3X890 HIT-6693172.A11 6693172	£3.70	£4.44
38 - BRAND LABEL HIT-000000.A3990 000000	-
39 - NAME PLATE HIT-000000.A3991 000000	-
40 - HEX.HOLE BOLT 4X18PS HIT-6695502.A8 6695502	£1.67	£2.00
41 - FAN CASE COMP. HIT-6687014.A11 6687014	£21.02	£25.23
42 - CAUTION MARK (A) HIT-000000.A3992 000000	-
43 - RECOIL SPRING HIT-6684675.A89 6684675	£8.82	£10.58
44 - STARTER ROPE REEL HIT-6693072.A4 6693072	£9.60	£11.52
45 - DAMPER SPRING HIT-6684677.A58 6684677	£6.66	£7.99
46 - CAM PLATE HIT-6684678.A10 6684678	£5.17	£6.20
47 - SET SCREW HIT-6684679.A75 6684679	£2.98	£3.57
48 - STARTER PAWL HIT-6684685.A55 6684685	£5.07	£6.08
49 - STARTER PAWL SPRING HIT-6684684.A63 6684684	£3.29	£3.95
50 - D4E RETAINING RING HIT-6685101.A35 6685101	-
51 - STARTER PULLEY ASS'Y INCLUD.48-50 HIT-6684681.A55 6684681	£18.16	£21.79
52 - DEFLECTOR HIT-6687209.A4 6687209	-
53 - HEX. NUT M8 HIT-6684612.A35 6684612	-
54 - S.WASHER 8 HIT-6684971.A30 6684971	-
55 - BOLT WASHER M8 HIT-6684611.A81 6684611	-
56 - MAGNETO ROTOR COMP. HIT-6687389.A3 6687389	-
57A - HANDLE A HIT-6698868.A2 6698868	-
58 - EARTH TERMINAL HIT-6696350.A4 6696350	-
59 - TAPPING SCREW D3X6 HIT-696352.A11 696352	-
60 - TRIGGER LOCKOUT HIT-6696344.A9 6696344	£2.84	£3.41
61 - THROTTLE LEVER SPRING HIT-6696345.A23 6696345	£2.84	£3.41
62 - TAB TERMINAL HIT-6696355.A3 6696355	-
63 - SCREW 3X10 HIT-6684913.A29 6684913	£1.67	£2.00
64 - BUTTON STOP HIT-6688366.A15 6688366	£1.67	£2.00
65 - STOP BUTTON MARK HIT-6694588.A7 6694588	£2.98	£3.57
66 - SPRING (A) HIT-6696348.A25 6696348	-
67 - LOCK LEVER HIT-6696346.A10 6696346	-
68 - SPRING (B) HIT-6696349.A1 6696349	-
69 - THROTTLE LEVER HIT-6696343.A1 6696343	£2.84	£3.41
70A - CLICK SPRING HIT-6698784.A0 6698784	-
71 - RELEASE LEVER HIT-6696347.A1 6696347	-
72A - THROTTLE WIRE HIT-6698828.A4 6698828	£4.45	£5.34
73 - PROTECTION TUBE 150L HIT-6687524.A3 6687524	-
74 - STOP SWITCH ASS'Y (A) INCLUD.63-65 HIT-6696354.A1 6696354	£20.78	£24.93
75A - HANDLE B HIT-6698869.A1 6698869	-
76 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A12 305812	£1.67	£2.00
77 - FRAME HIT-6696363.A2 6696363	£19.04	£22.85
78 - DAMPER B HIT-6688412.A17 6688412	£1.67	£2.00
79 - BRAKE SHAFT WASHER HIT-6689680.A7 6689680	£1.67	£2.00
80 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A19 6684786	£1.67	£2.00
81 - DAMPER COLLAR B HIT-6688485.A17 6688485	£1.67	£2.00
82 - HANDLE SUPPORT COMP. HIT-6686111.A5 6686111	£4.81	£5.77
83 - CLIP HIT-6696359.A13 6696359	£2.84	£3.41
84 - NO LONGER AVAILABLE HIT-6698870.A10 6698870	-
91 - TAPPING SCREW D4.5X16 HIT-6684636.A43 6684636	£1.67	£2.00
92 - MUFFLER PROTECTOR HIT-6692799.A4 6692799	£10.64	£12.77
93 - HEX. SOCKET HD. BOLT M5X50 HIT-6685114.A37 6685114	£1.67	£2.00
94 - WASHER 5 HIT-6684661.A0 6684661	£1.67	£2.00
95 - MUFFLER ASS'Y INCLUD.97 HIT-6692477.A0 6692477	£38.70	£46.44
96 - HEAT SHIELD HIT-6687252.A6 6687252	£2.82	£3.39
97 - MUFFLER GASKET HIT-6692744.A6 6692744	£1.67	£2.00
98 - INTAKE PIPE GASKET HIT-6689891.A15 6689891	£3.38	£4.06
99 - CARB. INSULATOR SET 1 HIT-6689966.A11 6689966	£13.22	£15.87
100 - HEX. HOLE BOLT M5X25WS HIT-6695515.A47 6695515	£1.67	£2.00
101 - CARBURETOR GASKET HIT-6689839.A1 6689839	£2.98	£3.57
102 - CARBURETOR SET 1 HIT-6690487.A4 6690487	£69.98	£83.97
104 - O-RING P-15 HIT-6695670.A9 6695670	-
105 - CLEANER BODY COMP. HIT-6690119.A17 6690119	£8.95	£10.74
106 - COLLAR 7.5 HIT-6690804.A8 6690804	£1.67	£2.00
107 - CHOKE VALVE HIT-6691274.A5 6691274	-
108 - WAVE WASHER 8 HIT-6684658.A43 6684658	£1.67	£2.00
109 - BLOW OVER CHECK BOARD HIT-6690843.A12 6690843	£1.67	£2.00
110 - S.WASHER 5 HIT-6684662.A93 6684662	£1.67	£2.00
111 - SCREW M5X60 HIT-6684660.A31 6684660	-
112 - CLEANER SPONGE HIT-6690364.A12 6690364	£1.67	£2.00
113 - CLEANER COVER ASS'Y INCLUD.114 HIT-6690417.A1 6690417	£11.15	£13.38
114 - SPECIAL SCREW HIT-6689737.A21 6689737	-
115 - SWIVEL HIT-6684697.A150 6684697	-
116 - STOP RING HIT-6684696.A11 6684696	-
117 - O-RING HIT-6684695.A183 6684695	£1.67	£2.00
118 - MAIN JET #34.5 HIT-6691888.A6 6691888	-
119 - INLET SCREEN HIT-6684700.A17 6684700	-
120 - PUMP BODY COMP. HIT-6691430.A4 6691430	-
121 - DIAPHRAGM COVER-METERING HIT-6685222.A129 6685222	£5.70	£6.84
122 - SET SCREW HIT-6691312.A69 6691312	-
123 - THROTTLE SET SCREW HIT-6684698.A6 6684698	-
124 - THROTTLE VALVE HIT-6684883.A2 6684883	£32.24	£38.69
125 - PUMP GASKET HIT-6691457.A30 6691457	£8.48	£10.18
126 - PUMP DIAPHRAGM HIT-6684693.A10 6684693	£5.70	£6.84
127 - DIAPHRAGM PACKING-METERING HIT-6685220.A50 6685220	£2.81	£3.37
128 - METERING DIAPHRAGM COMP. HIT-6690827.A64 6690827	£14.02	£16.83
129 - PRIMING PUMP COMP. HIT-6685139.A91 6685139	£10.67	£12.80
130 - FUEL PIPE 2.5X4X80 HIT-6692347.A24 6692347	£1.67	£2.00
131 - COLLAR 5.8 HIT-6692244.A33 6692244	£1.67	£2.00
132 - HEX. HOLE BOLT 5X18PS HIT-6695505.A2 6695505	-
*133 - TANK HIT-6696360.A3 6696360	£10.00	£12.00
*133 - TANK FOR AUS HIT-6696361.A2 6696361	-
134 - AIR VENT ASS'Y INCLUD.135 HIT-6691389.A20 6691389	£16.64	£19.97
136 - AIR VENT VALVE ASS'Y FOR AUS HIT-6692171.A23 6692171	-
137 - FUEL PIPE 2.5X4X70 HIT-6692346.A3 6692346	£1.67	£2.00
138A - RETURN GROMMET HIT-6697846.A129 6697846	£2.08	£2.50
139 - CLIP 1 HIT-6684619.A12 6684619	£1.67	£2.00
140A - PUMP FILTER HIT-6698874.A18 6698874	£15.94	£19.13
141A - FUEL PIPE HIT-6698715.A11 6698715	£17.16	£20.59
142 - TANK CAP CHAIN HIT-6684625.A30 6684625	-
*143 - TANK CAP D ASS'Y 1 HIT-6691763.A0 6691763	£13.46	£16.15
*143 - TANK CAP ASS'Y INCLUD.142 FOR AUS HIT-6691714.A11 6691714	£8.44	£10.13
144A - GUARD PLATE HIT-6698894.A0 6698894	-
145A - U-NUT M6 HIT-6698946.A0 6698946	£3.56	£4.27
148 - SUPPORT PLATE HIT-6690762.A0 6690762	£8.27	£9.92
149 - LOCK NUT 6 UPS-P HIT-6695175.A8 6695175	£1.67	£2.00
150 - BOLT WASHER 6 HIT-6684639.A49 6684639	£1.67	£2.00
151 - GEAR CASE COMP. HIT-6688684.A2 6688684	£64.00	£76.80
152 - GREASE NIPPLE COMP. HIT-6688643.A75 6688643	£1.67	£2.00
153 - SPRING NUT 6 HIT-6695475.A2 6695475	-
154 - HEX. HOLE BOLT 6X18/S HIT-6695495.A19 6695495	-
155 - CUTTER GUIDE 845L M6 HIT-6687144.A4 6687144	£28.68	£34.41
156 - GUIDE PLATE HIT-6686612.A9 6686612	£1.67	£2.00
157 - CAM ROD HIT-6686811.A0 6686811	£15.71	£18.85
159A - GEAR 2 COMP. HIT-6698773.A1 6698773	-
160 - GEAR CASE GASKET HIT-6688909.A15 6688909	£1.67	£2.00
161 - GEAR CASE COVER HIT-6692101.A8 6692101	-
162 - BALL BEARING 608 ZZ C3 HIT-6695547.A16 6695547	£10.17	£12.20
163 - GEAR CASE B HIT-6688846.A1 6688846	£9.00	£10.80
164 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A49 6684595	£1.67	£2.00
165A - HEX. SOCKET FLAT HD. SCREW M6X25 HIT-6698764.A3 6698764	-
166 - GREASE SEAL A HIT-6686654.A12 6686654	£1.67	£2.00
167A - WASHER M7 HIT-6698886.A0 6698886	£1.67	£2.00
168A - BOLT (A) HIT-6698887.A3 6698887	£2.84	£3.41
169 - HEX. HOLE BOLT 4X10S HIT-6695484.A22 6695484	£1.67	£2.00
170 - FUEL GROMMET HIT-6688156.A84 6688156	-
171 - BLADE ASS'Y INCLUD.144A HIT-6698774.A0 6698774	£94.64	£113.57
501 - HEX. BAR WRENCH 4MM HIT-6684813.A25 6684813	-
502 - COMBI. BOX SPANNER 10X19 1 HIT-6685997.A32 6685997	-
601 - GUARD PLATE HIT-6687275.A6 6687275	£4.47	£5.36
602 - FLANGE NUT 6 HIT-6695170.A44 6695170	£1.67	£2.00
603 - PROTECTION PLATE HIT-6687289.A1 6687289	-
604 - CUTTER A (812L) HIT-6687092.A3 6687092	£60.99	£73.19
605 - HEX. HOLE FLUSH BOLT 6X25 HIT-6695075.A1 6695075	£1.67	£2.00
606 - WASHER 7 BLACK HIT-6687187.A47 6687187	£1.67	£2.00
607 - FIXING BOLT A M6 HIT-6687158.A29 6687158	£1.67	£2.00
