Hitachi / Hikoki CH78EB Engine Hedge Trimmer Spare Parts

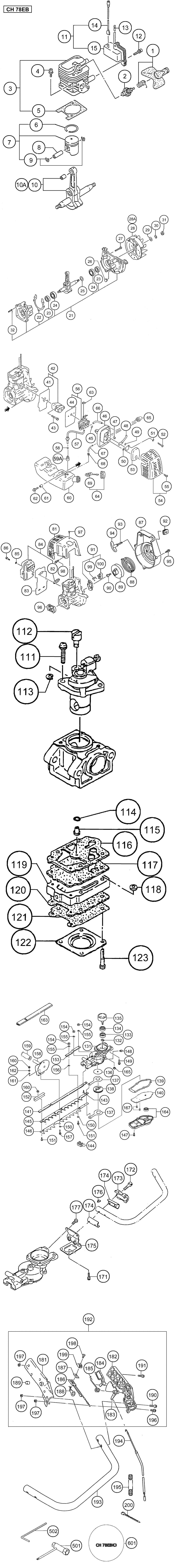

An exploded diagram and spare parts listing for the Hitachi / Hikoki CH78EB Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - SPARK PLUG CAP HIT-6687476.A5 6687476	-
2 - SPARK PLUG ASS'Y RCJ8Y HIT-6699328.A9 6699328	£5.70	£6.84
3 - CYLINDER ASS'Y HIT-6685480.A0 6685480	£47.88	£57.46
4 - HEX.HOLE BOLT M5X20/S HIT-6684668.A2 6684668	-
5 - CYLINDER GASKET HIT-6685744.A1 6685744	£1.67	£2.00
6 - PISTON RING HIT-6686118.A25 6686118	£6.94	£8.33
7 - PISTON ASS'Y HIT-6685869.A16 6685869	£28.00	£33.60
8 - PISTON PIN HIT-6696944.A45 6696944	£5.61	£6.73
9 - CIR CLIP HIT-6684590.A37 6684590	£1.67	£2.00
10 - CRANK SHAFT COMP. TILL E190010 HIT-6686205.A2 6686205	£145.70	£174.84
10A - CRANK SHAFT COMP SINCE E290001 HIT-6686208.A8 6686208	£54.94	£65.93
11 - IGNITION COIL ASS'Y HIT-6697150.A0 6697150	£35.37	£42.44
12 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A23 6684599	-
13 - INSULATOR TUBE 50L HIT-6684597.A24 6684597	-
14 - CORD 200M HIT-6687918.A1 6687918	-
15 - IGNITION COIL COMP HIT-6695939.A9 6695939	£34.64	£41.57
21 - CRANK CASE ASS'Y HIT-6686574.A3 6686574	-
22 - CRANK CASE GASKET HIT-6686720.A16 6686720	-
23 - OIL SEAL TB 12227 HIT-6684607.A81 6684607	£4.07	£4.88
24 - BALL BEARING 6001 C3 HIT-6684608.A121 6684608	£5.70	£6.84
*25 - GEAR SHAFT SHIM 0.20 HIT-6684604.A61 6684604	-
*25 - GEAR SHAFT SHIM 0.30 HIT-6684605.A20 6684605	-
27 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A68 6684786	£1.67	£2.00
28 - MAGNETO ROTOR COMP. TILL E190010 HIT-6687389.A1 6687389	-
28A - MAGNETO ROTOR COMP. SINCE E290001 HIT-6687396.A8 6687396	-
29 - BOLT WASHER M8 HIT-6684611.A79 6684611	-
30 - S.WASHER 8 HIT-6684971.A28 6684971	-
31 - HEX. NUT M8 HIT-6684612.A39 6684612	-
32 - STUD BOLT 6X22 HIT-6686771.A22 6686771	-
41 - INTAKE PIPE GASKET HIT-6689891.A4 6689891	£3.38	£4.06
42 - CARB. INSULATOR SET 1 HIT-6689966.A1 6689966	£13.22	£15.87
43 - HEX. HOLE BOLT M5X25WS HIT-6695515.A19 6695515	£1.67	£2.00
44 - CARBURETOR GASKET HIT-6689839.A14 6689839	£2.98	£3.57
45 - O-RING P-15 HIT-6698966.A12 6698966	£1.67	£2.00
46 - CLEANER BODY COMP. HIT-6690119.A0 6690119	£8.95	£10.74
47 - COLLAR 7.5 HIT-6690804.A17 6690804	£1.67	£2.00
48 - CHOKE VALVE HIT-6691274.A9 6691274	-
49 - WAVE WASHER 8 HIT-6684658.A25 6684658	£1.67	£2.00
50 - BLOW OVER CHECK BOARD HIT-6690843.A31 6690843	£1.67	£2.00
51 - S.WASHER 5 HIT-6684662.A42 6684662	£1.67	£2.00
52 - SCREW M5X60 HIT-6684660.A9 6684660	-
53 - CLEANER SPONGE HIT-6690364.A3 6690364	£1.67	£2.00
54 - CLEANER COVER ASS'Y HIT-6690415.A10 6690415	£5.70	£6.84
55 - SPECIAL SCREW HIT-6689737.A49 6689737	-
56 - CARBURETOR SET 1 HIT-6690487.A12 6690487	£69.98	£83.97
57 - SHIELD TUBE HIT-6685247.A20 6685247	£4.32	£5.19
58 - CLIP D6 HIT-6685198.A32 6685198	-
59A - PUMP FILTER BODY COMP HIT-66A3864.A25 66A3864	-
60 - TANK WHT HIT-6691582.A2 6691582	£11.71	£14.05
61 - COLLAR 5.8 HIT-6692244.A52 6692244	£1.67	£2.00
62 - HEX. HOLE BOLT 5X18PS HIT-6695505.A18 6695505	-
63 - SWIVEL CAP HIT-6691337.A59 6691337	£1.67	£2.00
64 - TANK CAP D ASS'Y 1 HIT-6691763.A19 6691763	£13.46	£16.15
65 - PRIMING PUMP COMP. HIT-6685139.A67 6685139	£10.67	£12.80
66 - FUEL PIPE 2.5X4X80 HIT-6692347.A9 6692347	£1.67	£2.00
67 - FUEL PIPE 2.5X4X70 HIT-6692346.A13 6692346	£1.67	£2.00
68 - RETURN GROMMET HIT-6697846.A31 6697846	£2.08	£2.50
69 - TANK CAP CHAIN HIT-6684625.A76 6684625	-
81 - MUFFLER PROTECTOR HIT-6692795.A1 6692795	-
82 - MUFFLER GASKET HIT-6692744.A14 6692744	£1.67	£2.00
83 - HEAT SHIELD HIT-6687252.A16 6687252	£2.82	£3.39
84 - MUFFLER ASS'Y HIT-6692477.A7 6692477	£38.70	£46.44
85 - WASHER 5 HIT-6684661.A63 6684661	£1.67	£2.00
86 - HEX. SOCKET HD. BOLT M5X50 HIT-6685114.A11 6685114	£1.67	£2.00
87 - FAN CASE COMP. 1 HIT-6687010.A4 6687010	£20.73	£24.88
88 - RECOIL SPRING HIT-6684675.A81 6684675	£8.82	£10.58
89 - STARTER ROPE REEL HIT-6693066.A13 6693066	£5.17	£6.20
90 - SET SCREW HIT-6693633.A29 6693633	£1.67	£2.00
91 - STARTER PULLEY ASS'Y HIT-6693405.A2 6693405	£7.75	£9.30
92 - GROMMET HIT-6688050.A30 6688050	£1.67	£2.00
93 - ROPE HIT-6693168.A12 6693168	£2.82	£3.39
94 - STARTER HANDLE HIT-6693237.A6 6693237	£4.55	£5.46
95 - HEX. HOLE BOLT 4X15/PS HIT-6684682.A38 6684682	£1.67	£2.00
96 - CLUTCH HIT-6688494.A3 6688494	£14.82	£17.78
97 - TAPPING SCREW D4.5X16 HIT-6684636.A7 6684636	£1.67	£2.00
98 - BOLT 4X12PS HIT-6695441.A2 6695441	-
99 - STARTER PAWL SPRING HIT-6684684.A58 6684684	£3.29	£3.95
100 - STARTER PAWL HIT-6693319.A12 6693319	£3.29	£3.95
111 - THROTTLE SET SCREW HIT-6684698.A37 6684698	-
112 - SWIVEL HIT-6684697.A72 6684697	-
113 - STOP RING HIT-6684696.A114 6684696	-
114 - O-RING HIT-6684695.A95 6684695	£1.67	£2.00
115 - MAIN JET #34.5 HIT-6691888.A10 6691888	-
116 - PUMP GASKET HIT-6691457.A62 6691457	£8.48	£10.18
117 - PUMP DIAPHRAGM HIT-6684693.A103 6684693	£5.70	£6.84
118 - INLET SCREEN HIT-6684700.A129 6684700	-
119 - PUMP BODY COMP. HIT-6691430.A11 6691430	-
120 - DIAPHRAGM PACKING-METERING HIT-6685220.A136 6685220	£2.81	£3.37
121 - METERING DIAPHRAGM COMP. HIT-6690827.A42 6690827	£14.02	£16.83
122 - DIAPHRAGM COVER-METERING HIT-6685222.A39 6685222	£5.70	£6.84
123 - SET SCREW HIT-6691312.A23 6691312	-
132 - STOP RING C-15 1 HIT-6695285.A34 6695285	£1.67	£2.00
133 - BALL BEARING 6002 C3 HIT-6697745.A6 6697745	-
134 - BALL BEARING 6002 C3 HIT-6697745.A7 6697745	-
135 - CLUTCH DRUM COMP. HIT-6688570.A14 6688570	£22.90	£27.48
136 - GUIDE PLATE HIT-6686612.A1 6686612	£1.67	£2.00
137 - CAM ROD HIT-6686811.A9 6686811	£15.71	£18.85
138 - GEAR 2 COMP. HIT-6688625.A4 6688625	£38.48	£46.17
139 - GEAR CASE GASKET HIT-6688909.A0 6688909	£1.67	£2.00
140 - GEAR CASE COVER HIT-6692101.A1 6692101	-
141 - CUTTER GUIDE 858L M6 HIT-6687133.A2 6687133	£30.92	£37.11
143 - HEX. HOLE FLUSH BOLT 6X25 HIT-6695075.A33 6695075	£1.67	£2.00
144 - GREASE SEAL A HIT-6686654.A0 6686654	£1.67	£2.00
145 - CUTTER B (820L) HIT-6687108.A2 6687108	£50.78	£60.93
146 - CUTTER A 820L HIT-6687082.A1 6687082	£48.75	£58.50
147 - HEX. HOLE BOLT 4X15/S HIT-6695487.A3 6695487	£3.72	£4.46
148 - GREASE NIPPLE COMP. HIT-6688643.A9 6688643	£1.67	£2.00
149 - HEX. HOLE BOLT 6X18/S HIT-6695495.A6 6695495	-
150 - WASHER 7 BLACK HIT-6687187.A3 6687187	£1.67	£2.00
151 - FIXING BOLT A M6 HIT-6687158.A4 6687158	£1.67	£2.00
152 - BLADE HOLDER HIT-6687180.A6 6687180	-
153 - SUPPORT PLATE HIT-6690764.A0 6690764	£4.72	£5.66
154 - LOCK NUT 6 UPS-P HIT-6695175.A40 6695175	£1.67	£2.00
155 - BOLT WASHER 6 HIT-6684639.A150 6684639	£1.67	£2.00
156 - SPECIAL WASHER B HIT-6684822.A19 6684822	£1.67	£2.00
157 - FIXING BOLT B M6 HIT-6687168.A2 6687168	£1.67	£2.00
158 - HANDLE B COMP. HIT-6686311.A6 6686311	£24.92	£29.91
159 - HANDLE GRIP HIT-6684708.A16 6684708	£3.56	£4.27
160 - FLANGE NUT 6 HIT-6695170.A56 6695170	£1.67	£2.00
161 - BOLT WASHER 6 HIT-6684639.A151 6684639	£1.67	£2.00
162 - S.WASHER 6 HIT-6695219.A90 6695219	£1.67	£2.00
163 - CUTTER COVER 1 HIT-6687308.A4 6687308	-
164 - GEAR CASE B COMP. HIT-6688847.A0 6688847	-
165 - SPRING NUT 6 HIT-6695475.A36 6695475	-
167 - HEX HOLE BOLT 4X10/S HIT-6695485.A2 6695485	-
171 - HEX. HOLE BOLT 4X15/S HIT-6695487.A2 6695487	£3.72	£4.46
172 - HEX.HOLE BOLT M5X35 HIT-6684934.A7 6684934	-
173 - HANDLE HOLDER HIT-6686362.A1 6686362	-
174 - DAMPER RUBBER HIT-6686398.A0 6686398	-
175 - HANDLE BRACKET COMP. HIT-6686369.A2 6686369	£4.45	£5.34
176 - EARTH TERMINAL HIT-6687800.A2 6687800	-
177 - HEX HOLE BOLT 5X12/S HIT-6695489.A1 6695489	-
181 - HANDLE GRIP A HIT-6686338.A5 6686338	-
182 - HANDLE GRIP B HIT-6686349.A6 6686349	-
183 - THROTTLE LEVER HIT-6688229.A3 6688229	£4.12	£4.94
184 - SAFETY LEVER HIT-6688238.A7 6688238	-
185 - THROTTLE LEVER SPRING HIT-6686414.A8 6686414	-
186 - STOP BUTTON COMP. HIT-6687765.A2 6687765	-
187 - STOP BUTTON MARK HIT-6694585.A4 6694585	-
188 - EARTH TERMINAL HIT-6689128.A1 6689128	-
189 - CAP HIT-6693002.A1 6693002	£1.67	£2.00
190 - SCREW 4X30/WS HIT-6695412.A2 6695412	-
191 - SCREW 4X25/WS HIT-6695411.A7 6695411	-
192 - HANDLE GRIP ASS'Y HIT-6686357.A1 6686357	-
193 - HANDLE A COMP. HIT-6686274.A2 6686274	£38.31	£45.97
194 - THROTTLE WIRE 270+49 HIT-6693877.A7 6693877	£6.61	£7.93
195 - PROTECTION TUBE 7X165L HIT-6687525.A0 6687525	£1.67	£2.00
196 - SCREW 4X16WS HIT-6695404.A5 6695404	-
197 - NYLON LOCK NUT 4 HIT-6695163.A12 6695163	-
198 - SCREW 3X10 HIT-6684913.A23 6684913	£1.67	£2.00
199 - BUTTON STOP HIT-6688366.A9 6688366	£1.67	£2.00
200 - CORD CLAMP HIT-6688015.A8 6688015	-
501 - COMBI BOX SPANNER 10/19MM HIT-6685257.A27 6685257	-
502 - HEX. BAR WRENCH 4MM HIT-6684813.A64 6684813	-
601 - NAME PLATE CH78EB(C) HIT-6694369.A0 6694369	-
