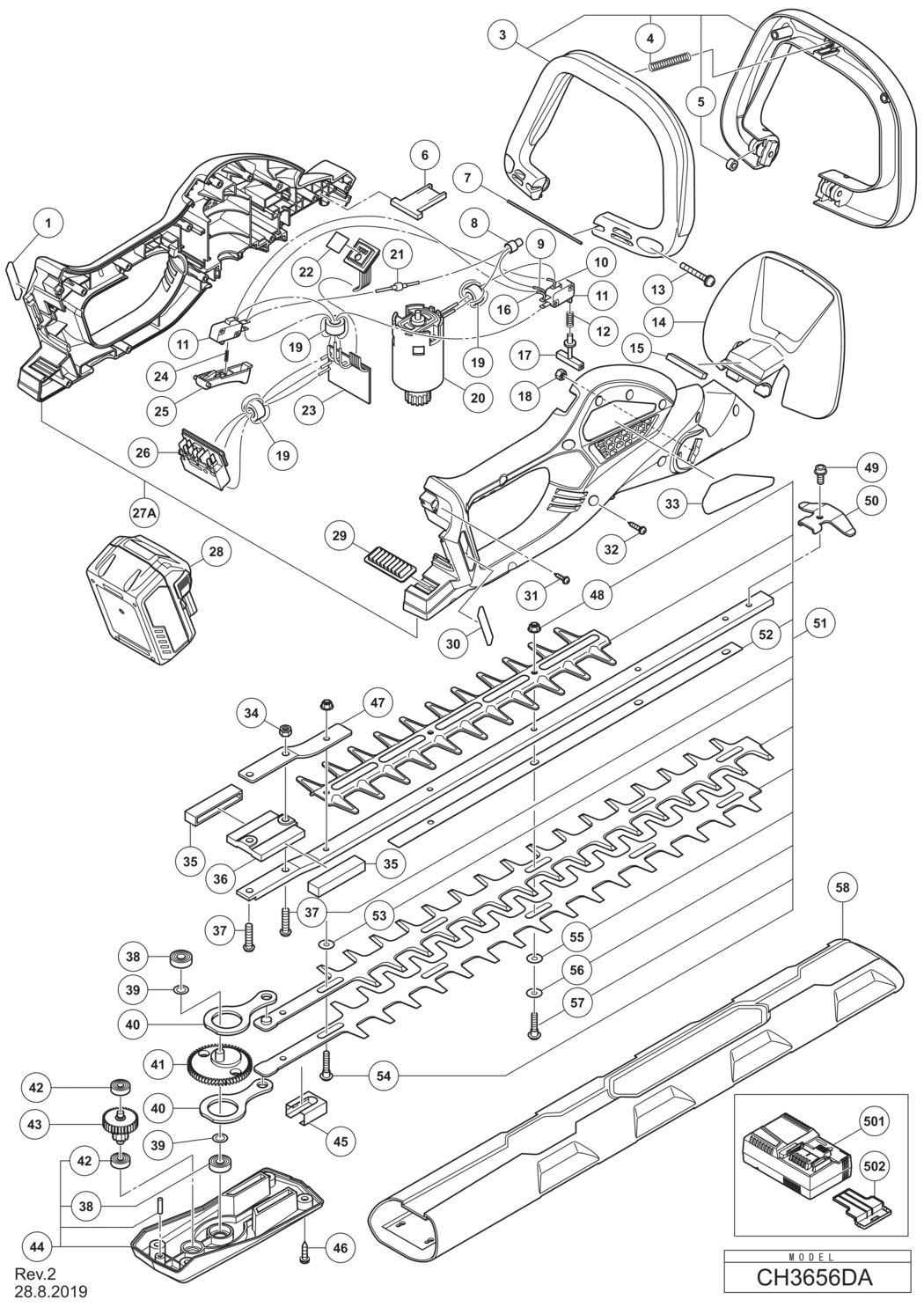

1 - MV LABEL (A)
HIT-000000.A1778
000000
|
-
|
|
|
|
3 - SUB HANDLE ASS'Y INCLUD.4
HIT-335015.A0
335015
|
-
|
|
|
|
4 - SPRING (C)
HIT-333341.A3
333341
|
-
|
|
|
|
5 - COLLAR
HIT-335347.A1
335347
|
-
|
|
|
|
6 - FELT
HIT-335761.A0
335761
|
-
|
|
|
|
7 - SHAFT (D)
HIT-335019.A1
335019
|
-
|
|
|
|
8 - CONNECTOR 50092 (10 PCS.)
HIT-959141.A69
959141
|
£7.12
|
£8.54
|
|
|
9 - INTERNAL WIRE (L96)
HIT-335345.A1
335345
|
-
|
|
|
|
10 - INTERNAL WIRE (L186)
HIT-335344.A0
335344
|
-
|
|
|
|
11 - SWITCH
HIT-335018.A0
335018
|
-
|
|
|
|
12 - SPRING (D)
HIT-333344.A0
333344
|
-
|
|
|
|
13 - MACHINE SCREW (W/WASHER) M5X30 (BLACK)
HIT-336239.A0
336239
|
-
|
|
|
|
14 - PROTECTOR
HIT-335010.A1
335010
|
-
|
|
|
|
15 - PACKING (A)
HIT-335762.A1
335762
|
-
|
|
|
|
16 - INTERNAL WIRE (L204)
HIT-335343.A1
335343
|
-
|
|
|
|
17 - PUSH PIN
HIT-333343.A3
333343
|
-
|
|
|
|
18 - NUT M5 (BLACK)
HIT-302012.A40
302012
|
£1.67
|
£2.00
|
|
|
19 - FERRITE CORE EXCEPT FOR NZL
HIT-334379.A12
334379
|
-
|
|
|
|
20 - MOTOR DC 36V
HIT-335016.A1
335016
|
-
|
|
|
|
21 - DIODE
HIT-335346.A0
335346
|
-
|
|
|
|
22 - PANEL SHEET
HIT-000000.A1779
000000
|
-
|
|
|
|
*23 - CONTROLLER ASS'Y INCLUD.19
HIT-373109.A0
373109
|
-
|
|
|
|
*23 - CONTROLLER ASS'Y INCLUD.22
HIT-373108.A0
373108
|
-
|
|
|
|
24 - SPRING (E)
HIT-373361.A0
373361
|
-
|
|
|
|
25 - TRIGGER
HIT-333761.A3
333761
|
-
|
|
|
|
26 - BATTERY TERMINAL
HIT-372228.A6
372228
|
-
|
|
|
|
27A - HOUSING (A).(B) SET
HIT-373110.A0
373110
|
-
|
|
|
|
28 - BATTERY BSL 36A18 (EUROPE AUS NZL) INCLUD.502
HIT-371750.A19
371750
|
£173.17
|
£207.80
|
|
|
29 - BATTERY RUBBER (B)
HIT-370328.A5
370328
|
-
|
|
|
|
30 - MV LABEL (B)
HIT-000000.A1780
000000
|
-
|
|
|
|
31 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
HIT-313687.A44
313687
|
£1.67
|
£2.00
|
|
|
32 - TAPPING SCREW (W/FLANGE) D4X20
HIT-339250.A7
339250
|
-
|
|
|
|
33 - NAME PLATE
HIT-000000.A1781
000000
|
-
|
|
|
|
34 - NYLON NUT M6
HIT-6698766.A4
6698766
|
-
|
|
|
|
35 - CUSHION
HIT-335021.A0
335021
|
-
|
|
|
|
36 - SPACER
HIT-335020.A1
335020
|
-
|
|
|
|
37 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25
HIT-6699113.A10
6699113
|
£2.77
|
£3.32
|
|
|
38 - BALL BEARING 608DD
HIT-608DDM.A48
608DDM
|
£6.35
|
£7.62
|
|
|
39 - WASHER
HIT-335022.A0
335022
|
-
|
|
|
|
40 - CAM ROD
HIT-373362.A0
373362
|
-
|
|
|
|
41 - GEAR
HIT-335014.A1
335014
|
£14.72
|
£17.66
|
|
|
42 - BALL BEARING 626ZZC2 PS2-L
HIT-335669.A1
335669
|
-
|
|
|
|
43 - FIRST GEAR
HIT-335013.A0
335013
|
-
|
|
|
|
44 - BOTTOM COVER ASS'Y INCLUD.38
HIT-335017.A1
335017
|
-
|
|
|
|
45 - CAM ROD HOLDER
HIT-335677.A1
335677
|
-
|
|
|
|
46 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
HIT-302089.A27
302089
|
£1.67
|
£2.00
|
|
|
47 - SUPPORT PLATE
HIT-337893.A0
337893
|
-
|
|
|
|
48 - U-NUT M5
HIT-6699108.A19
6699108
|
£2.94
|
£3.53
|
|
|
49 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X8
HIT-6699065.A11
6699065
|
£1.67
|
£2.00
|
|
|
50 - GUARD PLATE
HIT-6699062.A12
6699062
|
£1.67
|
£2.00
|
|
|
51 - BLADE ASS'Y (620MM) INCLUD.37
HIT-6600409.A0
6600409
|
-
|
|
|
|
52 - BLADE LINER
HIT-6600360.A7
6600360
|
£7.12
|
£8.54
|
|
|
53 - WASHER (A)
HIT-6699114.A6
6699114
|
£1.67
|
£2.00
|
|
|
54 - SHOULDER BUTTON BOLT M5X31
HIT-6699179.A3
6699179
|
£3.73
|
£4.48
|
|
|
55 - WASHER (B)
HIT-6699112.A9
6699112
|
£1.67
|
£2.00
|
|
|
56 - WASHER M7
HIT-6699111.A11
6699111
|
£1.67
|
£2.00
|
|
|
57 - SHOULDER BUTTON BOLT M5X25
HIT-6699109.A4
6699109
|
£2.77
|
£3.32
|
|
|
58 - BLADE CASE (620MM)
HIT-335011.A1
335011
|
-
|
|
|
|
501 - CHARGER (MODEL UC 18YSL3)
HIT-000000.A1783
000000
|
-
|
|
|
|
502 - BATTERY COVER
HIT-329897.A119
329897
|
£1.67
|
£2.00
|
|
|
601 - BLADE ASS'Y (780MM)
HIT-6600410.A1
6600410
|
£95.87
|
£115.04
|
|
|
602 - BLADE CASE (780MM)
HIT-336102.A1
336102
|
-
|
|
|
