Hitachi / Hikoki CH24ECP Engine Hedge Trimmer Spare Parts

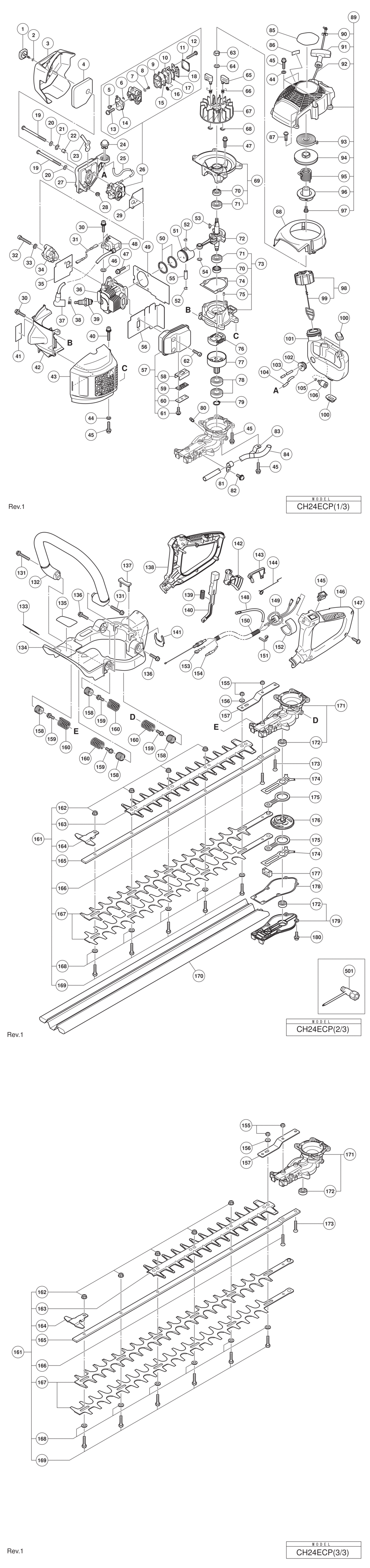

An exploded diagram and spare parts listing for the Hitachi / Hikoki CH24ECP Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - COVER FIXING BOLT HIT-6684655.A2 6684655	£7.78	£9.34
2 - O-RING (S-4) HIT-981317.A12 981317	£1.67	£2.00
3 - AIR CLEANER COVER HIT-6601540.A5 6601540	-
4 - AIR CLEANER ELEMENT HIT-6601539.A3 6601539	-
5 - SWIVEL HIT-6684697.A151 6684697	-
6 - STOP RING HIT-6684696.A10 6684696	-
7 - O-RING HIT-6684695.A184 6684695	£1.67	£2.00
8 - MAIN JET HIT-000000.A392 000000	-
9 - PUMP GASKET HIT-6684692.A69 6684692	£17.28	£20.73
10 - PUMP BODY HIT-000000.A393 000000	-
11 - DIAPHRAGM COVER-METERING HIT-6685222.A171 6685222	£5.70	£6.84
12 - SET SCREW HIT-6691312.A97 6691312	-
13 - THROTTLE SET SCREW HIT-6684698.A27 6684698	-
14 - THROTTLE VALVE HIT-000000.A394 000000	-
15 - PUMP DIAPHRAGM HIT-6684693.A83 6684693	£5.70	£6.84
16 - INLET SCREEN HIT-6684700.A106 6684700	-
17 - DIAPHRAGM PACKING-METERING HIT-6685220.A9 6685220	£2.81	£3.37
18 - METERING DIAPHRAGM HIT-6684690.A69 6684690	£24.05	£28.86
19 - SCREW M5X55 HIT-6694914.A5 6694914	-
20 - BOLT WASHER D5 HIT-6685407.A51 6685407	-
21 - WAVE WASHER 8 HIT-334242.A7 334242	-
22 - COLLAR M5 HIT-6601538.A8 6601538	-
23 - CHOKE VALVE HIT-6601537.A0 6601537	-
24 - PRIMING PUMP COMP. HIT-6685139.A136 6685139	£10.67	£12.80
25 - FUEL PIPE HIT-6601607.A8 6601607	-
26 - CARBURETOR ASS'Y (WYL-367) INCLUD.5-18 HIT-6601535.A0 6601535	-
27 - AIR CLEANER BASE HIT-6601536.A8 6601536	-
28 - LOCK NUT M6 (10 PCS.) HIT-949567.A14 949567	£1.67	£2.00
29 - CARBURETOR PACKING HIT-6698405.A48 6698405	£3.12	£3.74
30 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A26 6698388	£1.67	£2.00
31 - CORD HIT-6696544.A29 6696544	-
32 - SEAL LOCK HEX. SOCKET HD. BOLT M6X27 HIT-6601358.A14 6601358	-
33 - SPRING WASHER D6 HIT-6600910.A0 6600910	-
34 - CARBURETOR INSULATOR HIT-6601491.A10 6601491	-
35 - INTAKE PACKING HIT-6601534.A8 6601534	-
36 - CYLINDER N24 HIT-6600902.A1 6600902	-
37 - PLUG CAP HIT-6601421.A12 6601421	£1.67	£2.00
38 - PLUG CAP METAL HIT-6699186.A38 6699186	£1.67	£2.00
39 - IGNITION PLUG (TORCH L7RTC) HIT-6600542.A26 6600542	-
40 - HEX. SOCKET HD. BOLT (W/WASHERS) M5 HIT-6600372.A6 6600372	-
41 - EMISSION LABEL (EU) HIT-000000.A395 000000	-
42 - CYLINDER COVER HIT-6601541.A1 6601541	-
43 - MUFFLER COVER HIT-6601544.A7 6601544	-
44 - WASHER 5 HIT-6685408.A1 6685408	£3.49	£4.19
45 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A25 6698386	-
46 - GLASS WASHER HIT-6698700.A55 6698700	£1.67	£2.00
47 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X22 HIT-6601339.A0 6601339	-
48 - IGNITION COIL HIT-6601612.A5 6601612	-
49 - CYLINDER PACKING HIT-6601527.A3 6601527	-
50 - PISTON RING HIT-6698404.A11 6698404	£7.03	£8.44
51 - PISTON N24 HIT-6601429.A8 6601429	-
52 - CIR CLIP HIT-6684590.A110 6684590	£1.67	£2.00
53 - WOODRUFF KEY 3X13X4.5 HIT-6601343.A7 6601343	-
54 - SHIM HIT-6600909.A21 6600909	-
55 - PISTON PIN HIT-6601344.A20 6601344	-
56 - HEAT PROTECTION PANEL HIT-6601531.A8 6601531	-
57 - MUFFLER ASS'Y INCLUD.58-61 HIT-6601529.A2 6601529	-
58 - EXHAUST PIPE PACKING HIT-6601606.A0 6601606	-
59 - SPARK ARRESTER HIT-6601605.A8 6601605	-
60 - EXHAUST PIPE HIT-6601604.A0 6601604	-
61 - MACHINE SCREW (W/SP. WASHER) M4X12 HIT-6685068.A53 6685068	-
62 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16 HIT-6600518.A14 6600518	-
63 - FLYWHEEL NUT M7 HIT-6696879.A15 6696879	-
64 - BOLT WASHER D7 HIT-6696880.A11 6696880	-
65 - STARTER PAWL HIT-6685334.A15 6685334	£2.84	£3.41
66 - STARTER PAWL SPRING HIT-6685335.A18 6685335	£2.84	£3.41
67 - MAGNETO ROTOR COMP. HIT-6600053.A8 6600053	-
68 - RETAINING RING D4 HIT-6685336.A17 6685336	£3.49	£4.19
69 - CRANK CASE (F) ASS'Y INCLUD.70 HIT-6601602.A0 6601602	-
70 - OIL SEAL TB 12227 HIT-6684607.A200 6684607	£4.07	£4.88
71 - BALL BEARING 6001 C3 HIT-6684608.A7 6684608	£5.70	£6.84
72 - CRANK SHAFT HIT-6601528.A6 6601528	-
73 - CRANK CASE (G) ASS'Y INCLUD.70 HIT-6601603.A8 6601603	-
74 - CRANK CASE PACKING HIT-6600514.A17 6600514	-
75 - KNOCK PIN 4X12 HIT-6696947.A74 6696947	-
76 - CLUTCH (B) HIT-6699173.A2 6699173	£11.61	£13.93
77 - CLUTCH DRUM HIT-6601548.A6 6601548	-
78 - BALL BEARING 6002ZC3 HIT-6698740.A12 6698740	£6.94	£8.33
79 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A19 939544	£3.64	£4.37
80 - GREASE NIPPLE COMP. HIT-6688643.A50 6688643	£1.67	£2.00
81 - FIXATION PLATE (C) HIT-6601568.A1 6601568	-
82 - SCREW (W/WASHERS) M4 (BLACK) HIT-6600048.A2 6600048	-
83 - FIXATION PLATE (D) HIT-6601569.A0 6601569	-
84 - TAIL PIPE (EC) HIT-6601567.A0 6601567	-
85 - BRAND LABEL HIT-000000.A396 000000	-
86 - TANK MARK LABEL (50:1) HIT-6698921.A41 6698921	-
87 - TAPPING SCREW D4.5X16 HIT-6698878.A16 6698878	£1.67	£2.00
88 - AIR DEFLECTOR HIT-6601543.A2 6601543	-
89 - STARTER ASS'Y INCLUD.90-97 HIT-6601542.A6 6601542	-
90 - PLATE HIT-6685189.A19 6685189	-
91 - STARTER HANDLE HIT-6693227.A32 6693227	-
92 - STARTER ROPE HIT-000000.A397 000000	-
93 - SPIRAL SPRING HIT-000000.A398 000000	-
94 - REEL HIT-000000.A399 000000	-
95 - DAMPER SPRING HIT-6685183.A6 6685183	£5.70	£6.84
96 - CAM PLATE HIT-000000.A400 000000	-
97 - SET SCREW HIT-6684679.A97 6684679	£2.98	£3.57
98 - FUEL TANK CAP ASS'Y INCLUD.99 HIT-6698402.A66 6698402	-
99 - TANK CAP CHAIN HIT-6698732.A25 6698732	-
100 - CUSHION RUBBER HIT-6698615.A19 6698615	£3.56	£4.27
101 - TANK (FT) HIT-6601533.A0 6601533	-
102 - FUEL GROMMET HIT-6600358.A16 6600358	£1.67	£2.00
103 - FUEL PIPE HIT-6698716.A9 6698716	£5.61	£6.73
104 - FUEL PIPE HIT-6601399.A8 6601399	£3.02	£3.63
105 - CLIP HIT-6696949.A77 6696949	£1.67	£2.00
106 - PUMP FILTER HIT-6600351.A23 6600351	£4.45	£5.34
131 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X32 HIT-6698814.A0 6698814	-
132 - FRONT HANDLE HIT-6698776.A3 6698776	-
133 - CAUTION LABEL HIT-000000.A401 000000	-
134 - FRAME HIT-6601566.A1 6601566	-
135 - NAME PLATE HIT-000000.A402 000000	-
136 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X22 HIT-6698815.A5 6698815	£1.67	£2.00
137 - DAMPER HIT-6698778.A3 6698778	-
138 - REAR HANDLE (A) HIT-6601545.A2 6601545	-
139 - SPRING (A) HIT-6696348.A17 6696348	-
140 - LOCK BUTTON HIT-6601546.A6 6601546	-
141 - CLIP HIT-6696359.A1 6696359	£2.84	£3.41
142 - THROTTLE LEVER HIT-6699053.A8 6699053	-
143 - TRIGGER LOCKOUT HIT-6696344.A18 6696344	£2.84	£3.41
144 - THROTTLE LEVER SPRING HIT-6696345.A14 6696345	£2.84	£3.41
145 - STOP SWITCH HIT-6601275.A18 6601275	£1.67	£2.00
146 - REAR HANDLE (B) HIT-6601547.A2 6601547	-
147 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A72 305812	£1.67	£2.00
148 - THROTTLE WIRE HIT-6601614.A1 6601614	-
149 - FERRITE CORE HIT-334379.A5 334379	-
150 - PROTECTION TUBE HIT-6698738.A8 6698738	£1.67	£2.00
151 - BAND HIT-6698943.A13 6698943	-
152 - SUPPORT (D) HIT-6601617.A2 6601617	-
153 - STOP SWITCH CORD (B) HIT-6699059.A10 6699059	-
154 - STOP SWITCH CORD HIT-6696491.A17 6696491	-
155 - NYLON NUT M6 HIT-6698766.A9 6698766	-
156 - BOLT WASHER 6 HIT-6684639.A84 6684639	£1.67	£2.00
157 - SUPPORT PLATE HIT-6600892.A1 6600892	£1.67	£2.00
158 - SPRING HOLDER HIT-6698779.A3 6698779	-
159 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X10 HIT-6698781.A2 6698781	-
160 - ANTIVIBRATION SPRING HIT-6600480.A4 6600480	£4.37	£5.24
*161 - BLADE ASS'Y (660MM) INCLUD.162-169 HIT-6601556.A1 6601556	-
*161 - BLADE ASS'Y (780MM) INCLUD.162-169 HIT-6601557.A0 6601557	-
*162 - FLANGE NUT 6 FOR 660MM HIT-6695170.A19 6695170	£1.67	£2.00
*162 - FLANGE NUT 6 FOR 780MM HIT-6695170.A20 6695170	£1.67	£2.00
163 - PROTECTION PLATE HIT-000000.A403 000000	-
164 - GUARD PLATE HIT-6687275.A1 6687275	£4.47	£5.36
*165 - CUTTER GUIDE 734L M6 FOR 660MM HIT-6687147.A1 6687147	£28.68	£34.41
*165 - CUTTER GUIDE 845L M6 FOR 780MM HIT-6687144.A6 6687144	£28.68	£34.41
166 - HEX. HOLE FLUSH BOLT 6X25 HIT-6695075.A18 6695075	£1.67	£2.00
167 - HEDGE TRIMMER BLADE (A) 660MM HIT-000000.A404 000000	-
167 - HEDGE TRIMMER BLADE (A) 780MM HIT-000000.A405 000000	-
*168 - WASHER 7 BLACK FOR 660MM HIT-6687187.A24 6687187	£1.67	£2.00
*168 - WASHER 7 BLACK FOR 780MM HIT-6687187.A25 6687187	£1.67	£2.00
*169 - FIXING BOLT A M6 FOR 660MM HIT-6687158.A34 6687158	£1.67	£2.00
*169 - FIXING BOLT A M6 FOR 780MM HIT-6687158.A35 6687158	£1.67	£2.00
170 - BLADE CASE (FOR 780MM) HIT-6698785.A3 6698785	-
171 - GEAR CASE (A) ASS'Y INCLUD.172 HIT-6601610.A1 6601610	-
172 - BALL BEARING 608ZZC3 HIT-6698772.A16 6698772	£2.84	£3.41
173 - HEX. SOCKET FLAT HD. SCREW M6X25 HIT-6698764.A0 6698764	-
174 - GUIDE PLATE (B) HIT-6601550.A4 6601550	-
175 - CAM ROD HIT-6601552.A4 6601552	-
176 - GEAR 2 HIT-6601551.A0 6601551	-
177 - FELT PACKING (B) HIT-6601560.A4 6601560	-
178 - GEAR CASE PACKING HIT-6601561.A0 6601561	-
179 - GEAR CASE (B) ASS'Y INCLUD.172 HIT-6601611.A0 6601611	-
180 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A30 6698385	-
501 - BOX WRENCH 10/19MM HIT-6698756.A20 6698756	-
