Hitachi / Hikoki CH22ECP2 Engine Hedge Trimmer Spare Parts

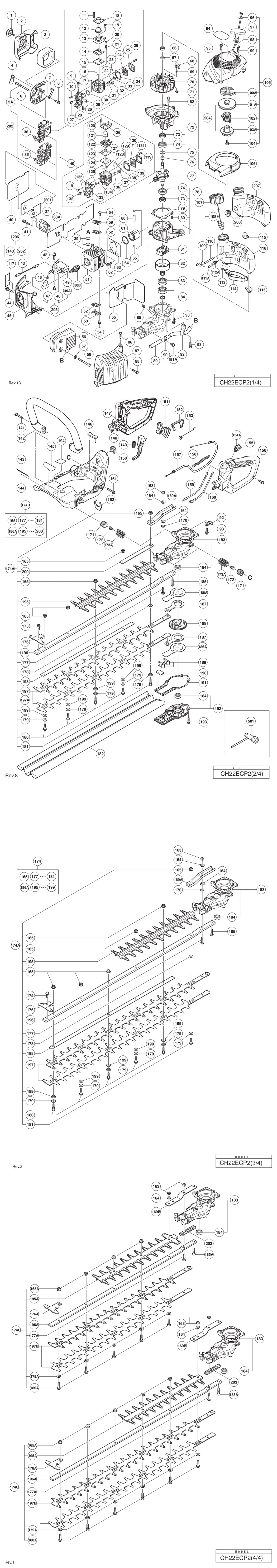

An exploded diagram and spare parts listing for the Hitachi / Hikoki CH22ECP2 Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - COVER FIXING BOLT COMP. HIT-6698730.A14 6698730	£5.52	£6.63
2 - CLEANER COVER HIT-6698609.A4 6698609	£1.67	£2.00
3 - CLEANER SPONGE HIT-6690365.A5 6690365	£1.67	£2.00
4 - CHOKE VALVE HIT-6698608.A7 6698608	£1.67	£2.00
5A - MACHINE SCREW (W/WASHERS) M5X65 (BLACK) HIT-312440.A7 312440	£1.67	£2.00
6 - CLEANER BODY HIT-6698606.A7 6698606	£3.73	£4.48
7 - CHOKE HANDLE HIT-6698607.A4 6698607	£1.67	£2.00
8 - NO LONGER AVAILABLE HIT-309470.A14 309470	-
9 - THROTTLE ADJUST SCREW (TAS) TILL 9.2015 FOR EUROPE HIT-6699087.A6 6699087	-
*9 - THROTTLE ADJUST SCREW (TAS) USA HIT-6699087.A7 6699087	-
10 - SET SCREW (B) TILL 9.2015 FOR EUROPE HIT-6699088.A11 6699088	-
*10 - SET SCREW (B) USA HIT-6699088.A12 6699088	-
11 - SET SCREW (D) TILL 9.2015 FOR EUROPE HIT-6699100.A11 6699100	-
*11 - SET SCREW (D) USA HIT-6699100.A12 6699100	-
12 - SYRINGE TILL 9.2015 FOR EUROPE HIT-6699098.A11 6699098	£6.86	£8.23
*12 - SYRINGE USA HIT-6699098.A12 6699098	£6.86	£8.23
13 - PRIMER BASE TILL 9.2015 FOR EUROPE HIT-6699097.A6 6699097	£39.92	£47.91
*13 - PRIMER BASE USA HIT-6699097.A7 6699097	£39.92	£47.91
14 - PUMP GASKET TILL 9.2015 FOR EUROPE HIT-6699096.A11 6699096	£7.12	£8.54
*14 - PUMP GASKET USA HIT-6699096.A12 6699096	£7.12	£8.54
15 - PUMP DIAPHRAGM TILL 9.2015 FOR EUROPE HIT-6699095.A6 6699095	£10.02	£12.02
*15 - PUMP DIAPHRAGM USA HIT-6699095.A7 6699095	£10.02	£12.02
16 - STRAINER TILL 9.2015 FOR EUROPE HIT-6699080.A11 6699080	-
*16 - STRAINER USA HIT-6699080.A12 6699080	-
17 - GUIDE PIN ROLLER TILL 9.2015 FOR EUROPE HIT-6699103.A6 6699103	-
*17 - GUIDE PIN ROLLER USA HIT-6699103.A7 6699103	-
18 - SYRINGE RETAINER TILL 9.2015 FOR EUROPE HIT-6699099.A6 6699099	-
*18 - SYRINGE RETAINER USA HIT-6699099.A7 6699099	-
19 - SET SCREW (E) TILL 9.2015 FOR EUROPE HIT-6699101.A6 6699101	-
*19 - SET SCREW (E) USA HIT-6699101.A7 6699101	-
20 - BALL PLUG RETAINER TILL 9.2015 FOR EUROPE HIT-6699104.A11 6699104	-
*20 - BALL PLUG RETAINER USA HIT-6699104.A12 6699104	-
21 - ADJUSTING SCREW (MAIN MIXTURE) TILL 9.2015 FOR EUROPE HIT-6699105.A6 6699105	-
*21 - ADJUSTING SCREW (MAIN MIXTURE) USA HIT-6699105.A7 6699105	-
22 - METERING LEVER SPRING TILL 9.2015 FOR EUROPE HIT-6699083.A6 6699083	-
*22 - METERING LEVER SPRING USA HIT-6699083.A7 6699083	-
23 - PIN TILL 9.2015 FOR EUROPE HIT-6699082.A15 6699082	£1.67	£2.00
*23 - PIN USA HIT-6699082.A16 6699082	£1.67	£2.00
24 - METERING DIAPHRAGM TILL 9.2015 FOR EUROPE HIT-6699091.A6 6699091	£13.60	£16.32
*24 - METERING DIAPHRAGM USA HIT-6699091.A7 6699091	£13.60	£16.32
25 - METERING COVER TILL 9.2015 FOR EUROPE HIT-6699093.A6 6699093	-
*25 - METERING COVER USA HIT-6699093.A7 6699093	-
26 - SET SCREW (C) TILL 9.2015 FOR EUROPE HIT-6699094.A13 6699094	-
*26 - SET SCREW (C) USA HIT-6699094.A14 6699094	-
27 - POST TILL 9.2015 FOR EUROPE HIT-6699089.A6 6699089	-
*27 - POST USA HIT-6699089.A7 6699089	-
28 - ROTOR COVER TILL 9.2015 FOR EUROPE HIT-6699086.A11 6699086	-
*28 - ROTOR COVER USA HIT-6699086.A12 6699086	-
29 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT TILL 9.2015 FOR EUROPE HIT-6699090.A11 6699090	-
*29 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT USA HIT-6699090.A12 6699090	-
30 - O-RING TILL 9.2015 FOR EUROPE HIT-6699102.A11 6699102	-
*30 - O-RING USA HIT-6699102.A12 6699102	-
31 - INLET NEEDLE VALVE TILL 9.2015 FOR EUROPE HIT-6699081.A6 6699081	£10.93	£13.12
*31 - INLET NEEDLE VALVE USA HIT-6699081.A7 6699081	£10.93	£13.12
32 - SET SCREW (A) TILL 9.2015 FOR EUROPE HIT-6699085.A6 6699085	-
*32 - SET SCREW (A) USA HIT-6699085.A7 6699085	-
33 - METERING LEVER TILL 9.2015 FOR EUROPE HIT-6699084.A13 6699084	£1.67	£2.00
*33 - METERING LEVER USA HIT-6699084.A14 6699084	£1.67	£2.00
34 - METERING GASKET TILL 9.2015 FOR EUROPE HIT-6699092.A11 6699092	£7.12	£8.54
*34 - METERING GASKET USA HIT-6699092.A12 6699092	£7.12	£8.54
36 - LOCK NUT M6 (10 PCS.) HIT-949567.A16 949567	£1.67	£2.00
37 - CARBURETOR INSULATOR HIT-6698387.A42 6698387	£4.72	£5.66
38A - INTAKE PAKING (A) HIT-6600456.A8 6600456	£2.77	£3.32
39 - GLASS WASHER HIT-6698700.A59 6698700	£1.67	£2.00
40 - CARBURETOR PACKING HIT-6698816.A4 6698816	£2.84	£3.41
41 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A22 6698844	£1.67	£2.00
42 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A22 6698388	£1.67	£2.00
43 - CORD HIT-6699060.A7 6699060	-
44 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-6698879.A3 6698879	-
45 - CYLINDER COVER HIT-6698871.A3 6698871	-
46 - METAL OF PLUG CAP (60) (B) HIT-6699180.A9 6699180	-
47 - PLUG CAP HIT-6698548.A7 6698548	-
48 - CORD INSULATION TUBE L60 HIT-6699175.A4 6699175	-
49A - IGNITION COIL HIT-6600890.A3 6600890	£40.12	£48.15
50B - SPARK PLUG ASS'Y BMR7A HIT-6699316.A9 6699316	£12.43	£14.92
51 - CYLINDER HIT-6698597.A4 6698597	£39.62	£47.54
52 - COVER PACKING HIT-6696534.A10 6696534	£1.67	£2.00
53 - INTAKE COVER (A) HIT-6696535.A10 6696535	£1.67	£2.00
54 - SEAL LOCK SCREW M4X10 HIT-6696835.A17 6696835	-
55 - HEAT PROTECTION PANEL HIT-6698617.A4 6698617	-
56 - MUFFLER HIT-6698631.A1 6698631	£42.11	£50.53
57 - BOLT WASHER M6 (10 PCS.) HIT-949432.A27 949432	£1.67	£2.00
58 - HEX. SOCKET HD. BOLT M6X55 HIT-6696819.A32 6696819	-
59 - INTAKE COVER (B) HIT-6696536.A12 6696536	-
60 - PISTON PIN HIT-6696944.A10 6696944	£5.61	£6.73
61 - PISTON HIT-6696531.A9 6696531	£10.77	£12.92
62 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A22 6698386	-
63 - CYLINDER PACKING HIT-6696530.A9 6696530	£1.67	£2.00
64 - PISTON RING HIT-6696532.A9 6696532	£3.56	£4.27
65 - CIR CLIP HIT-6684590.A100 6684590	£1.67	£2.00
66 - FLYWHEEL NUT M7 HIT-6696879.A11 6696879	-
67 - BOLT WASHER D7 HIT-6696880.A15 6696880	-
68 - STARTER PAWL HIT-6698603.A4 6698603	-
69 - STARTER PAWL SPRING HIT-6685335.A17 6685335	£2.84	£3.41
70 - MAGNETO ROTOR HIT-6698601.A7 6698601	-
71 - RETAINING RING D4 HIT-6685336.A18 6685336	£3.49	£4.19
72 - CRANK CASE (B) ASS'Y INCLUD.73 HIT-6698872.A7 6698872	£23.58	£28.30
73 - OIL SEAL TB 12227 HIT-6684607.A189 6684607	£4.07	£4.88
74 - BALL BEARING 6001 C3 HIT-6684608.A18 6684608	£5.70	£6.84
75 - SHIM T0.2 HIT-6696946.A6 6696946	£1.67	£2.00
76 - SHIM T0.3 HIT-6696945.A29 6696945	£1.67	£2.00
77 - CRANK SHAFT HIT-6699043.A4 6699043	-
78 - CRANK CASE (A) ASS'Y INCLUD.73 HIT-6698729.A7 6698729	-
79 - CRANK CASE PACKING HIT-6696539.A15 6696539	£1.67	£2.00
80 - KNOCK PIN 4X12 HIT-6696947.A68 6696947	-
81 - CLUTCH (B) HIT-6699173.A5 6699173	£11.61	£13.93
82 - CLUTCH DRUM HIT-6699040.A7 6699040	£14.86	£17.83
83 - BALL BEARING 6002ZC3 HIT-6698740.A9 6698740	£6.94	£8.33
84 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A20 939544	£3.64	£4.37
85 - GREASE NIPPLE COMP. HIT-6688643.A42 6688643	£1.67	£2.00
86 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A33 302089	£1.67	£2.00
87 - MUFFLER PROTECTOR HIT-6698876.A2 6698876	£25.90	£31.08
88 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A24 791045	£2.71	£3.25
89 - TAIL PIPE HIT-6698782.A2 6698782	-
90 - FIXATION PLATE (A) HIT-6698634.A2 6698634	£3.56	£4.27
91A - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A45 935196	£1.67	£2.00
92 - FIXATION PLATE (B) HIT-6699073.A1 6699073	-
93 - HEX. HOLE BOLT 6X18/S HIT-6695495.A39 6695495	-
94 - BRAND LABEL HIT-000000.A437 000000	-
95 - TAPPING SCREW D4.5X16 HIT-6698878.A20 6698878	£1.67	£2.00
96 - PLATE HIT-6685189.A25 6685189	-
97 - STARTER HANDLE HIT-6693227.A36 6693227	-
98 - ROPE HIT-6693168.A36 6693168	£2.82	£3.39
99 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 HIT-6698988.A14 6698988	£1.67	£2.00
100A - RECOIL SPRING HIT-6684675.A76 6684675	£8.82	£10.58
101A - STARTER PULLEY SINCE 1.2015 HIT-6600995.A0 6600995	-
102 - DAMPER SPRING HIT-6685183.A0 6685183	£5.70	£6.84
103A - CAM PLATE SINCE 1.2015 HIT-6600996.A11 6600996	-
104 - SET SCREW HIT-6684679.A84 6684679	£2.98	£3.57
104 - CAM PLATE HIT-6685182.A9 6685182	£3.56	£4.27
*105 - RECOIL STARTER ASS'Y INCLUD.96-98 HIT-6698622.A8 6698622	£36.72	£44.07
*105 - RECOIL STARTER ASS'Y INCLUD.96-98 HIT-6698623.A1 6698623	-
106 - AIR DEFLECTOR HIT-6698624.A1 6698624	-
107 - FUEL TANK CAP ASS'Y INCLUD.108 HIT-6698402.A70 6698402	-
108 - TANK CAP CHAIN HIT-6698732.A32 6698732	-
109 - FUEL GROMMET FOR USA HIT-6688156.A87 6688156	-
110 - FUEL PIPE HIT-6698873.A6 6698873	£8.46	£10.15
*110 - FUEL PIPE FOR USA HIT-6699183.A2 6699183	-
111A - FUEL PIPE HIT-6601399.A11 6601399	£3.02	£3.63
112A - RETURN GROMMET FOR USA HIT-6697846.A111 6697846	£2.08	£2.50
113 - CLIP HIT-6696949.A81 6696949	£1.67	£2.00
114 - PUMP FILTER HIT-6698874.A14 6698874	£15.94	£19.13
115 - CUSHION RUBBER HIT-6698615.A14 6698615	£3.56	£4.27
*116 - TANK TILL 9.2016 EXCEPT FOR USA HIT-6698613.A3 6698613	£5.92	£7.11
*116 - TANK (A) FOR USA HIT-6698612.A4 6698612	-
117 - CAUTION LABEL HIT-000000.A440 000000	-
119 - SCREW (B) SINCE 10.2015 FOR EUROPE HIT-6600883.A11 6600883	-
*119 - SCREW (B) FOR USA HIT-6600883.A12 6600883	-
120 - SCREW (C) SINCE 10.2015 FOR EUROPE HIT-6600884.A6 6600884	-
*120 - SCREW (C) FOR USA HIT-6600884.A7 6600884	-
121 - PRIMER PUMP SINCE 10.2015 FOR EUROPE HIT-6600889.A11 6600889	-
*121 - PRIMER PUMP FOR USA HIT-6600889.A12 6600889	-
122 - PUMP BODY SINCE 10.2015 FOR EUROPE HIT-6600876.A6 6600876	-
*122 - PUMP BODY FOR USA HIT-6600876.A7 6600876	-
123 - PUMP PACKING SINCE 10.2015 FOR EUROPE HIT-6600879.A12 6600879	-
*123 - PUMP PACKING FOR USA HIT-6600879.A13 6600879	-
124 - PUMP DIAPHRAGM SINCE 10.2015 FOR EUROPE HIT-6600880.A6 6600880	£5.25	£6.30
*124 - PUMP DIAPHRAGM FOR USA HIT-6600880.A7 6600880	£5.25	£6.30
125 - INLET SCREEN SINCE 10.2015 FOR EUROPE HIT-6684700.A122 6684700	-
*125 - INLET SCREEN FOR USA HIT-6684700.A123 6684700	-
126 - PUMP COVER SINCE 10.2015 FOR EUROPE HIT-6600877.A11 6600877	-
*126 - PUMP COVER FOR USA HIT-6600877.A12 6600877	-
127 - HIGH SPEED NEEDLE SINCE 10.2015 FOR EUROPE HIT-6600887.A11 6600887	-
*127 - HIGH SPEED NEEDLE FOR USA HIT-6600887.A12 6600887	-
128 - METERING LEVER SPRING SINCE 10.2015 FOR EUROPE HIT-6600885.A11 6600885	-
*128 - METERING LEVER SPRING FOR USA HIT-6600885.A12 6600885	-
129 - HINGE PIN SINCE 10.2015 FOR EUROPE HIT-6685219.A95 6685219	-
*129 - HINGE PIN FOR USA HIT-6685219.A96 6685219	-
130 - METERING DIAPHRAGM SINCE 10.2015 FOR EUROPE HIT-6600881.A11 6600881	£22.42	£26.91
*130 - METERING DIAPHRAGM FOR USA HIT-6600881.A12 6600881	£22.42	£26.91
131 - DIAPHRAGM COVER-METERING SINCE 10.2015 FOR EUROPE HIT-6685222.A169 6685222	£5.70	£6.84
*131 - DIAPHRAGM COVER-METERING FOR USA HIT-6685222.A170 6685222	£5.70	£6.84
132 - SWIVEL SINCE 10.2015 FOR EUROPE HIT-6684697.A83 6684697	-
*132 - SWIVEL FOR USA HIT-6684697.A84 6684697	-
133 - THROTTLE VALVE SINCE 10.2015 FOR EUROPE HIT-6600878.A6 6600878	-
*133 - THROTTLE VALVE FOR USA HIT-6600878.A7 6600878	-
134 - STOP RING SINCE 10.2015 FOR EUROPE HIT-6684696.A101 6684696	-
*134 - STOP RING FOR USA HIT-6684696.A102 6684696	-
135 - WASHER SINCE 10.2015 FOR EUROPE HIT-6600886.A6 6600886	-
*135 - WASHER FOR USA HIT-6600886.A7 6600886	-
136 - NEEDLE VALVE SINCE 10.2015 FOR EUROPE HIT-6685215.A99 6685215	£6.79	£8.15
*136 - NEEDLE VALVE FOR USA HIT-6685215.A100 6685215	£6.79	£8.15
137 - SCREW (A) SINCE 10.2015 FOR EUROPE HIT-6600882.A6 6600882	-
*137 - SCREW (A) FOR USA HIT-6600882.A7 6600882	-
138 - METERING LEVER SINCE 10.2015 FOR EUROPE HIT-6600888.A6 6600888	-
*138 - METERING LEVER FOR USA HIT-6600888.A7 6600888	-
139 - DIAPHRAGM PACKING-METERING SINCE 10.2015 FOR EUROPE HIT-6685220.A10 6685220	£2.81	£3.37
*139 - DIAPHRAGM PACKING-METERING FOR USA HIT-6685220.A11 6685220	£2.81	£3.37
140 - CARBURETOR ASS'Y WYGA-1 INCLUD.119-139 SINCE 10.2015 FOR EUROPE HIT-6600875.A11 6600875	£45.69	£54.83
*140 - CARBURETOR ASSY WYGA-1 (SINCE 8.2016 FOR USA CAN) HIT-6600875.A12 6600875	£45.69	£54.83
141 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X32 HIT-6698814.A2 6698814	-
142 - FRONT HANDLE HIT-6698776.A2 6698776	-
143 - CAUTION LABEL HIT-000000.A441 000000	-
144 - FRAME HIT-6698777.A2 6698777	-
145 - NAME PLATE HIT-000000.A442 000000	-
146 - DAMPER HIT-6698778.A1 6698778	-
147 - HANDLE A HIT-6698880.A8 6698880	£12.61	£15.13
148 - FLEXIBLE GROMMET HIT-6698945.A2 6698945	-
149 - SPRING (A) HIT-6696348.A1 6696348	-
*150 - LOCK LEVER HIT-6699055.A0 6699055	-
*150 - LOCK LEVER FOR USA HIT-6699056.A2 6699056	-
*151 - THROTTLE LEVER HIT-6699053.A2 6699053	-
*151 - THROTTLE LEVER FOR USA HIT-6699054.A2 6699054	-
*152 - TRIGGER LOCKOUT HIT-6696344.A1 6696344	£2.84	£3.41
*152 - TRIGGER LOCKOUT FOR USA HIT-6698626.A0 6698626	-
153 - THROTTLE LEVER SPRING HIT-6696345.A31 6696345	£2.84	£3.41
154A - STOP SWITCH HIT-6601275.A82 6601275	£1.67	£2.00
155 - HANDLE B HIT-6699051.A4 6699051	£5.78	£6.94
156 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A131 305812	£1.67	£2.00
157 - THROTTLE WIRE HIT-6698627.A7 6698627	£6.94	£8.33
158 - PROTECTION TUBE HIT-6698738.A2 6698738	£1.67	£2.00
159 - STOP SWITCH CORD HIT-6699058.A9 6699058	-
160 - STOP SWITCH CORD (B) HIT-6699059.A2 6699059	-
161 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X22 HIT-6698815.A2 6698815	£1.67	£2.00
162 - CLIP HIT-6696359.A29 6696359	£2.84	£3.41
163 - NYLON NUT M6 FOR SILVER COLOR BLADE HIT-6698766.A14 6698766	-
*163 - NYLON NUT M6 FOR BLACK COLOR BLADE HIT-6698766.A15 6698766	-
*164 - BOLT WASHER 6 FOR 620MM SILVER COLOR BLADE HIT-6684639.A178 6684639	£1.67	£2.00
*164 - BOLT WASHER 6 FOR 780MM SILVER COLOR BLADE HIT-6684639.A179 6684639	£1.67	£2.00
*164 - BOLT WASHER 6 FOR BLACK COLOR BLADE HIT-6684639.A180 6684639	£1.67	£2.00
*165 - U-NUT M5 FOR 620MM SILVER COLOR BLADE HIT-6699108.A6 6699108	£2.94	£3.53
*165 - U-NUT M5 FOR 780MM SILVER COLOR BLADE HIT-6699108.A7 6699108	£2.94	£3.53
*165A - FLANGE NUT 6 FOR 660MM BLACK COLOR BLADE HIT-6695170.A70 6695170	£1.67	£2.00
*165A - FLANGE NUT 6 FOR 780MM BLACK COLOR BLADE HIT-6695170.A71 6695170	£1.67	£2.00
169A - SUPPORT PLATE FOR SILVER COLOR BLADE HIT-6699064.A5 6699064	-
169B - SUPPORT PLATE FOR BLACK COLOR BLADE HIT-6600892.A2 6600892	£1.67	£2.00
170 - BOLT WASHER M6 (10 PCS.) FOR 620MM HIT-949432.A89 949432	£1.67	£2.00
171 - SPRING HOLDER HIT-6698779.A2 6698779	-
172 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X10 HIT-6698781.A3 6698781	-
173A - ANTIVIBRATION SPRING REPLACE THE 4 PCS. AT ONCE UNTIL 2.2015 HIT-6600480.A2 6600480	£4.37	£5.24
*174A - BLADE ASS'Y (620MM) INCLUD.165 HIT-6600398.A6 6600398	£81.91	£98.29
*174A - BLADE ASS'Y (620MM) FOR SILVER COLOR BLADE HIT-6600398.A7 6600398	£81.91	£98.29
*174A - BLADE ASS'Y (780MM) INCLUD.165 HIT-6600410.A3 6600410	£95.87	£115.04
*174A - BLADE ASSY (780MM) FOR SILVER COLOR BLADE HIT-6600410.A4 6600410	£95.87	£115.04
*174B - BLADE ASS'Y (620MM) INCLUD.165 HIT-6600451.A3 6600451	£81.79	£98.15
*174B - BLADE ASS'Y (620MM) TILL 10.2014 FOR SILVER COLOR BLADE HIT-6600451.A4 6600451	£81.79	£98.15
*174B - BLADE ASS'Y (780MM) INCLUD.165 HIT-6600453.A1 6600453	-
*174B - BLADE ASSY (780MM) TILL 10.2014 FOR SILVER COLOR BLADE HIT-6600453.A2 6600453	-
*174C - CUTTER ASS'Y (660MM) INCLUD.165A HIT-6600893.A2 6600893	£154.38	£185.26
*174C - CUTTER ASS'Y (660MM) 196A HIT-6600893.A3 6600893	£154.38	£185.26
*174C - CUTTER ASS'Y (780MM) INCLUD.165A HIT-6600894.A0 6600894	£180.09	£216.11
*174C - CUTTER ASS'Y (780MM) 196A HIT-6600894.A1 6600894	£180.09	£216.11
175 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X8 HIT-6699065.A2 6699065	£1.67	£2.00
176 - GUARD PLATE FOR SILVER COLOR BLADE HIT-6699062.A2 6699062	£1.67	£2.00
176A - GUARD PLATE FOR BLACK COLOR BLADE HIT-6687275.A8 6687275	£4.47	£5.36
177 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 FOR SILVER COLOR BLADE HIT-6699113.A16 6699113	£2.77	£3.32
177A - HEX. HOLE FLUSH BOLT 6X25 FOR BLACK COLOR BLADE HIT-6695075.A22 6695075	£1.67	£2.00
178 - WASHER (A) HIT-6699114.A2 6699114	£1.67	£2.00
*179 - WASHER M7 FOR 620MM SILVER COLOR BLADE HIT-6699111.A17 6699111	£1.67	£2.00
*179 - WASHER M7 FOR 780MM SILVER COLOR BLADE HIT-6699111.A18 6699111	£1.67	£2.00
*179A - WASHER 7 BLACK FOR 660MM BLACK COLOR BLADE HIT-6687187.A17 6687187	£1.67	£2.00
*179A - WASHER 7 BLACK FOR 780MM BLACK COLOR BLADE HIT-6687187.A18 6687187	£1.67	£2.00
*180 - SHOULDER BUTTON BOLT M5X25 FOR 620MM SILVER COLOR BLADE HIT-6699109.A9 6699109	£2.77	£3.32
*180 - SHOULDER BUTTON BOLT M5X25 FOR 780MM SILVER COLOR BLADE HIT-6699109.A10 6699109	£2.77	£3.32
*180A - FIXING BOLT A M6 FOR 660MM BLACK COLOR BLADE HIT-6687158.A14 6687158	£1.67	£2.00
*180A - FIXING BOLT A M6 FOR 780MM BLACK COLOR BLADE HIT-6687158.A15 6687158	£1.67	£2.00
181 - SHOULDER BUTTON BOLT M5X31 HIT-6699179.A9 6699179	£3.73	£4.48
*182 - BLADE CASE (FOR 620MM) HIT-6698948.A6 6698948	£6.94	£8.33
*182 - BLADE CASE (FOR 780MM) HIT-6698785.A2 6698785	-
183 - GEAR CASE (A) ASS'Y INCLUD.184 HIT-6699074.A2 6699074	£48.90	£58.68
184 - BALL BEARING 608ZZC3 HIT-6698772.A2 6698772	£2.84	£3.41
185 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 FOR SILVER COLOR BLADE HIT-6699113.A15 6699113	£2.77	£3.32
185A - HEX. HOLE FLUSH BOLT 6X25 FOR BLACK COLOR BLADE HIT-6695075.A21 6695075	£1.67	£2.00
186A - GUIDE PLATE (B) HIT-6600418.A7 6600418	£1.67	£2.00
187 - CAM ROD HIT-6698987.A0 6698987	£3.73	£4.48
188 - GEAR 2 HIT-6699066.A5 6699066	£25.03	£30.04
189 - FELT PACKING (B) HIT-6699068.A5 6699068	£1.67	£2.00
190 - FELT PACKING (C) HIT-6699067.A2 6699067	£1.67	£2.00
191 - GEAR CASE PACKING HIT-6699042.A11 6699042	£1.67	£2.00
192 - GEAR CASE (B) ASS'Y INCLUD.184 HIT-6699071.A2 6699071	£16.36	£19.63
193 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X14 HIT-6699069.A2 6699069	£1.67	£2.00
194 - START LABEL (B) HIT-000000.A4544 000000	-
195 - LOWER PLATE FOR SILVER COLOR BLADE HIT-6600013.A10 6600013	£15.52	£18.63
*195A - PROTECTION PLATE FOR 660MM BLACK COLOR BLADE HIT-6601209.A3 6601209	-
*195A - PROTECTION PLATE FOR 780MM BLACK COLOR BLADE HIT-6601210.A1 6601210	-
*196 - BLADE GUIDE (620MM) FOR SILVER COLOR BLADE HIT-6600012.A0 6600012	£15.28	£18.33
*196 - BLADE GUIDE (780MM) FOR SILVER COLOR BLADE HIT-6600015.A3 6600015	-
*196A - CUTTER GUIDE 734L M6 FOR 660MM BLACK COLOR BLADE HIT-6687147.A3 6687147	£28.68	£34.41
*196A - CUTTER GUIDE 845L M6 FOR 780MM BLACK COLOR BLADE HIT-6687144.A0 6687144	£28.68	£34.41
*197 - HEDGE TRIMMER BLADE (C) 620MM SINCE 11.2014 FOR SILVER COLOR BLADE HIT-6600014.A0 6600014	£33.95	£40.74
*197 - HEDGE TRIMMER BLADE (D) 780MM SINCE 11.2014 FOR SILVER COLOR BLADE HIT-6600016.A0 6600016	£32.28	£38.73
197A - HEDGE TRIMMER BLADE (C) 620MM INCLUD.186A TILL 10.2014 HIT-6600452.A5 6600452	£32.28	£38.73
*197A - HEDGE TRIMMER BLADE (C) 620MM FOR SILVER COLOR BLADE HIT-6600452.A6 6600452	£32.28	£38.73
*197A - HEDGE TRIMMER BLADE (D) 780MM INCLUD.186A TILL 10.2014 HIT-6600454.A3 6600454	£32.28	£38.73
*197A - HEDGE TRIMMER BLADE (D) 780MM FOR SILVER COLOR BLADE HIT-6600454.A4 6600454	£32.28	£38.73
*197B - CUTTER A (696.5L) FOR 660MM BLACK COLOR BLADE HIT-6687086.A0 6687086	£48.75	£58.50
*197B - CUTTER A (812L) FOR 780MM BLACK COLOR BLADE HIT-6687092.A1 6687092	£60.99	£73.19
*198 - BLADE LINER HIT-6600360.A12 6600360	£7.12	£8.54
*198 - BLADE LINER FOR 780MM HIT-6600361.A0 6600361	-
*199 - WASHER (B) HIT-6699112.A2 6699112	£1.67	£2.00
*199 - WASHER (B) FOR 780MM HIT-6699112.A3 6699112	£1.67	£2.00
200 - BALANCER FOR 620MM HIT-6600362.A5 6600362	£3.48	£4.17
201 - CARBURETOR PACKING HIT-6698405.A22 6698405	£3.12	£3.74
202 - CARBURETOR HEAT PANEL ASS'Y INCLUD.5A HIT-6600891.A2 6600891	-
203 - SPACER FOR BLACK COLOR BLADE HIT-6600895.A1 6600895	-
204 - STARTER PULLEY ASS'Y INCLUD.101A HIT-6600997.A11 6600997	-
205 - IGNITION COIL ASS'Y INCLUD.46-49A HIT-6601364.A8 6601364	£26.26	£31.51
206 - CARBURETOR ASS'Y WYGA-1 (W/HEAT PANEL) INCLUD.140 HIT-6601361.A5 6601361	-
*206 - CARBURETOR ASSY WYGA-1 (W/HEAT PANEL) (TILL 7.2016 FOR USA CAN) HIT-6601361.A6 6601361	-
207 - TANK SINCE 10.2016 EXCEPT FOR USA HIT-6601419.A8 6601419	£9.60	£11.52
208 - FUEL GROMMET SINCE 10.2016 EXCEPT FOR USA HIT-6600358.A78 6600358	£1.67	£2.00
501 - BOX WRENCH 10/19MM HIT-6698756.A2 6698756	-
601 - BOTTOM COVER SET INCLUD.141 HIT-6600487.A1 6600487	-
602 - BOTTOM COVER (C) ASS'Y INCLUD.604 HIT-6600481.A1 6600481	-
603 - SEALING SPONGE (A) HIT-6600482.A2 6600482	-
604 - SEALING SPONGE (E) HIT-6600483.A1 6600483	-
605 - SEALING SPONGE (F) HIT-6600484.A2 6600484	-
606 - SEALING SPONGE (G) HIT-6600485.A1 6600485	-
607 - HEAT PROTECTION PANEL (B) HIT-6600486.A2 6600486	-
608 - GREASE FOR IMPACT WRENCH (100G) HIT-971042.A4 971042	£16.77	£20.12

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CH22ECP2 Engine Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
