Hitachi / Hikoki CH22EC2 Engine Hedge Trimmer Spare Parts

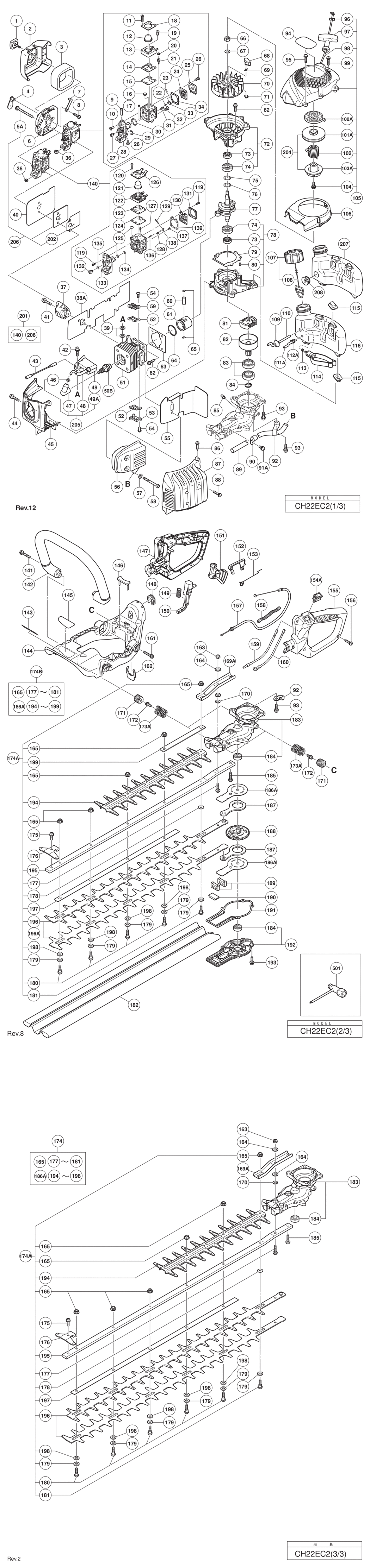

An exploded diagram and spare parts listing for the Hitachi / Hikoki CH22EC2 Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - COVER FIXING BOLT COMP. HIT-6698730.A20 6698730	£5.52	£6.63
2 - CLEANER COVER HIT-6698609.A0 6698609	-
3 - CLEANER SPONGE HIT-6690365.A2 6690365	£1.67	£2.00
4 - CHOKE VALVE HIT-6698608.A11 6698608	£1.67	£2.00
5A - MACHINE SCREW (W/WASHERS) M5X65 (BLACK) HIT-312440.A9 312440	£1.67	£2.00
6 - CLEANER BODY HIT-6698606.A11 6698606	£3.73	£4.48
7 - CHOKE HANDLE HIT-6698607.A0 6698607	£1.67	£2.00
8 - NO LONGER AVAILABLE HIT-309470.A12 309470	-
9 - THROTTLE ADJUST SCREW (TAS) TILL 7.2016 HIT-6699087.A3 6699087	-
10 - SET SCREW (B) TILL 7.2016 HIT-6699088.A15 6699088	-
11 - SET SCREW (D) TILL 7.2016 HIT-6699100.A15 6699100	-
12 - SYRINGE TILL 7.2016 HIT-6699098.A15 6699098	£6.86	£8.23
13 - PRIMER BASE TILL 7.2016 HIT-6699097.A3 6699097	£39.92	£47.91
14 - PUMP GASKET TILL 7.2016 HIT-6699096.A15 6699096	£7.12	£8.54
15 - PUMP DIAPHRAGM TILL 7.2016 HIT-6699095.A3 6699095	£10.02	£12.02
16 - STRAINER TILL 7.2016 HIT-6699080.A15 6699080	-
17 - GUIDE PIN ROLLER TILL 7.2016 HIT-6699103.A3 6699103	-
18 - SYRINGE RETAINER TILL 7.2016 HIT-6699099.A3 6699099	-
19 - SET SCREW (E) TILL 7.2016 HIT-6699101.A3 6699101	-
20 - BALL PLUG RETAINER TILL 7.2016 HIT-6699104.A15 6699104	-
21 - ADJUSTING SCREW (MAIN MIXTURE) TILL 7.2016 HIT-6699105.A3 6699105	-
22 - METERING LEVER SPRING TILL 7.2016 HIT-6699083.A2 6699083	-
23 - PIN TILL 7.2016 HIT-6699082.A19 6699082	£1.67	£2.00
24 - METERING DIAPHRAGM TILL 7.2016 HIT-6699091.A3 6699091	£13.60	£16.32
25 - METERING COVER TILL 7.2016 HIT-6699093.A3 6699093	-
26 - SET SCREW (C) TILL 7.2016 HIT-6699094.A17 6699094	-
27 - POST TILL 7.2016 HIT-6699089.A2 6699089	-
28 - ROTOR COVER TILL 7.2016 HIT-6699086.A16 6699086	-
29 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT TILL 7.2016 HIT-6699090.A16 6699090	-
30 - O-RING TILL 7.2016 HIT-6699102.A15 6699102	-
31 - INLET NEEDLE VALVE TILL 7.2016 HIT-6699081.A2 6699081	£10.93	£13.12
32 - SET SCREW (A) TILL 7.2016 HIT-6699085.A2 6699085	-
33 - METERING LEVER TILL 7.2016 HIT-6699084.A18 6699084	£1.67	£2.00
34 - METERING GASKET TILL 7.2016 HIT-6699092.A15 6699092	£7.12	£8.54
36 - LOCK NUT M6 (10 PCS.) HIT-949567.A13 949567	£1.67	£2.00
37 - CARBURETOR INSULATOR HIT-6698387.A40 6698387	£4.72	£5.66
38A - INTAKE PAKING (A) HIT-6600456.A6 6600456	£2.77	£3.32
39 - GLASS WASHER HIT-6698700.A54 6698700	£1.67	£2.00
40 - CARBURETOR PACKING HIT-6698816.A0 6698816	£2.84	£3.41
41 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A17 6698844	£1.67	£2.00
42 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A25 6698388	£1.67	£2.00
43 - CORD HIT-6699060.A6 6699060	-
44 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-6698879.A6 6698879	-
45 - CYLINDER COVER HIT-6698871.A4 6698871	-
46 - METAL OF PLUG CAP (60) (B) HIT-6699180.A10 6699180	-
47 - PLUG CAP HIT-6698548.A10 6698548	-
48 - CORD INSULATION TUBE L60 HIT-6699175.A2 6699175	-
49A - IGNITION COIL HIT-6600890.A6 6600890	£40.12	£48.15
50B - SPARK PLUG ASS'Y BMR7A HIT-6699316.A1 6699316	£12.43	£14.92
51 - CYLINDER HIT-6698597.A1 6698597	£39.62	£47.54
52 - COVER PACKING HIT-6696534.A9 6696534	£1.67	£2.00
53 - INTAKE COVER (A) HIT-6696535.A13 6696535	£1.67	£2.00
54 - SEAL LOCK SCREW M4X10 HIT-6696835.A16 6696835	-
55 - HEAT PROTECTION PANEL HIT-6698617.A2 6698617	-
56 - MUFFLER HIT-6698632.A0 6698632	-
57 - BOLT WASHER M6 (10 PCS.) HIT-949432.A24 949432	£1.67	£2.00
58 - HEX. SOCKET HD. BOLT M6X55 HIT-6696819.A28 6696819	-
59 - INTAKE COVER (B) HIT-6696536.A9 6696536	-
60 - PISTON PIN HIT-6696944.A4 6696944	£5.61	£6.73
61 - PISTON HIT-6696531.A13 6696531	£10.77	£12.92
62 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A24 6698386	-
63 - CYLINDER PACKING HIT-6696530.A0 6696530	£1.67	£2.00
64 - PISTON RING HIT-6696532.A1 6696532	£3.56	£4.27
65 - CIR CLIP HIT-6684590.A125 6684590	£1.67	£2.00
66 - FLYWHEEL NUT M7 HIT-6696879.A7 6696879	-
67 - BOLT WASHER D7 HIT-6696880.A20 6696880	-
68 - STARTER PAWL HIT-6698603.A5 6698603	-
69 - STARTER PAWL SPRING HIT-6685335.A27 6685335	£2.84	£3.41
70 - MAGNETO ROTOR HIT-6698601.A6 6698601	-
71 - RETAINING RING D4 HIT-6685336.A5 6685336	£3.49	£4.19
72 - CRANK CASE (B) ASS'Y INCLUD.73 HIT-6698872.A9 6698872	£23.58	£28.30
73 - OIL SEAL TB 12227 HIT-6684607.A98 6684607	£4.07	£4.88
74 - BALL BEARING 6001 C3 HIT-6684608.A102 6684608	£5.70	£6.84
75 - SHIM T0.2 HIT-6696946.A12 6696946	£1.67	£2.00
76 - SHIM T0.3 HIT-6696945.A25 6696945	£1.67	£2.00
77 - CRANK SHAFT HIT-6699043.A9 6699043	-
78 - CRANK CASE (A) ASS'Y INCLUD.73 HIT-6698729.A9 6698729	-
79 - CRANK CASE PACKING HIT-6696539.A18 6696539	£1.67	£2.00
80 - KNOCK PIN 4X12 HIT-6696947.A48 6696947	-
81 - CLUTCH (B) HIT-6699173.A8 6699173	£11.61	£13.93
82 - CLUTCH DRUM HIT-6699040.A0 6699040	£14.86	£17.83
83 - BALL BEARING 6002ZC3 HIT-6698740.A1 6698740	£6.94	£8.33
84 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A0 939544	£3.64	£4.37
85 - GREASE NIPPLE COMP. HIT-6688643.A78 6688643	£1.67	£2.00
86 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A4 302089	£1.67	£2.00
87 - MUFFLER PROTECTOR HIT-6699174.A3 6699174	-
88 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A35 791045	£2.71	£3.25
89 - TAIL PIPE HIT-6698782.A3 6698782	-
90 - FIXATION PLATE (A) HIT-6698634.A3 6698634	£3.56	£4.27
91A - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A76 935196	£1.67	£2.00
92 - FIXATION PLATE (B) HIT-6699073.A0 6699073	-
93 - HEX. HOLE BOLT 6X18/S HIT-6695495.A18 6695495	-
94 - BRAND LABEL HIT-000000.A2546 000000	-
95 - TAPPING SCREW D4.5X16 HIT-6698878.A33 6698878	£1.67	£2.00
96 - PLATE HIT-6685189.A7 6685189	-
97 - STARTER HANDLE HIT-6693227.A16 6693227	-
98 - ROPE HIT-6693168.A48 6693168	£2.82	£3.39
99 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 HIT-6698988.A0 6698988	£1.67	£2.00
100A - RECOIL SPRING HIT-6684675.A2 6684675	£8.82	£10.58
101A - STARTER PULLEY SINCE 1.2015 HIT-6600995.A5 6600995	-
102 - DAMPER SPRING HIT-6685183.A18 6685183	£5.70	£6.84
103A - CAM PLATE SINCE 1.2015 HIT-6600996.A6 6600996	-
104 - SET SCREW HIT-6684679.A157 6684679	£2.98	£3.57
105 - RECOIL STARTER ASS'Y INCLUD.96-98 HIT-6698622.A4 6698622	£36.72	£44.07
106 - AIR DEFLECTOR HIT-6698624.A7 6698624	-
107 - FUEL TANK CAP ASS'Y INCLUD.108 HIT-6698402.A94 6698402	-
108 - TANK CAP CHAIN HIT-6698732.A3 6698732	-
109 - FUEL GROMMET TILL 9.2016 HIT-6688156.A79 6688156	-
110 - FUEL PIPE HIT-6698873.A2 6698873	£8.46	£10.15
111A - FUEL PIPE HIT-6601399.A14 6601399	£3.02	£3.63
112A - RETURN GROMMET TILL 9.2016 HIT-6697846.A127 6697846	£2.08	£2.50
113 - CLIP HIT-6696949.A50 6696949	£1.67	£2.00
114 - PUMP FILTER HIT-6698874.A17 6698874	£15.94	£19.13
115 - CUSHION RUBBER HIT-6698615.A5 6698615	£3.56	£4.27
116 - TANK TILL 9.2016 HIT-6698613.A7 6698613	£5.92	£7.11
119 - SCREW (B) SINCE 8.2016 HIT-6600883.A15 6600883	-
120 - SCREW (C) SINCE 8.2016 HIT-6600884.A3 6600884	-
121 - PRIMER PUMP SINCE 8.2016 HIT-6600889.A15 6600889	-
122 - PUMP BODY SINCE 8.2016 HIT-6600876.A3 6600876	-
123 - PUMP PACKING SINCE 8.2016 HIT-6600879.A16 6600879	-
124 - PUMP DIAPHRAGM SINCE 8.2016 HIT-6600880.A3 6600880	£5.25	£6.30
125 - INLET SCREEN SINCE 8.2016 HIT-6684700.A24 6684700	-
126 - PUMP COVER SINCE 8.2016 HIT-6600877.A15 6600877	-
127 - HIGH SPEED NEEDLE SINCE 8.2016 HIT-6600887.A15 6600887	-
128 - METERING LEVER SPRING SINCE 8.2016 HIT-6600885.A15 6600885	-
129 - HINGE PIN SINCE 8.2016 HIT-6685219.A68 6685219	-
130 - METERING DIAPHRAGM SINCE 8.2016 HIT-6600881.A15 6600881	£22.42	£26.91
131 - DIAPHRAGM COVER-METERING SINCE 8.2016 HIT-6685222.A136 6685222	£5.70	£6.84
132 - SWIVEL SINCE 8.2016 HIT-6684697.A157 6684697	-
133 - THROTTLE VALVE SINCE 8.2016 HIT-6600878.A3 6600878	-
134 - STOP RING SINCE 8.2016 HIT-6684696.A1 6684696	-
135 - WASHER SINCE 8.2016 HIT-6600886.A3 6600886	-
136 - NEEDLE VALVE SINCE 8.2016 HIT-6685215.A69 6685215	£6.79	£8.15
137 - SCREW (A) SINCE 8.2016 HIT-6600882.A3 6600882	-
138 - METERING LEVER SINCE 8.2016 HIT-6600888.A3 6600888	-
139 - DIAPHRAGM PACKING-METERING SINCE 8.2016 HIT-6685220.A43 6685220	£2.81	£3.37
140 - CARBURETOR ASS'Y WYGA-1 INCLUD.119-139 SINCE 8.2016 HIT-6600875.A15 6600875	£45.69	£54.83
141 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X32 HIT-6698814.A3 6698814	-
142 - FRONT HANDLE HIT-6698776.A0 6698776	-
143 - CAUTION LABEL HIT-000000.A2548 000000	-
144 - FRAME HIT-6698777.A3 6698777	-
145 - NAME PLATE HIT-000000.A2547 000000	-
146 - DAMPER HIT-6698778.A0 6698778	-
147 - HANDLE A HIT-6698880.A11 6698880	£12.61	£15.13
148 - FLEXIBLE GROMMET HIT-6698945.A3 6698945	-
149 - SPRING (A) HIT-6696348.A30 6696348	-
150 - LOCK LEVER HIT-6699055.A9 6699055	-
151 - THROTTLE LEVER HIT-6699053.A15 6699053	-
152 - TRIGGER LOCKOUT HIT-6696344.A30 6696344	£2.84	£3.41
153 - THROTTLE LEVER SPRING HIT-6696345.A2 6696345	£2.84	£3.41
154A - STOP SWITCH HIT-6601275.A38 6601275	£1.67	£2.00
155 - HANDLE B HIT-6699051.A11 6699051	£5.78	£6.94
156 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A7 305812	£1.67	£2.00
157 - THROTTLE WIRE HIT-6698627.A4 6698627	£6.94	£8.33
158 - PROTECTION TUBE HIT-6698738.A19 6698738	£1.67	£2.00
159 - STOP SWITCH CORD HIT-6699058.A2 6699058	-
160 - STOP SWITCH CORD (B) HIT-6699059.A13 6699059	-
161 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X22 HIT-6698815.A3 6698815	£1.67	£2.00
162 - CLIP HIT-6696359.A19 6696359	£2.84	£3.41
163 - NYLON NUT M6 HIT-6698766.A2 6698766	-
*164 - BOLT WASHER 6 HIT-6684639.A46 6684639	£1.67	£2.00
*164 - BOLT WASHER 6 FOR 780MM HIT-6684639.A47 6684639	£1.67	£2.00
*165 - U-NUT M5 HIT-6699108.A16 6699108	£2.94	£3.53
*165 - U-NUT M5 FOR 780MM HIT-6699108.A17 6699108	£2.94	£3.53
169A - SUPPORT PLATE HIT-6699064.A0 6699064	-
170 - BOLT WASHER M6 (10 PCS.) FOR 620MM HIT-949432.A49 949432	£1.67	£2.00
171 - SPRING HOLDER HIT-6698779.A5 6698779	-
172 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X10 HIT-6698781.A0 6698781	-
173A - ANTIVIBRATION SPRING REPLACE THE 4 PCS. AT ONCE UNTIL 2.2015 HIT-6600480.A5 6600480	£4.37	£5.24
*174A - BLADE ASS'Y (620MM) INCLUD.165 HIT-6600398.A2 6600398	£81.91	£98.29
*174A - BLADE ASS'Y (780MM) INCLUD.165 HIT-6600410.A2 6600410	£95.87	£115.04
174B - BLADE ASS'Y (620MM) INCLUD.165 HIT-6600451.A2 6600451	£81.79	£98.15
*174B - BLADE ASS'Y (780MM) INCLUD.165 HIT-6600453.A0 6600453	-
175 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X8 HIT-6699065.A8 6699065	£1.67	£2.00
176 - GUARD PLATE HIT-6699062.A10 6699062	£1.67	£2.00
177 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 HIT-6699113.A8 6699113	£2.77	£3.32
178 - WASHER (A) HIT-6699114.A7 6699114	£1.67	£2.00
*179 - WASHER M7 HIT-6699111.A7 6699111	£1.67	£2.00
*179 - WASHER M7 FOR 780MM HIT-6699111.A8 6699111	£1.67	£2.00
*180 - SHOULDER BUTTON BOLT M5X25 HIT-6699109.A6 6699109	£2.77	£3.32
*180 - SHOULDER BUTTON BOLT M5X25 FOR 780MM HIT-6699109.A7 6699109	£2.77	£3.32
181 - SHOULDER BUTTON BOLT M5X31 HIT-6699179.A2 6699179	£3.73	£4.48
*182 - BLADE CASE (FOR 620MM) HIT-6698948.A2 6698948	£6.94	£8.33
*182 - BLADE CASE (FOR 780MM) HIT-6698785.A5 6698785	-
183 - GEAR CASE (A) ASS'Y INCLUD.184 HIT-6699074.A3 6699074	£48.90	£58.68
184 - BALL BEARING 608ZZC3 HIT-6698772.A32 6698772	£2.84	£3.41
185 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 HIT-6699113.A7 6699113	£2.77	£3.32
186A - GUIDE PLATE (B) HIT-6600418.A2 6600418	£1.67	£2.00
187 - CAM ROD HIT-6698987.A7 6698987	£3.73	£4.48
188 - GEAR 2 HIT-6699066.A0 6699066	£25.03	£30.04
189 - FELT PACKING (B) HIT-6699068.A0 6699068	£1.67	£2.00
190 - FELT PACKING (C) HIT-6699067.A7 6699067	£1.67	£2.00
191 - GEAR CASE PACKING HIT-6699042.A1 6699042	£1.67	£2.00
192 - GEAR CASE (B) ASS'Y INCLUD.184 HIT-6699071.A7 6699071	£16.36	£19.63
193 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X14 HIT-6699069.A7 6699069	£1.67	£2.00
194 - LOWER PLATE HIT-6600013.A3 6600013	£15.52	£18.63
*195 - BLADE GUIDE (620MM) HIT-6600012.A5 6600012	£15.28	£18.33
*195 - BLADE GUIDE (780MM) HIT-6600015.A0 6600015	-
*196 - HEDGE TRIMMER BLADE (C) 620MM SINCE 11.2014 HIT-6600014.A7 6600014	£33.95	£40.74
*196 - HEDGE TRIMMER BLADE (D) 780MM SINCE 11.2014 HIT-6600016.A3 6600016	£32.28	£38.73
196A - HEDGE TRIMMER BLADE (C) 620MM INCLUD.186A TILL 10.2014 HIT-6600452.A7 6600452	£32.28	£38.73
196A - HEDGE TRIMMER BLADE (D) 780MM INCLUD.186A TILL 10.2014 HIT-6600454.A5 6600454	£32.28	£38.73
*197 - BLADE LINER HIT-6600360.A3 6600360	£7.12	£8.54
*197 - BLADE LINER FOR 780MM HIT-6600361.A3 6600361	-
*198 - WASHER (B) HIT-6699112.A15 6699112	£1.67	£2.00
*198 - WASHER (B) FOR 780MM HIT-6699112.A16 6699112	£1.67	£2.00
199 - BALANCER FOR 620MM HIT-6600362.A0 6600362	£3.48	£4.17
201 - Part Name Not Listed HIT-6601361.A17 6601361	-
202 - CARBURETOR PACKING HIT-6698405.A66 6698405	£3.12	£3.74
204 - STARTER PULLEY ASS'Y INCLUD.101A HIT-6600997.A4 6600997	-
205 - IGNITION COIL ASS'Y INCLUD.46-49A HIT-6601364.A1 6601364	£26.26	£31.51
206 - CARBURETOR HEAT PANEL ASS'Y INCLUD.5A HIT-6600891.A10 6600891	-
207 - TANK SINCE 10.2016 HIT-6601419.A5 6601419	£9.60	£11.52
208 - FUEL GROMMET SINCE 10.2016 HIT-6600358.A39 6600358	£1.67	£2.00
501 - BOX WRENCH 10/19MM HIT-6698756.A7 6698756	-
601 - BOTTOM COVER SET INCLUD.141 HIT-6600487.A0 6600487	-
602 - BOTTOM COVER (C) ASS'Y INCLUD.604 HIT-6600481.A0 6600481	-
603 - SEALING SPONGE (A) HIT-6600482.A3 6600482	-
604 - SEALING SPONGE (E) HIT-6600483.A0 6600483	-
605 - SEALING SPONGE (F) HIT-6600484.A3 6600484	-
606 - SEALING SPONGE (G) HIT-6600485.A0 6600485	-
607 - HEAT PROTECTION PANEL (B) HIT-6600486.A3 6600486	-
608 - GREASE FOR IMPACT WRENCH (100G) HIT-971042.A10 971042	£16.77	£20.12

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CH22EC2 Engine Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
