Hitachi / Hikoki CH22EBP2 Engine Hedge Trimmer Spare Parts

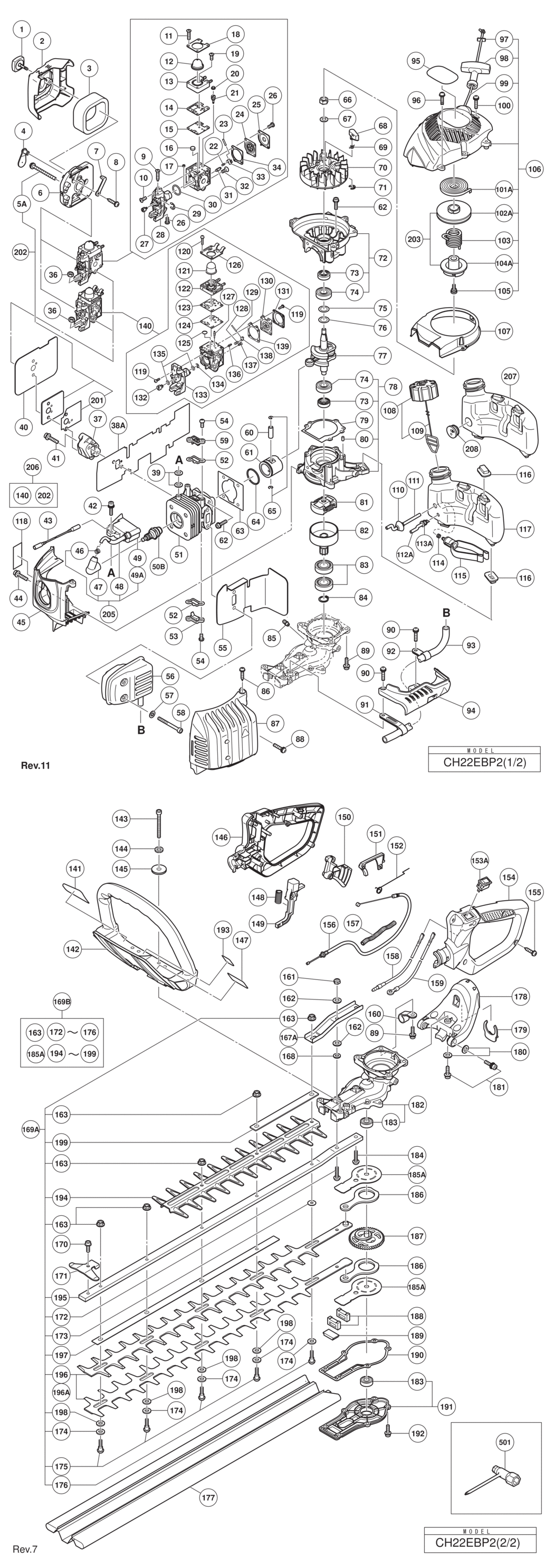

An exploded diagram and spare parts listing for the Hitachi / Hikoki CH22EBP2 Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - COVER FIXING BOLT COMP. HIT-6698730.A18 6698730	£5.52	£6.63
2 - CLEANER COVER HIT-6698609.A1 6698609	£1.67	£2.00
3 - CLEANER SPONGE HIT-6690365.A1 6690365	£1.67	£2.00
4 - CHOKE VALVE HIT-6698608.A10 6698608	£1.67	£2.00
5A - MACHINE SCREW (W/WASHERS) M5X65 (BLACK) HIT-312440.A8 312440	£1.67	£2.00
6 - CLEANER BODY HIT-6698606.A10 6698606	£3.73	£4.48
7 - CHOKE HANDLE HIT-6698607.A1 6698607	£1.67	£2.00
8 - NO LONGER AVAILABLE HIT-309470.A13 309470	-
9 - THROTTLE ADJUST SCREW (TAS) TILL 9.2015 FOR EUROPE HIT-6699087.A4 6699087	-
*9 - THROTTLE ADJUST SCREW (TAS) USA HIT-6699087.A5 6699087	-
10 - SET SCREW (B) TILL 9.2015 FOR EUROPE HIT-6699088.A13 6699088	-
*10 - SET SCREW (B) USA HIT-6699088.A14 6699088	-
11 - SET SCREW (D) TILL 9.2015 FOR EUROPE HIT-6699100.A13 6699100	-
*11 - SET SCREW (D) USA HIT-6699100.A14 6699100	-
12 - SYRINGE TILL 9.2015 FOR EUROPE HIT-6699098.A13 6699098	£6.86	£8.23
*12 - SYRINGE USA HIT-6699098.A14 6699098	£6.86	£8.23
13 - PRIMER BASE TILL 9.2015 FOR EUROPE HIT-6699097.A4 6699097	£39.92	£47.91
*13 - PRIMER BASE USA HIT-6699097.A5 6699097	£39.92	£47.91
14 - PUMP GASKET TILL 9.2015 FOR EUROPE HIT-6699096.A13 6699096	£7.12	£8.54
*14 - PUMP GASKET USA HIT-6699096.A14 6699096	£7.12	£8.54
15 - PUMP DIAPHRAGM TILL 9.2015 FOR EUROPE HIT-6699095.A4 6699095	£10.02	£12.02
*15 - PUMP DIAPHRAGM USA HIT-6699095.A5 6699095	£10.02	£12.02
16 - STRAINER TILL 9.2015 FOR EUROPE HIT-6699080.A13 6699080	-
*16 - STRAINER USA HIT-6699080.A14 6699080	-
17 - GUIDE PIN ROLLER TILL 9.2015 FOR EUROPE HIT-6699103.A4 6699103	-
*17 - GUIDE PIN ROLLER USA HIT-6699103.A5 6699103	-
18 - SYRINGE RETAINER TILL 9.2015 FOR EUROPE HIT-6699099.A4 6699099	-
*18 - SYRINGE RETAINER USA HIT-6699099.A5 6699099	-
19 - SET SCREW (E) TILL 9.2015 FOR EUROPE HIT-6699101.A4 6699101	-
*19 - SET SCREW (E) USA HIT-6699101.A5 6699101	-
20 - BALL PLUG RETAINER TILL 9.2015 FOR EUROPE HIT-6699104.A13 6699104	-
*20 - BALL PLUG RETAINER USA HIT-6699104.A14 6699104	-
21 - ADJUSTING SCREW (MAIN MIXTURE) TILL 9.2015 FOR EUROPE HIT-6699105.A4 6699105	-
*21 - ADJUSTING SCREW (MAIN MIXTURE) USA HIT-6699105.A5 6699105	-
22 - METERING LEVER SPRING TILL 9.2015 FOR EUROPE HIT-6699083.A4 6699083	-
*22 - METERING LEVER SPRING USA HIT-6699083.A5 6699083	-
23 - PIN TILL 9.2015 FOR EUROPE HIT-6699082.A17 6699082	£1.67	£2.00
*23 - PIN USA HIT-6699082.A18 6699082	£1.67	£2.00
24 - METERING DIAPHRAGM TILL 9.2015 FOR EUROPE HIT-6699091.A4 6699091	£13.60	£16.32
*24 - METERING DIAPHRAGM USA HIT-6699091.A5 6699091	£13.60	£16.32
25 - METERING COVER TILL 9.2015 FOR EUROPE HIT-6699093.A4 6699093	-
*25 - METERING COVER USA HIT-6699093.A5 6699093	-
26 - SET SCREW (C) TILL 9.2015 FOR EUROPE HIT-6699094.A15 6699094	-
*26 - SET SCREW (C) USA HIT-6699094.A16 6699094	-
27 - POST TILL 9.2015 FOR EUROPE HIT-6699089.A4 6699089	-
*27 - POST USA HIT-6699089.A5 6699089	-
28 - ROTOR COVER TILL 9.2015 FOR EUROPE HIT-6699086.A13 6699086	-
*28 - ROTOR COVER USA HIT-6699086.A14 6699086	-
29 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT TILL 9.2015 FOR EUROPE HIT-6699090.A13 6699090	-
*29 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT USA HIT-6699090.A14 6699090	-
30 - O-RING TILL 9.2015 FOR EUROPE HIT-6699102.A13 6699102	-
*30 - O-RING USA HIT-6699102.A14 6699102	-
31 - INLET NEEDLE VALVE TILL 9.2015 FOR EUROPE HIT-6699081.A4 6699081	£10.93	£13.12
*31 - INLET NEEDLE VALVE USA HIT-6699081.A5 6699081	£10.93	£13.12
32 - SET SCREW (A) TILL 9.2015 FOR EUROPE HIT-6699085.A4 6699085	-
*32 - SET SCREW (A) USA HIT-6699085.A5 6699085	-
33 - METERING LEVER TILL 9.2015 FOR EUROPE HIT-6699084.A15 6699084	£1.67	£2.00
*33 - METERING LEVER USA HIT-6699084.A16 6699084	£1.67	£2.00
34 - METERING GASKET TILL 9.2015 FOR EUROPE HIT-6699092.A13 6699092	£7.12	£8.54
*34 - METERING GASKET USA HIT-6699092.A14 6699092	£7.12	£8.54
36 - LOCK NUT M6 (10 PCS.) HIT-949567.A12 949567	£1.67	£2.00
37 - CARBURETOR INSULATOR HIT-6698387.A39 6698387	£4.72	£5.66
38A - INTAKE PAKING (A) HIT-6600456.A5 6600456	£2.77	£3.32
39 - GLASS WASHER HIT-6698700.A57 6698700	£1.67	£2.00
40 - CARBURETOR PACKING HIT-6698816.A2 6698816	£2.84	£3.41
41 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A18 6698844	£1.67	£2.00
42 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A27 6698388	£1.67	£2.00
43 - CORD HIT-6699060.A4 6699060	-
44 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-6698879.A7 6698879	-
45 - CYLINDER COVER HIT-6698871.A6 6698871	-
46 - METAL OF PLUG CAP (60) (B) HIT-6699180.A12 6699180	-
47 - PLUG CAP HIT-6698548.A9 6698548	-
48 - CORD INSULATION TUBE L60 HIT-6699175.A3 6699175	-
49A - IGNITION COIL HIT-6600890.A4 6600890	£40.12	£48.15
50B - SPARK PLUG ASS'Y BMR7A HIT-6699316.A0 6699316	£12.43	£14.92
51 - CYLINDER HIT-6698597.A2 6698597	£39.62	£47.54
52 - COVER PACKING HIT-6696534.A7 6696534	£1.67	£2.00
53 - INTAKE COVER (A) HIT-6696535.A15 6696535	£1.67	£2.00
54 - SEAL LOCK SCREW M4X10 HIT-6696835.A14 6696835	-
55 - HEAT PROTECTION PANEL HIT-6698617.A0 6698617	-
56 - MUFFLER HIT-6698733.A1 6698733	£39.62	£47.54
57 - BOLT WASHER M6 (10 PCS.) HIT-949432.A25 949432	£1.67	£2.00
58 - HEX. SOCKET HD. BOLT M6X55 HIT-6696819.A31 6696819	-
59 - INTAKE COVER (B) HIT-6696536.A6 6696536	-
60 - PISTON PIN HIT-6696944.A7 6696944	£5.61	£6.73
61 - PISTON HIT-6696531.A11 6696531	£10.77	£12.92
62 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A27 6698386	-
63 - CYLINDER PACKING HIT-6696530.A10 6696530	£1.67	£2.00
64 - PISTON RING HIT-6696532.A10 6696532	£3.56	£4.27
65 - CIR CLIP HIT-6684590.A101 6684590	£1.67	£2.00
66 - FLYWHEEL NUT M7 HIT-6696879.A12 6696879	-
67 - BOLT WASHER D7 HIT-6696880.A14 6696880	-
68 - STARTER PAWL HIT-6698603.A3 6698603	-
69 - STARTER PAWL SPRING HIT-6685335.A16 6685335	£2.84	£3.41
70 - MAGNETO ROTOR HIT-6698601.A8 6698601	-
71 - RETAINING RING D4 HIT-6685336.A19 6685336	£3.49	£4.19
72 - CRANK CASE (B) ASS'Y INCLUD.73 HIT-6698872.A8 6698872	£23.58	£28.30
73 - OIL SEAL TB 12227 HIT-6684607.A188 6684607	£4.07	£4.88
74 - BALL BEARING 6001 C3 HIT-6684608.A19 6684608	£5.70	£6.84
75 - SHIM T0.2 HIT-6696946.A5 6696946	£1.67	£2.00
76 - SHIM T0.3 HIT-6696945.A30 6696945	£1.67	£2.00
77 - CRANK SHAFT HIT-6699043.A5 6699043	-
78 - CRANK CASE (A) ASS'Y INCLUD.73 HIT-6698729.A8 6698729	-
79 - CRANK CASE PACKING HIT-6696539.A16 6696539	£1.67	£2.00
80 - KNOCK PIN 4X12 HIT-6696947.A69 6696947	-
81 - CLUTCH (B) HIT-6699173.A4 6699173	£11.61	£13.93
82 - CLUTCH DRUM HIT-6699040.A6 6699040	£14.86	£17.83
83 - BALL BEARING 6002ZC3 HIT-6698740.A7 6698740	£6.94	£8.33
84 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A23 939544	£3.64	£4.37
85 - GREASE NIPPLE COMP. HIT-6688643.A43 6688643	£1.67	£2.00
86 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A34 302089	£1.67	£2.00
87 - MUFFLER PROTECTOR HIT-6698876.A1 6698876	£25.90	£31.08
88 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A23 791045	£2.71	£3.25
89 - HEX. HOLE BOLT 6X18/S HIT-6695495.A40 6695495	-
90 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 HIT-6698988.A13 6698988	£1.67	£2.00
91 - FIXATION PLATE (A) HIT-6699047.A7 6699047	-
92 - FIXATION PLATE (B) HIT-6699048.A6 6699048	-
93 - TAIL PIPE (A) HIT-6699052.A2 6699052	£4.62	£5.55
94 - EXHAUST COVER HIT-6699037.A5 6699037	-
95 - BRAND LABEL HIT-000000.A426 000000	-
96 - TAPPING SCREW D4.5X16 HIT-6698878.A23 6698878	£1.67	£2.00
97 - PLATE HIT-6685189.A22 6685189	-
98 - STARTER HANDLE HIT-6693227.A35 6693227	-
99 - ROPE HIT-6693168.A37 6693168	£2.82	£3.39
100 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 HIT-6698988.A12 6698988	£1.67	£2.00
101A - RECOIL SPRING HIT-6684675.A77 6684675	£8.82	£10.58
102A - STARTER PULLEY SINCE 1.2015 HIT-6600995.A1 6600995	-
103 - DAMPER SPRING HIT-6685183.A3 6685183	£5.70	£6.84
104A - CAM PLATE SINCE 1.2015 HIT-6600996.A10 6600996	-
105 - SET SCREW HIT-6684679.A83 6684679	£2.98	£3.57
*106 - RECOIL STARTER ASS'Y INCLUD.97-99 HIT-6698622.A7 6698622	£36.72	£44.07
*106 - RECOIL STARTER ASS'Y INCLUD.97-99 HIT-6698623.A2 6698623	-
107 - AIR DEFLECTOR HIT-6698624.A0 6698624	-
108 - FUEL TANK CAP ASS'Y INCLUD.109 HIT-6698402.A72 6698402	-
109 - TANK CAP CHAIN HIT-6698732.A30 6698732	-
110 - FUEL GROMMET FOR USA HIT-6688156.A86 6688156	-
111 - FUEL PIPE HIT-6698873.A5 6698873	£8.46	£10.15
*111 - FUEL PIPE FOR USA HIT-6699183.A1 6699183	-
112A - FUEL PIPE HIT-6601399.A10 6601399	£3.02	£3.63
113A - RETURN GROMMET FOR USA HIT-6697846.A110 6697846	£2.08	£2.50
114 - CLIP HIT-6696949.A82 6696949	£1.67	£2.00
115 - PUMP FILTER HIT-6698874.A15 6698874	£15.94	£19.13
116 - CUSHION RUBBER HIT-6698615.A13 6698615	£3.56	£4.27
*117 - TANK TILL 9.2016 EXCEPT FOR USA HIT-6698613.A4 6698613	£5.92	£7.11
*117 - TANK (A) FOR USA HIT-6698612.A3 6698612	-
118 - CAUTION LABEL HIT-000000.A429 000000	-
119 - SCREW (B) SINCE 10.2015 FOR EUROPE HIT-6600883.A13 6600883	-
*119 - SCREW (B) FOR USA HIT-6600883.A14 6600883	-
120 - SCREW (C) SINCE 10.2015 FOR EUROPE HIT-6600884.A4 6600884	-
*120 - SCREW (C) FOR USA HIT-6600884.A5 6600884	-
121 - PRIMER PUMP SINCE 10.2015 FOR EUROPE HIT-6600889.A13 6600889	-
*121 - PRIMER PUMP FOR USA HIT-6600889.A14 6600889	-
122 - PUMP BODY SINCE 10.2015 FOR EUROPE HIT-6600876.A4 6600876	-
*122 - PUMP BODY FOR USA HIT-6600876.A5 6600876	-
123 - PUMP PACKING SINCE 10.2015 FOR EUROPE HIT-6600879.A14 6600879	-
*123 - PUMP PACKING FOR USA HIT-6600879.A15 6600879	-
124 - PUMP DIAPHRAGM SINCE 10.2015 FOR EUROPE HIT-6600880.A4 6600880	£5.25	£6.30
*124 - PUMP DIAPHRAGM FOR USA HIT-6600880.A5 6600880	£5.25	£6.30
125 - INLET SCREEN SINCE 10.2015 FOR EUROPE HIT-6684700.A124 6684700	-
*125 - INLET SCREEN FOR USA HIT-6684700.A125 6684700	-
126 - PUMP COVER SINCE 10.2015 FOR EUROPE HIT-6600877.A13 6600877	-
*126 - PUMP COVER FOR USA HIT-6600877.A14 6600877	-
127 - HIGH SPEED NEEDLE SINCE 10.2015 FOR EUROPE HIT-6600887.A13 6600887	-
*127 - HIGH SPEED NEEDLE FOR USA HIT-6600887.A14 6600887	-
128 - METERING LEVER SPRING SINCE 10.2015 FOR EUROPE HIT-6600885.A13 6600885	-
*128 - METERING LEVER SPRING FOR USA HIT-6600885.A14 6600885	-
129 - HINGE PIN SINCE 10.2015 FOR EUROPE HIT-6685219.A93 6685219	-
*129 - HINGE PIN FOR USA HIT-6685219.A94 6685219	-
130 - METERING DIAPHRAGM SINCE 10.2015 FOR EUROPE HIT-6600881.A13 6600881	£22.42	£26.91
*130 - METERING DIAPHRAGM FOR USA HIT-6600881.A14 6600881	£22.42	£26.91
131 - DIAPHRAGM COVER-METERING SINCE 10.2015 FOR EUROPE HIT-6685222.A166 6685222	£5.70	£6.84
*131 - DIAPHRAGM COVER-METERING FOR USA HIT-6685222.A167 6685222	£5.70	£6.84
132 - SWIVEL SINCE 10.2015 FOR EUROPE HIT-6684697.A81 6684697	-
*132 - SWIVEL FOR USA HIT-6684697.A82 6684697	-
133 - THROTTLE VALVE SINCE 10.2015 FOR EUROPE HIT-6600878.A4 6600878	-
*133 - THROTTLE VALVE FOR USA HIT-6600878.A5 6600878	-
134 - STOP RING SINCE 10.2015 FOR EUROPE HIT-6684696.A103 6684696	-
*134 - STOP RING FOR USA HIT-6684696.A104 6684696	-
135 - WASHER SINCE 10.2015 FOR EUROPE HIT-6600886.A4 6600886	-
*135 - WASHER FOR USA HIT-6600886.A5 6600886	-
136 - NEEDLE VALVE SINCE 10.2015 FOR EUROPE HIT-6685215.A101 6685215	£6.79	£8.15
*136 - NEEDLE VALVE FOR USA HIT-6685215.A102 6685215	£6.79	£8.15
137 - SCREW (A) SINCE 10.2015 FOR EUROPE HIT-6600882.A4 6600882	-
*137 - SCREW (A) FOR USA HIT-6600882.A5 6600882	-
138 - METERING LEVER SINCE 10.2015 FOR EUROPE HIT-6600888.A4 6600888	-
*138 - METERING LEVER FOR USA HIT-6600888.A5 6600888	-
139 - DIAPHRAGM PACKING-METERING SINCE 10.2015 FOR EUROPE HIT-6685220.A13 6685220	£2.81	£3.37
*139 - DIAPHRAGM PACKING-METERING FOR USA HIT-6685220.A14 6685220	£2.81	£3.37
140 - CARBURETOR ASS'Y WYGA-1 INCLUD.119-139 SINCE 10.2015 FOR EUROPE HIT-6600875.A13 6600875	£45.69	£54.83
*140 - CARBURETOR ASSY WYGA-1 (SINCE 8.2016 FOR USA CAN) HIT-6600875.A14 6600875	£45.69	£54.83
141 - NAME PLATE HIT-000000.A430 000000	-
142 - HANDLE HIT-6699079.A6 6699079	£8.55	£10.26
143 - SEAL LOCK HEX. SOCKET HD. BOLT M5X40 HIT-6698885.A6 6698885	£2.84	£3.41
144 - SPRING WASHER M5 HIT-6698884.A11 6698884	-
145 - BRAKE AXIS WASHER HIT-6698749.A4 6698749	-
146 - HANDLE A HIT-6698880.A7 6698880	£12.61	£15.13
147 - CAUTION LABEL HIT-000000.A431 000000	-
148 - SPRING (A) HIT-6696348.A14 6696348	-
*149 - LOCK LEVER HIT-6699055.A8 6699055	-
*149 - LOCK LEVER FOR USA HIT-6699056.A0 6699056	-
*150 - THROTTLE LEVER HIT-6699053.A10 6699053	-
*150 - THROTTLE LEVER FOR USA HIT-6699054.A0 6699054	-
*151 - TRIGGER LOCKOUT HIT-6696344.A15 6696344	£2.84	£3.41
*151 - TRIGGER LOCKOUT FOR USA HIT-6698626.A2 6698626	-
152 - THROTTLE LEVER SPRING HIT-6696345.A17 6696345	£2.84	£3.41
153A - STOP SWITCH HIT-6601275.A23 6601275	£1.67	£2.00
154 - HANDLE B HIT-6699051.A8 6699051	£5.78	£6.94
155 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A76 305812	£1.67	£2.00
156 - THROTTLE WIRE HIT-6698627.A0 6698627	£6.94	£8.33
157 - PROTECTION TUBE HIT-6698738.A11 6698738	£1.67	£2.00
158 - STOP SWITCH CORD HIT-6699058.A6 6699058	-
159 - STOP SWITCH CORD (B) HIT-6699059.A6 6699059	-
160 - FIXATION PLATE (B) HIT-6699049.A5 6699049	-
161 - NYLON NUT M6 HIT-6698766.A8 6698766	-
162 - BOLT WASHER 6 HIT-6684639.A79 6684639	£1.67	£2.00
163 - U-NUT M5 HIT-6699108.A20 6699108	£2.94	£3.53
167A - SUPPORT PLATE HIT-6699064.A2 6699064	-
168 - BOLT WASHER M6 (10 PCS.) HIT-949432.A26 949432	£1.67	£2.00
169A - BLADE ASS'Y (620MM) INCLUD.163 HIT-6600398.A0 6600398	£81.91	£98.29
169B - BLADE ASS'Y (620MM) INCLUD.163 HIT-6600451.A1 6600451	£81.79	£98.15
170 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X8 HIT-6699065.A5 6699065	£1.67	£2.00
171 - GUARD PLATE HIT-6699062.A5 6699062	£1.67	£2.00
172 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 HIT-6699113.A4 6699113	£2.77	£3.32
173 - WASHER (A) HIT-6699114.A8 6699114	£1.67	£2.00
174 - WASHER M7 HIT-6699111.A3 6699111	£1.67	£2.00
175 - SHOULDER BUTTON BOLT M5X25 HIT-6699109.A3 6699109	£2.77	£3.32
176 - SHOULDER BUTTON BOLT M5X31 HIT-6699179.A1 6699179	£3.73	£4.48
177 - BLADE CASE (FOR 620MM) HIT-6698948.A5 6698948	£6.94	£8.33
178 - HANDLE BRACKET HIT-6699041.A3 6699041	-
179 - CLIP HIT-6696359.A9 6696359	£2.84	£3.41
180 - BOLT WASHER D5 HIT-6685407.A55 6685407	-
181 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6699044.A11 6699044	-
182 - GEAR CASE (A) ASS'Y INCLUD.183 HIT-6699070.A1 6699070	-
183 - BALL BEARING 608ZZC3 HIT-6698772.A17 6698772	£2.84	£3.41
184 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 HIT-6699113.A3 6699113	£2.77	£3.32
185A - GUIDE PLATE (B) HIT-6600418.A1 6600418	£1.67	£2.00
186 - CAM ROD HIT-6698987.A5 6698987	£3.73	£4.48
187 - GEAR 2 HIT-6699066.A2 6699066	£25.03	£30.04
188 - FELT PACKING (B) HIT-6699068.A2 6699068	£1.67	£2.00
189 - FELT PACKING (C) HIT-6699067.A5 6699067	£1.67	£2.00
190 - GEAR CASE PACKING HIT-6699042.A5 6699042	£1.67	£2.00
191 - GEAR CASE (B) ASS'Y INCLUD.183 HIT-6699071.A5 6699071	£16.36	£19.63
192 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X14 HIT-6699069.A5 6699069	£1.67	£2.00
193 - START LABEL (B) HIT-000000.A433 000000	-
194 - LOWER PLATE HIT-6600013.A0 6600013	£15.52	£18.63
195 - BLADE GUIDE (620MM) HIT-6600012.A7 6600012	£15.28	£18.33
196 - HEDGE TRIMMER BLADE (C) 620MM SINCE 11.2014 HIT-6600014.A10 6600014	£33.95	£40.74
196A - HEDGE TRIMMER BLADE (C) 620MM INCLUD.185A TILL 10.2014 HIT-6600452.A8 6600452	£32.28	£38.73
197 - BLADE LINER HIT-6600360.A1 6600360	£7.12	£8.54
198 - WASHER (B) HIT-6699112.A22 6699112	£1.67	£2.00
199 - BALANCER HIT-6600362.A1 6600362	£3.48	£4.17
201 - CARBURETOR PACKING HIT-6698405.A54 6698405	£3.12	£3.74
202 - CARBURETOR HEAT PANEL ASS'Y INCLUD.5A HIT-6600891.A9 6600891	-
203 - STARTER PULLEY ASS'Y INCLUD.102A HIT-6600997.A0 6600997	-
205 - IGNITION COIL ASS'Y INCLUD.46-49A HIT-6601364.A2 6601364	£26.26	£31.51
206 - CARBURETOR ASS'Y WYGA-1 (W/HEAT PANEL) INCLUD.140 HIT-6601361.A15 6601361	-
*206 - CARBURETOR ASSY WYGA-1 (W/HEAT PANEL) (TILL 7.2016 FOR USA CAN) HIT-6601361.A16 6601361	-
207 - TANK SINCE 10.2016 EXCEPT FOR USA HIT-6601419.A3 6601419	£9.60	£11.52
208 - FUEL GROMMET SINCE 10.2016 EXCEPT FOR USA HIT-6600358.A21 6600358	£1.67	£2.00
501 - BOX WRENCH 10/19MM HIT-6698756.A14 6698756	-
601 - GREASE FOR IMPACT WRENCH (100G) HIT-971042.A15 971042	£16.77	£20.12

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CH22EBP2 Engine Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here

Shopping Basket (0) £0.00

Hitachi / Hikoki CH22EBP2 Engine Hedge Trimmer Spare Parts

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Hitachi / Hikoki TCG27EAP2 Engine Brush Cutter Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki CH22EBP2 Engine Hedge Trimmer Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Hitachi / Hikoki TCG27EAP2 Engine Brush Cutter Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
