Hitachi / Hikoki CH22EB2 Engine Hedge Trimmer Spare Parts

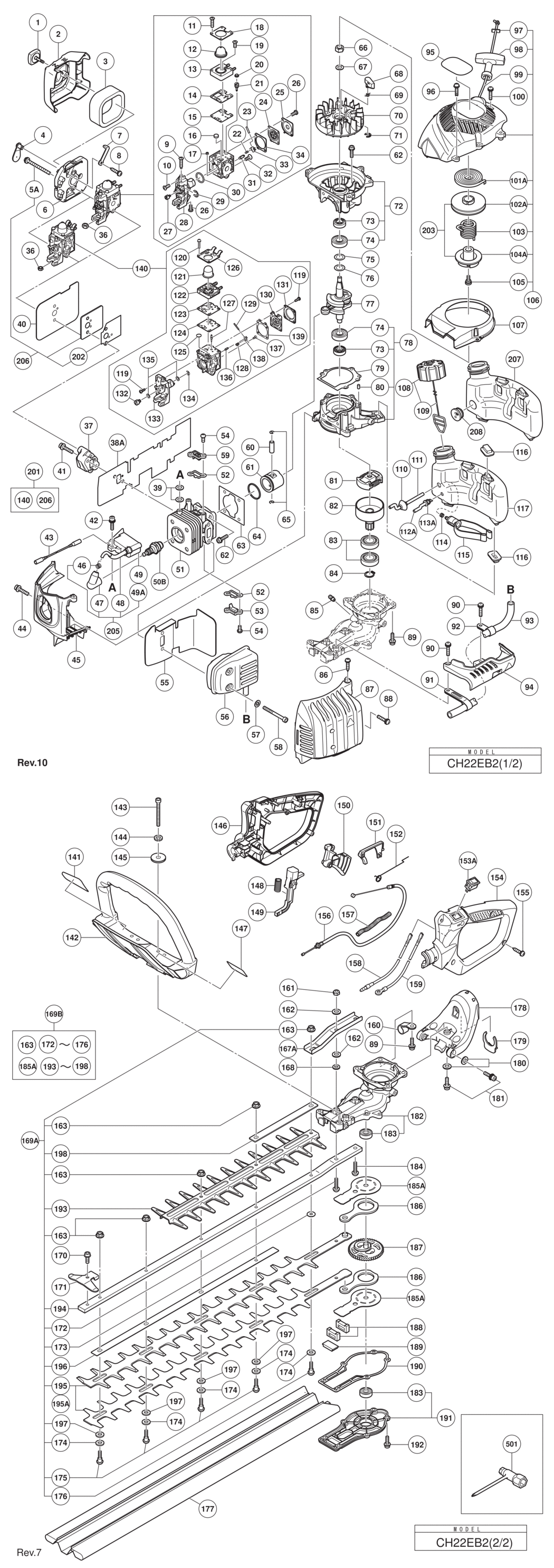

An exploded diagram and spare parts listing for the Hitachi / Hikoki CH22EB2 Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - COVER FIXING BOLT COMP. HIT-6698730.A22 6698730	£5.52	£6.63
2 - CLEANER COVER HIT-6698609.A2 6698609	£1.67	£2.00
3 - CLEANER SPONGE HIT-6690365.A4 6690365	£1.67	£2.00
4 - CHOKE VALVE HIT-6698608.A9 6698608	£1.67	£2.00
5A - MACHINE SCREW (W/WASHERS) M5X65 (BLACK) HIT-312440.A11 312440	£1.67	£2.00
6 - CLEANER BODY HIT-6698606.A9 6698606	£3.73	£4.48
7 - CHOKE HANDLE HIT-6698607.A2 6698607	£1.67	£2.00
8 - NO LONGER AVAILABLE HIT-309470.A10 309470	-
9 - THROTTLE ADJUST SCREW (TAS) TILL 7.2016 HIT-6699087.A2 6699087	-
10 - SET SCREW (B) TILL 7.2016 HIT-6699088.A16 6699088	-
11 - SET SCREW (D) TILL 7.2016 HIT-6699100.A16 6699100	-
12 - SYRINGE TILL 7.2016 HIT-6699098.A16 6699098	£6.86	£8.23
13 - PRIMER BASE TILL 7.2016 HIT-6699097.A2 6699097	£39.92	£47.91
14 - PUMP GASKET TILL 7.2016 HIT-6699096.A16 6699096	£7.12	£8.54
15 - PUMP DIAPHRAGM TILL 7.2016 HIT-6699095.A2 6699095	£10.02	£12.02
16 - STRAINER TILL 7.2016 HIT-6699080.A16 6699080	-
17 - GUIDE PIN ROLLER TILL 7.2016 HIT-6699103.A2 6699103	-
18 - SYRINGE RETAINER TILL 7.2016 HIT-6699099.A2 6699099	-
19 - SET SCREW (E) TILL 7.2016 HIT-6699101.A2 6699101	-
20 - BALL PLUG RETAINER TILL 7.2016 HIT-6699104.A16 6699104	-
21 - ADJUSTING SCREW (MAIN MIXTURE) TILL 7.2016 HIT-6699105.A2 6699105	-
22 - METERING LEVER SPRING TILL 7.2016 HIT-6699083.A3 6699083	-
23 - PIN TILL 7.2016 HIT-6699082.A22 6699082	£1.67	£2.00
24 - METERING DIAPHRAGM TILL 7.2016 HIT-6699091.A2 6699091	£13.60	£16.32
25 - METERING COVER TILL 7.2016 HIT-6699093.A2 6699093	-
26 - SET SCREW (C) TILL 7.2016 HIT-6699094.A18 6699094	-
27 - POST TILL 7.2016 HIT-6699089.A3 6699089	-
28 - ROTOR COVER TILL 7.2016 HIT-6699086.A15 6699086	-
29 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT TILL 7.2016 HIT-6699090.A15 6699090	-
30 - O-RING TILL 7.2016 HIT-6699102.A16 6699102	-
31 - INLET NEEDLE VALVE TILL 7.2016 HIT-6699081.A3 6699081	£10.93	£13.12
32 - SET SCREW (A) TILL 7.2016 HIT-6699085.A3 6699085	-
33 - METERING LEVER TILL 7.2016 HIT-6699084.A17 6699084	£1.67	£2.00
34 - METERING GASKET TILL 7.2016 HIT-6699092.A16 6699092	£7.12	£8.54
36 - LOCK NUT M6 (10 PCS.) HIT-949567.A15 949567	£1.67	£2.00
37 - CARBURETOR INSULATOR HIT-6698387.A41 6698387	£4.72	£5.66
38A - INTAKE PAKING (A) HIT-6600456.A7 6600456	£2.77	£3.32
39 - GLASS WASHER HIT-6698700.A56 6698700	£1.67	£2.00
40 - CARBURETOR PACKING HIT-6698816.A1 6698816	£2.84	£3.41
41 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A16 6698844	£1.67	£2.00
42 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A24 6698388	£1.67	£2.00
43 - CORD HIT-6699060.A5 6699060	-
44 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-6698879.A5 6698879	-
45 - CYLINDER COVER HIT-6698871.A5 6698871	-
46 - METAL OF PLUG CAP (60) (B) HIT-6699180.A11 6699180	-
47 - PLUG CAP HIT-6698548.A11 6698548	-
48 - CORD INSULATION TUBE L60 HIT-6699175.A1 6699175	-
49A - IGNITION COIL HIT-6600890.A5 6600890	£40.12	£48.15
50B - SPARK PLUG ASS'Y BMR7A HIT-6699316.A2 6699316	£12.43	£14.92
51 - CYLINDER HIT-6698597.A0 6698597	£39.62	£47.54
52 - COVER PACKING HIT-6696534.A8 6696534	£1.67	£2.00
53 - INTAKE COVER (A) HIT-6696535.A14 6696535	£1.67	£2.00
54 - SEAL LOCK SCREW M4X10 HIT-6696835.A15 6696835	-
55 - HEAT PROTECTION PANEL HIT-6698617.A1 6698617	-
56 - MUFFLER HIT-6698734.A1 6698734	-
57 - BOLT WASHER M6 (10 PCS.) HIT-949432.A22 949432	£1.67	£2.00
58 - HEX. SOCKET HD. BOLT M6X55 HIT-6696819.A29 6696819	-
59 - INTAKE COVER (B) HIT-6696536.A8 6696536	-
60 - PISTON PIN HIT-6696944.A3 6696944	£5.61	£6.73
61 - PISTON HIT-6696531.A12 6696531	£10.77	£12.92
62 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A23 6698386	-
63 - CYLINDER PACKING HIT-6696530.A7 6696530	£1.67	£2.00
64 - PISTON RING HIT-6696532.A7 6696532	£3.56	£4.27
65 - CIR CLIP HIT-6684590.A111 6684590	£1.67	£2.00
66 - FLYWHEEL NUT M7 HIT-6696879.A14 6696879	-
67 - BOLT WASHER D7 HIT-6696880.A12 6696880	-
68 - STARTER PAWL HIT-6698603.A0 6698603	-
69 - STARTER PAWL SPRING HIT-6685335.A19 6685335	£2.84	£3.41
70 - MAGNETO ROTOR HIT-6698601.A11 6698601	-
71 - RETAINING RING D4 HIT-6685336.A16 6685336	£3.49	£4.19
72 - CRANK CASE (B) ASS'Y INCLUD.73 HIT-6698872.A6 6698872	£23.58	£28.30
73 - OIL SEAL TB 12227 HIT-6684607.A202 6684607	£4.07	£4.88
74 - BALL BEARING 6001 C3 HIT-6684608.A5 6684608	£5.70	£6.84
75 - SHIM T0.2 HIT-6696946.A3 6696946	£1.67	£2.00
76 - SHIM T0.3 HIT-6696945.A32 6696945	£1.67	£2.00
77 - CRANK SHAFT HIT-6699043.A6 6699043	-
78 - CRANK CASE (A) ASS'Y INCLUD.73 HIT-6698729.A5 6698729	-
79 - CRANK CASE PACKING HIT-6696539.A13 6696539	£1.67	£2.00
80 - KNOCK PIN 4X12 HIT-6696947.A73 6696947	-
81 - CLUTCH (B) HIT-6699173.A3 6699173	£11.61	£13.93
82 - CLUTCH DRUM HIT-6699040.A5 6699040	£14.86	£17.83
83 - BALL BEARING 6002ZC3 HIT-6698740.A13 6698740	£6.94	£8.33
84 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A18 939544	£3.64	£4.37
85 - GREASE NIPPLE COMP. HIT-6688643.A52 6688643	£1.67	£2.00
86 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A32 302089	£1.67	£2.00
87 - MUFFLER PROTECTOR HIT-6699174.A4 6699174	-
88 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A21 791045	£2.71	£3.25
89 - HEX. HOLE BOLT 6X18/S HIT-6695495.A33 6695495	-
90 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 HIT-6698988.A7 6698988	£1.67	£2.00
91 - FIXATION PLATE (A) HIT-6699047.A4 6699047	-
92 - FIXATION PLATE (B) HIT-6699048.A9 6699048	-
93 - TAIL PIPE (A) HIT-6699052.A4 6699052	£4.62	£5.55
94 - EXHAUST COVER HIT-6699037.A4 6699037	-
95 - BRAND LABEL HIT-000000.A386 000000	-
96 - TAPPING SCREW D4.5X16 HIT-6698878.A17 6698878	£1.67	£2.00
97 - PLATE HIT-6685189.A20 6685189	-
98 - STARTER HANDLE HIT-6693227.A33 6693227	-
99 - ROPE HIT-6693168.A33 6693168	£2.82	£3.39
100 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 HIT-6698988.A6 6698988	£1.67	£2.00
101A - RECOIL SPRING HIT-6684675.A61 6684675	£8.82	£10.58
102A - STARTER PULLEY SINCE 1.2015 HIT-6600995.A2 6600995	-
103 - DAMPER SPRING HIT-6685183.A5 6685183	£5.70	£6.84
104A - CAM PLATE SINCE 1.2015 HIT-6600996.A9 6600996	-
105 - SET SCREW HIT-6684679.A98 6684679	£2.98	£3.57
106 - RECOIL STARTER ASS'Y INCLUD.97-99 HIT-6698622.A10 6698622	£36.72	£44.07
107 - AIR DEFLECTOR HIT-6698624.A3 6698624	-
108 - FUEL TANK CAP ASS'Y INCLUD.109 HIT-6698402.A65 6698402	-
109 - TANK CAP CHAIN HIT-6698732.A24 6698732	-
110 - FUEL GROMMET TILL 9.2016 HIT-6688156.A78 6688156	-
111 - FUEL PIPE HIT-6698873.A7 6698873	£8.46	£10.15
112A - FUEL PIPE HIT-6601399.A7 6601399	£3.02	£3.63
113A - RETURN GROMMET TILL 9.2016 HIT-6697846.A113 6697846	£2.08	£2.50
114 - CLIP HIT-6696949.A78 6696949	£1.67	£2.00
115 - PUMP FILTER HIT-6698874.A12 6698874	£15.94	£19.13
116 - CUSHION RUBBER HIT-6698615.A18 6698615	£3.56	£4.27
117 - TANK TILL 9.2016 HIT-6698613.A1 6698613	£5.92	£7.11
119 - SCREW (B) SINCE 8.2016 HIT-6600883.A8 6600883	-
120 - SCREW (C) SINCE 8.2016 HIT-6600884.A10 6600884	-
121 - PRIMER PUMP SINCE 8.2016 HIT-6600889.A8 6600889	-
122 - PUMP BODY SINCE 8.2016 HIT-6600876.A9 6600876	-
123 - PUMP PACKING SINCE 8.2016 HIT-6600879.A8 6600879	-
124 - PUMP DIAPHRAGM SINCE 8.2016 HIT-6600880.A10 6600880	£5.25	£6.30
125 - INLET SCREEN SINCE 8.2016 HIT-6684700.A107 6684700	-
126 - PUMP COVER SINCE 8.2016 HIT-6600877.A8 6600877	-
127 - HIGH SPEED NEEDLE SINCE 8.2016 HIT-6600887.A8 6600887	-
128 - METERING LEVER SPRING SINCE 8.2016 HIT-6600885.A8 6600885	-
129 - HINGE PIN SINCE 8.2016 HIT-6685219.A97 6685219	-
130 - METERING DIAPHRAGM SINCE 8.2016 HIT-6600881.A8 6600881	£22.42	£26.91
131 - DIAPHRAGM COVER-METERING SINCE 8.2016 HIT-6685222.A172 6685222	£5.70	£6.84
132 - SWIVEL SINCE 8.2016 HIT-6684697.A96 6684697	-
133 - THROTTLE VALVE SINCE 8.2016 HIT-6600878.A10 6600878	-
134 - STOP RING SINCE 8.2016 HIT-6684696.A89 6684696	-
135 - WASHER SINCE 8.2016 HIT-6600886.A10 6600886	-
136 - NEEDLE VALVE SINCE 8.2016 HIT-6685215.A94 6685215	£6.79	£8.15
137 - SCREW (A) SINCE 8.2016 HIT-6600882.A10 6600882	-
138 - METERING LEVER SINCE 8.2016 HIT-6600888.A10 6600888	-
139 - DIAPHRAGM PACKING-METERING SINCE 8.2016 HIT-6685220.A8 6685220	£2.81	£3.37
140 - CARBURETOR ASS'Y WYGA-1 INCLUD.119-139 SINCE 8.2016 HIT-6600875.A8 6600875	£45.69	£54.83
141 - NAME PLATE HIT-000000.A387 000000	-
142 - HANDLE HIT-6699079.A1 6699079	£8.55	£10.26
143 - SEAL LOCK HEX. SOCKET HD. BOLT M5X40 HIT-6698885.A4 6698885	£2.84	£3.41
144 - SPRING WASHER M5 HIT-6698884.A13 6698884	-
145 - BRAKE AXIS WASHER HIT-6698749.A0 6698749	-
146 - HANDLE A HIT-6698880.A5 6698880	£12.61	£15.13
147 - CAUTION LABEL HIT-000000.A388 000000	-
148 - SPRING (A) HIT-6696348.A18 6696348	-
149 - LOCK LEVER HIT-6699055.A6 6699055	-
150 - THROTTLE LEVER HIT-6699053.A7 6699053	-
151 - TRIGGER LOCKOUT HIT-6696344.A19 6696344	£2.84	£3.41
152 - THROTTLE LEVER SPRING HIT-6696345.A13 6696345	£2.84	£3.41
153A - STOP SWITCH HIT-6601275.A17 6601275	£1.67	£2.00
154 - HANDLE B HIT-6699051.A6 6699051	£5.78	£6.94
155 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A73 305812	£1.67	£2.00
156 - THROTTLE WIRE HIT-6698627.A2 6698627	£6.94	£8.33
157 - PROTECTION TUBE HIT-6698738.A7 6698738	£1.67	£2.00
158 - STOP SWITCH CORD HIT-6699058.A5 6699058	-
159 - STOP SWITCH CORD (B) HIT-6699059.A9 6699059	-
160 - FIXATION PLATE (B) HIT-6699049.A3 6699049	-
161 - NYLON NUT M6 HIT-6698766.A11 6698766	-
162 - BOLT WASHER 6 HIT-6684639.A85 6684639	£1.67	£2.00
163 - U-NUT M5 HIT-6699108.A23 6699108	£2.94	£3.53
167A - SUPPORT PLATE HIT-6699064.A1 6699064	-
168 - BOLT WASHER M6 (10 PCS.) HIT-949432.A23 949432	£1.67	£2.00
169A - BLADE ASS'Y (620MM) INCLUD.163 HIT-6600398.A1 6600398	£81.91	£98.29
169B - BLADE ASS'Y (620MM) INCLUD.163 HIT-6600451.A0 6600451	£81.79	£98.15
170 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X8 HIT-6699065.A7 6699065	£1.67	£2.00
171 - GUARD PLATE HIT-6699062.A7 6699062	£1.67	£2.00
172 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 HIT-6699113.A0 6699113	£2.77	£3.32
173 - WASHER (A) HIT-6699114.A9 6699114	£1.67	£2.00
174 - WASHER M7 HIT-6699111.A2 6699111	£1.67	£2.00
175 - SHOULDER BUTTON BOLT M5X25 HIT-6699109.A1 6699109	£2.77	£3.32
176 - SHOULDER BUTTON BOLT M5X31 HIT-6699179.A0 6699179	£3.73	£4.48
177 - BLADE CASE (FOR 620MM) HIT-6698948.A3 6698948	£6.94	£8.33
178 - HANDLE BRACKET HIT-6699041.A4 6699041	-
179 - CLIP HIT-6696359.A2 6696359	£2.84	£3.41
180 - BOLT WASHER D5 HIT-6685407.A52 6685407	-
181 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6699044.A10 6699044	-
182 - GEAR CASE (A) ASS'Y INCLUD.183 HIT-6699070.A0 6699070	-
183 - BALL BEARING 608ZZC3 HIT-6698772.A15 6698772	£2.84	£3.41
184 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 HIT-6699113.A1 6699113	£2.77	£3.32
185A - GUIDE PLATE (B) HIT-6600418.A0 6600418	£1.67	£2.00
186 - CAM ROD HIT-6698987.A6 6698987	£3.73	£4.48
187 - GEAR 2 HIT-6699066.A1 6699066	£25.03	£30.04
188 - FELT PACKING (B) HIT-6699068.A1 6699068	£1.67	£2.00
189 - FELT PACKING (C) HIT-6699067.A6 6699067	£1.67	£2.00
190 - GEAR CASE PACKING HIT-6699042.A4 6699042	£1.67	£2.00
191 - GEAR CASE (B) ASS'Y INCLUD.183 HIT-6699071.A6 6699071	£16.36	£19.63
192 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X14 HIT-6699069.A6 6699069	£1.67	£2.00
193 - LOWER PLATE HIT-6600013.A2 6600013	£15.52	£18.63
194 - BLADE GUIDE (620MM) HIT-6600012.A6 6600012	£15.28	£18.33
195 - HEDGE TRIMMER BLADE (C) 620MM SINCE 11.2014 HIT-6600014.A8 6600014	£33.95	£40.74
195A - HEDGE TRIMMER BLADE (C) 620MM INCLUD.185A TILL 11.2014 HIT-6600452.A9 6600452	£32.28	£38.73
196 - BLADE LINER HIT-6600360.A0 6600360	£7.12	£8.54
197 - WASHER (B) HIT-6699112.A24 6699112	£1.67	£2.00
198 - BALANCER HIT-6600362.A2 6600362	£3.48	£4.17
201 - CARBURETOR ASS'Y WYGA-1 (W/HEAT PANEL) INCLUD.140 HIT-6601361.A10 6601361	-
202 - CARBURETOR PACKING HIT-6698405.A49 6698405	£3.12	£3.74
203 - STARTER PULLEY ASS'Y INCLUD.102A HIT-6600997.A1 6600997	-
205 - IGNITION COIL ASS'Y INCLUD.46-49A HIT-6601364.A5 6601364	£26.26	£31.51
206 - CARBURETOR HEAT PANEL ASS'Y INCLUD.5A HIT-6600891.A7 6600891	-
207 - TANK SINCE 10.2016 HIT-6601419.A2 6601419	£9.60	£11.52
208 - FUEL GROMMET SINCE 10.2016 HIT-6600358.A17 6600358	£1.67	£2.00
501 - BOX WRENCH 10/19MM HIT-6698756.A19 6698756	-
601 - GREASE FOR IMPACT WRENCH (100G) HIT-971042.A13 971042	£16.77	£20.12

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CH22EB2 Engine Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
