Hitachi / Hikoki CH22EAP2 Engine Hedge Trimmer Spare Parts

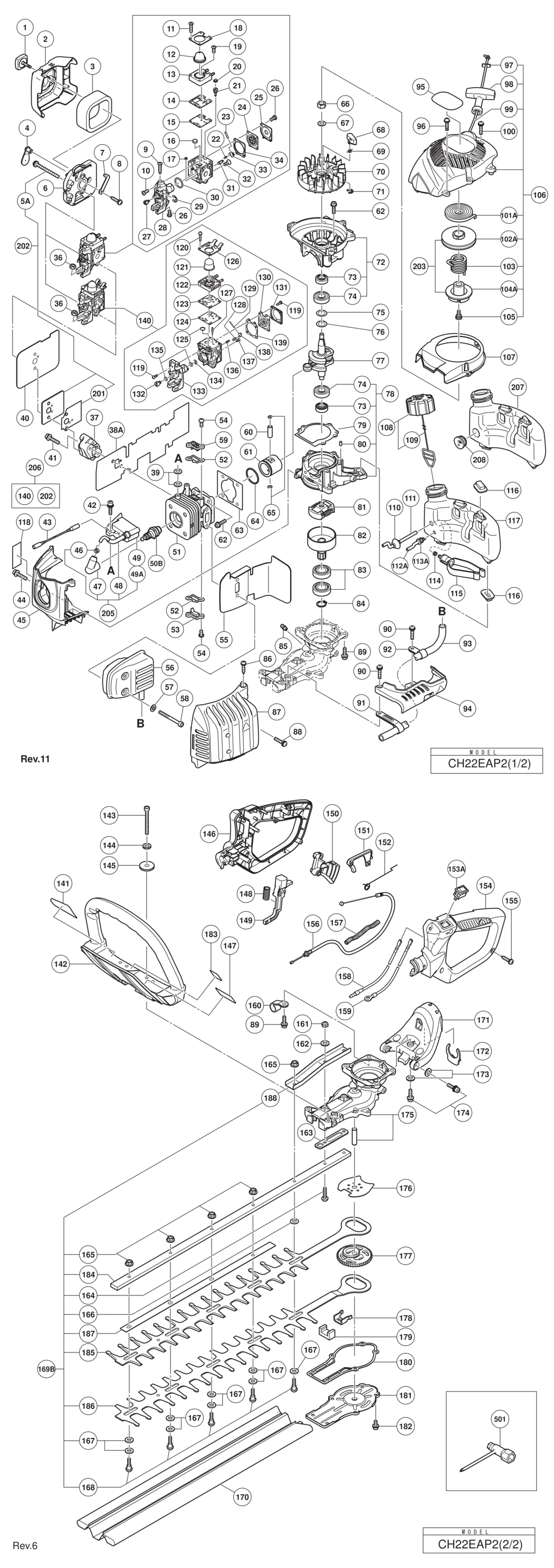

An exploded diagram and spare parts listing for the Hitachi / Hikoki CH22EAP2 Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - COVER FIXING BOLT COMP. HIT-6698730.A4 6698730	£5.52	£6.63
2 - CLEANER COVER HIT-6698609.A6 6698609	-
3 - CLEANER SPONGE HIT-6690365.A17 6690365	£1.67	£2.00
4 - CHOKE VALVE HIT-6698608.A6 6698608	£1.67	£2.00
5A - MACHINE SCREW (W/WASHERS) M5X65 (BLACK) HIT-312440.A5 312440	£1.67	£2.00
6 - CLEANER BODY HIT-6698606.A6 6698606	£3.73	£4.48
7 - CHOKE HANDLE HIT-6698607.A5 6698607	£1.67	£2.00
8 - NO LONGER AVAILABLE HIT-309470.A17 309470	-
9 - THROTTLE ADJUST SCREW (TAS) TILL 9.2015 FOR EUROPE HIT-6699087.A9 6699087	-
*9 - THROTTLE ADJUST SCREW (TAS) USA HIT-6699087.A10 6699087	-
10 - SET SCREW (B) TILL 9.2015 FOR EUROPE HIT-6699088.A8 6699088	-
*10 - SET SCREW (B) USA HIT-6699088.A9 6699088	-
11 - SET SCREW (D) TILL 9.2015 FOR EUROPE HIT-6699100.A8 6699100	-
*11 - SET SCREW (D) USA HIT-6699100.A9 6699100	-
12 - SYRINGE TILL 9.2015 FOR EUROPE HIT-6699098.A8 6699098	£6.86	£8.23
*12 - SYRINGE USA HIT-6699098.A9 6699098	£6.86	£8.23
13 - PRIMER BASE TILL 9.2015 FOR EUROPE HIT-6699097.A9 6699097	£39.92	£47.91
*13 - PRIMER BASE USA HIT-6699097.A10 6699097	£39.92	£47.91
14 - PUMP GASKET TILL 9.2015 FOR EUROPE HIT-6699096.A8 6699096	£7.12	£8.54
*14 - PUMP GASKET USA HIT-6699096.A9 6699096	£7.12	£8.54
15 - PUMP DIAPHRAGM TILL 9.2015 FOR EUROPE HIT-6699095.A8 6699095	£10.02	£12.02
*15 - PUMP DIAPHRAGM USA HIT-6699095.A9 6699095	£10.02	£12.02
16 - STRAINER TILL 9.2015 FOR EUROPE HIT-6699080.A9 6699080	-
*16 - STRAINER USA HIT-6699080.A10 6699080	-
17 - GUIDE PIN ROLLER TILL 9.2015 FOR EUROPE HIT-6699103.A9 6699103	-
*17 - GUIDE PIN ROLLER USA HIT-6699103.A10 6699103	-
18 - SYRINGE RETAINER TILL 9.2015 FOR EUROPE HIT-6699099.A9 6699099	-
*18 - SYRINGE RETAINER USA HIT-6699099.A10 6699099	-
19 - SET SCREW (E) TILL 9.2015 FOR EUROPE HIT-6699101.A9 6699101	-
*19 - SET SCREW (E) USA HIT-6699101.A10 6699101	-
20 - BALL PLUG RETAINER TILL 9.2015 FOR EUROPE HIT-6699104.A8 6699104	-
*20 - BALL PLUG RETAINER USA HIT-6699104.A9 6699104	-
21 - ADJUSTING SCREW (MAIN MIXTURE) TILL 9.2015 FOR EUROPE HIT-6699105.A9 6699105	-
*21 - ADJUSTING SCREW (MAIN MIXTURE) USA HIT-6699105.A10 6699105	-
22 - METERING LEVER SPRING TILL 9.2015 FOR EUROPE HIT-6699083.A8 6699083	-
*22 - METERING LEVER SPRING USA HIT-6699083.A9 6699083	-
23 - PIN TILL 9.2015 FOR EUROPE HIT-6699082.A11 6699082	£1.67	£2.00
*23 - PIN USA HIT-6699082.A12 6699082	£1.67	£2.00
24 - METERING DIAPHRAGM TILL 9.2015 FOR EUROPE HIT-6699091.A8 6699091	£13.60	£16.32
*24 - METERING DIAPHRAGM USA HIT-6699091.A9 6699091	£13.60	£16.32
25 - METERING COVER TILL 9.2015 FOR EUROPE HIT-6699093.A8 6699093	-
*25 - METERING COVER USA HIT-6699093.A9 6699093	-
26 - SET SCREW (C) TILL 9.2015 FOR EUROPE HIT-6699094.A9 6699094	-
*26 - SET SCREW (C) USA HIT-6699094.A10 6699094	-
27 - POST TILL 9.2015 FOR EUROPE HIT-6699089.A8 6699089	-
*27 - POST USA HIT-6699089.A9 6699089	-
28 - ROTOR COVER TILL 9.2015 FOR EUROPE HIT-6699086.A9 6699086	-
*28 - ROTOR COVER USA HIT-6699086.A10 6699086	-
29 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT TILL 9.2015 FOR EUROPE HIT-6699090.A9 6699090	-
*29 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT USA HIT-6699090.A10 6699090	-
30 - O-RING TILL 9.2015 FOR EUROPE HIT-6699102.A9 6699102	-
*30 - O-RING USA HIT-6699102.A10 6699102	-
31 - INLET NEEDLE VALVE TILL 9.2015 FOR EUROPE HIT-6699081.A10 6699081	£10.93	£13.12
*31 - INLET NEEDLE VALVE USA HIT-6699081.A11 6699081	£10.93	£13.12
32 - SET SCREW (A) TILL 9.2015 FOR EUROPE HIT-6699085.A8 6699085	-
*32 - SET SCREW (A) USA HIT-6699085.A9 6699085	-
33 - METERING LEVER TILL 9.2015 FOR EUROPE HIT-6699084.A9 6699084	£1.67	£2.00
*33 - METERING LEVER USA HIT-6699084.A10 6699084	£1.67	£2.00
34 - METERING GASKET TILL 9.2015 FOR EUROPE HIT-6699092.A9 6699092	£7.12	£8.54
*34 - METERING GASKET USA HIT-6699092.A10 6699092	£7.12	£8.54
36 - LOCK NUT M6 (10 PCS.) HIT-949567.A22 949567	£1.67	£2.00
37 - CARBURETOR INSULATOR HIT-6698387.A49 6698387	£4.72	£5.66
38A - INTAKE PAKING (A) HIT-6600456.A11 6600456	£2.77	£3.32
39 - GLASS WASHER HIT-6698700.A77 6698700	£1.67	£2.00
40 - CARBURETOR PACKING HIT-6698816.A5 6698816	£2.84	£3.41
41 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A0 6698844	£1.67	£2.00
42 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A13 6698388	£1.67	£2.00
43 - CORD HIT-6699060.A2 6699060	-
44 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-6698879.A0 6698879	-
45 - CYLINDER COVER HIT-6698871.A2 6698871	-
46 - METAL OF PLUG CAP (60) (B) HIT-6699180.A6 6699180	-
47 - PLUG CAP HIT-6698548.A15 6698548	-
48 - CORD INSULATION TUBE L60 HIT-6699175.A6 6699175	-
49A - IGNITION COIL HIT-6600890.A2 6600890	£40.12	£48.15
50B - SPARK PLUG ASS'Y BMR7A HIT-6699316.A28 6699316	£12.43	£14.92
51 - CYLINDER HIT-6698597.A5 6698597	£39.62	£47.54
52 - COVER PACKING HIT-6696534.A1 6696534	£1.67	£2.00
53 - INTAKE COVER (A) HIT-6696535.A21 6696535	£1.67	£2.00
54 - SEAL LOCK SCREW M4X10 HIT-6696835.A6 6696835	-
55 - HEAT PROTECTION PANEL HIT-6698617.A7 6698617	-
56 - MUFFLER HIT-6698733.A2 6698733	£39.62	£47.54
57 - BOLT WASHER M6 (10 PCS.) HIT-949432.A50 949432	£1.67	£2.00
58 - HEX. SOCKET HD. BOLT M6X55 HIT-6696819.A30 6696819	-
59 - INTAKE COVER (B) HIT-6696536.A7 6696536	-
60 - PISTON PIN HIT-6696944.A6 6696944	£5.61	£6.73
61 - PISTON HIT-6696531.A10 6696531	£10.77	£12.92
62 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A26 6698386	-
63 - CYLINDER PACKING HIT-6696530.A8 6696530	£1.67	£2.00
64 - PISTON RING HIT-6696532.A8 6696532	£3.56	£4.27
65 - CIR CLIP HIT-6684590.A108 6684590	£1.67	£2.00
66 - FLYWHEEL NUT M7 HIT-6696879.A16 6696879	-
67 - BOLT WASHER D7 HIT-6696880.A10 6696880	-
68 - STARTER PAWL HIT-6698603.A1 6698603	-
69 - STARTER PAWL SPRING HIT-6685335.A20 6685335	£2.84	£3.41
70 - MAGNETO ROTOR HIT-6698601.A10 6698601	-
71 - RETAINING RING D4 HIT-6685336.A15 6685336	£3.49	£4.19
72 - CRANK CASE (B) ASS'Y INCLUD.73 HIT-6698872.A5 6698872	£23.58	£28.30
73 - OIL SEAL TB 12227 HIT-6684607.A199 6684607	£4.07	£4.88
74 - BALL BEARING 6001 C3 HIT-6684608.A8 6684608	£5.70	£6.84
75 - SHIM T0.2 HIT-6696946.A4 6696946	£1.67	£2.00
76 - SHIM T0.3 HIT-6696945.A31 6696945	£1.67	£2.00
77 - CRANK SHAFT HIT-6699043.A7 6699043	-
78 - CRANK CASE (A) ASS'Y INCLUD.73 HIT-6698729.A6 6698729	-
79 - CRANK CASE PACKING HIT-6696539.A14 6696539	£1.67	£2.00
80 - KNOCK PIN 4X12 HIT-6696947.A72 6696947	-
81 - CLUTCH (B) HIT-6699173.A1 6699173	£11.61	£13.93
82 - CLUTCH DRUM HIT-6699040.A4 6699040	£14.86	£17.83
83 - BALL BEARING 6002ZC3 HIT-6698740.A11 6698740	£6.94	£8.33
84 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A17 939544	£3.64	£4.37
85 - GREASE NIPPLE COMP. HIT-6688643.A48 6688643	£1.67	£2.00
86 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A31 302089	£1.67	£2.00
87 - MUFFLER PROTECTOR HIT-6698876.A3 6698876	£25.90	£31.08
88 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A22 791045	£2.71	£3.25
89 - HEX. HOLE BOLT 6X18/S HIT-6695495.A35 6695495	-
90 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 HIT-6698988.A9 6698988	£1.67	£2.00
91 - FIXATION PLATE (A) HIT-6699047.A3 6699047	-
92 - FIXATION PLATE (B) HIT-6699048.A10 6699048	-
93 - TAIL PIPE (A) HIT-6699052.A5 6699052	£4.62	£5.55
94 - EXHAUST COVER HIT-6699037.A3 6699037	-
95 - BRAND LABEL HIT-000000.A416 000000	-
96 - TAPPING SCREW D4.5X16 HIT-6698878.A15 6698878	£1.67	£2.00
97 - PLATE HIT-6685189.A21 6685189	-
98 - STARTER HANDLE HIT-6693227.A34 6693227	-
99 - ROPE HIT-6693168.A34 6693168	£2.82	£3.39
100 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 HIT-6698988.A8 6698988	£1.67	£2.00
101A - RECOIL SPRING HIT-6684675.A59 6684675	£8.82	£10.58
102A - STARTER PULLEY SINCE 1.2015 HIT-6600995.A3 6600995	-
103 - DAMPER SPRING HIT-6685183.A4 6685183	£5.70	£6.84
104A - CAM PLATE SINCE 1.2015 HIT-6600996.A8 6600996	-
105 - SET SCREW HIT-6684679.A101 6684679	£2.98	£3.57
*106 - RECOIL STARTER ASS'Y INCLUD.97-99 HIT-6698622.A11 6698622	£36.72	£44.07
*106 - RECOIL STARTER ASS'Y INCLUD.97-99 HIT-6698623.A0 6698623	-
107 - AIR DEFLECTOR HIT-6698624.A2 6698624	-
108 - FUEL TANK CAP ASS'Y INCLUD.109 HIT-6698402.A64 6698402	-
109 - TANK CAP CHAIN HIT-6698732.A23 6698732	-
110 - FUEL GROMMET FOR USA HIT-6688156.A85 6688156	-
111 - FUEL PIPE HIT-6698873.A8 6698873	£8.46	£10.15
*111 - FUEL PIPE FOR USA HIT-6699183.A0 6699183	-
112A - FUEL PIPE HIT-6601399.A9 6601399	£3.02	£3.63
113A - RETURN GROMMET FOR USA HIT-6697846.A114 6697846	£2.08	£2.50
114 - CLIP HIT-6696949.A79 6696949	£1.67	£2.00
115 - PUMP FILTER HIT-6698874.A10 6698874	£15.94	£19.13
116 - CUSHION RUBBER HIT-6698615.A20 6698615	£3.56	£4.27
*117 - TANK TILL 9.2016 EXCEPT FOR USA HIT-6698613.A0 6698613	£5.92	£7.11
*117 - TANK (A) FOR USA HIT-6698612.A5 6698612	-
118 - CAUTION LABEL HIT-000000.A419 000000	-
119 - SCREW (B) SINCE 10.2015 FOR EUROPE HIT-6600883.A9 6600883	-
*119 - SCREW (B) FOR USA HIT-6600883.A10 6600883	-
120 - SCREW (C) SINCE 10.2015 FOR EUROPE HIT-6600884.A8 6600884	-
*120 - SCREW (C) FOR USA HIT-6600884.A9 6600884	-
121 - PRIMER PUMP SINCE 10.2015 FOR EUROPE HIT-6600889.A9 6600889	-
*121 - PRIMER PUMP FOR USA HIT-6600889.A10 6600889	-
122 - PUMP BODY SINCE 10.2015 FOR EUROPE HIT-6600876.A8 6600876	-
*123 - PUMP PACKING FOR USA HIT-6600879.A9 6600879	-
123 - PUMP PACKING SINCE 10.2015 FOR EUROPE HIT-6600879.A10 6600879	-
*123 - PUMP PACKING FOR USA HIT-6600879.A11 6600879	-
124 - PUMP DIAPHRAGM SINCE 10.2015 FOR EUROPE HIT-6600880.A8 6600880	£5.25	£6.30
*124 - PUMP DIAPHRAGM FOR USA HIT-6600880.A9 6600880	£5.25	£6.30
125 - INLET SCREEN SINCE 10.2015 FOR EUROPE HIT-6684700.A110 6684700	-
*125 - INLET SCREEN FOR USA HIT-6684700.A111 6684700	-
126 - PUMP COVER SINCE 10.2015 FOR EUROPE HIT-6600877.A9 6600877	-
*126 - PUMP COVER FOR USA HIT-6600877.A10 6600877	-
127 - HIGH SPEED NEEDLE SINCE 10.2015 FOR EUROPE HIT-6600887.A9 6600887	-
*127 - HIGH SPEED NEEDLE FOR USA HIT-6600887.A10 6600887	-
128 - METERING LEVER SPRING SINCE 10.2015 FOR EUROPE HIT-6600885.A9 6600885	-
*128 - METERING LEVER SPRING FOR USA HIT-6600885.A10 6600885	-
129 - HINGE PIN SINCE 10.2015 FOR EUROPE HIT-6685219.A98 6685219	-
*129 - HINGE PIN FOR USA HIT-6685219.A99 6685219	-
130 - METERING DIAPHRAGM SINCE 10.2015 FOR EUROPE HIT-6600881.A9 6600881	£22.42	£26.91
*130 - METERING DIAPHRAGM FOR USA HIT-6600881.A10 6600881	£22.42	£26.91
131 - DIAPHRAGM COVER-METERING SINCE 10.2015 FOR EUROPE HIT-6685222.A174 6685222	£5.70	£6.84
*131 - DIAPHRAGM COVER-METERING FOR USA HIT-6685222.A175 6685222	£5.70	£6.84
132 - SWIVEL SINCE 10.2015 FOR EUROPE HIT-6684697.A92 6684697	-
*132 - SWIVEL FOR USA HIT-6684697.A93 6684697	-
133 - THROTTLE VALVE SINCE 10.2015 FOR EUROPE HIT-6600878.A8 6600878	-
*133 - THROTTLE VALVE FOR USA HIT-6600878.A9 6600878	-
134 - STOP RING SINCE 10.2015 FOR EUROPE HIT-6684696.A92 6684696	-
*134 - STOP RING FOR USA HIT-6684696.A93 6684696	-
135 - WASHER SINCE 10.2015 FOR EUROPE HIT-6600886.A8 6600886	-
*135 - WASHER FOR USA HIT-6600886.A9 6600886	-
136 - NEEDLE VALVE SINCE 10.2015 FOR EUROPE HIT-6685215.A92 6685215	£6.79	£8.15
*136 - NEEDLE VALVE FOR USA HIT-6685215.A93 6685215	£6.79	£8.15
137 - SCREW (A) SINCE 10.2015 FOR EUROPE HIT-6600882.A8 6600882	-
*137 - SCREW (A) FOR USA HIT-6600882.A9 6600882	-
138 - METERING LEVER SINCE 10.2015 FOR EUROPE HIT-6600888.A8 6600888	-
*138 - METERING LEVER FOR USA HIT-6600888.A9 6600888	-
139 - DIAPHRAGM PACKING-METERING SINCE 10.2015 FOR EUROPE HIT-6685220.A5 6685220	£2.81	£3.37
*139 - DIAPHRAGM PACKING-METERING FOR USA HIT-6685220.A6 6685220	£2.81	£3.37
140 - CARBURETOR ASS'Y WYGA-1 INCLUD.119-139 SINCE 10.2015 FOR EUROPE HIT-6600875.A9 6600875	£45.69	£54.83
*140 - CARBURETOR ASS'Y WYGA-1 (SINCE 8.2016 FOR USA CAN) HIT-6600875.A10 6600875	£45.69	£54.83
141 - NAME PLATE HIT-000000.A420 000000	-
142 - HANDLE HIT-6699079.A3 6699079	£8.55	£10.26
143 - SEAL LOCK HEX. SOCKET HD. BOLT M5X40 HIT-6698885.A3 6698885	£2.84	£3.41
144 - SPRING WASHER M5 HIT-6698884.A14 6698884	-
145 - BRAKE AXIS WASHER HIT-6698749.A1 6698749	-
146 - HANDLE A HIT-6698880.A4 6698880	£12.61	£15.13
147 - CAUTION LABEL HIT-000000.A421 000000	-
148 - SPRING (A) HIT-6696348.A20 6696348	-
*149 - LOCK LEVER HIT-6699055.A5 6699055	-
*149 - LOCK LEVER FOR USA HIT-6699056.A1 6699056	-
*150 - THROTTLE LEVER HIT-6699053.A6 6699053	-
*150 - THROTTLE LEVER FOR USA HIT-6699054.A1 6699054	-
*151 - TRIGGER LOCKOUT HIT-6696344.A21 6696344	£2.84	£3.41
*151 - TRIGGER LOCKOUT FOR USA HIT-6698626.A1 6698626	-
152 - THROTTLE LEVER SPRING HIT-6696345.A11 6696345	£2.84	£3.41
153A - STOP SWITCH HIT-6601275.A16 6601275	£1.67	£2.00
154 - HANDLE B HIT-6699051.A5 6699051	£5.78	£6.94
155 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A69 305812	£1.67	£2.00
156 - THROTTLE WIRE HIT-6698627.A1 6698627	£6.94	£8.33
157 - PROTECTION TUBE HIT-6698738.A9 6698738	£1.67	£2.00
158 - STOP SWITCH CORD HIT-6699058.A4 6699058	-
159 - STOP SWITCH CORD (B) HIT-6699059.A11 6699059	-
160 - FIXATION PLATE (B) HIT-6699049.A2 6699049	-
161 - NYLON NUT M5 HIT-305491.A8 305491	-
162 - SMALL WASHER 5 HIT-6684864.A116 6684864	-
163 - SPACER HIT-6699045.A0 6699045	-
164 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X25 HIT-6699110.A6 6699110	£2.75	£3.30
165 - U-NUT M5 HIT-6699108.A22 6699108	£2.94	£3.53
166 - WASHER (B) HIT-6699112.A25 6699112	£1.67	£2.00
167 - WASHER M7 HIT-6699111.A1 6699111	£1.67	£2.00
168 - SHOULDER BUTTON BOLT M5X25 HIT-6699109.A2 6699109	£2.77	£3.32
169B - BLADE ASS'Y (500MM) INCLUD.164-168 HIT-6600455.A1 6600455	£63.22	£75.87
170 - BLADE CASE (A) HIT-6698731.A3 6698731	-
171 - HANDLE BRACKET HIT-6699041.A5 6699041	-
172 - CLIP HIT-6696359.A4 6696359	£2.84	£3.41
173 - BOLT WASHER D5 HIT-6685407.A53 6685407	-
174 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6699044.A9 6699044	-
175 - GEAR CASE (A) HIT-6699057.A1 6699057	-
176 - GUIDE PLATE (C) HIT-6699035.A1 6699035	-
177 - GEAR 2 (EA) HIT-6699038.A2 6699038	-
178 - GUIDE PLATE (A) HIT-6699034.A2 6699034	-
179 - FELT PACKING (A) HIT-6699046.A2 6699046	£1.67	£2.00
180 - GEAR CASE PACKING HIT-6699042.A3 6699042	£1.67	£2.00
181 - GEAR CASE COVER HIT-6699050.A2 6699050	-
182 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A32 6699176	£1.67	£2.00
183 - START LABEL (B) HIT-000000.A422 000000	-
184 - BLADE GUIDE HIT-6600009.A1 6600009	£13.28	£15.93
185 - HEDGE TRIMMER BLADE (A) HIT-6600010.A6 6600010	£25.61	£30.73
186 - HEDGE TRIMMER BLADE (B) HIT-6600011.A1 6600011	£25.76	£30.91
187 - BLADE LINER HIT-6600359.A6 6600359	-
188 - SUPPORT PLATE HIT-6600417.A2 6600417	£1.67	£2.00
201 - CARBURETOR PACKING HIT-6698405.A50 6698405	£3.12	£3.74
202 - CARBURETOR HEAT PANEL ASS'Y INCLUD.5A HIT-6600891.A8 6600891	-
203 - STARTER PULLEY ASS'Y INCLUD.102A HIT-6600997.A2 6600997	-
205 - IGNITION COIL ASS'Y INCLUD.46-49A HIT-6601364.A4 6601364	£26.26	£31.51
206 - CARBURETOR ASS'Y WYGA-1 (W/HEAT PANEL) INCLUD.140 HIT-6601361.A11 6601361	-
*206 - CARBURETOR ASSY WYGA-1 (W/HEAT PANEL) (TILL 7.2016 FOR USA CAN) HIT-6601361.A12 6601361	-
207 - TANK SINCE 10.2016 EXCEPT FOR USA HIT-6601419.A1 6601419	£9.60	£11.52
208 - FUEL GROMMET SINCE 10.2016 EXCEPT FOR USA HIT-6600358.A18 6600358	£1.67	£2.00
501 - BOX WRENCH 10/19MM HIT-6698756.A18 6698756	-
601 - GREASE FOR IMPACT WRENCH (100G) HIT-971042.A14 971042	£16.77	£20.12

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CH22EAP2 Engine Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
