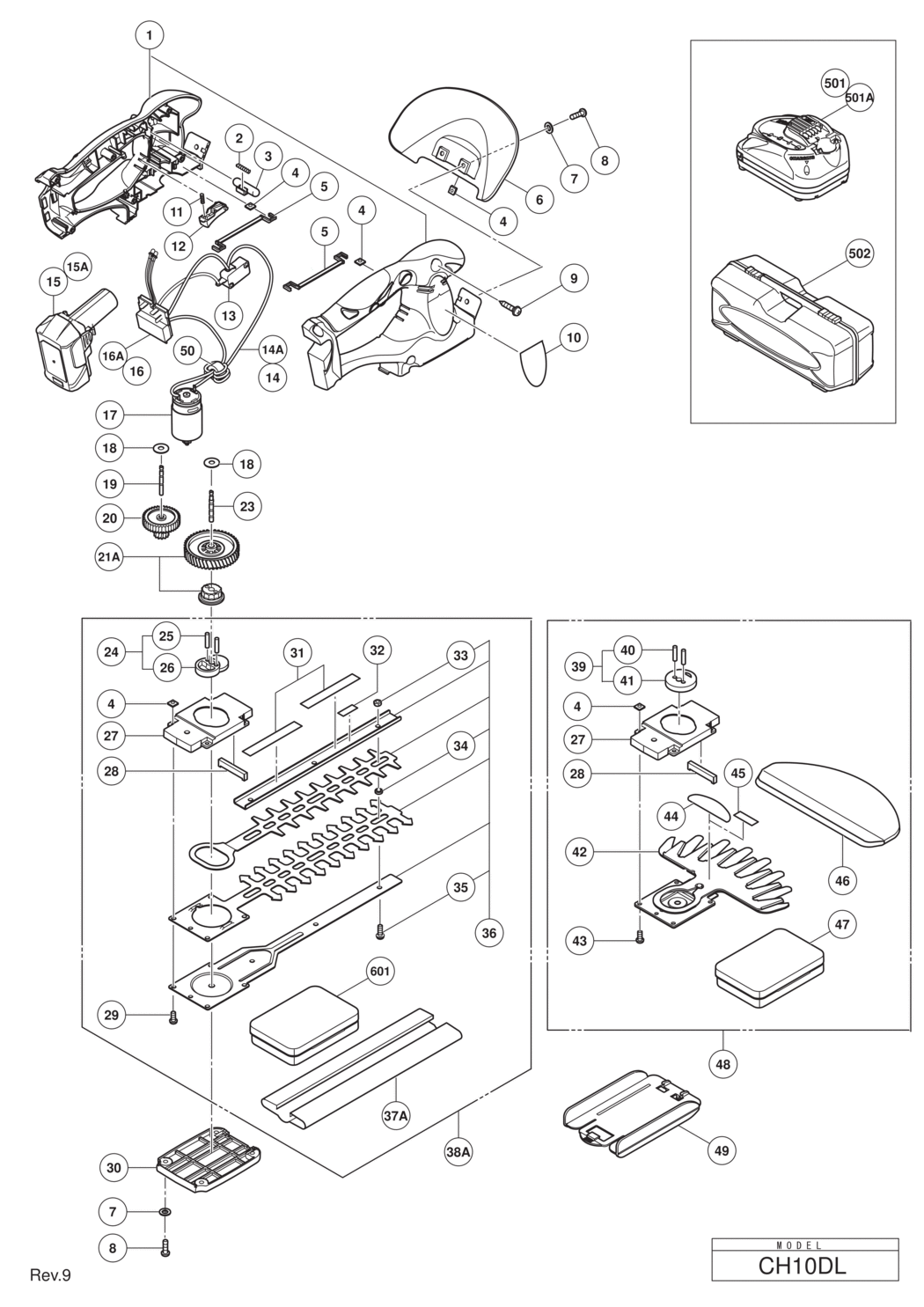

1 - HOUSING
HIT-330882.A0
330882
|
-
|
|
|
|
2 - SPRING (A)
HIT-324306.A1
324306
|
-
|
|
|
|
3 - LOCK-OFF BUTTON
HIT-324298.A1
324298
|
-
|
|
|
|
4 - NUT M4
HIT-330056.A1
330056
|
-
|
|
|
|
5 - NUT HOLDER
HIT-329837.A0
329837
|
-
|
|
|
|
6 - PROTECTOR
HIT-330879.A0
330879
|
-
|
|
|
|
7 - WASHER M4 (10 PCS.)
HIT-949423.A15
949423
|
£1.67
|
£2.00
|
|
|
8 - MACHINE SCREW M4X12 (10 PCS.)
HIT-949217.A44
949217
|
£1.67
|
£2.00
|
|
|
9 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A242
301653
|
£1.67
|
£2.00
|
|
|
10 - NAME PLATE
HIT-000000.A2260
000000
|
-
|
|
|
|
11 - SPRING (B)
HIT-324307.A0
324307
|
-
|
|
|
|
12 - TRIGGER
HIT-324299.A0
324299
|
-
|
|
|
|
13 - SWITCH
HIT-320786.A0
320786
|
-
|
|
|
|
*14A - INTERNAL WIRE
HIT-334608.A0
334608
|
-
|
|
|
|
*15A - BATTERY BCL 1015 (EUROPE AUS NZL)
HIT-329371.A6
329371
|
£79.64
|
£95.57
|
|
|
*16A - CONTROLLER (C)
HIT-334609.A1
334609
|
-
|
|
|
|
17 - MOTOR DC 10.8V
HIT-330880.A1
330880
|
-
|
|
|
|
18 - WASHER D15
HIT-329835.A3
329835
|
-
|
|
|
|
19 - SHAFT (B)
HIT-329832.A0
329832
|
-
|
|
|
|
20 - FIRST GEAR
HIT-330055.A0
330055
|
-
|
|
|
|
21A - FINAL GEAR SET
HIT-331755.A1
331755
|
-
|
|
|
|
23 - SHAFT (A)
HIT-329830.A1
329830
|
-
|
|
|
|
24 - CRANK CAM ASS'Y INCLUD.25
HIT-330878.A0
330878
|
-
|
|
|
|
25 - PIN (B)
HIT-000000.A2261
000000
|
-
|
|
|
|
26 - CRANK CAM (A)
HIT-000000.A2262
000000
|
-
|
|
|
|
27 - CRANK CASE
HIT-331507.A1
331507
|
-
|
|
|
|
28 - DUST FELT
HIT-331508.A0
331508
|
-
|
|
|
|
29 - MACHINE SCREW M4X8 (BLACK)
HIT-323211.A1
323211
|
-
|
|
|
|
30 - BOTTOM COVER
HIT-330883.A1
330883
|
-
|
|
|
|
*32 - LABEL (EURO)
HIT-000000.A2263
000000
|
-
|
|
|
|
33 - U-NUT M4
HIT-319931.A0
319931
|
-
|
|
|
|
34 - DISTANCE PIECE
HIT-996689.A0
996689
|
-
|
|
|
|
35 - MACHINE SCREW M4X12 (10 PCS.)
HIT-949217.A45
949217
|
£1.67
|
£2.00
|
|
|
*36 - BLADE ASS'Y (CH)
HIT-000000.A2264
000000
|
-
|
|
|
|
37A - BLADE CASE (FOR 190MM)
HIT-339040.A0
339040
|
-
|
|
|
|
*38A - BLADE SET (CH) INCLUD.4
HIT-330881.A0
330881
|
-
|
|
|
|
39 - CRANK CAM ASS'Y INCLUD.40
HIT-330886.A1
330886
|
-
|
|
|
|
40 - CRANK CAM (B)
HIT-000000.A2266
000000
|
-
|
|
|
|
41 - PIN (B)
HIT-000000.A2267
000000
|
-
|
|
|
|
*42 - BLADE (CG)
HIT-000000.A2268
000000
|
-
|
|
|
|
43 - MACHINE SCREW M4X8 (BLACK)
HIT-323211.A2
323211
|
-
|
|
|
|
*44 - LABEL (EURO)
HIT-000000.A2269
000000
|
-
|
|
|
|
46 - BLADE COVER (170)
HIT-328030.A1
328030
|
-
|
|
|
|
47 - BLADE BOX
HIT-330057.A0
330057
|
-
|
|
|
|
*48 - BLADE SET (CG) INCLUD.4
HIT-330887.A0
330887
|
-
|
|
|
|
49 - ADJUSTER
HIT-328023.A0
328023
|
-
|
|
|
|
*50 - FERRITE CORE EXCEPT FOR USA
HIT-334379.A18
334379
|
-
|
|
|
|
*501A - CHARGER (MODEL UC 10SL2)
HIT-000000.A2271
000000
|
-
|
|
|
|
502 - CASE
HIT-330885.A0
330885
|
-
|
|
|
|
601 - BLADE BOX
HIT-330057.A1
330057
|
-
|
|
|
