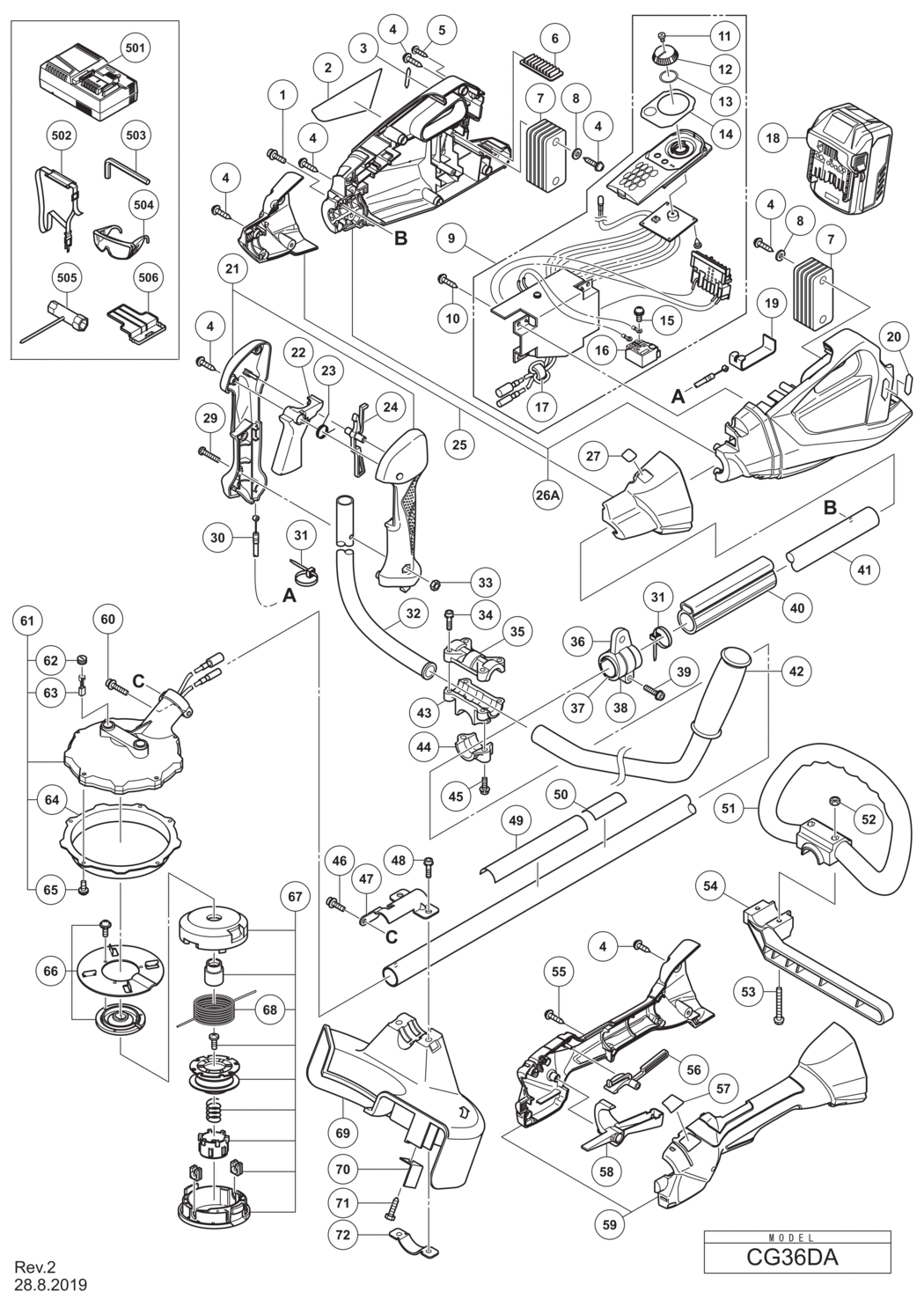

1 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X16
HIT-996728.A0
996728
|
£1.67
|
£2.00
|
|
|
2 - NAME PLATE
HIT-000000.A3709
000000
|
-
|
|
|
|
3 - MV LABEL (B)
HIT-000000.A3710
000000
|
-
|
|
|
|
4 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A86
301653
|
£1.67
|
£2.00
|
|
|
5 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
HIT-313687.A27
313687
|
£1.67
|
£2.00
|
|
|
6 - BATTERY RUBBER (B)
HIT-370328.A2
370328
|
-
|
|
|
|
7 - COUNTER WEIGHT
HIT-335748.A1
335748
|
-
|
|
|
|
8 - WASHER (M)
HIT-329140.A1
329140
|
-
|
|
|
|
*9 - CONTROLLER ASS'Y INCLUD.11-17
HIT-373117.A0
373117
|
-
|
|
|
|
*9 - CONTROLLER ASS'Y INCLUD.11-17 FOR MODEL (L)
HIT-373118.A0
373118
|
-
|
|
|
|
10 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A134
984750
|
£1.67
|
£2.00
|
|
|
11 - MACHINE SCREW M1.7X3.5
HIT-333162.A1
333162
|
-
|
|
|
|
12 - DIAL
HIT-332550.A1
332550
|
-
|
|
|
|
13 - O-RING (S-16)
HIT-876031.A8
876031
|
£2.98
|
£3.57
|
|
|
14 - PANEL SHEET
HIT-000000.A3711
000000
|
-
|
|
|
|
15 - MACHINE SCREW (W/WASHER) M3.5X5
HIT-980060.A2
980060
|
£1.67
|
£2.00
|
|
|
16 - SWITCH
HIT-332552.A0
332552
|
-
|
|
|
|
17 - FERRITE CORE
HIT-334379.A29
334379
|
-
|
|
|
|
18 - BATTERY BSL 36A18 (EUROPE AUS NZL) INCLUD.506
HIT-371750.A7
371750
|
£173.17
|
£207.80
|
|
|
19 - PLATE EXCEPT FOR MODEL (L)
HIT-330771.A4
330771
|
-
|
|
|
|
20 - MV LABEL (A)
HIT-000000.A3712
000000
|
-
|
|
|
|
21 - HANDLE (A).(B) SET EXCEPT FOR MODEL (L)
HIT-334541.A1
334541
|
-
|
|
|
|
22 - LEVER EXCEPT FOR MODEL (L)
HIT-334544.A0
334544
|
-
|
|
|
|
23 - SPRING EXCEPT FOR MODEL (L)
HIT-332557.A1
332557
|
-
|
|
|
|
24 - LOCK LEVER EXCEPT FOR MODEL (L)
HIT-6696490.A27
6696490
|
£2.84
|
£3.41
|
|
|
25 - COVER (A).(B) SET EXCEPT FOR MODEL (L)
HIT-335229.A0
335229
|
-
|
|
|
|
26A - HOUSING (A).(B) SET
HIT-373360.A0
373360
|
-
|
|
|
|
27 - LABEL (B)
HIT-000000.A3713
000000
|
-
|
|
|
|
29 - MACHINE SCREW M5X30 (BLACK) EXCEPT FOR MODEL (L)
HIT-323041.A11
323041
|
-
|
|
|
|
30 - WIRE EXCEPT FOR MODEL (L)
HIT-335749.A0
335749
|
-
|
|
|
|
31 - CABLE TIE EXCEPT FOR MODEL (L)
HIT-988054.A7
988054
|
-
|
|
|
|
32 - HANDLE RIGHT EXCEPT FOR MODEL (L)
HIT-335750.A0
335750
|
-
|
|
|
|
33 - NUT M5 (BLACK) EXCEPT FOR MODEL (L)
HIT-302012.A15
302012
|
£1.67
|
£2.00
|
|
|
34 - HEX. HOLE BOLT M5X25/S EXCEPT FOR MODEL (L)
HIT-6684709.A92
6684709
|
£1.67
|
£2.00
|
|
|
35 - HANDLE HOLDER (A) EXCEPT FOR MODEL (L)
HIT-6600500.A8
6600500
|
-
|
|
|
|
36 - HANGER
HIT-6684705.A3
6684705
|
-
|
|
|
|
37 - HANGER COLLAR
HIT-6684704.A3
6684704
|
-
|
|
|
|
38 - HANGER FIXING BRACKET
HIT-6684706.A3
6684706
|
-
|
|
|
|
39 - HEX. HOLE BOLT M5X25/S
HIT-6684709.A91
6684709
|
£1.67
|
£2.00
|
|
|
40 - CUSHION PAD EXCEPT FOR MODEL (L)
HIT-6689292.A1
6689292
|
-
|
|
|
|
41 - MAIN PIPE
HIT-335226.A0
335226
|
-
|
|
|
|
42 - HANDLE (LEFT) EXCEPT FOR MODEL (L)
HIT-6698638.A22
6698638
|
-
|
|
|
|
43 - HANDLE HOLDER (B) EXCEPT FOR MODEL (L)
HIT-6600501.A23
6600501
|
-
|
|
|
|
44 - HANDLE HOLDER (C) EXCEPT FOR MODEL (L)
HIT-6696578.A24
6696578
|
-
|
|
|
|
45 - HEX. HOLE BUTTON BOLT M6X25 EXCEPT FOR MODEL (L)
HIT-6684714.A105
6684714
|
£1.67
|
£2.00
|
|
|
46 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12
HIT-6699176.A13
6699176
|
£1.67
|
£2.00
|
|
|
47 - COVER BRACKET
HIT-333321.A4
333321
|
-
|
|
|
|
48 - HEX. HOLE BUTTON BOLT M6X25
HIT-6684714.A104
6684714
|
£1.67
|
£2.00
|
|
|
49 - CAUTION LABEL (B)
HIT-000000.A3715
000000
|
-
|
|
|
|
50 - LEVEL MARK (B)
HIT-000000.A3716
000000
|
-
|
|
|
|
51 - LOOP HANDLE FOR MODEL (L)
HIT-6696975.A18
6696975
|
£13.36
|
£16.03
|
|
|
52 - NUT M6 (10 PCS.) FOR MODEL (L)
HIT-949556.A20
949556
|
£1.67
|
£2.00
|
|
|
53 - BOLT (BLACK) M6 FOR MODEL (L)
HIT-6696974.A15
6696974
|
£1.67
|
£2.00
|
|
|
54 - BARRIER FOR MODEL (L)
HIT-6696973.A18
6696973
|
£8.35
|
£10.02
|
|
|
55 - TAPPING SCREW D3X12 (BLACK) FOR MODEL (L)
HIT-334333.A2
334333
|
-
|
|
|
|
56 - LOCK LEVER FOR MODEL (L)
HIT-335752.A1
335752
|
-
|
|
|
|
57 - LABEL (D)
HIT-000000.A3718
000000
|
-
|
|
|
|
58 - LEVER FOR MODEL (L)
HIT-335239.A0
335239
|
-
|
|
|
|
59 - HANDLE (A).(B) SET FOR MODEL (L)
HIT-335231.A0
335231
|
-
|
|
|
|
60 - HEX.HOLE BOLT M5X30/WS
HIT-6684973.A14
6684973
|
-
|
|
|
|
61 - DISC MOTOR ASS'Y INCLUD.62-65
HIT-335220.A0
335220
|
-
|
|
|
|
62 - BRUSH CAP
HIT-334294.A3
334294
|
-
|
|
|
|
63 - CARBON BRUSH (1 PAIR)
HIT-999016.A3
999016
|
-
|
|
|
|
64 - FAN COVER
HIT-334297.A3
334297
|
-
|
|
|
|
65 - MACHINE SCREW (BLACK) M4X16
HIT-333163.A0
333163
|
£3.02
|
£3.63
|
|
|
66 - FLANGE
HIT-335758.A1
335758
|
-
|
|
|
|
67 - NYLON HEAD INCLUD.68
HIT-335234.A0
335234
|
-
|
|
|
|
68 - NYLON CORD D2.0X4M
HIT-335235.A1
335235
|
-
|
|
|
|
69 - COVER
HIT-333899.A0
333899
|
-
|
|
|
|
70 - KNIFE
HIT-6684754.A74
6684754
|
£6.64
|
£7.97
|
|
|
71 - TAPPING SCREW 5X20
HIT-6684753.A1
6684753
|
£1.67
|
£2.00
|
|
|
72 - GUARD HOLDER
HIT-6696951.A10
6696951
|
£3.02
|
£3.63
|
|
|
501 - CHARGER (MODEL UC 18YSL3)
HIT-000000.A3721
000000
|
-
|
|
|
|
502 - SHOULDER BELT FOR NZL
HIT-330787.A2
330787
|
-
|
|
|
|
503 - HEX. BAR WRENCH 4MM
HIT-6684813.A58
6684813
|
-
|
|
|
|
504 - PROTECTIVE GLASSES
HIT-875769.A61
875769
|
-
|
|
|
|
505 - BOX WRENCH (HEX. SOCKET 17/19)
HIT-6684764.A70
6684764
|
£7.64
|
£9.17
|
|
|
506 - BATTERY COVER
HIT-329897.A49
329897
|
£1.67
|
£2.00
|
|
|
601 - STABILIZER EXCEPT FOR MODEL (L)
HIT-335233.A0
335233
|
-
|
|
|
|
602 - U-NUT (LEFT HAND) M10 EXCEPT FOR MODEL (L)
HIT-335759.A0
335759
|
£1.67
|
£2.00
|
|
|
603 - CUTTING BLADE 4X230 1
HIT-6684767.A3
6684767
|
£15.17
|
£18.20
|
|
|
604 - CUTTER COVER EXCEPT FOR MODEL (L)
HIT-6684768.A17
6684768
|
-
|
|
|
