Hitachi / Hikoki CG27ECM Engine Grass Trimmer/brush Cutter Spare Parts

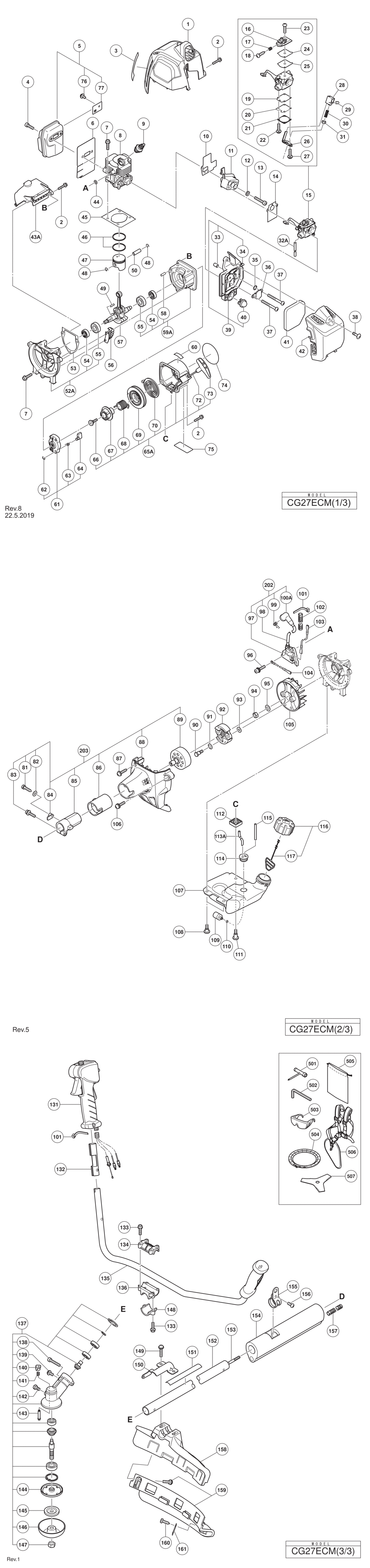

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG27ECM Engine Grass Trimmer/brush Cutter

	Ex VAT	Inc VAT
1 - CYLINDER COVER HIT-6600546.A1 6600546	-
2 - SEAL LOCK HEX. SOCKET HD. BOLT M4 HIT-6600918.A1 6600918	-
3 - IDENTIFICATION LABEL HIT-000000.A5228 000000	-
4 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16 HIT-6600518.A18 6600518	-
5 - MUFFLER INCLUD.76 HIT-6600516.A0 6600516	-
6 - HEAT PROTECTION PANEL HIT-6600517.A5 6600517	-
7 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X22 HIT-6601339.A17 6601339	-
8 - CYLINDER N27 HIT-6600903.A2 6600903	-
9 - IGNITION PLUG (TORCH L7RTC) HIT-6600542.A2 6600542	-
10 - INTAKE PACKING HIT-6600524.A4 6600524	-
11 - CARBURETOR INSULATOR (ECM) HIT-6600533.A3 6600533	-
12 - SPRING WASHER D6 HIT-6600910.A27 6600910	-
13 - SEAL LOCK HEX. SOCKET HD. BOLT M6X27 HIT-6601358.A16 6601358	-
14 - CARBURETOR PACKING (ECM) HIT-6600534.A0 6600534	-
15 - CARBURETOR ASS'Y WT-1148 INCLUD.16-27 HIT-6600536.A0 6600536	-
16 - PUMP BODY HIT-6601350.A0 6601350	-
17 - IDLE ADJUST SPRING HIT-6690766.A14 6690766	-
18 - IDLE ADJUST SCREW HIT-6690736.A2 6690736	-
19 - DIAPHRAGM PACKING-METERING HIT-6685220.A126 6685220	£2.81	£3.37
20 - METERING DIAPHRAGM HIT-6684690.A11 6684690	£24.05	£28.86
21 - DIAPHRAGM COVER-METERING HIT-6685222.A50 6685222	£5.70	£6.84
22 - SET SCREW HIT-6685223.A54 6685223	-
23 - SCREW HIT-6685210.A37 6685210	-
24 - PUMP GASKET HIT-6685212.A29 6685212	£3.29	£3.95
25 - PUMP DIAPHRAGM HIT-6685213.A26 6685213	£8.44	£10.13
26 - BRACKET HIT-6601352.A0 6601352	-
27 - SCREW M3 HIT-6601351.A3 6601351	-
28 - STOPPER SLIDER HIT-6600537.A2 6600537	-
29 - SET SCREW M3 HIT-6600915.A0 6600915	-
30 - RETURN SPRING HIT-6600914.A3 6600914	-
31 - LOCK NUT M6 (10 PCS.) HIT-949567.A9 949567	£1.67	£2.00
32A - FUEL PIPE HIT-6601443.A10 6601443	-
33 - COLLAR M5 HIT-6601340.A7 6601340	-
34 - CHOKE VALVE HIT-6601342.A1 6601342	-
35 - WAVE WASHER 8 HIT-334242.A23 334242	-
36 - SPIT BACK SHIELD HIT-6600913.A0 6600913	-
37 - SCREW M5X55 HIT-6694914.A21 6694914	-
38 - SPECIAL SCREW M5 HIT-6600532.A0 6600532	-
39 - AIR CLEANER BASE ASS'Y INCLUD.33 HIT-6600912.A3 6600912	-
40 - PRIMING PUMP COMP. HIT-6685139.A24 6685139	£10.67	£12.80
41 - AIR CLEANER ELEMENT HIT-6600529.A11 6600529	-
42 - AIR CLEANER COVER HIT-6600531.A3 6600531	-
43A - MUFFLER TANK PARTITION HIT-6601430.A7 6601430	£4.28	£5.13
44 - GLASS WASHER HIT-6698700.A12 6698700	£1.67	£2.00
45 - CYLINDER PACKING HIT-6600510.A5 6600510	-
46 - PISTON RING HIT-6601353.A1 6601353	-
47 - PISTON (M) HIT-6600905.A4 6600905	-
48 - CIR CLIP HIT-6684590.A89 6684590	£1.67	£2.00
49 - WOODRUFF KEY 3X13X4.5 HIT-6601343.A2 6601343	-
50 - PISTON PIN HIT-6601344.A25 6601344	-
52A - CRANK CASE (F) ASS'Y INCLUD.54 HIT-6601619.A7 6601619	-
53 - CRANK CASE PACKING HIT-6600514.A11 6600514	-
54 - OIL SEAL TB 12227 HIT-6684607.A181 6684607	£4.07	£4.88
55 - BALL BEARING 6001 C3 HIT-6684608.A26 6684608	£5.70	£6.84
56 - CRANK CASE GUARD HIT-6600924.A5 6600924	-
57 - CRANK SHAFT HIT-6600511.A3 6600511	-
58 - KNOCK PIN 4X12 HIT-6696947.A66 6696947	-
59A - CRANK CASE (R) ASS'Y INCLUD.54 HIT-6600906.A9 6600906	-
60 - TANK MARK LABEL (50:1) HIT-6698921.A36 6698921	-
61 - STARTER PULLEY ASS'Y INCLUD.62-64 HIT-6684681.A73 6684681	£18.16	£21.79
62 - D4E RETAINING RING HIT-6685101.A143 6685101	-
63 - STARTER PAWL SPRING HIT-6684684.A44 6684684	£3.29	£3.95
64 - STARTER PAWL HIT-6684685.A67 6684685	£5.07	£6.08
65A - RECOIL STARTER BODY ASS'Y INCLUD.66-70 HIT-6601570.A21 6601570	£23.15	£27.78
66 - SET SCREW HIT-6684679.A104 6684679	£2.98	£3.57
67 - CAM PLATE HIT-6699996.A61 6699996	£4.28	£5.13
68 - DAMPER SPRING HIT-6684677.A89 6684677	£6.66	£7.99
69 - STARTER ROPE REEL HIT-6699997.A28 6699997	-
70 - RECOIL SPRING HIT-6684675.A39 6684675	£8.82	£10.58
72 - STARTER ROPE 3.5X860 HIT-6684674.A71 6684674	£5.70	£6.84
73 - STARTER HANDLE HIT-6684680.A45 6684680	£5.87	£7.04
74 - NAME PLATE HIT-000000.A1023 000000	-
75 - RCM+EAC MARK HIT-000000.A1024 000000	-
76 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) HIT-6601439.A8 6601439	-
77 - SPARK ARRESTER HIT-6601438.A11 6601438	-
81 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5 HIT-6600919.A2 6600919	-
82 - BOLT WASHER D5 HIT-6685407.A39 6685407	-
83 - HEX. SOCKET HD. BOLT (W/WASHERS) M5 HIT-6600372.A3 6600372	-
84 - METAL FITTING HIT-6689664.A5 6689664	£6.12	£7.35
85 - PIPE HOLDER HIT-6600551.A3 6600551	-
86 - DAMPER (HOLDER) HIT-6600552.A8 6600552	-
87 - TAPPING SCREW D4.5X16 HIT-6698878.A26 6698878	£1.67	£2.00
88 - FAN CASE HIT-6600548.A3 6600548	-
89 - CLUTCH SHAFT HIT-6600549.A8 6600549	-
90 - STEP BOLT HIT-6696469.A43 6696469	£2.84	£3.41
91 - BENT WASHER 8 HIT-6684648.A78 6684648	£1.67	£2.00
92 - CLUTCH HIT-6696948.A5 6696948	£15.02	£18.03
93 - CLUTCH WASHER (B) HIT-6696547.A16 6696547	£1.67	£2.00
94 - FLYWHEEL NUT HIT-6685337.A35 6685337	-
95 - BOLT WASHER M8 (BLACK) HIT-323212.A35 323212	£1.67	£2.00
96 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A46 6698388	£1.67	£2.00
97 - IGNITION COIL HIT-6600515.A3 6600515	-
98 - CORD INSULATION TUBE L100 HIT-6600051.A5 6600051	-
99 - PLUG CAP METAL HIT-6699186.A36 6699186	£1.67	£2.00
100A - PLUG CAP HIT-6601421.A8 6601421	£1.67	£2.00
101 - BAND HIT-6698943.A12 6698943	-
102 - PROTECTION TUBE L50 HIT-6601345.A1 6601345	-
103 - CORD HIT-6698495.A5 6698495	-
104 - EARTH CORD HIT-6696545.A22 6696545	-
105 - MAGNETO ROTOR HIT-6699289.A18 6699289	£24.52	£29.43
106 - MACHINE SCREW (W/WASHERS) M5X18 HIT-6600920.A11 6600920	-
107 - TANK HIT-6600519.A11 6600519	-
108 - BOLT (W/FLANGE) L17.8 HIT-6696574.A56 6696574	£1.67	£2.00
109 - PUMP FILTER HIT-6600351.A17 6600351	£4.45	£5.34
110 - CLIP HIT-6696949.A70 6696949	£1.67	£2.00
111 - BOLT (W/FLANGE) L23.8 HIT-6698512.A24 6698512	£1.67	£2.00
112 - SPACER HIT-6699558.A28 6699558	-
113A - FUEL PIPE L70 HIT-6699014.A0 6699014	£2.77	£3.32
114 - FUEL GROMMET HIT-6600358.A13 6600358	£1.67	£2.00
115 - FUEL PIPE L180 HIT-6600523.A2 6600523	-
116 - FUEL TANK CAP ASS'Y INCLUD.117 HIT-6698402.A57 6698402	-
117 - TANK CAP CHAIN HIT-6698732.A47 6698732	-
131 - THROTTLE LEVER (D) HIT-6600917.A1 6600917	-
132 - HANDLE COLLAR HIT-6600503.A6 6600503	-
133 - HEX. HOLE BOLT M5X25/S HIT-6684709.A134 6684709	£1.67	£2.00
134 - HANDLE HOLDER (A) HIT-6600561.A1 6600561	-
135 - U-HANDLE HIT-6600896.A6 6600896	-
136 - HANDLE HOLDER (B) HIT-6600562.A8 6600562	-
137 - GEAR CASE ASS'Y (4BB) INCLUD.138-147 HIT-6699439.A9 6699439	£60.67	£72.80
138 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A12 949664	£4.33	£5.20
139 - SCREW 5X12/W.S HIT-6695414.A64 6695414	£1.67	£2.00
140 - CAP HIT-6600005.A3 6600005	-
141 - SPRING HIT-6600006.A16 6600006	-
142 - BOLT (W/PLUS) M6X8 HIT-6684737.A25 6684737	-
143 - LOCK PIN HIT-6600007.A3 6600007	-
144 - CUTTER HOLDER (A) HIT-6699441.A9 6699441	-
145 - CUTTER HOLDER (B) HIT-6698659.A10 6698659	£15.99	£19.19
146 - NUT COVER HIT-6699188.A2 6699188	£10.93	£13.12
147 - U-NUT (LEFT HAND) M10 HIT-335759.A41 335759	£1.67	£2.00
148 - HANDLE HOLDER (C) HIT-6600563.A1 6600563	-
149 - HEX. HOLE BUTTON BOLT M6X25 HIT-6684714.A32 6684714	£1.67	£2.00
150 - COVER BRACKET HIT-6699443.A1 6699443	-
151 - CAUTION MARK HIT-6600450.A14 6600450	-
152 - MAIN PIPE (T1.1) HIT-6600556.A10 6600556	-
153 - DRIVE SHAFT (DAMPER) HIT-6600560.A2 6600560	-
154 - WAIST PROTECTOR HIT-6600540.A1 6600540	-
155 - HANGER HIT-6600504.A11 6600504	£1.67	£2.00
156 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A73 949236	£1.67	£2.00
157 - PROTECTION TUBE L230 HIT-6601346.A2 6601346	-
158 - GUARD ASS'Y (EU) HIT-6600528.A8 6600528	-
159 - COVER GUARD (EU) ASS'Y HIT-6601356.A10 6601356	-
160 - TAPPING SCREW 4X14 HIT-6684751.A84 6684751	£1.67	£2.00
161 - KNIFE HIT-6684750.A19 6684750	£3.64	£4.37
202 - IGNITION COIL ASS'Y INCLUD.97-100A HIT-6601380.A1 6601380	£45.18	£54.22
203 - FAN CASE (A) ASS'Y INCLUD.81-86 HIT-6601378.A10 6601378	-
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A47 6684764	£7.64	£9.17
502 - HEX. BAR WRENCH 4MM HIT-944458.A120 944458	£1.67	£2.00
503 - PROTECTIVE GLASSES HIT-875769.A101 875769	-
504 - CUTTER COVER HIT-6684768.A48 6684768	-
505 - TOOL BAG HIT-6600923.A6 6600923	-
506 - SHOULDER BELT ASS'Y W HIT-6696184.A12 6696184	£25.30	£30.36
507 - BLADE 3TX255XT1.8 HIT-6698711.A5 6698711	-
