Hitachi / Hikoki CG27EBS Engine Brush Cutter Spare Parts

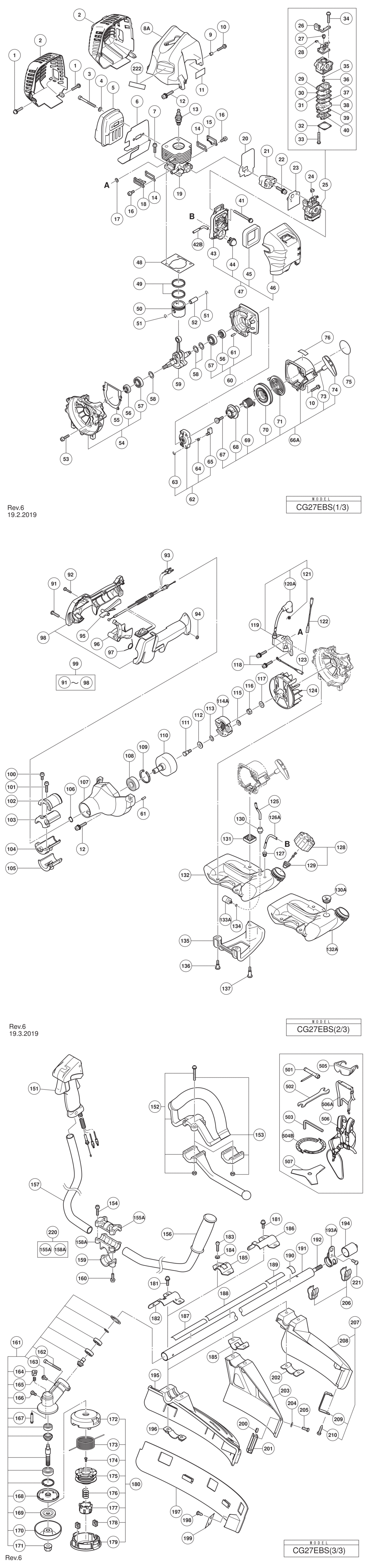

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG27EBS Engine Brush Cutter

	Ex VAT	Inc VAT
1 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A33 791045	£2.71	£3.25
2 - MUFFLER COVER HIT-6698493.A9 6698493	£5.88	£7.06
*2 - MUFFLER COVER FOR EUROPE HIT-6600322.A0 6600322	£10.60	£12.72
3 - HEX. SOCKET HD. BOLT M6X55 HIT-6696819.A19 6696819	-
*3 - HEX. SOCKET HD. BOLT M6X65 FOR EUROPE HIT-6698384.A1 6698384	-
4 - BOLT WASHER M6 (10 PCS.) HIT-949432.A35 949432	£1.67	£2.00
5 - MUFFLER HIT-6698477.A3 6698477	£15.61	£18.73
*5 - MUFFLER (B) FOR EUROPE HIT-6600461.A1 6600461	-
6 - HEAT PROTECTION PANEL HIT-6600324.A22 6600324	-
7 - HEX. SOCKET BOLT M5X20 HIT-6696958.A16 6696958	-
8A - CYLINDER COVER HIT-6699430.A1 6699430	-
9 - COLLAR (B) HIT-6600008.A9 6600008	-
10 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X18 HIT-6696326.A23 6696326	-
11 - RCM+EAC MARK HIT-000000.A2349 000000	-
12 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A38 6698950	-
*13 - SPARK PLUG ASS'Y CJ6 HIT-6699322.A32 6699322	£3.73	£4.48
*13 - SPARK PLUG ASS'Y BMR7A FOR RUS HIT-6699316.A36 6699316	£12.43	£14.92
14 - COVER PACKING HIT-6698365.A17 6698365	£1.67	£2.00
15 - SCAVENGING COVER (A) HIT-6698484.A3 6698484	-
16 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A44 6698385	-
17 - GLASS WASHER HIT-6698700.A68 6698700	£1.67	£2.00
18 - SCAVENGING COVER (B) HIT-6698485.A19 6698485	-
19 - CYLINDER HIT-6698480.A0 6698480	£50.30	£60.36
20 - INTAKE PACKING HIT-6699437.A0 6699437	£1.67	£2.00
21 - CARBURETOR INSULATOR HIT-6698387.A53 6698387	£4.72	£5.66
22 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A10 6698844	£1.67	£2.00
23 - CARBURETOR PACKING HIT-6698405.A61 6698405	£3.12	£3.74
24 - SWIVEL CAP HIT-6691337.A32 6691337	£1.67	£2.00
25 - CARBURETOR ASS'Y WYC-37 INCLUD.26-40 HIT-6600326.A7 6600326	£38.72	£46.46
26 - CABLE ADJUST STAY HIT-6699287.A39 6699287	-
27 - SWIVEL HIT-6696830.A33 6696830	-
28 - STOP RING HIT-6684696.A32 6684696	-
29 - PUMP GASKET HIT-6684692.A101 6684692	£17.28	£20.73
30 - PUMP DIAPHRAGM HIT-6684693.A28 6684693	£5.70	£6.84
31 - PUMP PLATE HIT-6691242.A53 6691242	-
32 - DIAPHRAGM COVER-METERING HIT-6685222.A109 6685222	£5.70	£6.84
33 - SET SCREW HIT-6691312.A54 6691312	-
34 - SET SCREW M3X12 HIT-6696829.A19 6696829	-
35 - O-RING HIT-6684695.A165 6684695	£1.67	£2.00
36 - MAIN JET HIT-000000.A2351 000000	-
37 - CIRCUIT PLATE HIT-6691234.A3 6691234	-
38 - PUMP BODY COMP. HIT-6696828.A33 6696828	£13.28	£15.93
39 - DIAPHRAGM PACKING-METERING HIT-6685220.A69 6685220	£2.81	£3.37
40 - METERING DIAPHRAGM HIT-6684690.A104 6684690	£24.05	£28.86
41 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A42 307224	£1.67	£2.00
42B - FUEL PIPE HIT-6601444.A30 6601444	-
43 - AIR CLEANER HOUSING HIT-6696832.A19 6696832	£15.61	£18.73
44 - PRIMING PUMP COMP. HIT-6685139.A86 6685139	£10.67	£12.80
45 - CLEANER ELEMENT HIT-6690347.A30 6690347	£7.15	£8.58
46 - CLEANER COVER HIT-6699185.A4 6699185	£11.28	£13.53
47 - AIR CLEANER (A) ASS'Y INCLUD.43-46 HIT-6699132.A4 6699132	£13.52	£16.23
48 - CYLINDER PACKING HIT-6698366.A1 6698366	£1.67	£2.00
49 - PISTON RING HIT-6686121.A16 6686121	£6.47	£7.76
50 - PISTON HIT-6699432.A6 6699432	£12.43	£14.92
51 - CIR CLIP HIT-6684590.A141 6684590	£1.67	£2.00
52 - PISTON PIN HIT-6684591.A7 6684591	£3.29	£3.95
53 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A2 6698386	-
54 - CRANK CASE (B) ASS'Y INCLUD.56 HIT-6698370.A15 6698370	£23.00	£27.60
55 - CRANK CASE PACKING HIT-6698371.A3 6698371	£1.67	£2.00
56 - OIL SEAL TB 12227 HIT-6684607.A143 6684607	£4.07	£4.88
57 - BALL BEARING 6001 C3 HIT-6684608.A62 6684608	£5.70	£6.84
58 - SHIM T0.5 HIT-6698490.A1 6698490	-
59 - CRANK SHAFT HIT-6699438.A6 6699438	-
60 - CRANK CASE (A) ASS'Y INCLUD.56 HIT-6698369.A3 6698369	£17.94	£21.53
61 - KNOCK PIN 4X12 HIT-6696947.A42 6696947	-
62 - STARTER PULLEY ASS'Y INCLUD.63-65 HIT-6684681.A102 6684681	£18.16	£21.79
63 - D4E RETAINING RING HIT-6685101.A90 6685101	-
64 - STARTER PAWL SPRING HIT-6684684.A20 6684684	£3.29	£3.95
65 - STARTER PAWL HIT-6684685.A91 6684685	£5.07	£6.08
66A - RECOIL STARTER BODY ASS'Y INCLUD.67-71 HIT-6601570.A35 6601570	£23.15	£27.78
67 - SET SCREW HIT-6684679.A143 6684679	£2.98	£3.57
68 - CAM PLATE HIT-6699996.A76 6699996	£4.28	£5.13
69 - DAMPER SPRING HIT-6684677.A96 6684677	£5.70	£6.84
70 - STARTER ROPE REEL HIT-6699997.A13 6699997	-
71 - RECOIL SPRING HIT-6684675.A29 6684675	£8.82	£10.58
73 - STARTER ROPE 3.5X860 HIT-6684674.A78 6684674	£5.70	£6.84
74 - STARTER HANDLE HIT-6684680.A12 6684680	£5.87	£7.04
75 - NAME PLATE HIT-000000.A2352 000000	-
*76 - TANK MARK LABEL (50:1) HIT-6698921.A53 6698921	-
*76 - TANK MARK LABEL (25:1) FOR TPE (S) HIT-6698922.A4 6698922	-
91 - MACHINE SCREW M5X20 (BLACK) FOR (SL) HIT-6699195.A13 6699195	-
92 - P TITE SCREW D4X20 (BLACK) FOR (SL) HIT-6699194.A4 6699194	-
93 - SWITCH WIRE SET FOR (SL) HIT-6699197.A13 6699197	-
94 - NUT M5 FOR (SL) HIT-6699196.A4 6699196	-
95 - STOP LEVER FOR (SL) HIT-6699192.A4 6699192	-
96 - LONG LEVER FOR (SL) HIT-6699191.A13 6699191	-
97 - RETURN SPRING FOR (SL) HIT-6699193.A13 6699193	-
98 - STAY SET FOR (SL) HIT-6699190.A4 6699190	-
99 - THROTTLE LEVER (A) ASS'Y INCLUD.91-98 FOR (SL) HIT-6699133.A14 6699133	-
100 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A21 6699176	£1.67	£2.00
101 - HEX. HOLE BOLT 5X22/S HIT-6695492.A19 6695492	-
102 - ANTI VIBE RUBBER (A) HIT-6696963.A23 6696963	£3.12	£3.74
103 - PIPE HOLDER (A) HIT-6698643.A4 6698643	£3.56	£4.27
104 - PIPE HOLDER (B) HIT-6698644.A43 6698644	£3.56	£4.27
105 - ANTI VIBE RUBBER (B) HIT-6696964.A17 6696964	£3.02	£3.63
106 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A14 939542	£2.98	£3.57
107 - FAN CASE (A) HIT-6699433.A1 6699433	£22.42	£26.91
108 - BALL BEARING 6301ZZC3 HIT-6699435.A4 6699435	£4.28	£5.13
109 - RETAINING RING 37MM HIT-322813.A5 322813	£1.67	£2.00
110 - CLUTCH SHAFT HIT-6699434.A11 6699434	£11.28	£13.53
111 - STEP BOLT HIT-6696469.A51 6696469	£2.84	£3.41
112 - BENT WASHER 8 HIT-6684648.A93 6684648	£1.67	£2.00
113 - CLUTCH PLATE (A) HIT-6696546.A37 6696546	£1.67	£2.00
114A - CLUTCH HIT-6601431.A12 6601431	-
115 - CLUTCH WASHER (B) HIT-6699131.A14 6699131	-
116 - FLYWHEEL NUT HIT-6685337.A50 6685337	-
117 - BOLT WASHER M8 (BLACK) HIT-323212.A58 323212	£1.67	£2.00
118 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A4 6698388	£1.67	£2.00
119 - IGNITION COIL ASS'Y INCLUD.120A HIT-6699436.A6 6699436	-
120A - PLUG CAP HIT-6601421.A15 6601421	£1.67	£2.00
121 - METAL FITTING OF PLUG CAP HIT-6699933.A8 6699933	-
122 - CORD HIT-6696544.A41 6696544	-
123 - EARTH CORD HIT-6696545.A1 6696545	-
124 - MAGNETO ROTOR COMP. HIT-6698396.A1 6698396	£11.52	£13.82
125 - FUEL PIPE HIT-6698716.A16 6698716	£5.61	£6.73
126A - FUEL PIPE L70 HIT-6699014.A26 6699014	£2.77	£3.32
127 - RETURN GROMMET TILL 7.2015 HIT-6684627.A151 6684627	£1.67	£2.00
128 - FUEL TANK CAP ASS'Y INCLUD.129 HIT-6698402.A81 6698402	£6.94	£8.33
129 - TANK CAP CHAIN HIT-6698732.A15 6698732	-
130 - FUEL GROMMET TILL 7.2015 HIT-6698931.A65 6698931	£5.54	£6.65
130A - FUEL GROMMET SINCE 8.2015 HIT-6600358.A27 6600358	£1.67	£2.00
131 - SPACER HIT-6699558.A38 6699558	-
132 - TANK (B) TILL 7.2015 HIT-6600317.A27 6600317	£12.36	£14.83
132A - TANK (C) SINCE 8.2015 HIT-6600354.A23 6600354	-
133A - PUMP FILTER HIT-6600351.A31 6600351	£4.45	£5.34
134 - CLIP HIT-6696949.A38 6696949	£1.67	£2.00
135 - STAND HIT-6694787.A24 6694787	£3.56	£4.27
136 - FLANGE BOLT HIT-6696557.A5 6696557	£1.67	£2.00
137 - BOLT (W/FLANGE) L27.8 HIT-6698991.A11 6698991	-
151 - THROTTLE LEVER (B) FOR (S) HIT-6699446.A7 6699446	-
152 - LOOP HANDLE (W/BARRIER) FOR AUS (SL) HIT-6699448.A14 6699448	-
153 - LOOP HANDLE FOR BRA (SL) HIT-6699449.A1 6699449	-
154 - HEX. HOLE BOLT M5X25/S FOR (S) HIT-6684709.A182 6684709	£1.67	£2.00
155A - HANDLE HOLDER (A) SINCE 7.2015 FOR (S) HIT-6600500.A28 6600500	-
156 - HANDLE (LEFT) FOR (S) HIT-6698638.A3 6698638	-
157 - HANDLE (RIGHT) FOR (S) HIT-6699447.A0 6699447	-
158A - HANDLE HOLDER (B) SINCE 7.2015 FOR (S) HIT-6600501.A3 6600501	-
159 - HANDLE HOLDER (C) FOR (S) HIT-6696578.A10 6696578	-
160 - HEX. HOLE BUTTON BOLT M6X25 FOR (S) HIT-6684714.A52 6684714	£1.67	£2.00
161 - GEAR CASE ASS'Y (4BB) INCLUD.162-171 HIT-6699439.A1 6699439	£60.67	£72.80
162 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A6 949664	£4.33	£5.20
163 - SCREW 5X12/W.S HIT-6695414.A40 6695414	£1.67	£2.00
164 - CAP HIT-6600005.A8 6600005	-
165 - SPRING HIT-6600006.A11 6600006	-
166 - BOLT (W/PLUS) M6X8 HIT-6684737.A10 6684737	-
167 - LOCK PIN HIT-6600007.A8 6600007	-
168 - CUTTER HOLDER (A) HIT-6699441.A5 6699441	-
169 - CUTTER HOLDER (B) HIT-6698659.A15 6698659	£15.99	£19.19
170 - NUT COVER HIT-6699188.A18 6699188	£10.93	£13.12
171 - U-NUT (LEFT HAND) M10 HIT-335759.A33 335759	£1.67	£2.00
172 - COVER HIT-6698937.A2 6698937	£22.42	£26.91
173 - NYLON CORD HIT-000000.A2353 000000	-
174 - SET SCREW HIT-6698795.A7 6698795	-
175 - REEL HIT-6698939.A2 6698939	-
176 - RETURN SPRING HIT-6698941.A2 6698941	-
177 - BUTTON HIT-6698940.A16 6698940	-
178 - CORD GUIDE HIT-6698942.A16 6698942	-
179 - CASE HIT-6698938.A16 6698938	-
180 - NYLON HEAD ASS'Y INCLUD.172-179 HIT-6698639.A13 6698639	£31.92	£38.31
181 - HEX. HOLE BUTTON BOLT M6X25 FOR AUS (SL) HIT-6684714.A53 6684714	£1.67	£2.00
*181 - HEX. HOLE BUTTON BOLT M6X25 BRA (S) HIT-6684714.A54 6684714	£1.67	£2.00
182 - COVER BRACKET FOR RUS (S) HIT-6699442.A8 6699442	-
183 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR TPE (S) HIT-6685064.A38 6685064	-
*183 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 MEX (SL) HIT-6685064.A39 6685064	-
184 - SPRING WASHER M6 (10 PCS.) FOR TPE (S) HIT-949455.A83 949455	£1.67	£2.00
*184 - SPRING WASHER M6 (10 PCS.) MEX (SL) HIT-949455.A84 949455	£1.67	£2.00
185 - COVER BRACKET FOR TPE (S) HIT-6696978.A29 6696978	-
*185 - COVER BRACKET MEX (SL) HIT-6696978.A30 6696978	-
186 - COVER BRACKET FOR AUS (SL) HIT-6699444.A6 6699444	-
188 - CAUTION MARK HIT-6697625.A5 6697625	-
189 - LEVEL MARK FOR AUS (SL) HIT-6684852.A33 6684852	-
190 - LEVEL MARK EXCEPT FOR AUS (SL) HIT-6684851.A9 6684851	-
191 - MAIN PIPE HIT-6699445.A0 6699445	-
192 - DRIVE SHAFT HIT-6698514.A0 6698514	£19.46	£23.35
193A - HANGER HIT-6600504.A1 6600504	£1.67	£2.00
194 - CAP (A) EXCEPT FOR AUS (SL) HIT-6698515.A37 6698515	-
195 - GUARD FOR RUS (S) HIT-6696980.A3 6696980	£27.49	£32.99
196 - GUARD HOLDER FOR RUS (S) HIT-6696951.A22 6696951	£3.02	£3.63
197 - COVER GUARD FOR RUS (S) HIT-6696950.A15 6696950	£11.18	£13.42
198 - TAPPING SCREW 4X14 FOR RUS (S) HIT-6684751.A69 6684751	£1.67	£2.00
199 - KNIFE FOR RUS (S) HIT-6684750.A33 6684750	£3.64	£4.37
200 - NUT M4 (10 PCS.) FOR TPE (S) HIT-949554.A32 949554	£1.67	£2.00
*200 - NUT M4 (10 PCS.) MEX (SL) HIT-949554.A33 949554	£1.67	£2.00
201 - KNIFE FOR TPE (S) HIT-6696584.A1 6696584	-
*201 - KNIFE MEX (SL) HIT-6696584.A2 6696584	-
202 - COVER HOLDER FOR AUS (SL) HIT-6698813.A12 6698813	-
203 - GUARD FOR TPE (S) HIT-6696981.A24 6696981	-
*203 - GUARD MEX (SL) HIT-6696981.A25 6696981	-
204 - BOLT WASHER M4 (BLACK) FOR TPE (S) HIT-323210.A48 323210	-
*204 - BOLT WASHER M4 (BLACK) MEX (SL) HIT-323210.A49 323210	-
205 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR TPE (S) HIT-6685068.A63 6685068	-
*205 - MACHINE SCREW (W/SP. WASHER) M4X12 MEX (SL) HIT-6685068.A64 6685068	-
206 - WIRE CLAMP FOR (S) HIT-6699450.A7 6699450	-
207 - COVER ASS'Y INCLUD.208-210 FOR AUS (SL) HIT-6697880.A5 6697880	-
208 - GUARD 24 DIA. FOR AUS (SL) HIT-6690272.A6 6690272	-
209 - KNIFE FOR AUS (SL) HIT-6693388.A6 6693388	-
210 - TAPPING SCREW 5X20 FOR AUS (SL) HIT-6684753.A75 6684753	£1.67	£2.00
220 - HANDLE HOLDER (A).(B) SET INCLUD.155A HIT-6600499.A3 6600499	-
221 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A64 949236	£1.67	£2.00
222 - BRAND LABEL HIT-000000.A2354 000000	-
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A10 6684764	£7.64	£9.17
502 - WRENCH 8X10 EXCEPT FOR AUS HIT-6696596.A15 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A108 944458	£1.67	£2.00
504B - CUTTER COVER FOR RUS (S) HIT-6684768.A57 6684768	-
505 - PROTECTIVE GLASSES HIT-875769.A157 875769	-
*506 - SHOULDER STRAP S FOR AUS (SL) HIT-6695795.A14 6695795	-
*506 - SHOULDER HARNESS D3X FOR (S) HIT-6695796.A1 6695796	£25.30	£30.36
506A - SHOULDER BELT SINGLE HIT-6601420.A35 6601420	-
507 - BLADE 3TX255XT1.8 FOR RUS (S) HIT-6698711.A11 6698711	-

Attribute Name	Value
Brand	Hikoki

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki CG27EBS Engine Brush Cutter Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki CG27EBS Engine Brush Cutter Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
