Hitachi / Hikoki CG27EASP Attachment Spare Parts

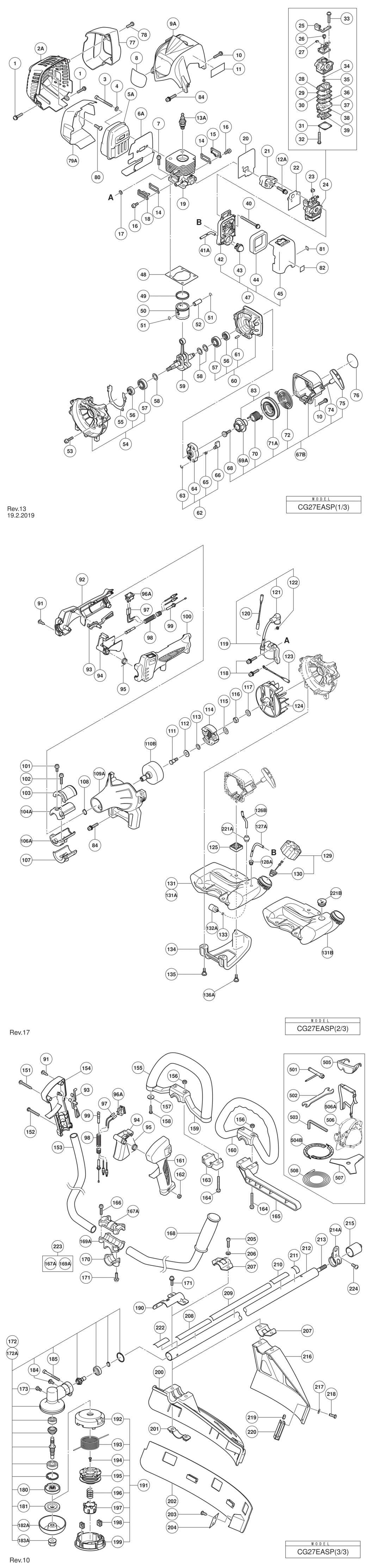

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG27EASP Attachment

	Ex VAT	Inc VAT
1 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A6 791045	£2.71	£3.25
2A - MUFFLER COVER SINCE 11.2013 HIT-6600336.A10 6600336	£10.02	£12.02
3 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A18 6698384	-
4 - BOLT WASHER M6 (10 PCS.) HIT-949432.A70 949432	£1.67	£2.00
5A - MUFFLER (B) HIT-6600004.A7 6600004	-
6A - HEAT PROTECTION PANEL SINCE 11.2013 HIT-6600324.A2 6600324	-
7 - HEX. SOCKET BOLT M5X20 HIT-6696958.A7 6696958	-
8 - BRAND LABEL HIT-000000.A3179 000000	-
*9A - CYLINDER COVER HIT-6697921.A13 6697921	£8.59	£10.31
*9A - CYLINDER COVER FOR USA HIT-6699167.A0 6699167	-
10 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A12 307606	£1.67	£2.00
11 - CAUTION LABEL HIT-000000.A3178 000000	-
12A - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A45 6698844	£1.67	£2.00
*13A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A42 6699316	£12.43	£14.92
*13A - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A18 6699322	£3.73	£4.48
14 - COVER PACKING HIT-6698365.A2 6698365	£1.67	£2.00
15 - SCAVENGING COVER (A) HIT-6698484.A12 6698484	-
16 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A17 6698385	-
17 - WASHER T1.6 HIT-6684600.A49 6684600	-
18 - SCAVENGING COVER (B) HIT-6698485.A10 6698485	-
19 - CYLINDER HIT-6698480.A9 6698480	£50.30	£60.36
20 - INTAKE PACKING HIT-6698473.A3 6698473	-
21 - CARBURETOR INSULATOR HIT-6698387.A19 6698387	£4.72	£5.66
22 - CARBURETOR PACKING HIT-6698405.A7 6698405	£3.12	£3.74
23 - SWIVEL CAP HIT-6691337.A46 6691337	£1.67	£2.00
24 - CARBURETOR ASS'Y WYC-29 INCLUD.25-39 HIT-6698489.A2 6698489	-
25 - CABLE ADJUST STAY HIT-6699287.A17 6699287	-
26 - SWIVEL HIT-6696830.A5 6696830	-
27 - STOP RING HIT-6684696.A145 6684696	-
28 - PUMP GASKET HIT-6684692.A46 6684692	£17.28	£20.73
29 - PUMP DIAPHRAGM HIT-6684693.A131 6684693	£5.70	£6.84
30 - PUMP PLATE HIT-6691242.A11 6691242	-
31 - DIAPHRAGM COVER-METERING HIT-6685222.A15 6685222	£5.70	£6.84
32 - SET SCREW HIT-6691312.A0 6691312	-
33 - SET SCREW M3X12 HIT-6696829.A40 6696829	-
34 - O-RING HIT-6684695.A68 6684695	£1.67	£2.00
35 - JET HIT-000000.A3180 000000	-
36 - CIRCUIT PLATE HIT-6691234.A47 6691234	-
37 - PUMP BODY COMP. HIT-6696828.A5 6696828	£13.28	£15.93
38 - DIAPHRAGM PACKING-METERING HIT-6685220.A159 6685220	£2.81	£3.37
39 - METERING DIAPHRAGM HIT-6684690.A48 6684690	£24.05	£28.86
40 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A16 307224	£1.67	£2.00
41A - FUEL PIPE HIT-6698720.A3 6698720	£4.72	£5.66
42 - AIR CLEANER HOUSING HIT-000000.A3181 000000	-
43 - PRIMING PUMP COMP. HIT-6685139.A57 6685139	£10.67	£12.80
44 - CLEANER ELEMENT HIT-6690347.A18 6690347	£7.15	£8.58
45 - CLEANER COVER HIT-000000.A3182 000000	-
46 - START LABEL (A) HIT-000000.A3183 000000	-
47 - AIR CLEANER ASS'Y INCLUD.42-45 HIT-6696549.A14 6696549	£13.36	£16.03
48 - CYLINDER PACKING HIT-6698366.A16 6698366	£1.67	£2.00
49 - PISTON RING HIT-6686121.A34 6686121	£6.47	£7.76
50 - PISTON HIT-6698483.A2 6698483	-
51 - CIR CLIP HIT-6684590.A58 6684590	£1.67	£2.00
52 - PISTON PIN HIT-6684591.A48 6684591	£3.29	£3.95
53 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A47 6698386	-
54 - CRANK CASE (B) ASS'Y INCLUD.56 HIT-6698370.A2 6698370	£23.00	£27.60
55 - CRANK CASE PACKING HIT-6698371.A16 6698371	£1.67	£2.00
56 - OIL SEAL TB 12227 HIT-6684607.A48 6684607	£4.07	£4.88
57 - BALL BEARING 6001 C3 HIT-6695535.A5 6695535	£5.70	£6.84
58 - SHIM T0.5 HIT-6698490.A8 6698490	-
59 - CRANK SHAFT COMP. HIT-6698488.A4 6698488	-
60 - CRANK CASE (A) ASS'Y INCLUD.56 HIT-6698369.A16 6698369	£17.94	£21.53
61 - KNOCK PIN 4X12 HIT-6696947.A8 6696947	-
62 - STARTER PULLEY ASS'Y INCLUD.63-66 HIT-6684681.A41 6684681	£18.16	£21.79
63 - D4E RETAINING RING HIT-6685101.A19 6685101	-
64 - STARTER PULLEY HIT-000000.A3185 000000	-
65 - STARTER PAWL SPRING HIT-6684684.A72 6684684	£3.29	£3.95
66 - STARTER PAWL HIT-6684685.A43 6684685	£5.07	£6.08
67B - RECOIL STARTER BODY ASS'Y INCLUD.68-72 HIT-6601570.A75 6601570	£23.15	£27.78
68 - SET SCREW HIT-6684679.A55 6684679	£2.98	£3.57
69A - CAM PLATE SINCE 8.2013 HIT-6699996.A31 6699996	£4.28	£5.13
70 - DAMPER SPRING HIT-6684677.A40 6684677	£5.70	£6.84
71A - STARTER ROPE REEL SINCE 8.2013 HIT-6699997.A58 6699997	-
72 - RECOIL SPRING HIT-6684675.A106 6684675	£8.82	£10.58
74 - STARTER ROPE 3.5X860 HIT-6684674.A33 6684674	£5.70	£6.84
75 - STARTER HANDLE HIT-6684680.A73 6684680	£5.87	£7.04
76 - NAME PLATE HIT-000000.A3186 000000	-
77 - MUFFLER REAR COVER SINCE 11.2013 HIT-6600335.A2 6600335	£13.36	£16.03
78 - TAPPING SCREW D4 SINCE 11.2013 HIT-6600332.A9 6600332	£1.67	£2.00
79A - MUFFLER HEAT COVER SINCE 11.2013 HIT-6600422.A9 6600422	-
80 - TAPPING SCREW D4X10 SINCE 11.2013 HIT-6600325.A24 6600325	-
81 - MARK PLATE (T) SINCE 11.2013 FOR EUROPE HIT-6600327.A29 6600327	-
82 - PRIMER LABEL SINCE 11.2013 FOR EUROPE HIT-6699000.A20 6699000	-
83 - CAMPLATE ASS'Y INCLUD.69A HIT-6699691.A23 6699691	£7.75	£9.30
84 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A8 6698950	-
*91 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A115 305812	£1.67	£2.00
*91 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) FOR EUROPE (S) HIT-305812.A116 305812	£1.67	£2.00
*92 - HANDLE (B) FOR EUROPE (SL) HIT-6696487.A20 6696487	£5.88	£7.06
*92 - HANDLE (B) FOR USA HIT-6696942.A3 6696942	-
93 - LOCK LEVER FOR EUROPE HIT-6696490.A18 6696490	£2.84	£3.41
94 - LEVER HIT-6696488.A17 6696488	£1.67	£2.00
95 - SPRING (A) HIT-6696489.A22 6696489	£2.84	£3.41
96A - STOP SWITCH HIT-6601275.A50 6601275	£1.67	£2.00
*97 - STOP SWITCH CORD FOR (SL) HIT-6696491.A27 6696491	-
*97 - STOP SWITCH CORD FOR (S) HIT-6696592.A9 6696592	-
*98 - PROTECTION TUBE FOR (SL) HIT-6696967.A15 6696967	-
*98 - PROTECTION TUBE FOR (S) HIT-6696594.A8 6696594	-
*99 - THROTTLE WIRE COMP. FOR (SL) HIT-6696560.A7 6696560	£8.35	£10.02
*99 - THROTTLE WIRE COMP. FOR (S) HIT-6696593.A17 6696593	£7.12	£8.54
*100 - HANDLE (A) FOR EUROPE (SL) HIT-6696486.A27 6696486	£5.88	£7.06
*100 - HANDLE (A) FOR USA HIT-6696941.A3 6696941	-
101 - HEX.HOLE BOLT M5X12/S HIT-6684667.A41 6684667	£1.67	£2.00
102 - HEX. HOLE BOLT 5X22/S HIT-6695492.A7 6695492	-
103 - ANTI VIBE RUBBER (A) HIT-6696963.A33 6696963	£3.12	£3.74
104A - PIPE HOLDER (A) HIT-6698643.A13 6698643	£3.56	£4.27
106A - PIPE HOLDER (B) HIT-6698644.A34 6698644	£3.56	£4.27
107 - ANTI VIBE RUBBER (B) HIT-6696964.A7 6696964	£3.02	£3.63
108 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A29 939542	£2.98	£3.57
*109A - FAN CASE HIT-6697922.A14 6697922	-
*109A - FAN CASE FOR USA HIT-6699169.A1 6699169	-
110B - CLUTCH SHAFT HIT-6699400.A0 6699400	£14.52	£17.43
111 - STEP BOLT HIT-6696469.A35 6696469	£2.84	£3.41
112 - BENT WASHER 8 HIT-6684648.A70 6684648	£1.67	£2.00
113 - CLUTCH PLATE (A) HIT-6696546.A22 6696546	£1.67	£2.00
114 - CLUTCH HIT-6696948.A6 6696948	£15.02	£18.03
115 - CLUTCH WASHER (B) HIT-6696547.A12 6696547	£1.67	£2.00
116 - FLYWHEEL NUT HIT-6685337.A42 6685337	-
117 - BOLT WASHER M8 (BLACK) HIT-323212.A39 323212	£1.67	£2.00
118 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A38 6698388	£1.67	£2.00
119 - IGNITION COIL ASS'Y INCLUD.121 HIT-6698492.A3 6698492	£28.42	£34.11
120 - CORD HIT-6698495.A4 6698495	-
121 - PLUG CAP HIT-000000.A755 000000	-
122 - METAL FITTING OF PLUG CAP HIT-000000.A756 000000	-
123 - EARTH CORD HIT-6696545.A17 6696545	-
124 - MAGNETO ROTOR COMP. HIT-6698396.A7 6698396	£11.52	£13.82
125 - SPACER HIT-6698496.A10 6698496	-
126B - FUEL PIPE HIT-6601525.A5 6601525	-
127A - FUEL PIPE L70 HIT-6699014.A10 6699014	£2.77	£3.32
128A - RETURN GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA CAN) HIT-6697846.A97 6697846	£2.08	£2.50
129 - FUEL TANK CAP ASS'Y INCLUD.130 HIT-6698402.A56 6698402	-
130 - TANK CAP CHAIN HIT-000000.A757 000000	-
131A - TANK (B) TILL 7.2015 HIT-6600317.A36 6600317	£12.36	£14.83
131A - TANK FOR USA HIT-6699719.A0 6699719	£23.15	£27.78
131B - TANK (C) SINCE 8.2015 HIT-6600354.A32 6600354	-
132A - PUMP FILTER HIT-6600351.A7 6600351	£4.45	£5.34
133 - CLIP HIT-6696949.A67 6696949	£1.67	£2.00
134 - STAND HIT-6694787.A36 6694787	£3.56	£4.27
135 - FLANGE BOLT HIT-6696557.A13 6696557	£1.67	£2.00
136A - BOLT (W/FLANGE) L27.8 HIT-6698991.A5 6698991	-
151 - TAPPING SCREW (W/FLANGE) D4X30 FOR EUROPE (S) HIT-323837.A3 323837	-
152 - MACHINE SCREW M5X30 (BLACK) FOR EUROPE (S) HIT-323041.A5 323041	-
153 - HANDLE RIGHT FOR EUROPE (S) HIT-6698637.A10 6698637	-
154 - HANDLE (B) FOR EUROPE (S) HIT-6696590.A2 6696590	-
155 - HANDLE GRIP FOR USA HIT-6691098.A15 6691098	£10.90	£13.08
156 - NUT M6 (10 PCS.) FOR EUROPE (SL) HIT-949556.A60 949556	£1.67	£2.00
157 - BRAKE SHAFT WASHER FOR USA HIT-6689681.A44 6689681	£1.67	£2.00
158 - TAPPING SCREW 5X20 FOR USA HIT-6695255.A6 6695255	-
159 - LOOP HANDLE BLACK HIT-6691046.A5 6691046	£16.30	£19.56
160 - LOOP HANDLE FOR EUROPE (SL) HIT-6696975.A5 6696975	£13.36	£16.03
161 - HANDLE (A) FOR EUROPE (S) HIT-6696588.A2 6696588	-
162 - NUT M5 (BLACK) FOR EUROPE (S) HIT-302012.A32 302012	£1.67	£2.00
163 - HANDLE HOLDER (A) FOR USA HIT-6696972.A19 6696972	-
164 - BOLT (BLACK) M6 FOR EUROPE (SL) HIT-6696974.A37 6696974	£1.67	£2.00
165 - BARRIER FOR EUROPE (SL) HIT-6696973.A4 6696973	£8.35	£10.02
166 - HEX. HOLE BOLT M5X25/S FOR EUROPE (S) HIT-6684709.A130 6684709	£1.67	£2.00
167A - HANDLE HOLDER (A) SINCE 7.2015 FOR EUROPE (S) HIT-6600500.A21 6600500	-
168 - HANDLE (LEFT) FOR EUROPE (S) HIT-6698638.A6 6698638	-
169A - HANDLE HOLDER (B) SINCE 7.2015 FOR EUROPE (S) HIT-6600501.A10 6600501	-
170 - HANDLE HOLDER (C) FOR EUROPE (S) HIT-6696578.A3 6696578	-
*171 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (S) HIT-6684714.A18 6684714	£1.67	£2.00
*171 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (SL) HIT-6684714.A19 6684714	£1.67	£2.00
*172 - GEAR CASE ASS'Y 3BB (B) INCLUD.173 HIT-6696976.A19 6696976	£60.73	£72.88
172A - GEAR CASE ASS'Y 3BB (A) INCLUD.173 HIT-6699402.A20 6699402	-
173 - BOLT (BLACK) M6 HIT-6696974.A36 6696974	£1.67	£2.00
180 - CUTTER HOLDER (A) HIT-6696977.A5 6696977	£18.01	£21.61
181 - CUTTER HOLDER (B) FOR EUROPE HIT-6698659.A4 6698659	£15.99	£19.19
182A - NUT COVER FOR EUROPE HIT-6699188.A7 6699188	£10.93	£13.12
183A - U-NUT (LEFT HAND) M10 FOR EUROPE HIT-335759.A44 335759	£1.67	£2.00
184 - SCREW 5X12/W.S HIT-6695414.A56 6695414	£1.67	£2.00
185 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A15 949664	£4.33	£5.20
190 - COVER BRACKET FOR EUROPE HIT-6696494.A18 6696494	£3.02	£3.63
*191 - NYLON HEAD ASS'Y INCLUD.192-199 HIT-6696454.A27 6696454	£48.12	£57.75
*191 - NYLON HEAD ASS'Y INCLUD.192-199 FOR USA HIT-6698639.A11 6698639	£31.92	£38.31
192 - COVER HIT-6698794.A23 6698794	£17.58	£21.09
*192 - COVER FOR USA HIT-6698937.A8 6698937	£22.42	£26.91
193 - NYLON CORD HIT-000000.A758 000000	-
194 - SET SCREW HIT-6698795.A11 6698795	-
195 - REEL HIT-6698796.A31 6698796	£7.12	£8.54
*195 - REEL FOR USA HIT-6698939.A7 6698939	-
196 - RETURN SPRING HIT-6698797.A6 6698797	£1.67	£2.00
*196 - RETURN SPRING FOR USA HIT-6698941.A7 6698941	-
197 - BUTTON HIT-6698798.A31 6698798	£7.12	£8.54
*197 - BUTTON FOR USA HIT-6698940.A11 6698940	-
198 - CORD GUIDE HIT-6698799.A8 6698799	£7.12	£8.54
*198 - CORD GUIDE FOR USA HIT-6698942.A11 6698942	-
199 - CASE HIT-6698800.A23 6698800	£14.11	£16.93
*199 - CASE FOR USA HIT-6698938.A11 6698938	-
200 - GUARD FOR EUROPE HIT-6696980.A10 6696980	£27.49	£32.99
201 - GUARD HOLDER FOR EUROPE HIT-6696951.A36 6696951	£3.02	£3.63
202 - COVER GUARD FOR EUROPE HIT-6696950.A2 6696950	£11.18	£13.42
203 - TAPPING SCREW 4X14 FOR EUROPE HIT-6684751.A94 6684751	£1.67	£2.00
204 - KNIFE FOR EUROPE HIT-6684750.A10 6684750	£3.64	£4.37
205 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA HIT-6685064.A30 6685064	-
206 - SPRING WASHER M6 (10 PCS.) FOR USA.CAN HIT-949455.A133 949455	£1.67	£2.00
207 - COVER BRACKET FOR USA HIT-6696978.A23 6696978	-
209 - CAUTION MARK USA HIT-000000.A759 000000	-
210 - LEVEL MARK FOR EUROPE (SL) HIT-6684852.A25 6684852	-
211 - LEVEL MARK FOR EUROPE HIT-6684851.A22 6684851	-
212 - MAIN PIPE COMP. HIT-6696558.A15 6696558	£22.07	£26.48
213 - DRIVE SHAFT HIT-6698514.A7 6698514	£19.46	£23.35
214A - HANGER FOR EUROPE HIT-6600504.A12 6600504	£1.67	£2.00
215 - CAP (A) FOR EUROPE HIT-6698515.A27 6698515	-
216 - GUARD FOR USA HIT-6696981.A19 6696981	-
217 - BOLT WASHER M4 (BLACK) FOR USA HIT-323210.A32 323210	-
218 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA HIT-6685068.A39 6685068	-
219 - NUT M4 (10 PCS.) FOR USA HIT-949554.A51 949554	£1.67	£2.00
220 - KNIFE FOR USA HIT-6696584.A13 6696584	-
221A - FUEL GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA CAN) HIT-6688156.A40 6688156	-
221B - FUEL GROMMET SINCE 8.2015 (EXCEPT FOR USA CAN) HIT-6600358.A5 6600358	£1.67	£2.00
222 - CAUTION LABEL (HEDGE) SINCE 11.2013 FOR EUROPE HIT-6600328.A11 6600328	-
223 - HANDLE HOLDER (A).(B) SET INCLUD.167A HIT-6600499.A12 6600499	-
*223 - HANDLE HOLDER (A).(B) SET FOR EUROPE (S) HIT-6600499.A13 6600499	-
224 - MACHINE SCREW M5X10 (10 PCS.) FOR EUROPE HIT-949236.A85 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A31 6684764	£7.64	£9.17
502 - WRENCH 8X10 FOR EUROPE HIT-6696596.A0 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A124 944458	£1.67	£2.00
504B - CUTTER COVER FOR EUROPE (S) HIT-6684768.A40 6684768	-
505 - PROTECTIVE GLASSES HIT-875769.A123 875769	-
*506 - SHOULDER BELT ASS'Y W FOR EUROPE (S) HIT-6696184.A11 6696184	£25.30	£30.36
506A - SHOULDER BELT SINGLE FOR EUROPE (SL) HIT-6601420.A44 6601420	-
507 - BLADE 3TX255XT1.8 FOR EUROPE (S) HIT-6698711.A3 6698711	-
508 - MEGA TWIST CORD FOR USA HIT-6698640.A5 6698640	-
*601 - REPAIR KIT (D-1) TILL 10.2013 FOR W.EUROPE HIT-6600034.A0 6600034	-
*601 - REPAIR KIT (D-2) TILL 10.2013 FOR N.EUROPE HIT-6600035.A0 6600035	-
*601 - REPAIR KIT (D-3) TILL 10.2013 FOR E.EUROPE HIT-6600036.A0 6600036	-
*601 - REPAIR KIT (E) TILL 10.2013 FOR USA HIT-6600038.A1 6600038	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CG27EASP Attachment Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
