Hitachi / Hikoki CG27EAS Engine Brush Cutter Spare Parts

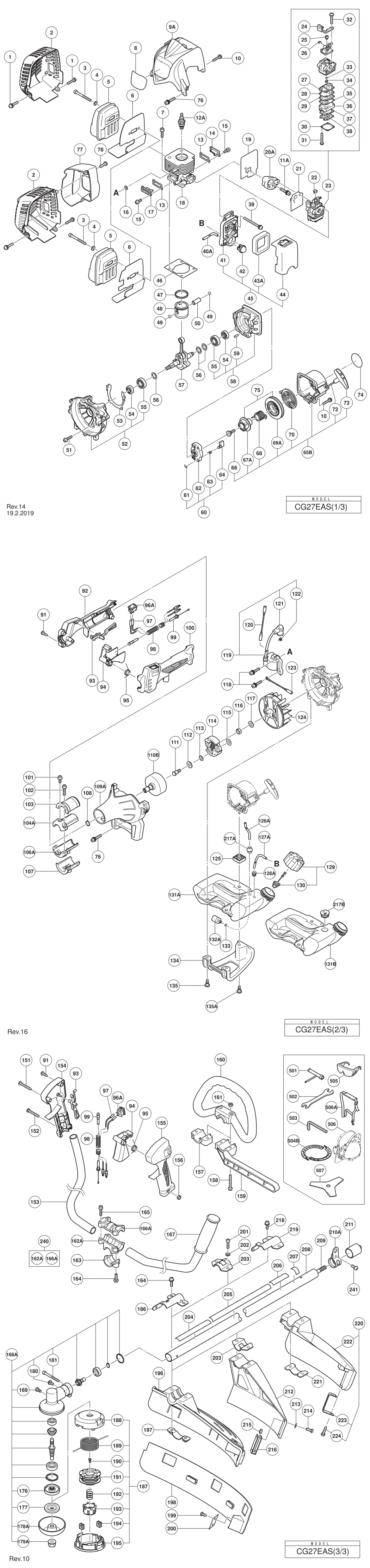

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG27EAS Engine Brush Cutter

	Ex VAT	Inc VAT
1 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A8 791045	£2.71	£3.25
2 - MUFFLER COVER HIT-6698493.A4 6698493	£5.88	£7.06
*2 - MUFFLER COVER FOR EUROPE HIT-6600336.A11 6600336	£10.02	£12.02
3 - HEX. HOLE BOLT M6X55 HIT-6684638.A12 6684638	£1.67	£2.00
*3 - HEX. SOCKET HD. BOLT M6X65 FOR EUROPE HIT-6698384.A16 6698384	-
4 - BOLT WASHER M6 (10 PCS.) HIT-949432.A75 949432	£1.67	£2.00
5 - MUFFLER HIT-6698477.A13 6698477	£15.61	£18.73
*5 - MUFFLER (B) FOR EUROPE HIT-6600461.A17 6600461	-
6 - HEAT PROTECTION PANEL HIT-6698491.A2 6698491	£5.88	£7.06
*6 - HEAT PROTECTION PANEL FOR EUROPE HIT-6600324.A3 6600324	-
7 - HEX. SOCKET BOLT M5X20 HIT-6696958.A6 6696958	-
8 - BRAND LABEL HIT-000000.A3087 000000	-
9A - CYLINDER COVER HIT-6697921.A14 6697921	£8.59	£10.31
10 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A10 307606	£1.67	£2.00
11A - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A47 6698844	£1.67	£2.00
*12A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A38 6699316	£12.43	£14.92
*12A - SPARK PLUG ASS'Y CJ6 EXCEPT FOR RUS HIT-6699322.A15 6699322	£3.73	£4.48
13 - COVER PACKING HIT-6698365.A1 6698365	£1.67	£2.00
14 - SCAVENGING COVER (A) HIT-6698484.A13 6698484	-
15 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A19 6698385	-
16 - WASHER T1.6 HIT-6684600.A47 6684600	-
17 - SCAVENGING COVER (B) HIT-6698485.A9 6698485	-
18 - CYLINDER HIT-6698480.A7 6698480	£50.30	£60.36
19 - INTAKE PACKING HIT-6698473.A4 6698473	-
20A - CARBURETOR INSULATOR HIT-6698387.A21 6698387	£4.72	£5.66
21 - CARBURETOR PACKING HIT-6684616.A18 6684616	£1.67	£2.00
23 - CARBURETOR ASS'Y WYC-29 INCLUD.24-38 HIT-6698489.A3 6698489	-
24 - CABLE ADJUST STAY HIT-6699287.A14 6699287	-
25 - SWIVEL HIT-6696830.A7 6696830	-
26 - STOP RING HIT-6684696.A151 6684696	-
27 - PUMP GASKET HIT-6684692.A40 6684692	£17.28	£20.73
28 - PUMP DIAPHRAGM HIT-6684693.A137 6684693	£5.70	£6.84
29 - PUMP PLATE HIT-6691242.A3 6691242	-
30 - DIAPHRAGM COVER-METERING HIT-6685222.A10 6685222	£5.70	£6.84
31 - SET SCREW HIT-6691312.A8 6691312	-
32 - SET SCREW M3X12 HIT-6696829.A38 6696829	-
33 - O-RING HIT-6684695.A62 6684695	£1.67	£2.00
34 - JET HIT-000000.A3088 000000	-
35 - CIRCUIT PLATE HIT-6691234.A55 6691234	-
36 - PUMP BODY COMP. HIT-6696828.A7 6696828	£13.28	£15.93
37 - DIAPHRAGM PACKING-METERING HIT-6685220.A164 6685220	£2.81	£3.37
38 - METERING DIAPHRAGM HIT-6684690.A47 6684690	£24.05	£28.86
39 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A22 307224	£1.67	£2.00
40A - FUEL PIPE HIT-6698720.A4 6698720	£4.72	£5.66
41 - AIR CLEANER HOUSING HIT-000000.A3089 000000	-
42 - PRIMING PUMP COMP. HIT-6685139.A53 6685139	£10.67	£12.80
43A - CLEANER SPONGE HIT-6600704.A18 6600704	£5.61	£6.73
44 - CLEANER COVER HIT-000000.A3090 000000	-
45 - AIR CLEANER ASS'Y INCLUD.41-44 HIT-6696549.A15 6696549	£13.36	£16.03
46 - CYLINDER PACKING HIT-6698366.A17 6698366	£1.67	£2.00
47 - PISTON RING HIT-6686121.A33 6686121	£6.47	£7.76
48 - PISTON HIT-6698483.A3 6698483	-
49 - CIR CLIP HIT-6684590.A56 6684590	£1.67	£2.00
50 - PISTON PIN HIT-6684591.A50 6684591	£3.29	£3.95
51 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A50 6698386	-
52 - CRANK CASE (B) ASS'Y INCLUD.54 HIT-6698370.A3 6698370	£23.00	£27.60
53 - CRANK CASE PACKING HIT-6698371.A15 6698371	£1.67	£2.00
54 - OIL SEAL TB 12227 HIT-6684607.A46 6684607	£4.07	£4.88
55 - BALL BEARING 6001 C3 HIT-6684608.A152 6684608	£5.70	£6.84
56 - SHIM T0.5 HIT-6698490.A9 6698490	-
57 - CRANK SHAFT COMP. HIT-6698488.A3 6698488	-
58 - CRANK CASE (A) ASS'Y INCLUD.53 HIT-6698369.A15 6698369	£17.94	£21.53
59 - KNOCK PIN 4X12 HIT-6696947.A11 6696947	-
60 - STARTER PULLEY ASS'Y INCLUD.61-64 HIT-6684681.A37 6684681	£18.16	£21.79
61 - D4E RETAINING RING HIT-6685101.A23 6685101	-
62 - STARTER PULLEY HIT-000000.A3098 000000	-
63 - STARTER PAWL SPRING HIT-6684684.A76 6684684	£3.29	£3.95
64 - STARTER PAWL HIT-6684685.A39 6684685	£5.07	£6.08
65B - RECOIL STARTER BODY ASS'Y INCLUD.66-70 HIT-6601570.A73 6601570	£23.15	£27.78
66 - SET SCREW HIT-6684679.A51 6684679	£2.98	£3.57
67A - CAM PLATE SINCE 9.2013 HIT-6699996.A34 6699996	£4.28	£5.13
68 - DAMPER SPRING HIT-6684677.A44 6684677	£5.70	£6.84
69A - STARTER ROPE REEL SINCE 9.2013 HIT-6699997.A55 6699997	-
70 - RECOIL SPRING HIT-6684675.A102 6684675	£8.82	£10.58
72 - STARTER ROPE 3.5X860 HIT-6684674.A37 6684674	£5.70	£6.84
73 - STARTER HANDLE HIT-6684680.A77 6684680	£5.87	£7.04
74 - NAME PLATE HIT-000000.A3099 000000	-
75 - CAMPLATE ASS'Y INCLUD.67A HIT-6699691.A25 6699691	£7.75	£9.30
76 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A6 6698950	-
77 - MUFFLER REAR COVER FOR EUROPE HIT-6600335.A0 6600335	£13.36	£16.03
78 - TAPPING SCREW D4 FOR EUROPE HIT-6600332.A8 6600332	£1.67	£2.00
*91 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A111 305812	£1.67	£2.00
*91 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) FOR MEX (SL) HIT-305812.A112 305812	£1.67	£2.00
*92 - HANDLE (B) FOR MEX (SL) HIT-6696942.A1 6696942	-
*92 - HANDLE (B) FOR AUS (SL) HIT-6696487.A19 6696487	£5.88	£7.06
93 - LOCK LEVER FOR AUS (SL S) HIT-6696490.A19 6696490	£2.84	£3.41
*93 - LOCK LEVER RUS (S) HIT-6696490.A20 6696490	£2.84	£3.41
94 - LEVER HIT-6696488.A18 6696488	£1.67	£2.00
95 - SPRING (A) HIT-6696489.A21 6696489	£2.84	£3.41
96A - STOP SWITCH HIT-6601275.A48 6601275	£1.67	£2.00
*97 - STOP SWITCH CORD FOR (SL) HIT-6696491.A26 6696491	-
*97 - STOP SWITCH CORD FOR (S) HIT-6696592.A7 6696592	-
*98 - PROTECTION TUBE FOR (SL) HIT-6696967.A13 6696967	-
*98 - PROTECTION TUBE FOR (S) HIT-6696594.A6 6696594	-
*99 - THROTTLE WIRE COMP. FOR (SL) HIT-6696560.A21 6696560	£8.35	£10.02
*99 - THROTTLE WIRE COMP. FOR (S) HIT-6696593.A10 6696593	£7.12	£8.54
*100 - HANDLE (A) FOR MEX (SL) HIT-6696941.A21 6696941	-
*100 - HANDLE (A) FOR AUS (SL) HIT-6696486.A14 6696486	£5.88	£7.06
101 - HEX.HOLE BOLT M5X12/S HIT-6684667.A102 6684667	£1.67	£2.00
102 - HEX. HOLE BOLT 5X22/S HIT-6695492.A51 6695492	-
103 - ANTI VIBE RUBBER (A) HIT-6696963.A13 6696963	£3.12	£3.74
104A - PIPE HOLDER (A) HIT-6698643.A27 6698643	£3.56	£4.27
106A - PIPE HOLDER (B) HIT-6698644.A20 6698644	£3.56	£4.27
107 - ANTI VIBE RUBBER (B) HIT-6696964.A27 6696964	£3.02	£3.63
108 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A80 939542	£2.98	£3.57
109A - FAN CASE HIT-6697922.A0 6697922	-
110B - CLUTCH SHAFT HIT-6699400.A8 6699400	£14.52	£17.43
111 - STEP BOLT HIT-6696469.A20 6696469	£2.84	£3.41
112 - BENT WASHER 8 HIT-6684648.A48 6684648	£1.67	£2.00
113 - CLUTCH PLATE (A) HIT-6696546.A13 6696546	£1.67	£2.00
114 - CLUTCH HIT-6696948.A30 6696948	£15.02	£18.03
115 - CLUTCH WASHER (B) HIT-6696547.A22 6696547	£1.67	£2.00
116 - FLYWHEEL NUT HIT-6685337.A7 6685337	-
117 - BOLT WASHER M8 (BLACK) HIT-323212.A24 323212	£1.67	£2.00
118 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A57 6698388	£1.67	£2.00
119 - IGNITION COIL ASS'Y INCLUD.121 HIT-6698492.A4 6698492	£28.42	£34.11
120 - CORD HIT-6698495.A8 6698495	-
121 - PLUG CAP HIT-000000.A3103 000000	-
122 - METAL FITTING OF PLUG CAP HIT-000000.A3104 000000	-
123 - EARTH CORD HIT-6696545.A29 6696545	-
124 - MAGNETO ROTOR COMP. HIT-6698396.A16 6698396	£11.52	£13.82
125 - SPACER HIT-6698496.A6 6698496	-
126A - FUEL PIPE HIT-6698716.A32 6698716	£5.61	£6.73
127A - FUEL PIPE L70 HIT-6699014.A55 6699014	£2.77	£3.32
128A - RETURN GROMMET TILL 7.2015 HIT-6697846.A22 6697846	£1.68	£2.01
129 - FUEL TANK CAP ASS'Y INCLUD.130 HIT-6698402.A2 6698402	-
130 - TANK CAP CHAIN HIT-000000.A3105 000000	-
131A - TANK (B) TILL 7.2015 HIT-6600317.A2 6600317	£12.36	£14.83
131B - TANK (C) SINCE 8.2015 HIT-6600354.A12 6600354	-
132A - PUMP FILTER BODY COMP HIT-66A3864.A12 66A3864	-
132A - PUMP FILTER HIT-6600351.A53 6600351	£4.45	£5.34
133 - CLIP HIT-6696949.A8 6696949	£1.67	£2.00
134 - STAND HIT-6694787.A18 6694787	£3.56	£4.27
135 - FLANGE BOLT HIT-6696557.A33 6696557	£1.67	£2.00
135A - BOLT (W/FLANGE) L27.8 HIT-6698991.A32 6698991	-
*151 - TAPPING SCREW (W/FLANGE) D4X30 FOR UAE (S) HIT-323837.A16 323837	-
*152 - MACHINE SCREW M5X30 (BLACK) FOR UAE (S) HIT-323041.A14 323041	-
*153 - HANDLE RIGHT FOR UAE (S) HIT-6696585.A4 6696585	-
*153 - HANDLE RIGHT FOR RUS (S) HIT-6698637.A1 6698637	-
*154 - HANDLE (B) FOR AUS (S) HIT-6696590.A9 6696590	-
*154 - HANDLE (B) FOR UAE (S) HIT-6696591.A5 6696591	-
*154 - HANDLE (B) KOR (S) HIT-6696591.A6 6696591	-
*155 - HANDLE (A) FOR AUS (S) HIT-6696588.A10 6696588	-
*155 - HANDLE (A) FOR UAE (S) HIT-6696589.A5 6696589	-
*155 - HANDLE (A) KOR (S) HIT-6696589.A6 6696589	-
*156 - NUT M5 (BLACK) FOR UAE (S) HIT-302012.A22 302012	£1.67	£2.00
*157 - HANDLE HOLDER (A) FOR MEX (SL) HIT-6696972.A11 6696972	-
*158 - BOLT (BLACK) M6 FOR PAN (SL) HIT-6696974.A26 6696974	£1.67	£2.00
159 - BARRIER FOR AUS (SL) HIT-6696973.A10 6696973	£8.35	£10.02
*160 - LOOP HANDLE FOR PAN (SL) HIT-6696975.A13 6696975	£13.36	£16.03
*161 - NUT M6 (10 PCS.) FOR PAN (SL) HIT-949556.A24 949556	£1.67	£2.00
*162A - HANDLE HOLDER (B) SINCE 7.2015 FOR UAE (S) HIT-6600501.A26 6600501	-
*163 - HANDLE HOLDER (C) FOR UAE (S) HIT-6696578.A29 6696578	-
*164 - HEX. HOLE BUTTON BOLT M6X25 HIT-6684714.A90 6684714	£1.67	£2.00
*164 - HEX. HOLE BUTTON BOLT M6X25 FOR PAN (SL) HIT-6684714.A91 6684714	£1.67	£2.00
*165 - HEX. HOLE BOLT M5X25/S FOR UAE (S) HIT-6684709.A79 6684709	£1.67	£2.00
*166A - HANDLE HOLDER (A) SINCE 7.2015 FOR UAE (S) HIT-6600500.A5 6600500	-
*167 - HANDLE LEFT FOR UAE (S) HIT-6696595.A5 6696595	-
*167 - HANDLE (LEFT) FOR RUS (S) HIT-6698638.A18 6698638	-
*168 - GEAR CASE ASS'Y 3BB (B) INCLUD.169 HIT-6696976.A12 6696976	£60.73	£72.88
168A - GEAR CASE ASS'Y 3BB (A) INCLU.169 HIT-6699402.A9 6699402	-
169 - BOLT (BLACK) M6 HIT-6696974.A27 6696974	£1.67	£2.00
176 - CUTTER HOLDER (A) HIT-6696977.A12 6696977	£18.01	£21.61
177 - CUTTER HOLDER (B) HIT-6698659.A38 6698659	£15.99	£19.19
178A - NUT COVER HIT-6699188.A27 6699188	£10.93	£13.12
179A - U-NUT (LEFT HAND) M10 HIT-335759.A6 335759	£1.67	£2.00
180 - SCREW 5X12/W.S HIT-6695414.A29 6695414	£1.67	£2.00
181 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A33 949664	£4.33	£5.20
186 - COVER BRACKET FOR AUS (S) HIT-6696494.A9 6696494	£3.02	£3.63
187 - NYLON HEAD ASS'Y INCLUD.188-195 HIT-6696454.A13 6696454	£48.12	£57.75
188 - COVER HIT-6698794.A12 6698794	£17.58	£21.09
189 - NYLON CORD HIT-000000.A3123 000000	-
190 - SET SCREW HIT-6698795.A25 6698795	-
191 - REEL HIT-6698796.A19 6698796	£7.12	£8.54
192 - RETURN SPRING HIT-6698797.A18 6698797	£1.67	£2.00
193 - BUTTON HIT-6698798.A19 6698798	£7.12	£8.54
194 - CORD GUIDE HIT-6698799.A20 6698799	£7.12	£8.54
195 - CASE HIT-6698800.A12 6698800	£14.11	£16.93
*196 - GUARD FOR AUS (S) HIT-6696980.A17 6696980	£27.49	£32.99
*197 - GUARD HOLDER FOR AUS (S) HIT-6696951.A6 6696951	£3.02	£3.63
*198 - COVER GUARD FOR AUS (S) HIT-6696950.A30 6696950	£11.18	£13.42
*199 - TAPPING SCREW 4X14 FOR AUS (S) HIT-6684751.A12 6684751	£1.67	£2.00
*200 - KNIFE FOR AUS (S) HIT-6684750.A81 6684750	£3.64	£4.37
*201 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR UAE (S) HIT-6685064.A8 6685064	-
*202 - SPRING WASHER M6 (10 PCS.) FOR UAE (S) HIT-949455.A72 949455	£1.67	£2.00
*203 - COVER BRACKET FOR UAE (S) HIT-6696978.A17 6696978	-
204 - LEVEL MARK HIT-000000.A3132 000000	-
206 - LEVEL MARK FOR AUS (SL) HIT-6684852.A14 6684852	-
207 - LEVEL MARK HIT-6684851.A37 6684851	-
208 - MAIN PIPE COMP. HIT-6696558.A0 6696558	£22.07	£26.48
209 - DRIVE SHAFT HIT-6698514.A23 6698514	£19.46	£23.35
210A - HANGER HIT-6600504.A43 6600504	£1.67	£2.00
211 - CAP (A) HIT-6698515.A5 6698515	-
*212 - GUARD FOR UAE (S) HIT-6696981.A13 6696981	-
213 - BOLT WASHER M4 (BLACK) FOR UAE (S) HIT-323210.A21 323210	-
*214 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR UAE (S) HIT-6685068.A3 6685068	-
*215 - NUT M4 (10 PCS.) FOR UAE (S) HIT-949554.A20 949554	£1.67	£2.00
*216 - KNIFE FOR UAE (S) HIT-6696584.A21 6696584	-
217A - FUEL GROMMET TILL 7.2015 HIT-6688156.A34 6688156	-
217B - FUEL GROMMET SINCE 8.2015 HIT-6600358.A50 6600358	£1.67	£2.00
218 - HEX. HOLE BUTTON BOLT M6X25 SINCE 7.2012 FOR AUS (SL) HIT-6684714.A92 6684714	£1.67	£2.00
219 - COVER BRACKET SINCE 7.2012 FOR AUS (SL) HIT-6699011.A1 6699011	-
220 - COVER ASS'Y INCLUD.222-224 SINCE 7.2012 FOR AUS (SL) HIT-6697880.A18 6697880	-
*220 - COVER ASSY NZL (SL) HIT-6697880.A19 6697880	-
221 - COVER HOLDER SINCE 7.2012 FOR AUS (SL) HIT-6698813.A4 6698813	-
222 - GUARD 24 DIA. SINCE 7.2012 FOR AUS (SL) HIT-6690272.A17 6690272	-
223 - KNIFE SINCE 7.2012 FOR AUS (SL) HIT-6693388.A19 6693388	-
224 - TAPPING SCREW 5X20 SINCE 7.2012 FOR AUS (SL) HIT-6684753.A19 6684753	£1.67	£2.00
*240 - HANDLE HOLDER (A).(B) SET INCLUD.162A HIT-6600499.A31 6600499	-
241 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A18 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A64 6684764	£7.64	£9.17
502 - WRENCH 8X10 EXCEPT FOR AUS (SL S) HIT-6696596.A16 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A63 944458	£1.67	£2.00
504B - CUTTER COVER FOR AUS (S) HIT-6684768.A32 6684768	-
505 - PROTECTIVE GLASSES HIT-875769.A67 875769	-
506A - SHOULDER BELT SINGLE FOR UAE (S) HIT-6601420.A10 6601420	-
507 - BLADE 3TX255XT1.8 FOR AUS (S) HIT-6698711.A18 6698711	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CG27EAS Engine Brush Cutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
