Hitachi / Hikoki CG27EAP2 Attachment Spare Parts

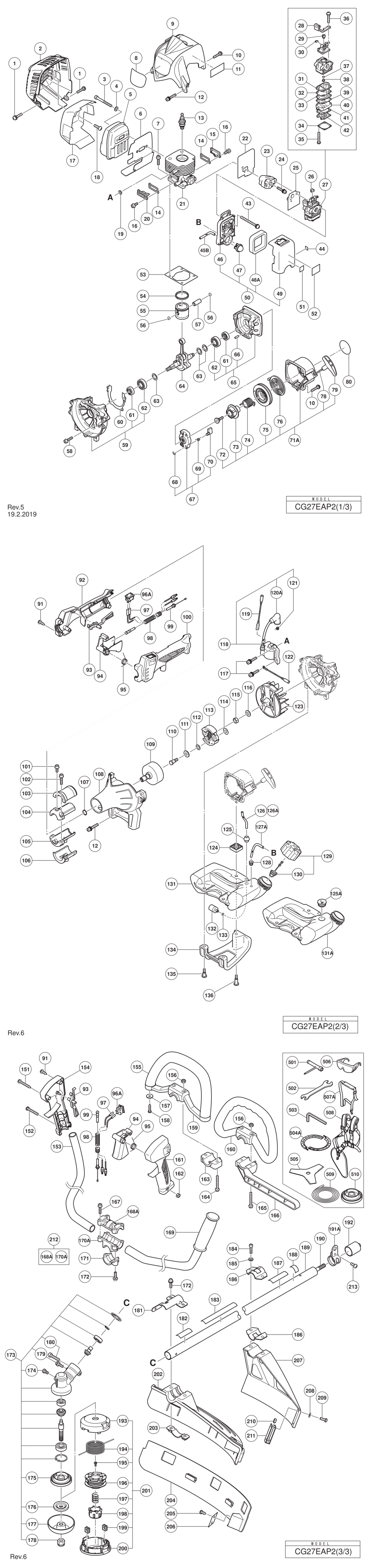

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG27EAP2 Attachment

	Ex VAT	Inc VAT
1 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A12 791045	£2.71	£3.25
2 - MUFFLER COVER HIT-6600322.A8 6600322	£10.60	£12.72
3 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A26 6698384	-
4 - BOLT WASHER M6 (10 PCS.) HIT-949432.A105 949432	£1.67	£2.00
5 - MUFFLER (B) HIT-6600004.A3 6600004	-
6 - HEAT PROTECTION PANEL HIT-6600324.A4 6600324	-
7 - HEX. SOCKET BOLT M5X20 HIT-6696958.A1 6696958	-
8 - BRAND LABEL HIT-000000.A5800 000000	-
*9 - CYLINDER COVER HIT-6697921.A7 6697921	£8.59	£10.31
*9 - CYLINDER COVER FOR USA HIT-6699167.A1 6699167	-
10 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A7 307606	£1.67	£2.00
11 - CAUTION LABEL HIT-000000.A5801 000000	-
12 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A21 6698950	-
*13 - SPARK PLUG ASS'Y BMR7A HIT-6699316.A55 6699316	£12.43	£14.92
*13 - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A0 6699322	£3.73	£4.48
14 - COVER PACKING HIT-6698365.A5 6698365	£1.67	£2.00
15 - SCAVENGING COVER (A) HIT-6698484.A15 6698484	-
16 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A7 6698385	-
17 - MUFFLER HEAT COVER HIT-6600422.A0 6600422	-
18 - TAPPING SCREW D4X10 HIT-6600325.A20 6600325	-
19 - GLASS WASHER HIT-6698700.A5 6698700	£1.67	£2.00
20 - SCAVENGING COVER (B) HIT-6698485.A7 6698485	-
21 - CYLINDER HIT-6698480.A13 6698480	£50.30	£60.36
22 - INTAKE PACKING HIT-6698473.A6 6698473	-
23 - CARBURETOR INSULATOR HIT-6698387.A8 6698387	£4.72	£5.66
24 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A67 6698844	£1.67	£2.00
25 - CARBURETOR PACKING HIT-6698405.A27 6698405	£3.12	£3.74
26 - SWIVEL CAP HIT-6691337.A75 6691337	£1.67	£2.00
27 - CARBURETOR ASS'Y WYC-29 INCLUD.28-42 HIT-6698489.A0 6698489	-
28 - CABLE ADJUST STAY HIT-6699287.A0 6699287	-
29 - SWIVEL HIT-6696830.A19 6696830	-
30 - STOP RING HIT-6684696.A192 6684696	-
31 - PUMP GASKET HIT-6684692.A14 6684692	£17.28	£20.73
32 - PUMP DIAPHRAGM HIT-6684693.A179 6684693	£5.70	£6.84
33 - PUMP PLATE HIT-6691242.A24 6691242	-
34 - DIAPHRAGM COVER-METERING HIT-6685222.A65 6685222	£5.70	£6.84
35 - SET SCREW HIT-6691312.A37 6691312	-
36 - SET SCREW M3X12 HIT-6696829.A29 6696829	-
37 - O-RING HIT-6684695.A25 6684695	£1.67	£2.00
38 - JET HIT-000000.A5802 000000	-
39 - CIRCUIT PLATE HIT-6691234.A34 6691234	-
40 - PUMP BODY COMP. HIT-6696828.A19 6696828	£13.28	£15.93
41 - DIAPHRAGM PACKING-METERING HIT-6685220.A111 6685220	£2.81	£3.37
42 - METERING DIAPHRAGM HIT-6684690.A16 6684690	£24.05	£28.86
43 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A4 307224	£1.67	£2.00
44 - MARK PLATE (T) FOR EUROPE HIT-6600327.A20 6600327	-
45B - FUEL PIPE HIT-6601444.A9 6601444	-
46 - AIR CLEANER HOUSING HIT-66965549.A10 66965549	£15.62	£18.74
47 - PRIMING PUMP COMP. HIT-6685139.A11 6685139	£10.67	£12.80
48A - CLEANER SPONGE HIT-6600704.A12 6600704	-
49 - AIR CLEANER COVER HIT-6696831.A13 6696831	£9.68	£11.62
50 - AIR CLEANER ASS'Y INCLUD.46-49 HIT-6696549.A25 6696549	£13.36	£16.03
51 - PRIMER LABEL FOR EUROPE HIT-6699000.A31 6699000	-
52 - START LABEL (A) HIT-000000.A5803 000000	-
53 - CYLINDER PACKING HIT-6698366.A14 6698366	£1.67	£2.00
54 - PISTON RING HIT-6686121.A24 6686121	£6.47	£7.76
55 - PISTON HIT-6698483.A0 6698483	-
56 - CIR CLIP HIT-6684590.A23 6684590	£1.67	£2.00
57 - PISTON PIN HIT-6684591.A69 6684591	£3.29	£3.95
58 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A66 6698386	-
59 - CRANK CASE (B) ASS'Y INCLUD.61 HIT-6698370.A5 6698370	£23.00	£27.60
60 - CRANK CASE PACKING HIT-6698371.A13 6698371	£1.67	£2.00
61 - OIL SEAL TB 12227 HIT-6684607.A11 6684607	£4.07	£4.88
62 - BALL BEARING 6001 C3 HIT-6684608.A184 6684608	£5.70	£6.84
63 - SHIM T0.5 HIT-6698490.A11 6698490	-
64 - CRANK SHAFT COMP. HIT-6698488.A6 6698488	-
65 - CRANK CASE (A) ASS'Y INCLUD.61 HIT-6698369.A13 6698369	£17.94	£21.53
66 - KNOCK PIN 4X12 HIT-6696947.A28 6696947	-
67 - STARTER PULLEY ASS'Y INCLUD.68-70 HIT-6684681.A15 6684681	£18.16	£21.79
68 - STOP RING E-5 HIT-6684683.A0 6684683	-
69 - STARTER PAWL SPRING HIT-6684684.A101 6684684	£3.29	£3.95
70 - STARTER PAWL HIT-6684685.A16 6684685	£5.07	£6.08
71A - RECOIL STARTER BODY ASS'Y INCLUD.72-76 HIT-6601570.A58 6601570	£23.15	£27.78
72 - SET SCREW HIT-6684679.A20 6684679	£2.98	£3.57
73 - CAM PLATE HIT-6699996.A13 6699996	£4.28	£5.13
74 - DAMPER SPRING HIT-6684677.A20 6684677	£6.66	£7.99
75 - STARTER ROPE REEL HIT-6699997.A76 6699997	-
76 - RECOIL SPRING HIT-6684675.A126 6684675	£8.82	£10.58
78 - STARTER ROPE 3.5X860 HIT-6684674.A15 6684674	£5.70	£6.84
79 - STARTER HANDLE HIT-6684680.A100 6684680	£5.87	£7.04
80 - NAME PLATE HIT-000000.A5805 000000	-
*91 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A165 305812	£1.67	£2.00
*91 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) FOR (S) HIT-302086.A7 302086	£1.67	£2.00
*92 - HANDLE (B) FOR EUROPE (SL) HIT-6696487.A33 6696487	£5.88	£7.06
*92 - HANDLE (B) FOR USA HIT-6696942.A8 6696942	-
93 - LOCK LEVER FOR EUROPE HIT-6696490.A1 6696490	£2.84	£3.41
94 - LEVER HIT-6696488.A1 6696488	£1.67	£2.00
95 - SPRING (A) HIT-6696489.A36 6696489	£2.84	£3.41
96A - STOP SWITCH HIT-6601275.A71 6601275	£1.67	£2.00
*97 - STOP SWITCH CORD HIT-6696491.A39 6696491	-
*97 - STOP SWITCH CORD FOR (S) HIT-6696592.A20 6696592	-
*98 - PROTECTION TUBE HIT-6696967.A3 6696967	-
*98 - PROTECTION TUBE FOR (S) HIT-6696594.A17 6696594	-
*99 - THROTTLE WIRE COMP. HIT-6696560.A15 6696560	£8.35	£10.02
*99 - THROTTLE WIRE COMP. FOR (S) HIT-6696593.A0 6696593	£7.12	£8.54
*100 - HANDLE (A) FOR EUROPE (SL) HIT-6696486.A1 6696486	£5.88	£7.06
*100 - HANDLE (A) FOR USA HIT-6696941.A15 6696941	-
101 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A1 6699176	£1.67	£2.00
102 - HEX. HOLE BOLT 5X22/S HIT-6695492.A29 6695492	-
103 - ANTI VIBE RUBBER (A) HIT-6696963.A3 6696963	£3.12	£3.74
104 - PIPE HOLDER (A) HIT-6698643.A33 6698643	£3.56	£4.27
105 - PIPE HOLDER (B) HIT-6698644.A14 6698644	£3.56	£4.27
106 - ANTI VIBE RUBBER (B) HIT-6696964.A37 6696964	£3.02	£3.63
107 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A47 939542	£2.98	£3.57
*108 - FAN CASE HIT-6697922.A7 6697922	-
*108 - FAN CASE FOR USA HIT-6699169.A0 6699169	-
109 - CLUTCH SHAFT HIT-6699400.A13 6699400	£14.52	£17.43
110 - STEP BOLT HIT-6696469.A1 6696469	£2.84	£3.41
111 - BENT WASHER 8 HIT-6684648.A4 6684648	£1.67	£2.00
112 - CLUTCH PLATE (A) HIT-6696546.A8 6696546	£1.67	£2.00
113 - CLUTCH HIT-6696948.A19 6696948	£15.02	£18.03
114 - CLUTCH WASHER (B) HIT-6696547.A28 6696547	£1.67	£2.00
115 - FLYWHEEL NUT HIT-6685337.A13 6685337	-
116 - BOLT WASHER M8 (BLACK) HIT-323212.A14 323212	£1.67	£2.00
117 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A68 6698388	£1.67	£2.00
118 - IGNITION COIL ASS'Y INCLUD.120A HIT-6698492.A8 6698492	£28.42	£34.11
119 - CORD HIT-6698495.A18 6698495	-
120A - PLUG CAP HIT-6601421.A44 6601421	£1.67	£2.00
121 - PLUG CAP METAL HIT-6699186.A12 6699186	£1.67	£2.00
122 - EARTH CORD HIT-6696545.A36 6696545	-
123 - MAGNETO ROTOR COMP. HIT-6698396.A24 6698396	£11.52	£13.82
124 - SPACER HIT-6699558.A19 6699558	-
125 - FUEL GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA) HIT-6688156.A72 6688156	-
125A - FUEL GROMMET SINCE 8.2015 (EXCEPT FOR USA) HIT-6600358.A77 6600358	£1.67	£2.00
*126 - FUEL PIPE HIT-6698716.A45 6698716	£5.61	£6.73
126A - FUEL PIPE FOR USA HIT-6601525.A11 6601525	-
127A - FUEL PIPE L70 HIT-6699014.A54 6699014	£2.77	£3.32
128 - RETURN GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA) HIT-6697846.A76 6697846	£2.08	£2.50
129 - FUEL TANK CAP ASS'Y INCLUD.130 HIT-6698402.A19 6698402	-
130 - TANK CAP CHAIN HIT-6698732.A62 6698732	-
*131 - TANK (B) TILL 7.2015 HIT-6600317.A17 6600317	£12.36	£14.83
*131 - TANK FOR USA HIT-6699719.A11 6699719	£23.15	£27.78
131A - TANK (C) SINCE 8.2015 HIT-6600354.A0 6600354	-
132 - PUMP FILTER HIT-6600351.A83 6600351	£4.45	£5.34
133 - CLIP HIT-6696949.A33 6696949	£1.67	£2.00
134 - STAND HIT-6694787.A10 6694787	£3.56	£4.27
135 - FLANGE BOLT HIT-6696557.A23 6696557	£1.67	£2.00
136 - BOLT (W/FLANGE) L27.8 HIT-6698991.A15 6698991	-
151 - TAPPING SCREW (W/FLANGE) D4X30 FOR (S) HIT-323837.A25 323837	-
152 - MACHINE SCREW M5X30 (BLACK) FOR (S) HIT-323041.A28 323041	-
153 - HANDLE RIGHT FOR (S) HIT-6698637.A3 6698637	-
154 - HANDLE (B) FOR (S) HIT-6696590.A24 6696590	-
155 - HANDLE GRIP FOR USA HIT-6691098.A13 6691098	£10.90	£13.08
156 - NUT M6 (10 PCS.) FOR USA HIT-949556.A1 949556	£1.67	£2.00
157 - BRAKE SHAFT WASHER FOR USA HIT-6689681.A0 6689681	£1.67	£2.00
158 - TAPPING SCREW 5X20 FOR USA HIT-6695255.A34 6695255	-
159 - LOOP HANDLE BLACK HIT-6691046.A0 6691046	£16.30	£19.56
160 - LOOP HANDLE FOR EUROPE (SL) HIT-6696975.A21 6696975	£13.36	£16.03
161 - HANDLE (A) FOR (S) HIT-6696588.A24 6696588	-
162 - NUT M5 (BLACK) FOR (S) HIT-302012.A0 302012	£1.67	£2.00
163 - HANDLE HOLDER (A) FOR USA HIT-6696972.A5 6696972	-
164 - BOLT 6X43/P (BLACK) FOR USA HIT-6684838.A11 6684838	£1.67	£2.00
165 - BOLT (BLACK) M6 FOR EUROPE (SL) HIT-6696974.A12 6696974	£1.67	£2.00
166 - BARRIER FOR EUROPE (SL) HIT-6696973.A21 6696973	£8.35	£10.02
167 - HEX. HOLE BOLT M5X25/S FOR (S) HIT-6684709.A8 6684709	£1.67	£2.00
168A - HANDLE HOLDER (A) SINCE 7.2015 FOR (S) HIT-6600500.A18 6600500	-
169 - HANDLE (LEFT) FOR (S) HIT-6698638.A16 6698638	-
170A - HANDLE HOLDER (B) SINCE 7.2015 FOR (S) HIT-6600501.A13 6600501	-
171 - HANDLE HOLDER (C) FOR (S) HIT-6696578.A13 6696578	-
*172 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (SL) HIT-6684714.A157 6684714	£1.67	£2.00
*172 - HEX. HOLE BUTTON BOLT M6X25 FOR (S) HIT-6684714.A158 6684714	£1.67	£2.00
*173 - GEAR CASE ASS'Y 3BB (A) INCLUD.174-180 HIT-6699402.A7 6699402	-
*173 - GEAR CASE ASS'Y 3BB (B) INCLUD.174 HIT-6696976.A7 6696976	£60.73	£72.88
174 - BOLT (W/PLUS) M6X8 HIT-6684737.A43 6684737	-
175 - CUTTER HOLDER (A) FOR EUROPE HIT-6696977.A18 6696977	£18.01	£21.61
176 - CUTTER HOLDER (B) FOR EUROPE HIT-6698659.A34 6698659	£15.99	£19.19
177 - NUT COVER FOR EUROPE HIT-6699188.A35 6699188	£10.93	£13.12
178 - U-NUT (LEFT HAND) M10 FOR EUROPE HIT-335759.A15 335759	£1.67	£2.00
179 - SCREW 5X12/W.S HIT-6695414.A20 6695414	£1.67	£2.00
180 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A31 949664	£4.33	£5.20
181 - COVER BRACKET FOR EUROPE HIT-6696494.A8 6696494	£3.02	£3.63
*182 - CAUTION LABEL (HEDGE) HIT-6600328.A4 6600328	-
*183 - CAUTION MARK (USA) HIT-6600447.A4 6600447	-
*183 - CAUTION MARK FOR (S) HIT-6600450.A9 6600450	-
184 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA HIT-6685064.A24 6685064	-
185 - SPRING WASHER M6 (10 PCS.) FOR USA HIT-949455.A17 949455	£1.67	£2.00
186 - COVER BRACKET FOR USA HIT-6696978.A12 6696978	-
187 - LEVEL MARK (B) FOR USA HIT-6600446.A7 6600446	-
188 - LEVEL MARK FOR EUROPE HIT-6684851.A41 6684851	-
189 - MAIN PIPE COMP. HIT-6696558.A12 6696558	£22.07	£26.48
190 - DRIVE SHAFT HIT-6698514.A20 6698514	£19.46	£23.35
191A - HANGER FOR EUROPE HIT-6600504.A34 6600504	£1.67	£2.00
192 - CAP (A) FOR EUROPE HIT-6698515.A9 6698515	-
*193 - COVER HIT-6698794.A7 6698794	£17.58	£21.09
*193 - COVER FOR USA HIT-6698937.A18 6698937	£22.42	£26.91
194 - NYLON CORD HIT-000000.A4543 000000	-
195 - SET SCREW HIT-6698795.A33 6698795	-
*196 - REEL HIT-6698796.A11 6698796	£7.12	£8.54
*196 - REEL FOR USA HIT-6698939.A18 6698939	-
*197 - RETURN SPRING HIT-6698797.A26 6698797	£1.67	£2.00
*197 - RETURN SPRING FOR USA HIT-6698941.A18 6698941	-
*198 - BUTTON HIT-6698798.A11 6698798	£7.12	£8.54
*198 - BUTTON FOR USA HIT-6698940.A0 6698940	-
*199 - CORD GUIDE HIT-6698799.A28 6698799	£7.12	£8.54
*199 - CORD GUIDE FOR USA HIT-6698942.A0 6698942	-
*200 - CASE HIT-6698800.A7 6698800	£14.11	£16.93
*200 - CASE FOR USA HIT-6698938.A0 6698938	-
*201 - NYLON HEAD ASS'Y INCLUD.193-200 HIT-6696454.A7 6696454	£48.12	£57.75
*201 - NYLON HEAD ASS'Y INCLUD.193-200 FOR USA HIT-6698639.A2 6698639	£31.92	£38.31
202 - GUARD FOR EUROPE HIT-6696980.A26 6696980	£27.49	£32.99
203 - GUARD HOLDER FOR EUROPE HIT-6696951.A21 6696951	£3.02	£3.63
204 - COVER GUARD FOR EUROPE HIT-6696950.A16 6696950	£11.18	£13.42
205 - TAPPING SCREW 4X14 FOR EUROPE HIT-6684751.A57 6684751	£1.67	£2.00
206 - KNIFE FOR EUROPE HIT-6684750.A21 6684750	£3.64	£4.37
207 - GUARD FOR USA HIT-6696583.A4 6696583	-
208 - BOLT WASHER M4 (BLACK) FOR USA HIT-323210.A43 323210	-
209 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA HIT-6685068.A52 6685068	-
210 - NUT M4 (10 PCS.) FOR USA HIT-949554.A56 949554	£1.67	£2.00
211 - KNIFE FOR USA HIT-6696584.A16 6696584	-
212 - HANDLE HOLDER (A).(B) SET INCLUD.168A HIT-6600499.A18 6600499	-
213 - MACHINE SCREW M5X10 (10 PCS.) FOR EUROPE HIT-949236.A88 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A53 6684764	£7.64	£9.17
502 - WRENCH 8X10 FOR EUROPE HIT-6696596.A7 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A141 944458	£1.67	£2.00
504A - CUTTER COVER FOR (S) HIT-6684768.A51 6684768	-
505 - BLADE 3TX255XT1.8 FOR (S) HIT-6698711.A9 6698711	-
506 - PROTECTIVE GLASSES HIT-875769.A92 875769	-
507A - SHOULDER BELT SINGLE FOR EUROPE (SL) HIT-6601420.A37 6601420	-
508 - SHOULDER BELT ASS'Y W FOR (S) HIT-6696184.A15 6696184	£25.30	£30.36
509 - MEGA TWIST CORD FOR USA HIT-6698640.A4 6698640	-
510 - CUTTER HOLDER (A) FOR USA HIT-6696977.A11 6696977	£18.01	£21.61

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CG27EAP2 Attachment Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
