Hitachi / Hikoki CG24ECP Engine Grass Trimmer/brush Cutter Spare Parts

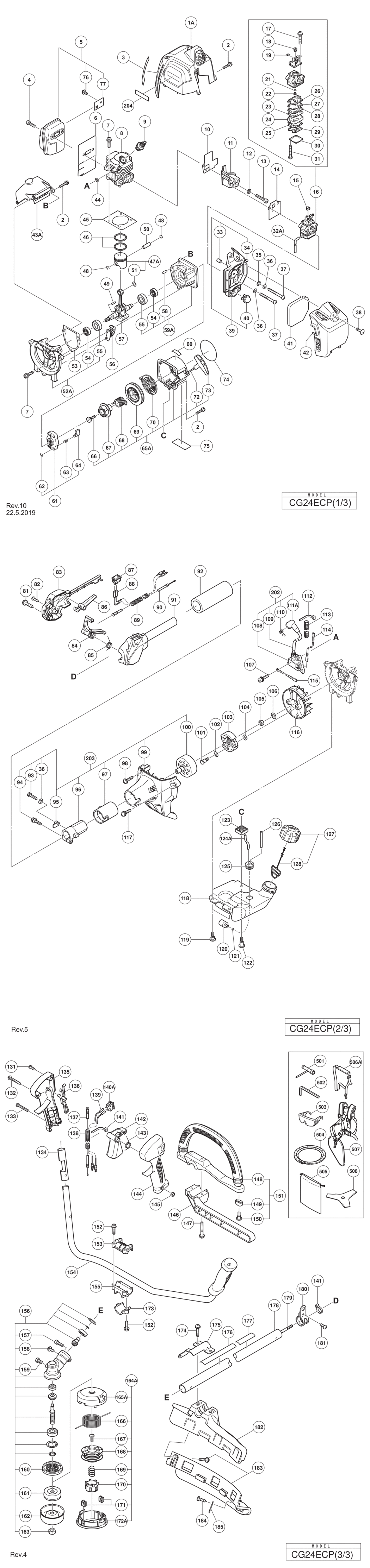

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG24ECP Engine Grass Trimmer/brush Cutter

	Ex VAT	Inc VAT
1A - CYLINDER COVER HIT-6600543.A3 6600543	-
2 - SEAL LOCK HEX. SOCKET HD. BOLT M4 HIT-6600918.A0 6600918	-
3 - IDENTIFICATION LABEL HIT-000000.A5201 000000	-
4 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16 HIT-6600518.A17 6600518	-
5 - MUFFLER INCLUD.76 HIT-6600908.A5 6600908	£38.68	£46.42
6 - HEAT PROTECTION PANEL HIT-6600517.A6 6600517	-
7 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X22 HIT-6601339.A19 6601339	-
8 - CYLINDER N24 HIT-6600902.A8 6600902	-
9 - IGNITION PLUG (TORCH L7RTC) HIT-6600542.A0 6600542	-
10 - INTAKE PACKING HIT-6600524.A3 6600524	-
11 - CARBURETOR INSULATOR HIT-6600525.A6 6600525	-
12 - SPRING WASHER D6 HIT-6600910.A25 6600910	-
13 - SEAL LOCK HEX. SOCKET HD. BOLT M6X27 HIT-6601358.A15 6601358	-
14 - CARBURETOR PACKING HIT-6698405.A32 6698405	£3.12	£3.74
15 - SWIVEL CAP HIT-6691337.A79 6691337	£1.67	£2.00
16 - CARBURETOR ASS'Y WYC-43 INCLUD.17-31 HIT-6600526.A1 6600526	-
17 - THROTTLE SET SCREW HIT-6684698.A61 6684698	-
18 - SWIVEL HIT-6696830.A29 6696830	-
19 - STOP RING HIT-6684696.A201 6684696	-
21 - O-RING HIT-6684695.A16 6684695	£1.67	£2.00
22 - MAIN JET HIT-000000.A5202 000000	-
23 - CIRCUIT PLATE HIT-6691234.A38 6691234	-
24 - PUMP BODY COMP. HIT-6696828.A26 6696828	£13.28	£15.93
25 - DIAPHRAGM PACKING-METERING HIT-6685220.A125 6685220	£2.81	£3.37
26 - PUMP GASKET HIT-6684692.A11 6684692	£17.28	£20.73
27 - PUMP DIAPHRAGM HIT-6684693.A188 6684693	£5.70	£6.84
28 - PUMP PLATE HIT-6691242.A21 6691242	-
29 - METERING DIAPHRAGM HIT-6684690.A9 6684690	£24.05	£28.86
30 - DIAPHRAGM COVER-METERING HIT-6685222.A51 6685222	£5.70	£6.84
31 - SET SCREW HIT-6691312.A41 6691312	-
32A - FUEL PIPE HIT-6601444.A0 6601444	-
33 - COLLAR M5 HIT-6601340.A4 6601340	-
34 - CHOKE VALVE HIT-6601341.A10 6601341	-
35 - WAVE WASHER 8 HIT-334242.A25 334242	-
36 - BOLT WASHER D5 HIT-6685407.A14 6685407	-
37 - SCREW M5X55 HIT-6694914.A18 6694914	-
38 - SPECIAL SCREW M5 HIT-6600532.A3 6600532	-
39 - AIR CLEANER BASE ASS'Y INCLUD.33 HIT-6600911.A1 6600911	-
40 - PRIMING PUMP COMP. HIT-6685139.A21 6685139	£10.67	£12.80
41 - AIR CLEANER ELEMENT HIT-6600529.A10 6600529	-
42 - AIR CLEANER COVER HIT-6600530.A6 6600530	-
43A - MUFFLER TANK PARTITION HIT-6601430.A5 6601430	£4.28	£5.13
44 - GLASS WASHER HIT-6698700.A11 6698700	£1.67	£2.00
45 - CYLINDER PACKING HIT-6600510.A3 6600510	-
46 - PISTON RING HIT-6698404.A16 6698404	£7.03	£8.44
47A - PISTON SET INCLUD.51 HIT-6601476.A4 6601476	-
48 - CIR CLIP HIT-6684590.A29 6684590	£1.67	£2.00
49 - WOODRUFF KEY 3X13X4.5 HIT-6601343.A18 6601343	-
50 - PISTON PIN HIT-6601344.A9 6601344	-
51 - SHIM HIT-6600909.A0 6600909	-
52A - CRANK CASE (F) ASS'Y INCLUD.54 HIT-6601619.A13 6601619	-
53 - CRANK CASE PACKING HIT-6600514.A3 6600514	-
54 - OIL SEAL TB 12227 HIT-6684607.A30 6684607	£4.07	£4.88
55 - BALL BEARING 6001 C3 HIT-6684608.A167 6684608	£5.70	£6.84
56 - CRANK CASE GUARD HIT-6600924.A16 6600924	-
57 - CRANK SHAFT HIT-6600511.A8 6600511	-
58 - KNOCK PIN 4X12 HIT-6696947.A30 6696947	-
59A - CRANK CASE (R) ASS'Y INCLUD.54 HIT-6600906.A4 6600906	-
60 - TANK MARK LABEL (50:1) HIT-6698921.A19 6698921	-
61 - STARTER PULLEY ASS'Y INCLUD.62-64 HIT-6684681.A10 6684681	£18.16	£21.79
62 - D4E RETAINING RING HIT-6685101.A68 6685101	-
63 - STARTER PAWL SPRING HIT-6684684.A107 6684684	£3.29	£3.95
64 - STARTER PAWL HIT-6684685.A10 6684685	£5.07	£6.08
65A - RECOIL STARTER BODY ASS'Y INCLUD.66-70 HIT-6601570.A62 6601570	£23.15	£27.78
66 - SET SCREW HIT-6684679.A12 6684679	£2.98	£3.57
67 - CAM PLATE HIT-6699996.A15 6699996	£4.28	£5.13
68 - DAMPER SPRING HIT-6684677.A25 6684677	£6.66	£7.99
69 - STARTER ROPE REEL HIT-6699997.A74 6699997	-
70 - RECOIL SPRING HIT-6684675.A121 6684675	£8.82	£10.58
72 - STARTER ROPE 3.5X860 HIT-6684674.A20 6684674	£5.70	£6.84
73 - STARTER HANDLE HIT-6684680.A105 6684680	£5.87	£7.04
74 - NAME PLATE HIT-000000.A5203 000000	-
75 - CAUTION PLATE (EU) HIT-000000.A5204 000000	-
76 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) HIT-6601439.A10 6601439	-
77 - SPARK ARRESTER HIT-6601438.A8 6601438	-
81 - MACHINE SCREW (W/WASHERS) M5X20 (BLACK) FOR (SL) HIT-995096.A6 995096	£1.67	£2.00
82 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) FOR (SL) HIT-305812.A157 305812	£1.67	£2.00
83 - HANDLE (B) FOR (SL) HIT-6600566.A1 6600566	-
84 - THROTTLE LEVER FOR (SL) HIT-6600568.A1 6600568	-
85 - SPRING (A) FOR (SL) HIT-6696489.A29 6696489	£2.84	£3.41
86 - TRIGGER LOCKOUT FOR (SL) HIT-6600567.A6 6600567	-
87 - STOP SWITCH FOR (SL) HIT-6601275.A79 6601275	£1.67	£2.00
88 - STOP SWITCH CORD FOR (SL) HIT-6696491.A32 6696491	-
89 - PROTECTION TUBE FOR (SL) HIT-6696967.A11 6696967	-
90 - THROTTLE WIRE COMP FOR (SL) HIT-6600569.A6 6600569	-
91 - HANDLE (A) FOR (SL) HIT-6600565.A6 6600565	-
92 - GRIP (LOOP) FOR (SL) HIT-6600538.A0 6600538	£7.75	£9.30
93 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5 HIT-6600919.A11 6600919	-
94 - HEX. SOCKET HD. BOLT (W/WASHERS) M5 HIT-6600372.A26 6600372	-
95 - METAL FITTING HIT-6689664.A28 6689664	£6.12	£7.35
96 - PIPE HOLDER HIT-6600551.A6 6600551	-
97 - DAMPER (HOLDER) HIT-6600552.A5 6600552	-
98 - TAPPING SCREW D4.5X16 HIT-6698878.A13 6698878	£1.67	£2.00
99 - FAN CASE HIT-6600548.A6 6600548	-
100 - CLUTCH SHAFT HIT-6600549.A5 6600549	-
101 - STEP BOLT HIT-6696469.A16 6696469	£2.84	£3.41
102 - BENT WASHER 8 HIT-6684648.A20 6684648	£1.67	£2.00
103 - CLUTCH HIT-6696948.A18 6696948	£15.02	£18.03
104 - CLUTCH WASHER (B) HIT-6696547.A36 6696547	£1.67	£2.00
105 - FLYWHEEL NUT HIT-6685337.A27 6685337	-
106 - BOLT WASHER M8 (BLACK) HIT-323212.A3 323212	£1.67	£2.00
107 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A83 6698388	£1.67	£2.00
108 - IGNITION COIL HIT-6600515.A8 6600515	-
109 - CORD INSULATION TUBE L100 HIT-6600051.A8 6600051	-
110 - PLUG CAP METAL HIT-6699186.A8 6699186	£1.67	£2.00
111A - PLUG CAP HIT-6601421.A41 6601421	£1.67	£2.00
112 - BAND HIT-6698943.A26 6698943	-
113 - PROTECTION TUBE L50 HIT-6601345.A5 6601345	-
114 - CORD HIT-6698495.A16 6698495	-
115 - EARTH CORD HIT-6696545.A39 6696545	-
116 - MAGNETO ROTOR HIT-6699289.A44 6699289	£24.52	£29.43
117 - MACHINE SCREW (W/WASHERS) M5X18 HIT-6600920.A0 6600920	-
118 - TANK HIT-6600519.A4 6600519	-
119 - BOLT (W/FLANGE) L17.8 HIT-6696574.A28 6696574	£1.67	£2.00
120 - PUMP FILTER HIT-6600351.A81 6600351	£4.45	£5.34
121 - CLIP HIT-6696949.A26 6696949	£1.67	£2.00
122 - BOLT (W/FLANGE) L23.8 HIT-6698512.A8 6698512	£1.67	£2.00
123 - SPACER HIT-6699558.A18 6699558	-
124A - FUEL PIPE L70 HIT-6699014.A50 6699014	£2.77	£3.32
125 - FUEL GROMMET HIT-6600358.A73 6600358	£1.67	£2.00
126 - FUEL PIPE L140 HIT-6600521.A2 6600521	£1.67	£2.00
127 - FUEL TANK CAP ASS'Y INCLUD.128 HIT-6698402.A39 6698402	-
128 - TANK CAP CHAIN HIT-6698732.A64 6698732	-
131 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) FOR (S) HIT-302086.A1 302086	£1.67	£2.00
132 - TAPPING SCREW (W/FLANGE) D4X30 FOR (S) HIT-323837.A17 323837	-
133 - MACHINE SCREW M5X30 (BLACK) FOR (S) HIT-323041.A21 323041	-
134 - HANDLE COLLAR FOR (S) HIT-6600503.A4 6600503	-
135 - HANDLE (B) FOR (S) HIT-6696590.A21 6696590	-
136 - LOCK LEVER FOR (S) HIT-6696490.A9 6696490	£2.84	£3.41
137 - THROTTLE WIRE COMP. FOR (S) HIT-6600900.A3 6600900	£3.56	£4.27
138 - PROTECTION TUBE L770 FOR (S) HIT-6601347.A1 6601347	-
139 - STOP SWITCH CORD FOR (S) HIT-6696592.A23 6696592	-
140A - STOP SWITCH FOR (S) HIT-6601275.A78 6601275	£1.67	£2.00
141 - BAND FOR (S) HIT-6698943.A27 6698943	-
142 - LEVER FOR (S) HIT-6696488.A8 6696488	£1.67	£2.00
143 - SPRING (A) FOR (S) HIT-6696489.A28 6696489	£2.84	£3.41
144 - HANDLE (A) FOR (S) HIT-6696588.A23 6696588	-
145 - NUT M5 (BLACK) FOR (S) HIT-302012.A8 302012	£1.67	£2.00
146 - BARRIER FOR (SL) HIT-6696973.A29 6696973	£8.35	£10.02
147 - BOLT (BLACK) M6 FOR (SL) HIT-6696974.A3 6696974	£1.67	£2.00
148 - LOOP HANDLE FOR (SL) HIT-6601348.A6 6601348	-
149 - CUSHION RUBBER FOR (SL) HIT-6601349.A1 6601349	-
150 - BOLT (W/FLANGE) L23.8 FOR (SL) HIT-6698512.A9 6698512	£1.67	£2.00
151 - LOOP HANDLE ASS'Y INCLUD.148-150 FOR (SL) HIT-6600922.A7 6600922	-
152 - HEX. HOLE BOLT M5X25/S FOR (S) HIT-6684709.A45 6684709	£1.67	£2.00
153 - HANDLE HOLDER (A) FOR (S) HIT-6600561.A5 6600561	-
154 - U-HANDLE FOR (S) HIT-6600896.A2 6600896	-
155 - HANDLE HOLDER (B) FOR (S) HIT-6600562.A4 6600562	-
156 - GEAR CASE ASS'Y 3BB (D) INCLUD.157-163 HIT-6600553.A1 6600553	-
157 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.) HIT-949662.A6 949662	£3.64	£4.37
158 - SCREW 5X12/W.S HIT-6695414.A3 6695414	£1.67	£2.00
159 - BOLT (W/PLUS) M6X8 HIT-6684737.A54 6684737	-
160 - CUTTER HOLDER (A) HIT-6601354.A5 6601354	£8.01	£9.61
161 - CUTTER HOLDER (B) HIT-6601355.A2 6601355	-
162 - NUT COVER HIT-6699188.A38 6699188	£10.93	£13.12
163 - U-NUT (LEFT HAND) M10 HIT-335759.A19 335759	£1.67	£2.00
164A - NYLON HEAD ASS'Y INCLUD.165A HIT-6601432.A1 6601432	-
165A - COVER HIT-000000.A5205 000000	-
166 - NYLON CORD HIT-000000.A5207 000000	-
167 - SET SCREW FOR (SL) HIT-6698795.A48 6698795	-
168 - REEL FOR (SL) HIT-6698796.A0 6698796	£7.12	£8.54
169 - RETURN SPRING FOR (SL) HIT-6698797.A37 6698797	£1.67	£2.00
170 - BUTTON FOR (SL) HIT-6698798.A0 6698798	£7.12	£8.54
171 - CORD GUIDE FOR (SL) HIT-6698799.A39 6698799	£7.12	£8.54
172A - CASE HIT-000000.A5209 000000	-
173 - HANDLE HOLDER (C) FOR (S) HIT-6600563.A6 6600563	-
174 - HEX. HOLE BUTTON BOLT M6X25 HIT-6684714.A155 6684714	£1.67	£2.00
175 - COVER BRACKET HIT-6699443.A6 6699443	-
176 - CAUTION MARK HIT-6600450.A4 6600450	-
177 - LEVEL MARK (B) FOR (SL) HIT-6600446.A3 6600446	-
178 - MAIN PIPE (T1.1) HIT-6600556.A3 6600556	-
179 - DRIVE SHAFT HIT-6600558.A4 6600558	-
180 - HANGER HIT-6600504.A21 6600504	£1.67	£2.00
181 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A35 949236	£1.67	£2.00
182 - GUARD ASS'Y (EU) HIT-6600528.A5 6600528	-
183 - COVER GUARD (EU) ASS'Y HIT-6601356.A5 6601356	-
184 - TAPPING SCREW 4X14 HIT-6684751.A26 6684751	£1.67	£2.00
185 - KNIFE HIT-6684750.A69 6684750	£3.64	£4.37
202 - IGNITION COIL ASS'Y INCLUD.108-111A HIT-6601380.A9 6601380	£45.18	£54.22
203 - FAN CASE (A) ASS'Y INCLUD.36 HIT-6601378.A2 6601378	-
204 - BRAND LABEL HIT-000000.A5211 000000	-
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A101 6684764	£7.64	£9.17
502 - HEX. BAR WRENCH 4MM HIT-944458.A26 944458	£1.67	£2.00
503 - PROTECTIVE GLASSES HIT-875769.A6 875769	-
504 - CUTTER COVER FOR (S) HIT-6684768.A14 6684768	-
505 - TOOL BAG HIT-6600923.A2 6600923	-
506A - SHOULDER BELT SINGLE FOR (SL) HIT-6601420.A16 6601420	-
507 - SHOULDER BELT ASS'Y W FOR (S) HIT-6696184.A1 6696184	£25.30	£30.36
508 - BLADE 3TX255XT1.8 FOR (S) HIT-6698711.A23 6698711	-
601 - AIR CLEANER ELEMENT HIT-6601389.A6 6601389	-
